Summary of Contents for Recordex 500SCT

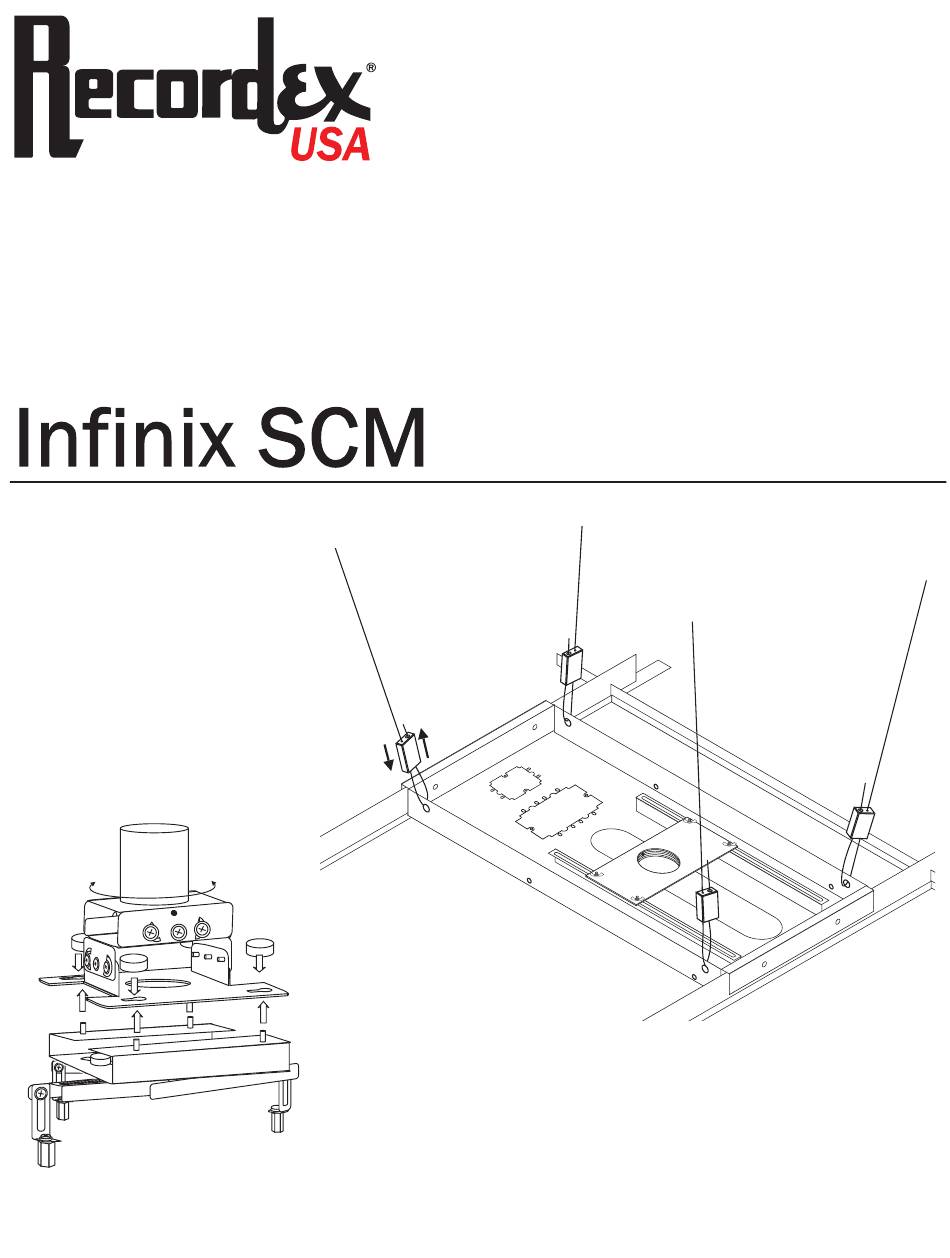

- Page 1 Installation Guide Lightweight Suspended Ceiling Projector Mount Kit KIT INCLUDES: 500SCT, 500UCM ENGLISH 500PLB (optional)
- Page 2 No part of this user’s guide may be reproduced in any Copyright ©2008 Recordex USA, Inc. All rights reserved. form without the express written permission of Recordex USA, Inc. Note: User’s are permitted to print copies of this guide for personal use.
-
Page 3: Warranty
If the Mounting Kit develops a covered defect within the first year, Recordex will, at its option, either repair or replace the Mounting Kit at no charge, provided that the original Mounting Kit is returned during the warranty period. -
Page 4: Customer Support
We strive to build the best product possible and we desire that every customer feel confident recommending Recordex products. If you are not fully satisfied please call our Customer Service Center today and we will do our best to make things right. - Page 5 Pan Screw w/Locking washer and flat washer 3” or 6” Extension Pipe M3 Standoff with Screw & Washers M4 Standoff with Screw & Washers M5 Standoff with Screw & Washers M6 Standoff with Screw & Washers ©2008 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 6 Recordex Infinix SCM Ceiling Mounting Plate–A1 (SKU:500SCT) 23.38 [594] 1.125 [28.6] 23.38 [594] 1.125 [28.6] 8.0 [203] Extension Column – B1 (3” or 6”) (SKU:500006) 1.5 [38] 1.5 [38] 3.0 [76] 6.0 [152] ©2008 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 7 Universal Projector Sled with Adjustable Spider Mounting Arms – C2 & C3 (SKU:500UCM) 5.47 [139] 5.47 [139] 2.13 [54] 1.38 [35] 5.47 [139] 5.47 [139] 3.50 [89] 5.47 [139] 3.94 [100] 4.72 [120] ©2008 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 8 Installation Guide ® Recordex Infinix SCM Optional Plenum Box (SKU:500PLB) 14.0 [356] 7.67 (195) ©2008 Recordex USA, Inc. All rights reserved. Version: 1.1...
-
Page 9: Tools Required For Installation
10. Mark where the safety wire anchors should be installed. 11. Remove the Ceiling Mounting Plate and the ceiling tile. 12. OPTIONAL: Cut out gang box opening where marked in step 8 above. ©2008 Recordex USA, Inc. All rights reserved. Version: 1.1... -
Page 10: Safety Wire Installation
11. Use the loop end of the safety wire to easily secure the wire to the concrete anchor. (See Fig 6) 12. Do not secure wires to tray. Proceed to next page ©2008 Recordex USA, Inc. All rights reserved. Version: 1.1... - Page 11 NOTE: You will need to loosen the set screw to adjust column height if adjustment is necessary. 3. Install the finishing ring around the extension column to cover the edges of tile where the hole was cut. ©2008 Recordex USA, Inc. All rights reserved. Version: 1.1...
- Page 12 The plenum box is designed to help reduce fire hazard by containing heat and flame to the plenum box if an electrical fire were to begin inside the plenum box. The plenum box (ITEM: 500PLB) is available from any Authorized Recordex Reseller.
-
Page 13: Projector Mount Installation
8. After the project is secured to the mounting arms securely tighten the C7 Screws screws (C7) to ensure that the mounting arms will not move out of their current position (Figure 12) ©2008 Recordex USA, Inc. All rights reserved. Version: 1.1... - Page 14 (C6), two on either side, making the roll adjustment, and then tightening all four screws to set the position. C10-13 Figure 13. Attach Projector & Sled to Ceiling Mount ©2008 Recordex USA, Inc. All rights reserved. Version: 1.1...
-
Page 15: Contact Technical Support
1. Make sure you’ve read this manual thoroughly before calling. 2. Write down the model number & serial number of your duplicator. Model#: _____________________ Date of Purchase: _____________________ Place of Purchase: _____________________ 4. Call 478-237-5501 ask for technical support. ©2008 Recordex USA, Inc. All rights reserved. Version: 1.1...
