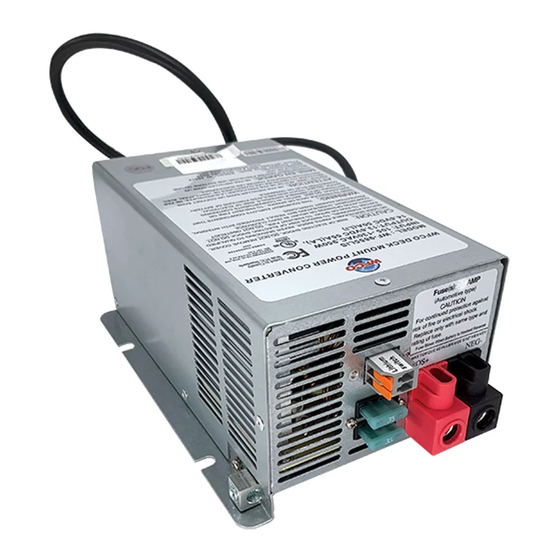

- Page 1 Operator’s Manual WF-9800LiS Series WF-9900 Series Deckmount Converter-Charger Distributed in the U.S.A. and Canada by ARTERRA DISTRIBUTION (877) 294-8997 Warranty: warranty@wfcoelectronics.com Fax (574) 294-8698 Power PROs Technical Support www.wfcoelectronics.com (877) 294-8997...
-
Page 2: Table Of Contents
TA B L E O F C O N T E N T S SAFETY INFORMATION ......................3 GENERAL INFORMATION Reverse Battery Protection ......................3 Automatic Cooling Fan ........................ 4 Over-Temperature Protection ...................... 4 Electronic Current Limiting ......................4 Short Circuit Protection ....................... 4 CIRCUIT PROTECTION DC Fuses ............................ -
Page 3: General Information
The WF-9800LiS Series Converter-Chargers will charge the 12-volt house battery if installed. A battery does not have to be installed for WF-9800LiS Series Converter-Chargers operation. When a battery is installed, two reverse polarity fuses are installed to protect the converter circuitry. -
Page 4: Automatic Cooling Fan
If this occurs, the unit will recover once loads are reduced. Short-Circuit Protection Should a short circuit occur in the RV, the WF-9800LiS Series Converter-Charger will drop the voltage output to zero volts. If the short-circuit condition is removed and no other fault conditions are detected, the converter will resume normal operation. -
Page 5: Circuit Protection
WF-9800LiS Series Converter-Charger Fuses DC Fuses (12 Volts) The DC fuse receptacle on the rear panel of the WF-9800LiS Series Converter-Charger has space for 1 (one) or 2 (two) Reverse Battery Protection fuses (see Figure 1 above). These fuses should be replaced with ATC or ATO automotive type fuses, such as Littelfuse type 257 or Bussmann type ATC. -
Page 6: Operational Features - Lithium
Figure 2 OPERATIONAL FEATURES Lithuium Converter Modes Two-Stage Smart Charging The two-stage “smart” charger continuously measures the battery voltage output and regulates the amount of charge using two modes of operation: Bulk and Absorption mode. Converter Modes of Operation Understanding output voltages of a two-stage converter. Figure 3... -
Page 7: Bulk Mode
Bulk Mode: This mode is designed with 2 purposes in mind. First, to quickly restore the energy back into the battery. Second, to ensure the lithium cells inside the battery remain balanced. This is accomplished by boosting the output voltage to 14.6 VDC and allowing the maximum current to flow as required by the loads. -
Page 8: Troubleshooting Instructions
Troubleshooting the WF-9800LiS Series Converter-Charger Converter Output Voltage Before checking the WF-9800LiS Series Converter-Charger output voltage, disconnect the battery cables at the battery. Make sure the converter is plugged into a live AC source (105-130 Volts). Check the converter output voltage at the battery with a voltmeter. Place the meter probes on the disconnected battery cables;... -
Page 9: Reverse Polarity Fuses
Reverse Polarity Fuses If there is no DC output coming from the WF-9800LiS Series Converter-Charger output lugs, first check the reverse polarity fuses on the rear panel. Then, visually inspect the fuses for any breaks in the fuse element. If no breaks are found, use a continuity tester to check for continuity. -
Page 10: Installation Instructions
The front of the enclosure should not be obstructed to allow free air flow for the cooling fan (Figure 6). An 8AWG copper conductor shall be used to bond the WF-9800LiS Series Converter-Charger to the vehicle frame. -
Page 11: Ac Connections
14.6 vdc. AC Connections The WF-9800LiS Series Converter-Chargers receive power from the power cord on the opposite end of the enclosure from the DC lugs. The WF-9835LiS, WF-9845LiS and WF-9855LiS have a standard 15 Amp plug. - Page 12 Figure 7 Figure 8...
- Page 13 Figure 9...
-
Page 14: Specifications
United States, Alaska, Hawaii and the Provinces of Canada. WFCO warrants, to the owner, that its products are free from defects in material and workmanship under normal use and service based on its intended use and function. - Page 16 W F C O E L E C T R O N I C S . C O M...
