Summary of Contents for CMS SonicShield II

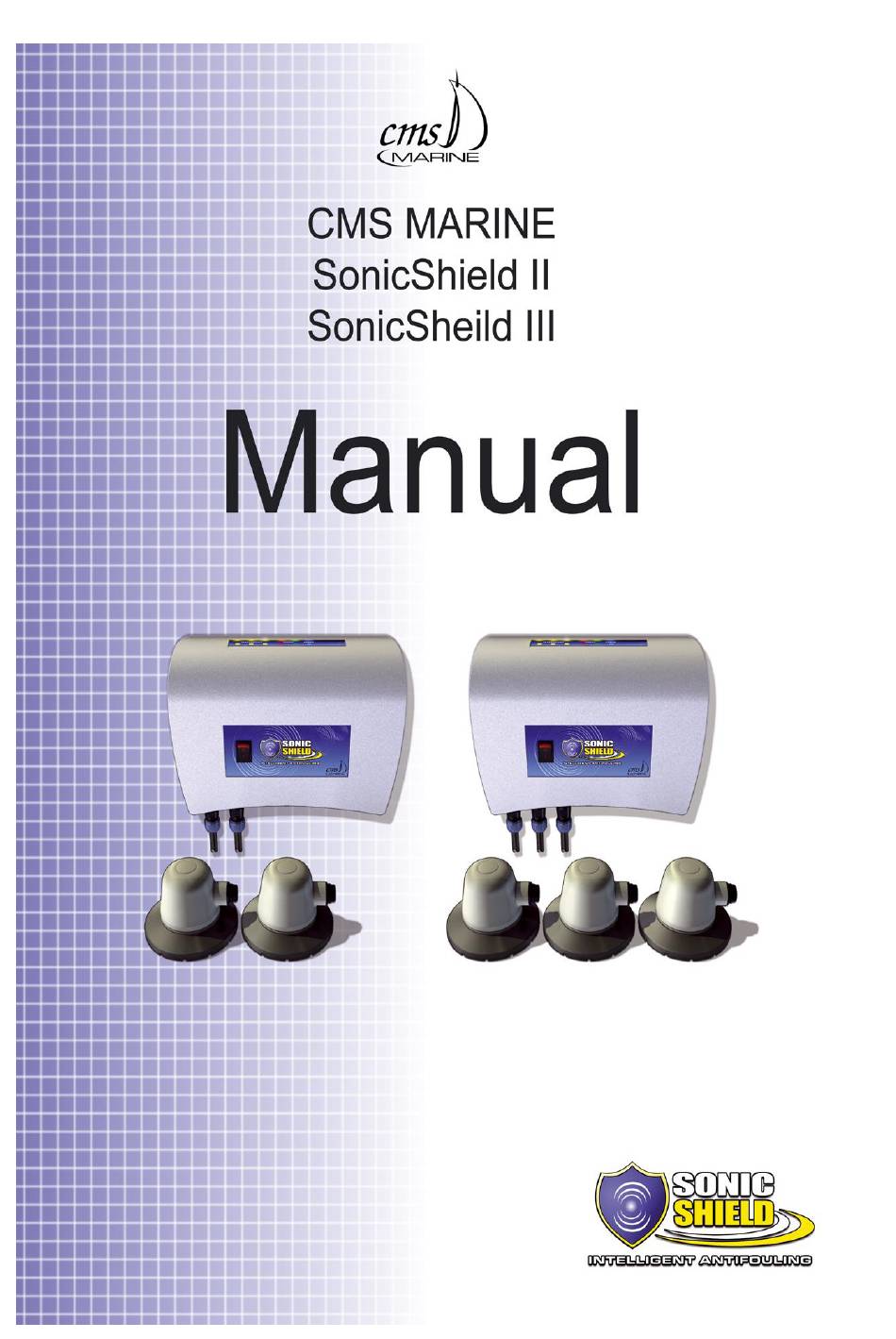

  • Page 1 Issue 6...
  • Page 2 Transducer fitting Page 13 Waterproof Connections Page 14 Cable connections Page 15 Troubleshooting CMS Marine 4 St Albans Road Gloucester GL2 5FW +44 (0) 1452 380100 www.cmsmarine.co.uk info@cmsmarine.co.uk Issue 6 31/1/14 - CMS Marine - +44 (0) 1452 380100 – info@cmsmarine.co.uk...
  • Page 3 Modifications to your AC system are outside of the scope of this guide. PLEASE ENSURE ALL POWER IS SWITCHED OFF WHEN CONNECTING OR REMOVING CABLES FROM THE INTELLIGENT CONTROL UNIT. IF IN DOUBT PLEASE SEEK PROFESSIONAL ADVICE. Issue 6 31/1/14 - CMS Marine - +44 (0) 1452 380100 – info@cmsmarine.co.uk...
  • Page 4: Installation

    Fit the control box  Run the power and transducer cables  Switch ON. PLUS Customers will also have to install the alarm system covered in the separate installation guide. Issue 6 31/1/14 - CMS Marine - +44 (0) 1452 380100 – info@cmsmarine.co.uk...
  • Page 5 30cm from the centre line. The additional transducer should be located towards the bow. It can be located either port or starboard of the centre line. Issue 6 31/1/14 - CMS Marine - +44 (0) 1452 380100 – info@cmsmarine.co.uk...
  • Page 6 The unit above was installed in the aft port cabin on the outside of a locker, this gave good access to the main control panel, battery and also the Aft transducers Issue 6 31/1/14 - CMS Marine - +44 (0) 1452 380100 – info@cmsmarine.co.uk...
  • Page 7: Fitting - Transducers

    After preparing the hull area, place the transducer and nut in the proposed position and draw around the outside of the nut to give you a guide. Issue 6 31/1/14 - CMS Marine - +44 (0) 1452 380100 – info@cmsmarine.co.uk...
  • Page 8 Using the guide you drew earlier apply a generous amount of the epoxy ensuring you cover the entire area of the hull where the transducer and nut will be located. Try to ensure the epoxy resin is as level as possible. Issue 6 31/1/14 - CMS Marine - +44 (0) 1452 380100 – info@cmsmarine.co.uk...
  • Page 9 GET IT RIGHT. IF YOU HAVE ANY QUESTIONS OR REQUIRE ANY SUPPORT CALL US ON +44 1452 380100. Example of a transducer that has been left in place to cure. This is how your transducer should look before you move to the next transducer. Issue 6 31/1/14 - CMS Marine - +44 (0) 1452 380100 – info@cmsmarine.co.uk...
  • Page 10: Fitting - Control Unit

    If you require any support or advice at this stage please contact our technical team who will be more than happy to offer some advice. Issue 6 31/1/14 - CMS Marine - +44 (0) 1452 380100 – info@cmsmarine.co.uk...
  • Page 11 You will need to ensure a permanently live supply from your battery to the control unit. CMS Marine advise making a direct connection to your battery. YOU MUST install a 10 AMP inline fuse as close to the battery on the live supply as possible. Failure to install the fuse could result in damage to your control unit and will invalidate your warranty.
  • Page 12 12V/24V battery supply, we do not advise running from only AC as if shore power is removed you will not have any cleaning. It is not necessary to install the AC for the system to run. Issue 6 31/1/14 - CMS Marine - +44 (0) 1452 380100 – info@cmsmarine.co.uk...
  • Page 13 ¼ turn to ensure they are tight to the hull. If the transducers are not tight they will not be acting at maximum efficiency. Issue 6 31/1/14 - CMS Marine - +44 (0) 1452 380100 – info@cmsmarine.co.uk...
  • Page 14 Then connect plug to socket. We advise checking the silicon grease on the transducer connectors every 6 Months. Repeat this process from the rest of the transducers supplied with your kit. Issue 6 31/1/14 - CMS Marine - +44 (0) 1452 380100 – info@cmsmarine.co.uk...
  • Page 15 12 hour period. Pressing the switch again at any point during the 12 hour period will cancel the sleep mode and the system will resume running as normal. Issue 6 31/1/14 - CMS Marine - +44 (0) 1452 380100 – info@cmsmarine.co.uk...
  • Page 16: Troubleshooting

    Flashing Red = Fault – No current or High current detected on Transducer 5 Flashes and 5 Beeps = Fault – System off due to Error – CONTACT CMS MARINE for Advise If you see any other combination of lights or you do not have any lights, please contact us.
