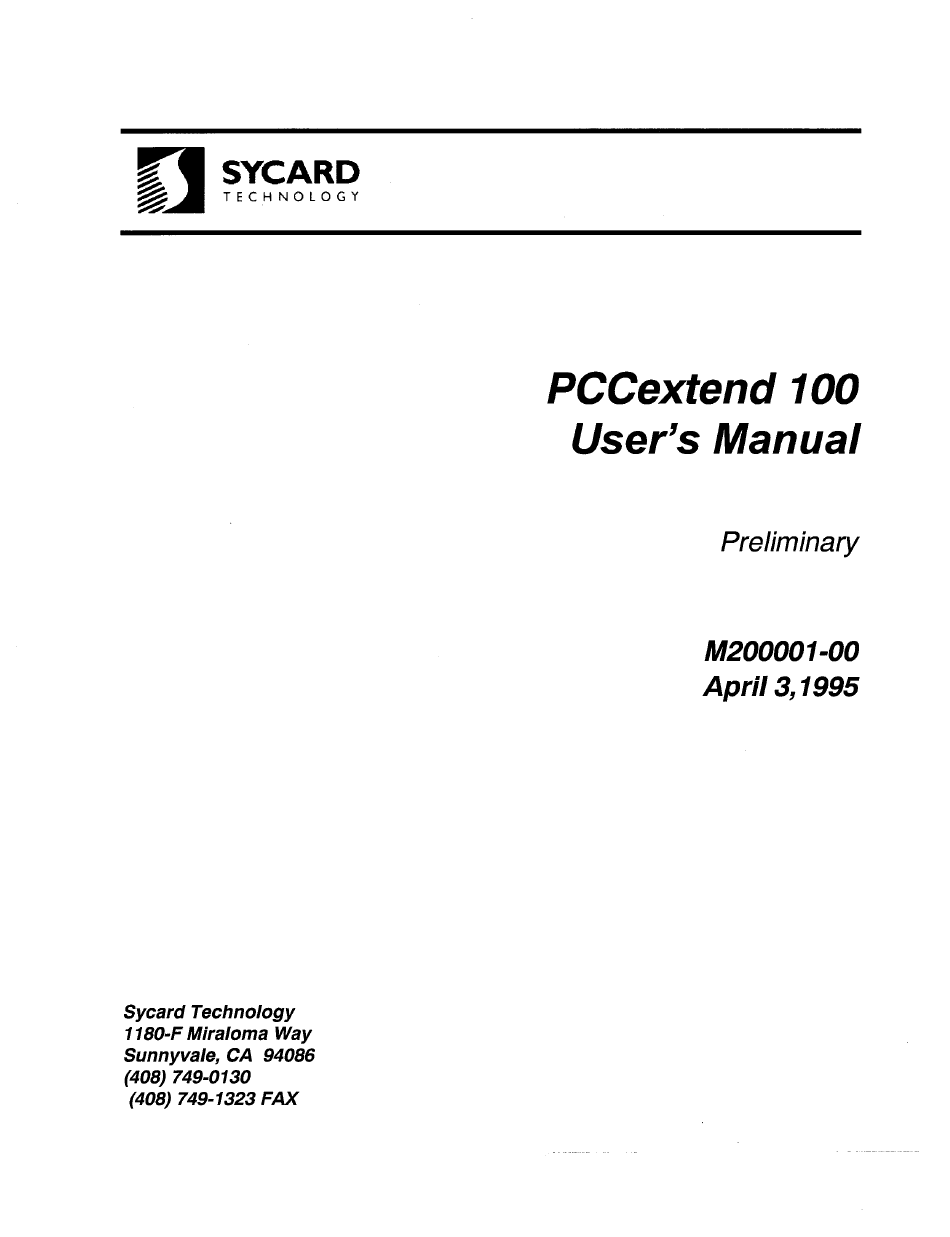

  • Page 1 BLACKBERRY Ex. 1004, page 1...
  • Page 2 BLACKBERRY Ex. 1004, page 2...
  • Page 3 PCCextend 100 User’s Manual Page 1 1.0 Introduction 1.0 Introduction Sycard Technology's PCCextend 100 PCMCIA extender card is a debug tool for PCMCIA development and test. PCCextend offers the following features: • PCCswitch simulates card removal/insertion cycle • Low profile design compatible with type I, II and III sockets •...
  • Page 4 Page 2 PCCextend 100 User’s Manual PCCextend PCMCIA CARD EXTENDER Figure 2.0-1 The PCCextend 100 Figure 2.0-1 The PCCextend 100 ©1994-95 Sycard Technology M200001-00 BLACKBERRY Ex. 1004, page 4...

  • Page 5: Test Points

    2.3 Using the PCCswitch 2.3 Using the PCCswitch PCCextend 100 includes the PCCswitch, which can be used to momentarily interrupt the CD1 and CD2 signals. The PCCswitch is centrally located on the PCCextend 100 between the termination area and test points. When properly configured, the PCCswitch can interrupt the card detect signals (-CD1 and -CD2) to simulate a card removal/insertion cycle.
  • Page 6 Page 4 PCCextend 100 User’s Manual When the jumpers are in this position the PCCswitch is not in the circuit. In the “B” position, the host socket’s CD1 and CD2 is routed through the PCCswitch to the CD1 signal on the PCCextend socket. When a card is inserted, CD1 and CD2 may be momentarily interrupted by pressing the PCCswitch.
  • Page 7 PCCextend 100 User’s Manual Page 5 BVD1 -REG BVD2 -WAIT -INPACK RESET -VS2 -IOWR -VS1 -IORD -CE2 Figure 2.4-2 Termination Area - Solder Side Figure 2.4-2 Termination Area - Solder Side 2.5 PCCextend Current Protection Device 2.5 PCCextend Current Protection Device A resettable fuse protects the host from excessive current consumption from the card.
  • Page 8 Page 6 PCCextend 100 User’s Manual Appendix Appendix A. PC Card 68-Pin Interface A. PC Card 68-Pin Interface PC Card Pinout - Memory Mode PC Card Pinout - Memory Mode Name Name Description Description Name Name Description Description Ground Ground...
  • Page 9 PCCextend 100 User’s Manual Page 7 PC Card Pinout - I/O Mode Name Name Description Description Name Name Description Description Ground Ground Data Bit 3 CD1# Card Detect 1 Data Bit 4 Data Bit 11 Data Bit 5 Data Bit 12...
  • Page 10 Page 8 PCCextend 100 User’s Manual 68 pin Card Side Connector - 5 Volt Pin 1 Pin 34 Surface A Surface B Pin 35 Pin 68 68 pin Socket - 5 Volt (System side) Pin 34 Pin 1 Front view...
  • Page 11 PCCextend 100 User’s Manual Page 9 B. PC Card Timing Reference B. PC Card Timing Reference B.1 I/O Read Timing B.1 I/O Read Timing A[2 5:0] T101 RE G# T100 T102 CE[1:0]# T103 T104 T115 T105 IORD# IN P A C K #...

  • Page 12: I/O Write Timing

    Page 10 PCCextend 100 User’s Manual B.2 I/O Write Timing B.2 I/O Write Timing A[25:0] T1 01 R EG # T100 T102 CE[1:0]# T103 T1 15 T105 IOW R# T104 IOIS16# T108 T114 W AIT# T109 T1 10 T111 T1 13...

  • Page 13: Memory Read Timing

    PCCextend 100 User’s Manual Page 11 B.3 Memory Read Timing B.3 Memory Read Timing T100 T101 T102 A[25:0], REG# T114 T111 T103 CE[1:0]# T104 T105 T115 T106 T107 WAIT# T108 T110 T109 T112 Memory Read Timing Memory Read Timing Symbol...

  • Page 14: Memory Write Timing

    Page 12 PCCextend 100 User’s Manual B.4 Memory Write Timing B.4 Memory Write Timing T100 A[25:0], REG# T117 T101 CE[1:0]# T102 T104 T103 T106 T107 T105 T108 T109 T110 WAIT# T118 T114 T111 T112 T113 Dout T115 T116 Memory Write Timing...
  • Page 15 PCCextend 100 User’s Manual Page 13 C. PCCextend 100 Schematic C. PCCextend 100 Schematic ©1994-95 Sycard Technology M200001-00 BLACKBERRY Ex. 1004, page 15...
  • Page 16 *CE2 CD13 CD14 PCMCIA CD11 CD12 *CD1 2 X 17 CA[0..25] CA[0..25] HOST SIDE CONNECTOR Sycard Technology Title PCCextend 100 - Host Connector Size Document Number 140002 FILE=PCCEXT1.S31 Date: April 4, 1995 Sheet 1 of BLACKBERRY Ex. 1004, page 16...
  • Page 17 CDF15 0 OHM C31 CAP CA15 CAF15 C16 CAP 0 OHM C42 CAP CA[0..25] Sycard Technology CA[0..25] Title PCCextend 100 - Data/Address Filters Size Document Number 140002 FILE=PCCEXT2.S31 Date: April 4, 1995 Sheet 2 of BLACKBERRY Ex. 1004, page 17...
  • Page 18 0 OHM C58 CAP 0 OHM Sycard Technology C59 CAP *CD2 *CD2F Title *CD2 *CD2F PCCextend 100 - SIGNAL FILTERS 0 OHM Size Document Number C60 CAP 140002 FILE=PCCEXT3.S31 Date: January 11, 1995 Sheet 3 of BLACKBERRY Ex. 1004, page 18...
  • Page 19 CDF8 CDF1 CDF9 CDF2 CDF10 *CD2F *CD2F VS2F PCMCIA VS2F CAF[0..25] CAF[0..25] SOCKET SIDE CONNECTOR Sycard Technology Title PCCextend 100 - Card Connector Size Document Number 140002 FILE=PCCEXT4.S31 Date: April 6, 1995 Sheet 4 of BLACKBERRY Ex. 1004, page 19...
