ESM1 Installation Guide

1. I

NTRODUCTION

There are two ESM1 variants, identical other than power supply needs



ESM1‐A AC Power Required (85‐264 Volts AC, 50‐60Hz)



ESM1‐B DC Power required (9.6‐36 Volts)

This document provides basic information on the installation and connection of

the EarthSense ESM1 Insulation Monitor to an IT system. Complete

information on setup and specification is available from

www.mrd.com.au/dl/esm1‐UM.pdf

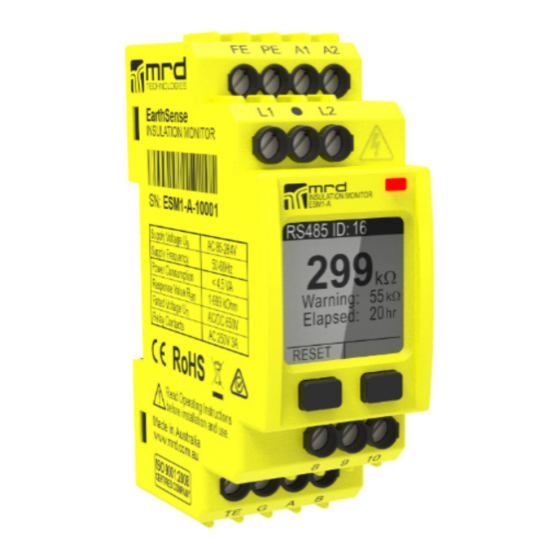

The ESM1 features a daylight readable LCD, and all functions can be accessed

and controlled using the two button interface. The current button function is

identified using on‐screen labels, and the menu system is simple to operate

and provides guidance and feedback. Depending on experience and

knowledge, it is possible to install the ESM1 without consulting the manual.

2. P

RODUCT

The ESM1 monitors the Insulation Resistance (IR) of an attached circuit and

alerts system operators if the IR falls below a user‐selected trip value for longer

than a pre‐set period. Alert devices are:



On‐screen display and LED colour/flash



Relay activated devices and External communication using RS485.

There are two User selectable trip values, R

and Alarm. In the event of an alert, until Reset, the device will:



Continue to monitor and display the current IR value



Display the highest recorded alert State (Warning or Alarm)



Display the lowest IR value recorded



Count and Display the number of hours since alert started



Change LED colour and Activate Relay(s) (If the alert state

continues beyond the Trip Delay period)

Warning and Alarm have the following settable parameters:



Trip (Response) Value (k) and Trip Delay (seconds)



Relay Activated (1 or 2) and Activated State ( Normally Open or

Closed)

Reset are done manually (on the device) or remotely (using RS485 or a

connected reset switch), or the device can be configured to Auto‐Reset if the IR

increases above the Warning value.

3. CE

ECLARATION OF

View the CE Declaration of Conformity at http://www.mrd.com.au/dl/esm1‐DoC.pdf

EarthSense ESM1 Insulation Monitor

ESM1 Installation Guide PRINT VERSION.docx

ESM1-A AC Power Supply

ESM1-B DC Power Supply

ESCRIPTION

and R

AN1

ONFORMITY

Commercial in confidence

, referred to as Warning

AN2

Version 1.30

12Sep2017

Table of Contents

Need help?

Do you have a question about the EarthSense ESM1 and is the answer not in the manual?

Questions and answers

Summary of Contents for MRD EarthSense ESM1

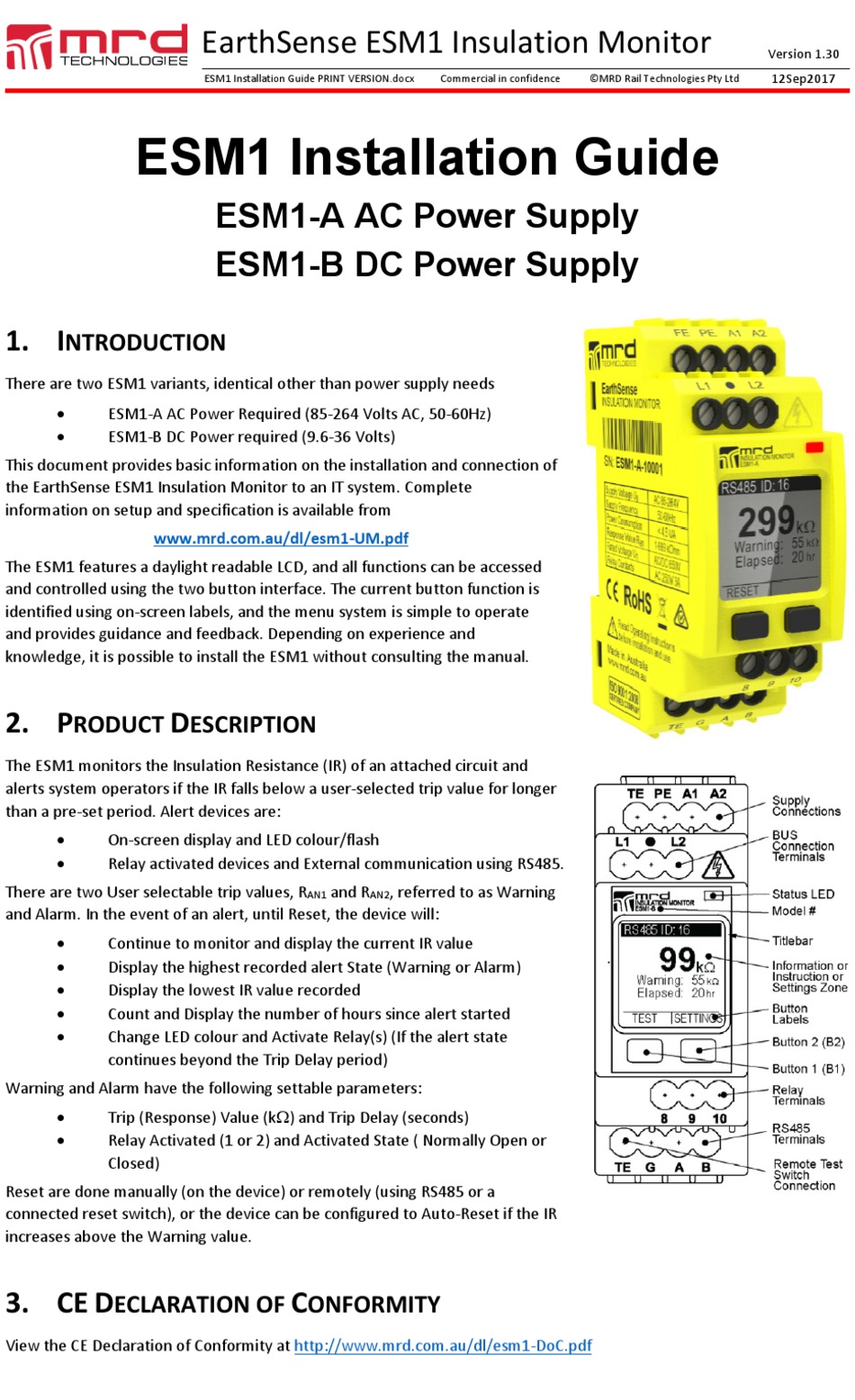

Page 1 EarthSense ESM1 Insulation Monitor Version 1.30 12Sep2017 ESM1 Installation Guide PRINT VERSION.docx Commercial in confidence ©MRD Rail Technologies Pty Ltd ESM1 Installation Guide ESM1-A AC Power Supply ESM1-B DC Power Supply 1. I NTRODUCTION There are two ESM1 variants, identical other than power supply needs  ESM1‐A AC Power Required (85‐264 Volts AC, 50‐60Hz)  ESM1‐B DC Power required (9.6‐36 Volts) This document provides basic information on the installation and connection of the EarthSense ESM1 Insulation Monitor to an IT system. Complete information on setup and specification is available from www.mrd.com.au/dl/esm1‐UM.pdf The ESM1 features a daylight readable LCD, and all functions can be accessed and controlled using the two button interface. The current button function is identified using on‐screen labels, and the menu system is simple to operate and provides guidance and feedback. Depending on experience and knowledge, it is possible to install the ESM1 without consulting the manual. 2. P RODUCT ESCRIPTION The ESM1 monitors the Insulation Resistance (IR) of an attached circuit and ...
