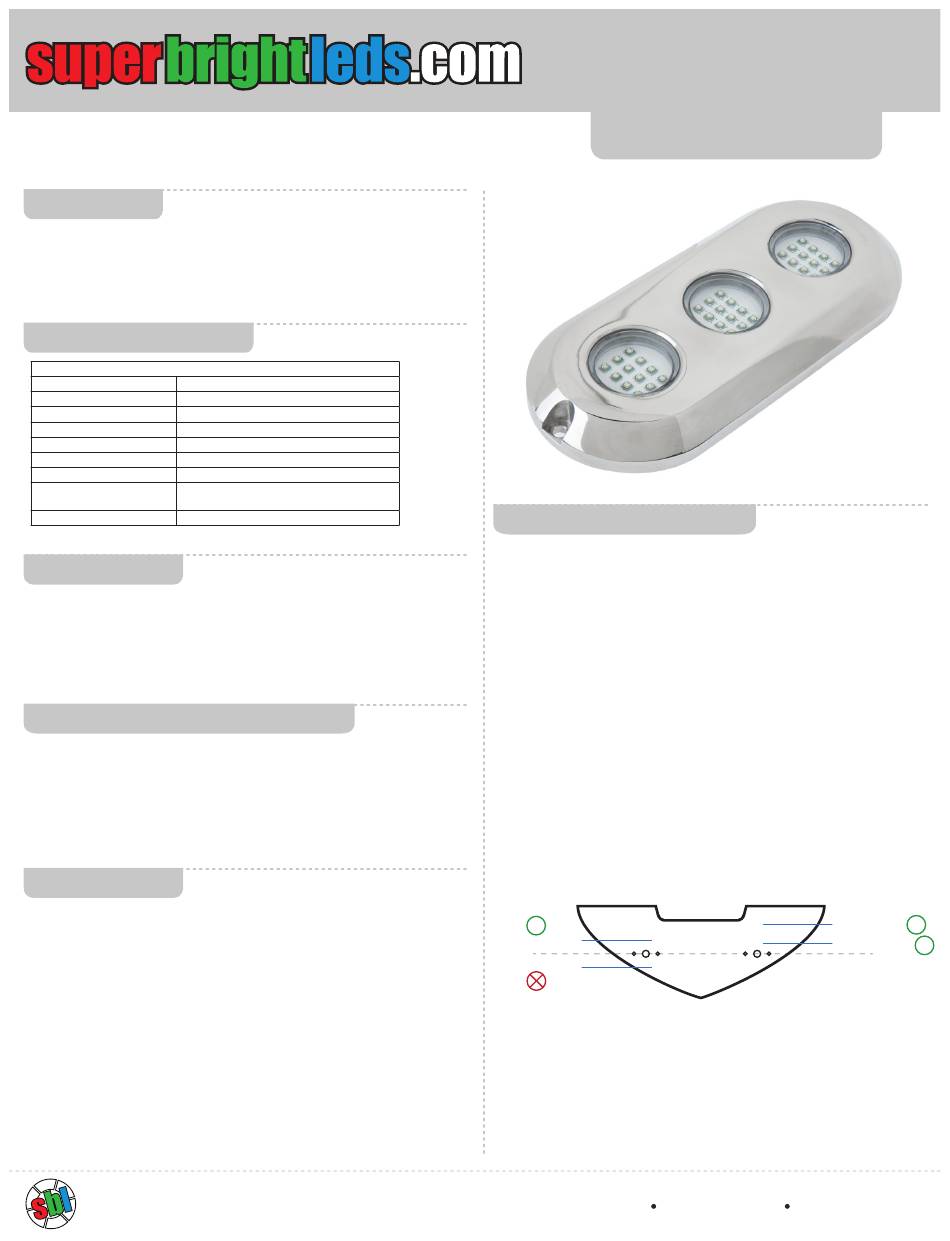

superbrightleds UBL-x180 User Manual

Important: Read all instructions prior to installation.
Underwater LED Boat Light
Features
316L Marine Grade Stainless Steel
Poly-Carbonate Lens
5 Ft Power Wire (17AWG)
Internal Driver
Over-Temp Protection
Waterproof IP68
Specifications
180W LED Underwater Boat Light
Input Voltage
Current Draw
Total Power Consumption
Operating Temperature
Available Colors
LED Lifetime
Warranty
Dimensions 6.87 in L (17.45cm), 3.15 in W (8cm)
Weight
Parts Included
Underwater Boat Light
1- (UBL-x180)
2- M5 Machine screws
2- M5 Flat washers
2 - M5 Locking Nuts
2 - M5 Self Tapping screws
2- Neoprene washers
Recommended Tools (not included)
Drill and Drill Bits
#2 Phillips Screwdriver
Heavy Grit Sandpaper
Pencil (Wax Pencil recommended for fiberglass)
Isopropyl/Denatured Alcohol
Lint Free Cloths
Masking Tape
Marine Sealant
Caution
LIGHTS MUST BE SUBMERGED TO AVOID OVERHEATING.
USE OUT OF WATER WILL DECREASE LED LIFETIME AND CAUSE EARLY
FAILURE.
LIGHTS HAVE OVER TEMPERATURE PROTECTION (FOR TESTING
PURPOSES ONLY) AND WILL SHUT OFF WHEN MAX TEMP (194 F / 90 C)IS
REACHED.
DO NOT OPERATE LIGHTS OUT OF WATER FOR MORE THAN 2 MINUTES
FOR TESTING.
LIGHTS WILL BE HOT IF OPERATED OUT OF WATER FOR EXTENDED
PERIODS.
INSTALLATION OF LIGHTS MUST BE DONE WHILE BOAT IS OUT OF WATER
AND DRY.
SBL IS NOT RESPONSIBLE FOR ANY INJURY OR PROPERTY DAMAGE
INCURRED DUE TO IMPROPER INSTALLATION.
9 ~ 32 VDC
8.7 A @ 13.5VDC
117.5W @ 13.5VDC
-22°~122° F (-30~50° C)
Red, Green, Blue, White
50,000 Hours
3 Years
0.67in H (1.7cm )
2.39 lb (1.08kg)
Installation Instructions
TIP: Know your hull; most common type is fiberglass.
Wood, metal and carbon fiber are other less common hull types.
For metal or carbon fiber hull, first be sure to mount an insulating
material between metal or carbon fiber surfaces and lights to
prevent galvanic corrosion.
If uncertain about type of hull, please contact boat manufacturer
for assistance.
1. Determine desired mounting location on boat's transom.
Be sure to check actual draft water level if operating LED
lights at speed. (See Diagram Below)
Recommended mounting depth between 6-8" below
waterline for best effect. Be sure that mounting location is
free of any obstructions before drilling through hole. Mark
center of desired location.
OK
Water Line (at idle)
Water Line (at speed)
Overheat
4400 Earth City Expy, St. Louis, MO 63045
User Manual
Part Number:
UBL-x180
WIFI-CON
866-590-3533 superbrightleds.com
OK
Water Line (at idle)
Water Line (at speed) OK
