Our EDF EF2000 kit is intented to use with EDF 110 or 120 mm Or Turbine 6 kg thrust.
The model is prepainted in grey, if you want to reach a scale apparence you mustsand all the
parts and re-paint with appropriate colors.
The following instructions help you to assemble the model.
WING SERVO

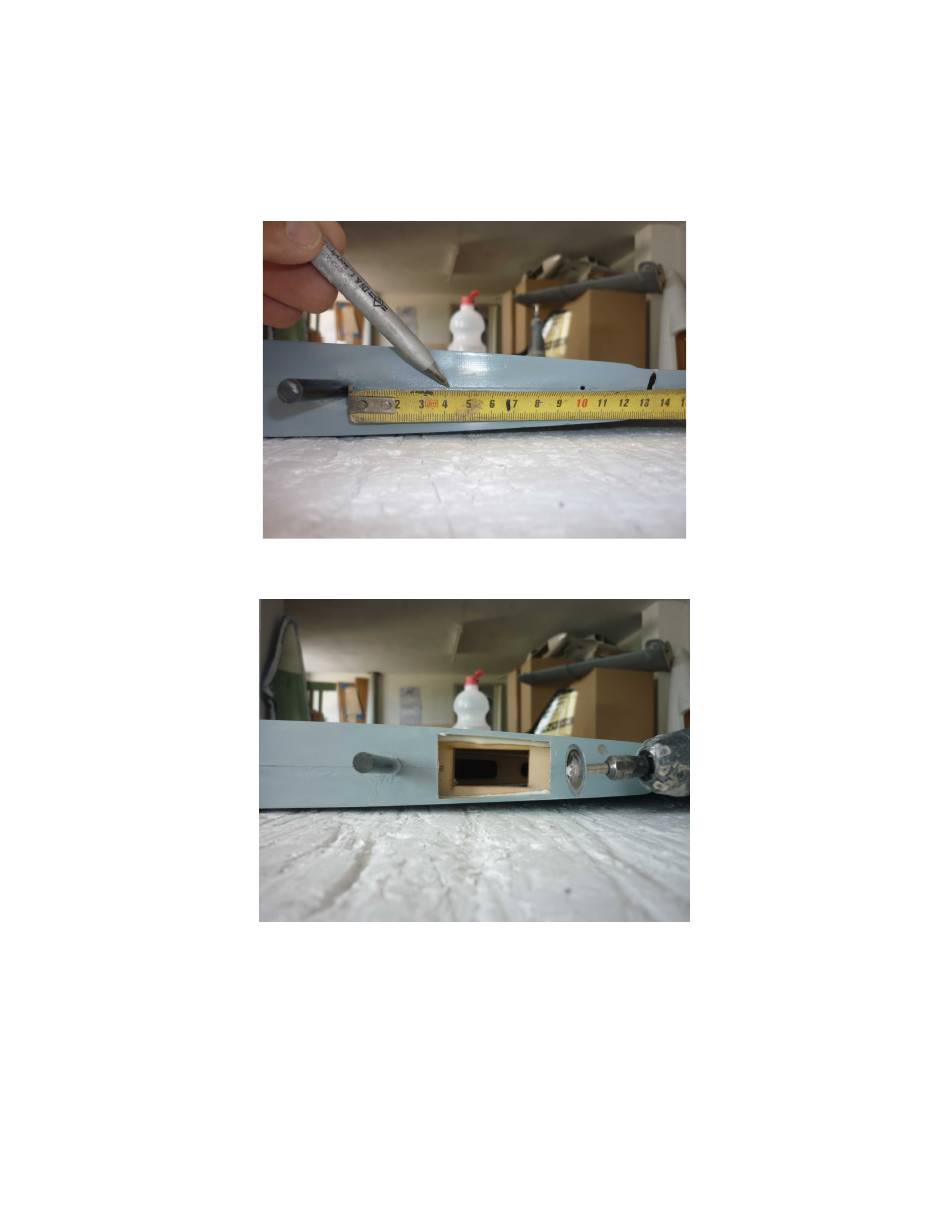

The center of servo hole is positioned at 4 cm from the rear carbon spar,see photo
Make the hole and enlarge it accordling to your servo measurement
Install the servo in the wood support and make a hole for the horn
Advertisement
Summary of Contents for EDF EUROFIGHTER
- Page 1 Our EDF EF2000 kit is intented to use with EDF 110 or 120 mm Or Turbine 6 kg thrust. The model is prepainted in grey, if you want to reach a scale apparence you mustsand all the parts and re-paint with appropriate colors.
- Page 2 Make the hole for the horn...
- Page 3 RETRACTS INSTALLATION The center hole for wing retract is at 13 cm from the rear carbon spar Make the pre-hole in the center at 13 cm and enlarge accordling to dimensions of your retracts...
- Page 4 Make the pre-hole for the nose retract from the top of fuselage...
- Page 5 Enlarge it accordling to your retract Make the holes for whells accordling to your dimensions...
- Page 6 Make the hole for the servo wire of the rudder For the edf installation or turbine installation you must create a wood formers to support it...
- Page 7 Schuebeler 110 mm in position Canard servo in position...
- Page 8 The CG is located around 1 cm rear of the wing former spar support You can adjust it accorling to your flying mode...
