Lower Cover Installation

1. Align side (B) slots of lower cover with mainboard connectors (USB, HDMI).
2. Install side (B) of lower cover by sliding lower cover towards side (A) at slight angle.
(Figure 3-19)
3. Install left side (A) of lower cover.
4. Install and secure five (5) screws (B) in battery bay.
5. Install and secure seventeen (17) screws (A) on lower cover.
6. Install HDD module.
7. Install lower logic door.

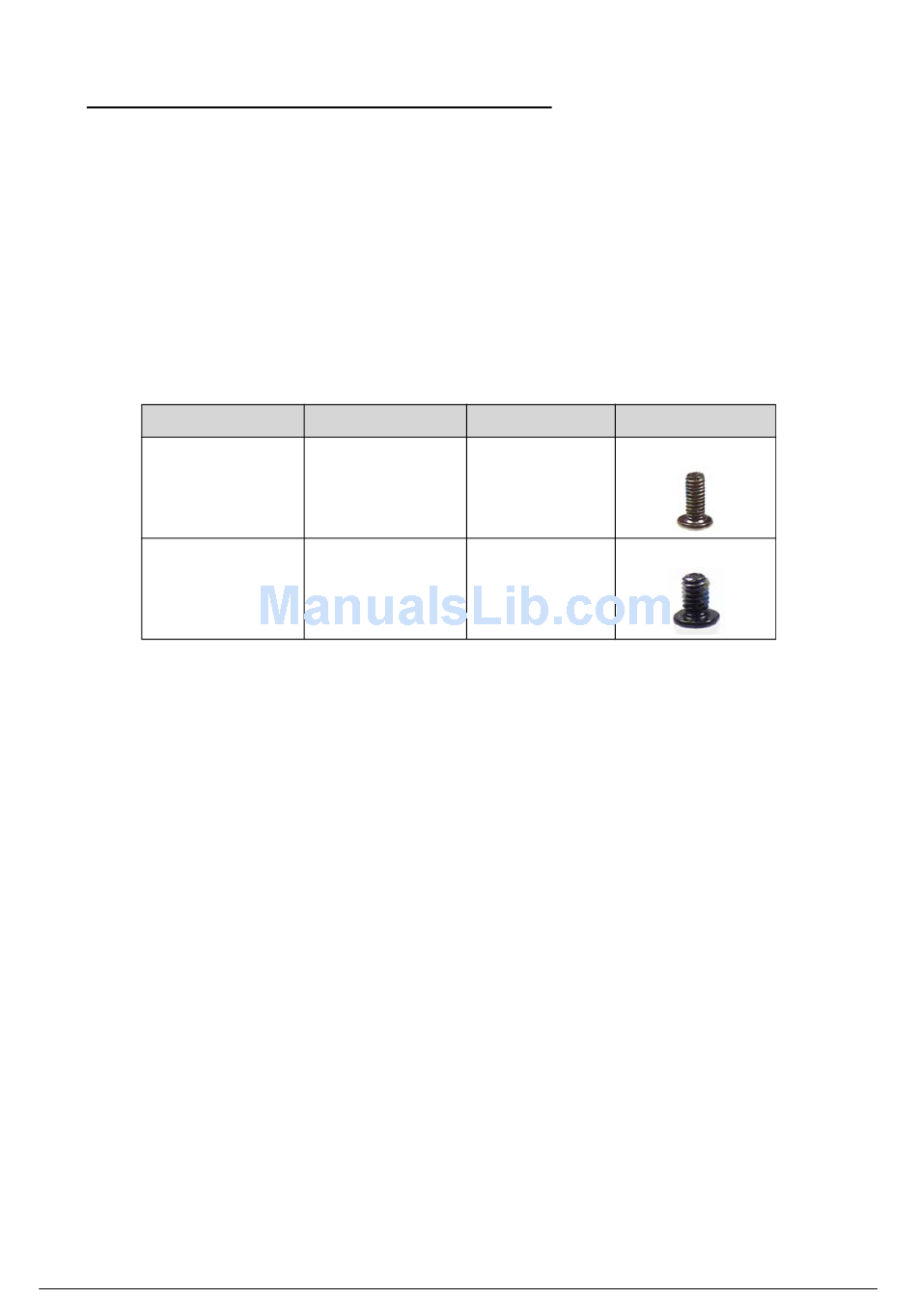

ID
Machine Maintenance Procedures
Size
A M2.5x5.0
B M2.0x3.0
(Figure 3-18)
(Figure
Quantity
17
5
3-17)
Screw Type
0
3-21
