HDD Module Installation

1. Place HDD module into bay on lower cover.
2. Connect HDD module cable to mainboard connector (A).
3. Install lower logic door.

HDD Carrier Removal

Prerequisite:
1. Remove four (4) screws (A) from HDD brackets. (Figure 3-11)

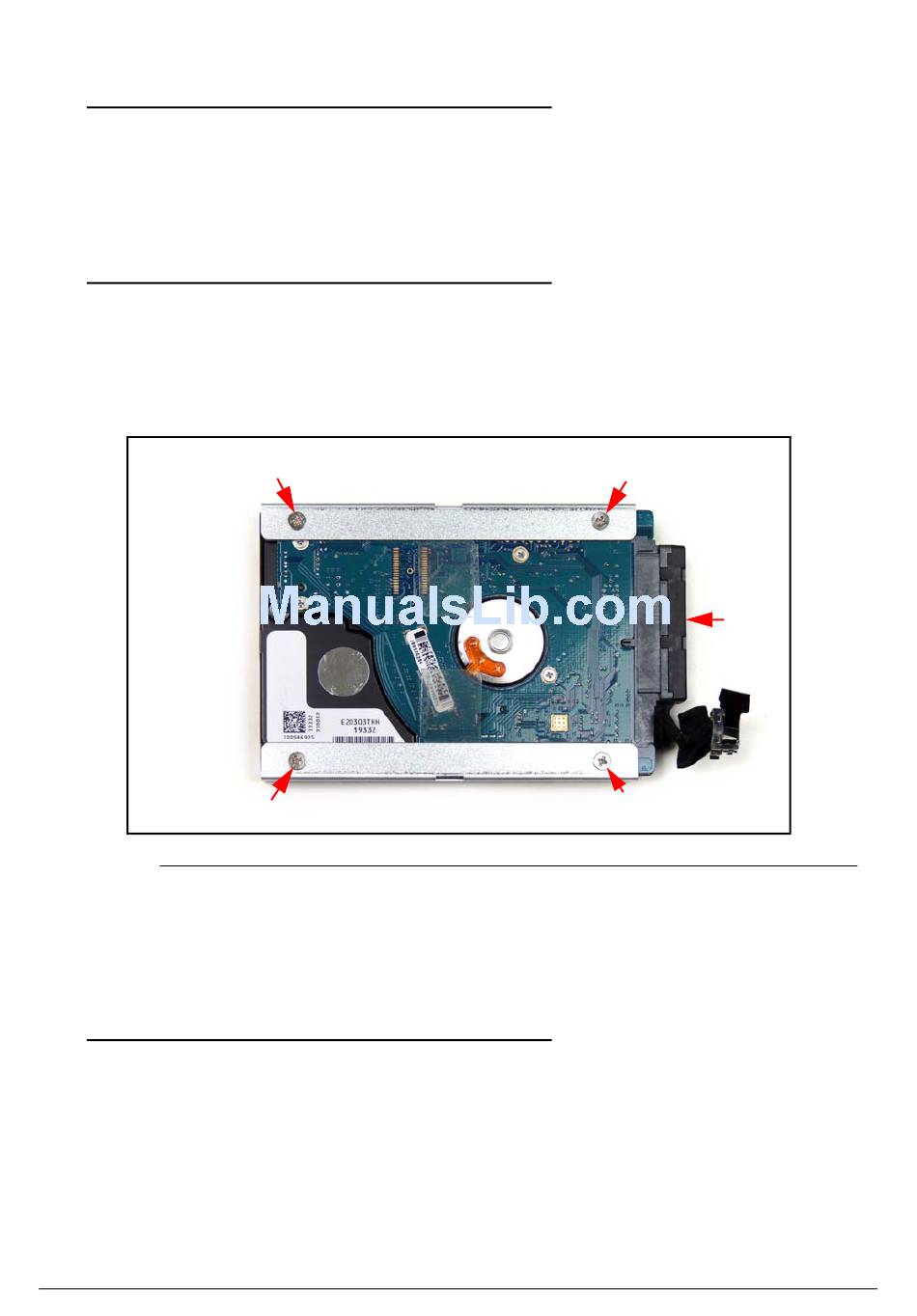

Figure 3-11. HDD Module Brackets
2. Remove HDD brackets (B) and (C) from HDD module.
3. Remove HDD module cable (D) from HDD module connector.

HDD Carrier Installation

1. Install HDD module cable (D) to HDD module connector. (Figure 3-11)
2. Install and secure brackets (B) and (C) to HDD module with four (4) screws (A).
3. Install HDD module.
3-14
HDD (Hard Disk Drive) Module Removal
A A
A
(Figure 3-9)
(Figure
B
C
Machine Maintenance Procedures
3-10)
A
D
A
