USER MANUAL
EXT-HBT70-WP-SET
HDBaseT Wall Plate Extender Switch Set 70m
All Rights Reserved
Version: EXT-HBT70-WP-SET_2017V1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GeMNeXT EXT-HBT70-WP-SET and is the answer not in the manual?

Questions and answers

Summary of Contents for AVDIS GeMNeXT EXT-HBT70-WP-SET

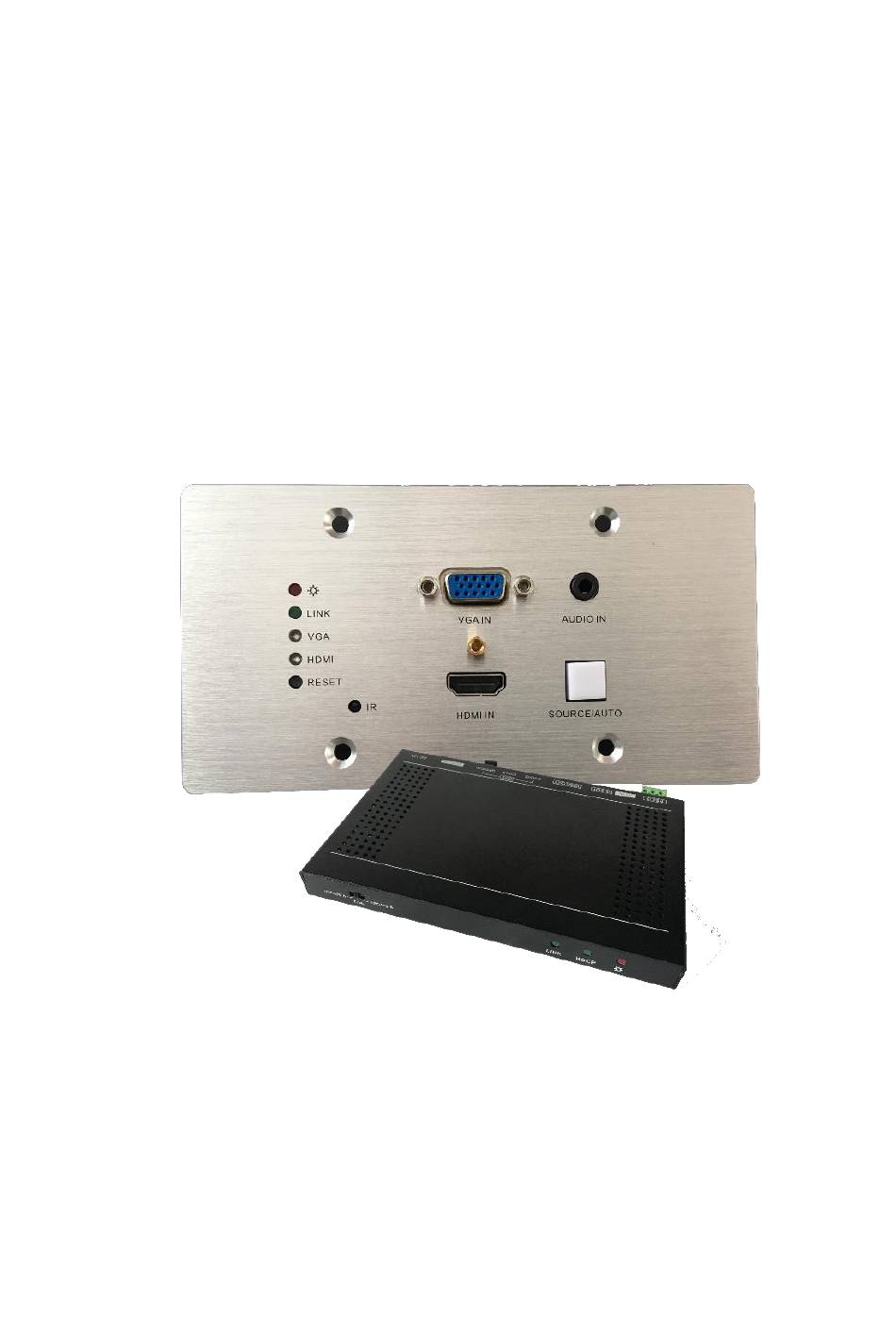

  • Page 1 USER MANUAL EXT-HBT70-WP-SET HDBaseT Wall Plate Extender Switch Set 70m All Rights Reserved Version: EXT-HBT70-WP-SET_2017V1.2...
  • Page 2 EXT-HBT70-WP-SET Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till September 2017.
  • Page 3 EXT-HBT70-WP-SET SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.  Unpack the equipment carefully and save the original box and packing material for possible future shipment ...

  • Page 4: Table Of Contents

    EXT-HBT70-WP-SET Contents 1. Introduction ......................... 1 1.1 Introduction to EXT-HBT70-WP-SET ..............1 1.2 Feature ......................1 1.3 Package List ...................... 2 2. Specification ....................... 3 3. Panel Description ....................... 4 3.1 Front Panel ......................4 3.2 Rear Panel ......................5 3.3 Side Panel ......................
  • Page 5 EXT-HBT70-WP-SET 7. Panel Drawing ......................19 8. Troubleshooting & Maintenance ................20 9. Customer Service ..................... 21...

  • Page 7: Introduction

    EXT-HBT70-WP-SET 1. Introduction 1.1 Introduction to EXT-HBT70-WP-SET EXT-HBT70-WP-SET is 2x1 wallplate HDBaseT Transmitter for switching and extending HDMI or VGA + audio input to display or projector, and the transmission distance is up to 40m@4K and 70m@1080p over a single Cat5e/6/7 cable based on Certified HDBaseT technology.

  • Page 8: Package List

    EXT-HBT70-WP-SET 1.3 Package List ▪ 1 x EXT-HBT70-WP-SET 4K Wallplate HDBaseT Transmitter & Receiver ▪ 1 x 2-pin Pluggable Terminal Block 1 x 4-pin Pluggable Terminal Block ▪ ▪ 1 x User Manual Note Please confirm if the product and the accessories are all included, if not, please contact with the dealers.

  • Page 9: Specification

    4K Wallplate HDBaseT Transmitter 2. Specification Input & Output Input (1) HDMI; (1) VGA; (1) AUDIO; (1) 12V POWER ; (1) 19-pin Type A female HDMI; (1) HD-15 VGA; (1) Input Connector 3.5mm mini jack; (1) 2-pin Pluggable Terminal Block Output (1) HDBaseT;...

  • Page 10: Panel Description

    EXT-HBT70-WP-SET 3. Panel Description 3.1 Front Panel LINK VGA IN AUDIO IN HDMI RESET HDMI IN SOURCE/AUTO Name Description POWER: Glows red when power is applied. LINK: Glows green when an HDBaseT link is established. VGA: Glows green when the VGA input is active, amber when a source is available, and off when there is no source ①...

  • Page 11: Rear Panel

    EXT-HBT70-WP-SET between HDMI and VGA sources. ▪ Press and hold this button 3 seconds, the LED turn green to enter auto-switching mode. Press and hold again can exit this mode. 3.2 Rear Panel RS232 Tx Rx Name Description HDBT OUT HDBaseT output, connects with HDBaseT Receiver over a ①...

  • Page 12: Side Panel

    EXT-HBT70-WP-SET 3.3 Side Panel Name Description ① Micro-USB connector used for firmware update. FIRMWARE...

  • Page 13: System Connection

    EXT-HBT70-WP-SET 4. System Connection Usage Precautions ▪ Verify all components and accessories included before installation. ▪ System should be installed in a clean environment with proper temperature and humidity. ▪ All of the power switches, plugs, sockets and power cords should be insulated and safe.
  • Page 14 EXT-HBT70-WP-SET ② Run one Cat5e/6/7 cable from the EXT-HBT70-WP-T location to the location where the HDBaseT Receiver/ Matrix Switcher will be located (somewhere near the display device).See the installation instructions for the 70M HDBaseT Receiver. ③ If using the Control Panel, run another twisted pair cable from the EXT-HBT70- WP-T location to the location that the Control Panel will be mounted.

  • Page 15: Button Control

    EXT-HBT70-WP-SET 5. Button Control SOURCE/AUTO Button Press and hold the SOURCE/AUTO button for 3 seconds. When the button lights up green the EXT-HBT70-WP-T is in AUTO mode. This mode automatically selects the last video source connected to the EXT-HBT70-WP-T and outputs it to the display. Press and hold again for approximately 3 seconds, the light will go out, and the device will be in Manual mode which will allow the user to momentarily press the button to toggle between the two sources.
  • Page 16 EXT-HBT70-WP-SET RS232: HDBaseT: Cat 5e/6A HDBT IN HDMI OUT IR IN IR OUT RS232 Projector/Flat Screen Display HDBaeT Receiver Cat 5e/6A RS232 Tx Rx Wallplate HDBaeT Transmitter...

  • Page 17: Rs232 Control Software

    EXT-HBT70-WP-SET ② Control the EXT-HBT70-WP-T by the remote PC which is connected with Receiver. RS232: HDBaseT: Cat 5e/6A HDBT IN HDMI OUT IR IN IR OUT RS232 HDBaeT Receiver Cat 5e/6A RS232 Tx Rx Wallplate HDBaeT Transmitter The RS232 control mode can be chosen via RS232 commands, please refer to the 5.3.1 RS232 mode switching for more details.
  • Page 18 EXT-HBT70-WP-SET Here we take the software CommWatch.exe as example. The icon is showed as below: The interface of the control software is showed as below: Parameter Configuration area Monitoring area, indicates if the command sent works. Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in Command Sending Area.
  • Page 19 EXT-HBT70-WP-SET...

  • Page 20: Rs232 Command

    EXT-HBT70-WP-SET 6.3 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Control Mode Switching 6.3.1 Command Function Feedback Example Switch to RS232 mode 1（Default）, RS232 Mode 1: RS232 50779% control scaler switcher and the far-end Control Scaler &...

  • Page 21: Hdcp Compliance

    EXT-HBT70-WP-SET Command Function Feedback Example Change the resolution to 1280X800 50628% Resolution: 1280x800 WXGA Change the resolution to 1920X1080 50629% Resolution: 1920x1080 1080P Change the resolution to1920X1200 50620% Resolution: 1920x1200 WUXGA Change the resolution to1600X1200 50621% Resolution: 1600x1200 UXGA HDCP Compliance 6.3.4 Command Function...
  • Page 22 EXT-HBT70-WP-SET Command Function Feedback Example 50606% Auto-adjust the input parameter VGA Input Auto Color Temperature: xx (xx 50640% Check the color temperature can be medium, warm, user, or cool.) Color Temperature: xx (xx 50607% Adjust the color temperature can be medium, warm, user, or cool.) Aspect Ratio: xx (xx can be 50635%...
  • Page 23 EXT-HBT70-WP-SET Command Function Feedback Example Stretch right from right side (increase 50675% Output Width Adjust xx image width) Stretch upwards from bottom side 50676% Output Height Adjust xx (decrease image height) Stretch downwards from bottom side 50677% Output Height Adjust xx (increase image height)

  • Page 24: Edid Configuration

    EXT-HBT70-WP-SET EDID Configuration 6.3.6 Command Function Feedback Example 50772% EDID pass-through (default) EDID: bypass mode 50773% Set EDID data to 1080P PCM 2.0ch EDID:1080P&PCM 2ch 50774% Set EDID data to 1080P Dolby 5.1 EDID:1080P&5.1ch 50775% Set EDID data to 1080P3D Dolby 5.1 EDID:1080P3d&5.1ch 50776% Set EDID data to 1080i PCM 2.0ch...
  • Page 25 7. Panel Drawing EXT-HBT70-WP-T LINK VGA IN AUDIO IN HDMI RESET HDMI IN SOURCE/AUTO 44 mm 151 mm 108 mm 41 mm RS232 Tx Rx...
  • Page 26 EXT-HBT70-SET 8. Troubleshooting & Maintenance Problems Potential Causes Solutions Color losing or no video signal output in HDMI display The connecting cables No HDMI signal output in Check whether the cables may not be connected the device while local are connected correctly correctly or it may be HDMI input is in normal and in working condition.
  • Page 27 9. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed 3 (three) years. 2) Scope These terms and conditions of Customer Service apply to the customer service provided for the products or any other items sold by authorized dealers only.
  • Page 28 EXT-HBT70-SET Remarks: For further assistance or solutions, please contact your local distributor or dealer.
  • Page 29 EXT-HBT70-WP-R Ultra-thin HDBaseT Receiver 131ft/40m 4K UHD, support audio de-embedding Introduction The EXT-HBT70-WP-R is an Ultra-thin HDBaseT Receiver designed with audio de-embedded outputs. It receives 4K/1080p HDMI signal via CAT5e/CAT6a cable from HDBaseT Transmitter or Matrix Switcher at 40m/70m. It supports unidirectional PoH function, the receiver can be powered by HDBaseT Transmitter or Matrix Switcher.
  • Page 30 Features Supports HDMI1.4 & HDCP2.2, and is backward compatible to the previous  version. Maximum transmission distance is up to 40m (131ft) at 4Kx2K, and 70m  (230ft) at 1080p. Supports bi-directional IR and RS232 pass-through for long-distance control.  Supports bi-directional PoH for simplified wiring, and compatible with 48VDC ...
  • Page 31 Name Description CTRL: RS232 pass-through control mode; UPDATE A: Update Valens IC program, connect a PC to the RS232 port, and then double-click the update file RS232 MODE ① (.bat). switcher UPDATE B: Update the IC program which is used for de- embedding audio, the upgrade method is the same as the above UPDATE A.
  • Page 32 ④ HDMI OUT HDMI type A connector, connect to display. ⑤ AUDIO OUT 3.5mm stereo audio jack, connect to analog stereo audio device. ⑥ COAX OUT Coaxial audio connector, connect to digital audio device. ⑦ OPTICAL OUT Optical audio connector, connect to optical audio devices. Connect to the HDBT OUT socket on HDBaseT Transmitter or Matrix ⑧...
  • Page 33 Control Control Ports (1) IR IN; (1) IR OUT; (1) RS232 Control Connector (2) 3.5mm mini jack (IR); (1) 3-pin phoenix connector (RS232) General HDBaseT (bi-directional PoH); 1080P ≤ 70m; 4K×2K ≤ Transmission Mode & Distance Resolution Up to 4K×2K@60Hz 4:2:0 Bandwidth 10.2Gbps HDMI Standard...
  • Page 34 System Diagram...
  • Page 35 GeMNeXT rights owned by AVDIS B.V. Tel: +31 (0)85 2100 614 Email: info@gemnext.com Website: www.gemnext.com Ambachtstraat 3A 3732 CN De Bilt The Netherlands...
