Scorpion Backup Guard II v1.1

Page 1

Table of Contents

Need help?

Do you have a question about the Scorpion Backup Guard II and is the answer not in the manual?

Page 1 Scorpion Backup Guard II v1.1 Page 1...

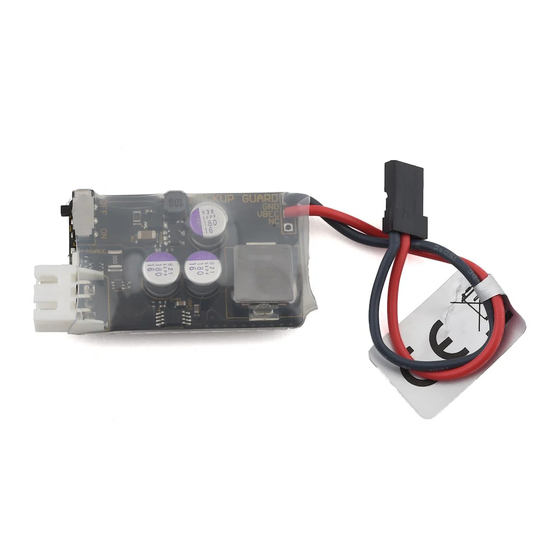

Page 2 When activated, the Scorpion Backup Guard II monitors whether that the BEC output voltage on the helicopter or airplane is 5.5V or higher. If the Scorpion Backup Guard II detects a BEC failure has occurs, it will take over and continue to power the radio system thus allow time for you to land your helicopter or airplane safely.
Page 3 There are two sets of LED indicator lights on Scorpion Back Guard II. The colors of the LED lights indicate the status/condition of Scorpion Backup Guard II. To operate, the switch of Scorpion Backup Guard II has to be ON.
Page 4 For maintenance, perform routine checks on the balance and health of the 2S Li-Po battery. If you are not planning to use the Scorpion Backup Guard II for a long period of time, please disconnect the 2S Li-Po battery and safe keeping the battery’s charge level at 50% charged. Remember to charge up the 2S Li-Po battery to 8.4v before you use it.
