MODULAR LIGHTING

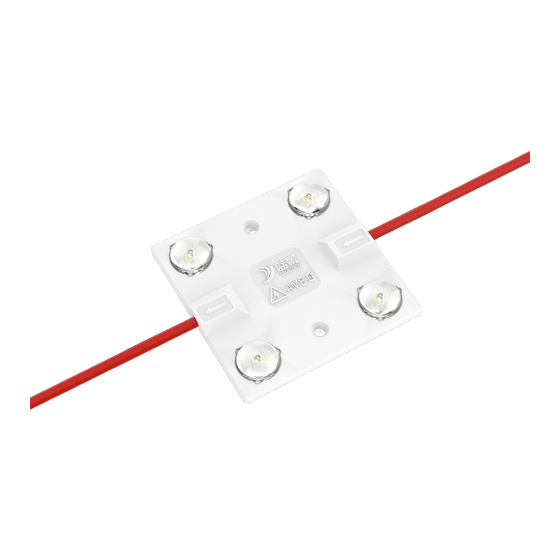

AM8-D
3030
170°
IP60
AC 220V
Suitable for 5-15cm depth of advertising light box, soft film ceiling,
ceiling light box background wall and other applications; also suitable for
irregular light boxes.
FEATURES
- Advanced design, less using quantities per square meter
- Directly connect to the utility power.
- Self-designed big beam angle lens.
OPTICAL & ELECTRICAL PARAMETERS
Model No.
CCT (K)
AM8-D
8000-9000
OTHER PARAMETERS
LED Qty/pc
Model No.
AM8-D
4
Note:
- Test environment temperature : 25±2°C.
- The above data is typical values. The actual data of each single product may differ from the typical values. The data is subject to change without notice.
- The luminous flux is tested with single light on.
- Different color temperature will make luminous flux different.
- Power tolerance within ±10%.

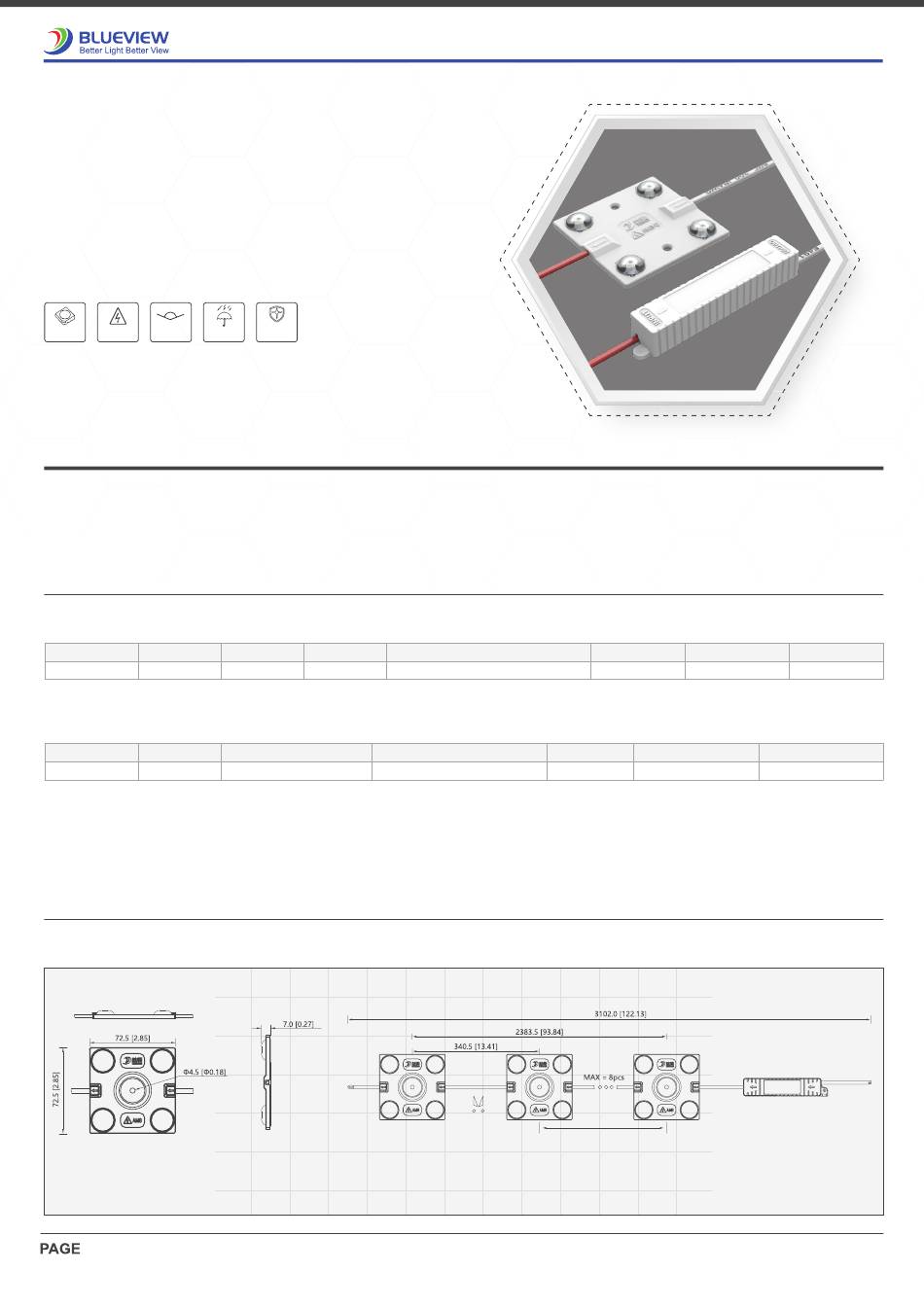

PROFILE DRAWING
Unit: mm
01(5)
3Years
- Bluetooth control
- Remote control, APP control, group control.
Beam Angle
Ra
Typical Luminous Flux value(lm/pcs)
170°
70+
Standard Packing Quantity(pcs)
Product Size L*W*H(mm)
72.5*72.5*7.0
New function
411
Max Run (pcs)
8
8
First 4 groups can not be cut
Efficacy (lm/W)
Voltage (V AC)
111
220
Working Temperature
Storage Temperature
-20~+60℃
Note: Please ask the sales for detail drawing.
AM8-D
Power (W/pcs)
4.0
-20~+70℃
