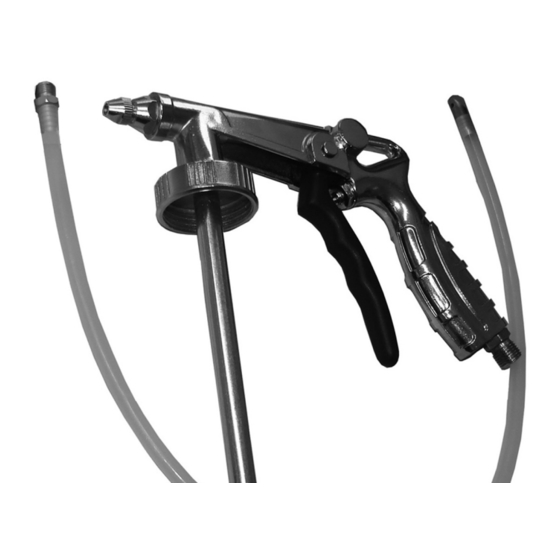

- Page 1 UNDERBODY SEAL GUN MODEL NO: CUB3 PART NO: 5092105 OPERATING & MAINTENANCE INSTRUCTIONS GC0714...
-
Page 2: Specification
INTRODUCTION Thank you for purchasing this CLARKE Underbody Sealant Gun. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way. -
Page 4: Transport And Storage
• PTFE tape may be useful for sealing threaded connections. Your air tool is now ready for use. You can fit a whip hose with a quick fit coupling if required, available from your Clarke dealer. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 5: Compressed Air Requirements
COMPRESSED AIR REQUIREMENTS WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY. • Use only clean, dry, regulated compressed air as a power source. • Air compressors used with the tool must comply with the appropriate European Community Safety Directives. -
Page 6: Operation
Your Clarke air tool has been designed to give long and trouble free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, contact the Clarke service department. -
Page 7: Component Parts
COMPONENT PARTS Description No Description Gun Body Sealant Gasket Air Nozzle Compression Spring Nozzle Seat Gasket Nozzle O-Ring 2.5 x 1.8 Connector Air Valve Body Tube O-Ring 8.0 x 1.8 Nozzle Trigger Pin Screw Cap Trigger Material Tube Circlip Air Valve Spring Air Inlet Connector Air Valve Stem Parts &...
