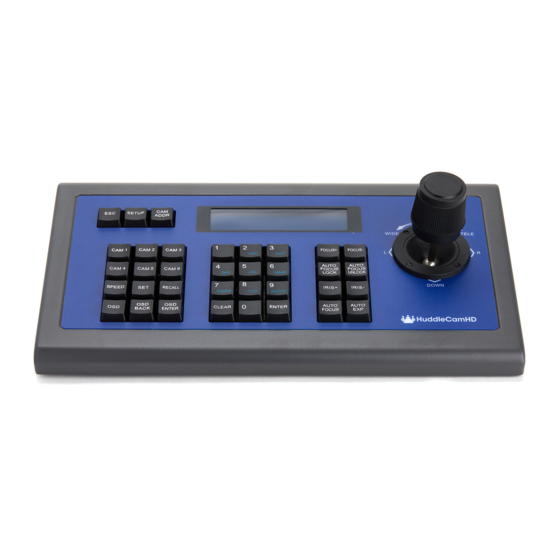

HuddleCamHD Serial Joystick Controller
Joystick Keyboard Installation & Operation Manual
Easy pan, tilt & zoom controls for any RS-232, RS485, RS422 VISCA, Pelco-P or
Pelco-D protocol camera!
Controls pan & tilt with variable speed.
Uses 3-Dimensional joystick with "twist" control for variable zoom.
Please check HUDDLECAMHD.com for
the most up to date version of this document
Model Number: HC-JOY-G3
Rev 1.1 5/19
Advertisement
Table of Contents
Summary of Contents for HuddleCamHD HC-JOY-G3
- Page 1 HuddleCamHD Serial Joystick Controller Model Number: HC-JOY-G3 Joystick Keyboard Installation & Operation Manual Easy pan, tilt & zoom controls for any RS-232, RS485, RS422 VISCA, Pelco-P or Pelco-D protocol camera! Controls pan & tilt with variable speed. Uses 3-Dimensional joystick with “twist” control for variable zoom.
-
Page 2: Key Product Features
Key Product Features • All Metal housing. • VISCA, PELCO-D and PELCO-P protocol support. • Large LCD Menu display. • Key-press “BEEP” confirmation (optional – set on or off). • Pan, tilt, zoom, iris and focus control. • Variable speed control of pan, tilt, zoom, focus, and presets. •... -
Page 3: Installation
In the Box • Keyboard with three-axis control joystick. • 5p screw terminal plug (RS422/RS485). • 12VDC Power Supply. • RS232 Cable. • This Manual. Installation • Power Supply Interface (5.5mm x 12mm center pin JEITA style jack): 12VDC / 2000mA power supply. •... - Page 4 Keyboard/Joystick Operation Basic Control • Pan & Tilt Control o Joystick movement provides variable speed pan and tilt of the camera head. • Zoom Control o Rotation of the joystick controls variable speed zoom of the lens. ▪ Clockwise rotation of the joystick = zoom in. ▪...
- Page 5 • Iris Control – (VISCA Only, Pelco-P &-D do not provide for “Man Exp”) o Incremental Iris control can also be achieved using the following keys: “Iris+”, “Iris-” (manual exposure is auto enabled upon pressing Iris+ or Iris-). o Note: Some cameras do not have an “Iris” (or manual Iris) mode. For this reason, Manual Exposure is used.
- Page 6 Pelco) Notes on using presets with VISCA: For your convenience, the HC-JOY-G3 uses the same preset numbers whether ‘set’, ‘called’ or ‘cleared’ via hand-held IR remote, VISCA, Pelco-P or Pelco-D. This is in contrast to Sony’s traditional offset of -1 between IR remote commands and VISCA commands.
- Page 7 ▪ Move Joystick “left” and “right” to select the desired control protocol or baud rate (to match that of camera). ▪ Repeat for all camera IDs required. ▪ Press “Esc” to return to previous menu level. o “SET >>SYS” : Menu ▪...
- Page 8 o LOCK PW: Using “Number” keys, enter the desired password (4 numeric keys). Press “Enter” key to confirm. o LCD screen will go Black. Press “Enter” key again. o OPEN LOCK: Using “Number” keys, enter the desired password (4 numeric keys). Press “Enter”...
- Page 9 Keyboard/Joystick Connection Wiring and Indicators Indicators: • “PW” illuminates Red when unit is powered • “TXD” flashes green when unit is transmitting commands • “RXD” flashes green when unit is receiving responses Power: • Keyboard/Joystick requires external 12VDC. Use only the 12VDC power supply shipped with the unit.
- Page 10 • For RS485, connect the 5p screw terminal port of the KB to the RS485 port of the camera with pin-out as follows: o KB Ta – Pin 1 ---------- Camera (+) o KB Tb – Pin 2 ---------- Camera (-) o KB Gnd –...
-
Page 11: Troubleshooting
A VISCA cross-over cable must be used for all camera to camera connections. These are available from HuddleCamHD in various lengths as well as from other sources. ▪ For RS485 and RS422, all connections are in parallel (e.g. all cams’...
