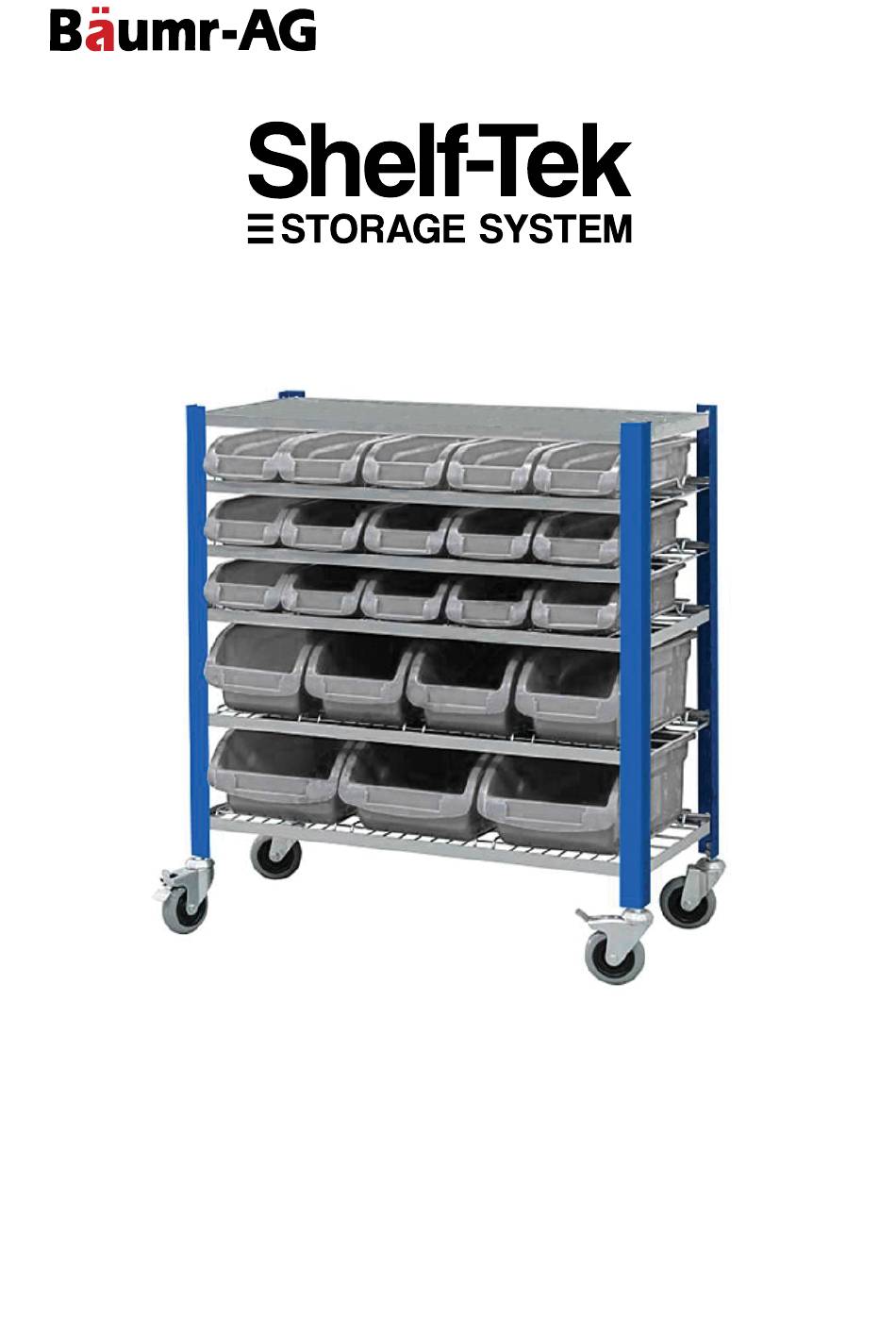

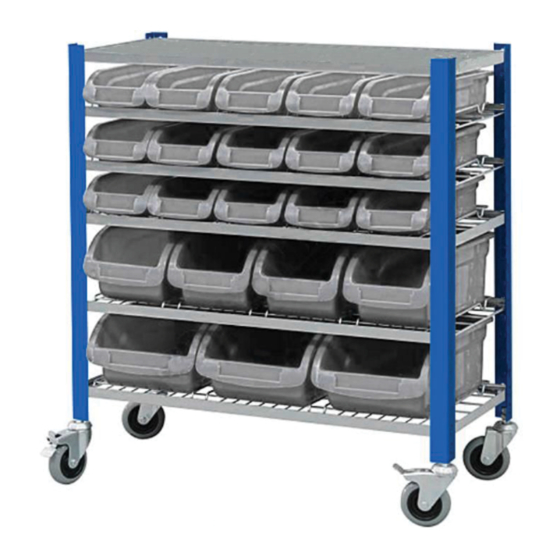

22 BIN STORAGE RACK
ADULT ASSEMBLY REQUIRED DUE TO THE PRESENCE OF SMALL PARTS, SHARP
POINTS AND EDGES
2 persons required for assembly. If you have any questions regarding assembly or if you are
missing parts, contact customer service.
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN
INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR
FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly,
inclusions, specifications, description and packaging.
Advertisement
Summary of Contents for Baumr-AG Shelf-Tek
- Page 1 22 BIN STORAGE RACK ADULT ASSEMBLY REQUIRED DUE TO THE PRESENCE OF SMALL PARTS, SHARP POINTS AND EDGES 2 persons required for assembly. If you have any questions regarding assembly or if you are missing parts, contact customer service. READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY.
-
Page 2: Parts List
Parts List Read and understand all instructions and verify that all parts listed have been supplied before assembly. A - Frame Leg (4) B - Double Pin Long Rack Support (6) C - Single Pin Long Rack Support (6) D - Double Pin Short Rack Support (6) E- Extra Large Bin Rack (1) F- Large Bin Rack (1) G - Medium Bin Rack (3) - Page 3 68kg 408kg Step1 Install the frame cap to the top of each frame Insert the pins in the rack supports into the slots in the Step2 Double Pin Long frame legs and tap them down until they are fully seated. Rack Support Single Pin Long Rack Support...
- Page 4 r ------- Insert the pins in the rack supports into the Step3 , _______ , slots in the frame legs and tap them down until they are fully seated. D - Double Pin Short Rack G - Medium Bin Rack (3) Support (6) ...J1..-�--1 F - Large Bin Rack (1)
- Page 5 Step5 Insert top panel into the recess in the upper support as shown. H - Top Panel (1) Step6 M - Caster The casters attach to L - Lockable Caster the nuts at the end of M - Caster the frame legs. L - Lockable Caster...
- Page 6 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionall y , the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise...
