Summary of Contents for Xiamen CF-8700AS

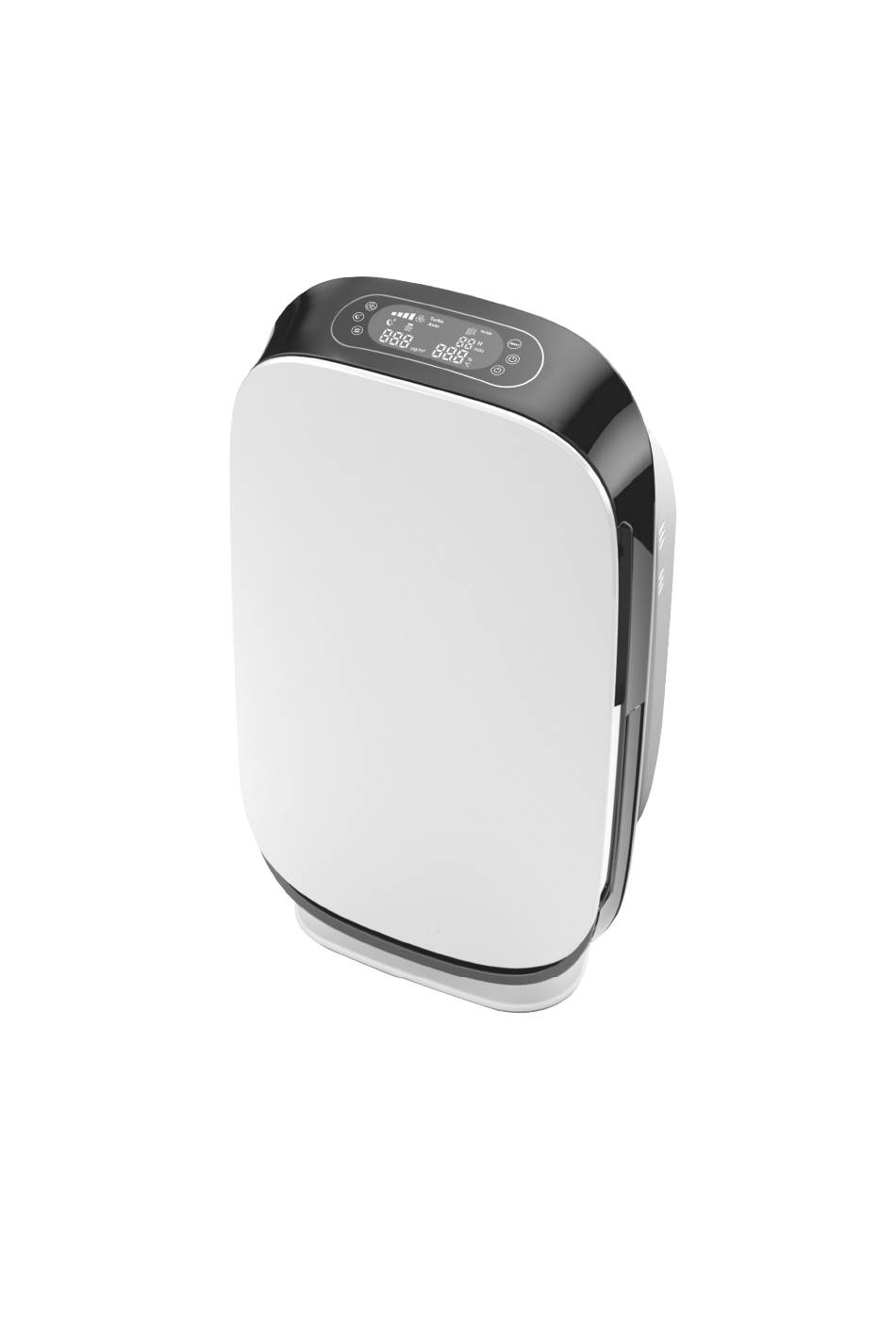

- Page 1 USE & CARE INSTRUCTIONS Air Purifier CF-8700AS...
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNINGS Failure to comply with the warnings listed below may result in electric shock or serious injury. This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.
- Page 3 • When removing the power plug, always hold the plug and never pull the cord. Electrical shock and/or fire from short circuit may occur as result. • Do not use the air purifier if the power cord or plug is damaged or the connection to the wall outlet is loose.
- Page 4 Structure 1. Front panel 2. Filter: washable pre-filter, HEPA filter and activated carbon filter 3. UV-C lamp 4. Air outlet...
-
Page 5: Before First Use
Before first use Note: The appliance comes with all filters fitted inside, but the packaging of the filters need to be removed before using the appliance. 1. Carefully remove your air purifier from box and plastic bag. 2. Select a firm, level and flat location for the air purifier. *For proper air flow, locate the unit at least 1 foot from any wall or furniture. -
Page 6: Operation Guidance
Operation Guidance 1. Power button: Press to turn ON/Off the unit. 2. Fan speed: Press this button one or more times to select the desired fan speed. 3. Sleep mode: Press the button to turn on/off the sleep mode. In sleep mode, the moon indicator flickers 5s, display and all LED turns off, device runs in ultra-quiet mode. - Page 7 Speed 1 Speed 2 Speed 3 Speed 4 Turbo UV light indicator Auto operation indicator Timer indicator Sleep mode operation PM 2.5 indicator Temperature and Humidity indicator Filter change indicator Air quality indicator Red: Heavily Polluted PM2.5: 0-49.9 Orange: Light polluted PM2.5: 50-99.9 Yellow: Moderate PM2.5: 100-149.9...
- Page 8 Filter replace The FILTER icon lighting up indicates that it is time to replace the filter. Replace the filter according to the following instruction then press the RESET button and hold for 30 seconds to restart the system, the warning light will off. Position of reset button: on the right side, open the cover you can see the red button, 1.
- Page 9 -Both HEPA and Activated Carbon filter are no washable. -HEPA and Activated Carbon filter can be used about 1 year, but the actual life based on the air quality condition and daily maintenance. UV Lamp replace 1. Open the UV lamp cover by a screw driver. 2.
- Page 10 Maintenance caution ▲Product cleaning -Make sure unplug before cleaning the appliance. -Do not put the appliance into the water or use the water to wash directly. -Do not use any corrosive or flammable detergent to clean the appliance, in case any damage.
-
Page 11: Fcc Warning
FCC warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. - Page 12 Canada warning: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not c ause interference, and (2) This device must accept any interference, including i nterference that may cause undesired operation of the device. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter,...
