Summary of Contents for Hagerman Technology Chime Gold

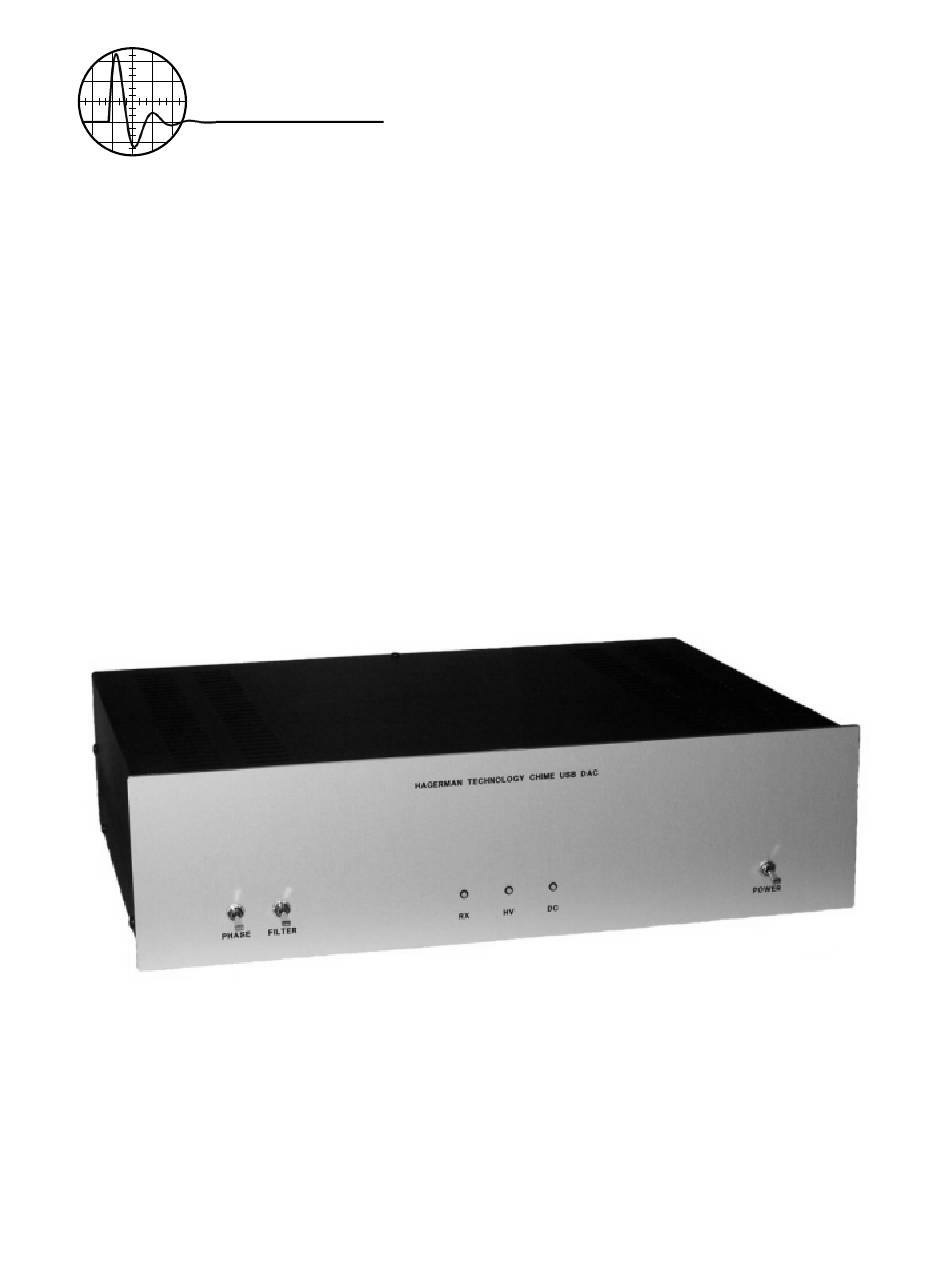

- Page 1 HAGERMAN T E C H N O L O G Y Chime Gold Vacuum Tube USB DAC Made in USA...
-
Page 2: Copyrights And Trademarks
Chime Gold Vacuum Tube USB DAC Copyrights & Trademarks © Copyright Hagerman Technology LLC 2006. All rights reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent. Disclaimer The information contained in this document is subject to change without notice. -
Page 3: Package Contents
Chime Gold Vacuum Tube USB DAC Description The Chime Gold is a world-class analog-to-digital converter employing the latest technologies married to vacuum tube amplification for a very clean and open musical reproduction. Input is via USB and optimized for 44.1k Redbook standard. -
Page 4: Installation
Chime Gold Vacuum Tube USB DAC Installation Connecting to your audio system is very easy. Connect the USB cable to your PC, the line level outputs (RCA jacks) to your linestage or integrated amplifier. There are two front panel switches that change operating modes. The PHASE switch changes signal polarity (up is positive). -
Page 5: Replacing Tubes
Chime Gold Vacuum Tube USB DAC Replacing Tubes Upgrading the vacuum tubes to quality NOS can have a positive impact on sonics. The first tube (left side) is a 12AX7 type high-gain tube. You can also use a 5751. Second tube is a cathode follower output buffer and is a 12AU7 (5814A, 6067).
