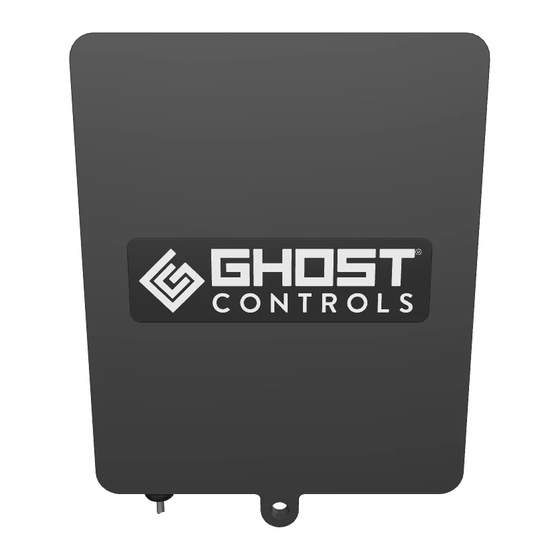

BATTERY BOX KIT
INSTRUCTIONS
TIPS FOR INSTALLATION:
Battery Box should be mounted next to (or below) control box so that power harness can connect into main system control
board through the strain relief.
GHOST CONTROLS
does not recommend splicing the battery harness wire to extend its length. Battery Box should be
®
mounted at least three feet above ground to avoid any standing water or snow and to prevent damage from landscaping
equipment such as string trimmers or lawn mowers.
The included mounting screws are designed to be installed into wood or metal posts. If you are installing onto a post or column
made of material other than wood or metal, you must replace the screws (not included) with appropriate mount-ing screws.
INSTALLING YOUR BATTERY BOX
STEP 1: PLAN YOUR INSTALLATION LOCATION
Battery Box Kit must be located within 3 feet of control box and mounted to a solid object such as the fence.
STEP 2: MOUNT BOX WITH MOUNTING SCREWS
Install and tightly secure 4 mounting screws inside of battery box.
ABBTIM | REV 2019
©2019 GHOST CONTROLS
®
Advertisement
Table of Contents
Summary of Contents for Ghost Controls ABBT2
- Page 1 Battery Box Kit must be located within 3 feet of control box and mounted to a solid object such as the fence. STEP 2: MOUNT BOX WITH MOUNTING SCREWS Install and tightly secure 4 mounting screws inside of battery box. ABBTIM | REV 2019 ©2019 GHOST CONTROLS ®...
- Page 2 ® See warranty terms on www.ghostcontrols.com/warranty. For more information on GHOST CONTROLS® Automatic Gate Openers and Accessories please visit our website at www.ghostcontrols.com. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer.
