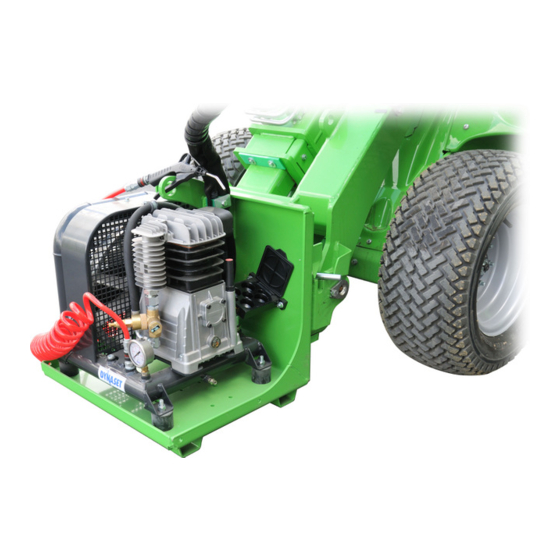

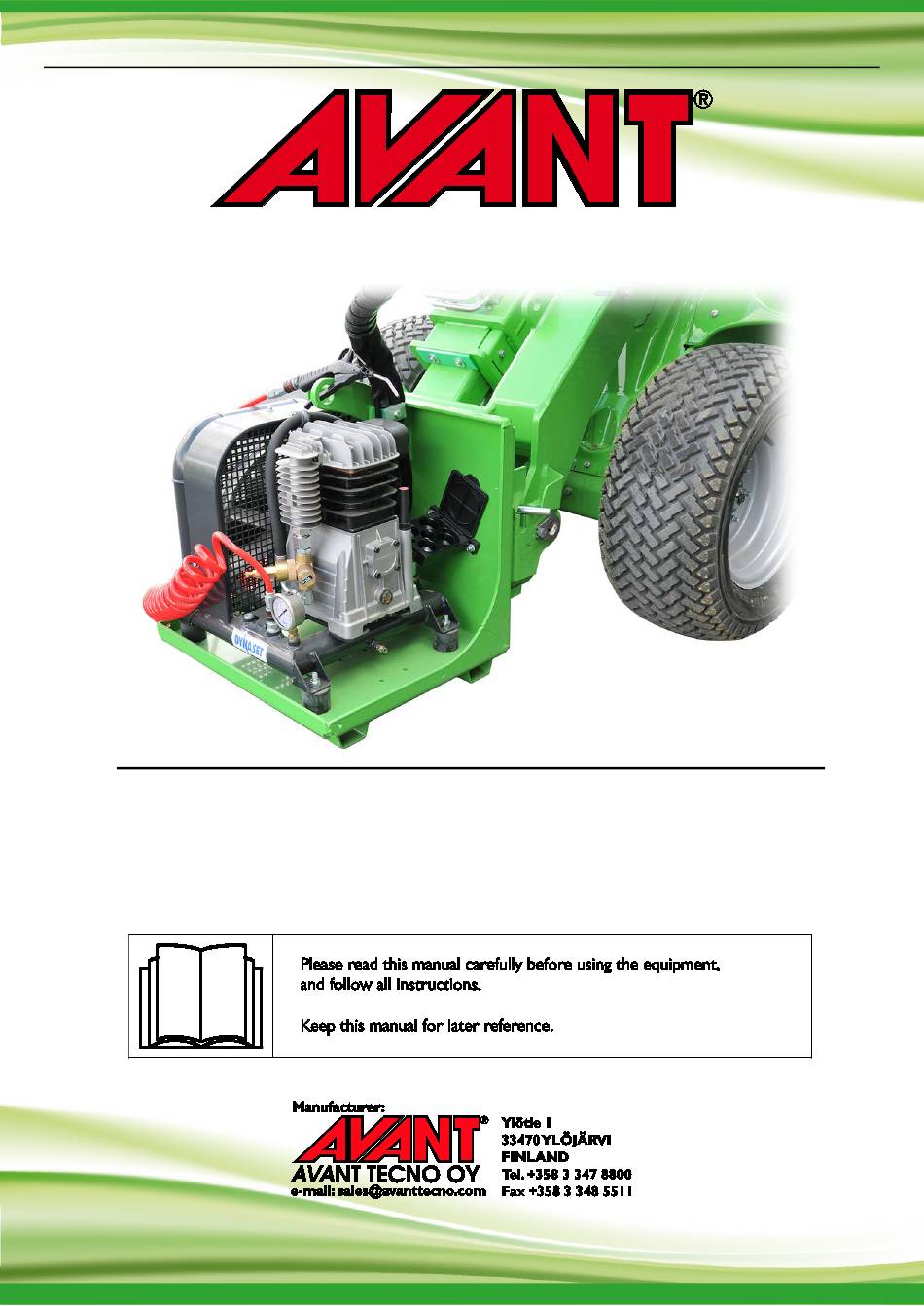

- Page 1 English Compressor 2021 1 Operator's Manual for Attachment Compressor Product number: A35409 www.avanttecno.com A445686 2021 1 EN 2020-...
- Page 2 Compressor 2021 1...
-
Page 3: Table Of Contents
Compressor 2021 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 Personal protective equipment ..........................9 Safe shutdown procedure ............................9 4. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (26) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
A separate spare parts catalogue may be available, consult your Avant dealer. Familiarise yourself with the manual's instructions regarding service and maintenance. Please contact your AVANT dealer if you have additional questions about the operation or maintenance of the equipment, or if you require spare parts or maintenance services. -
Page 7: Safety Instructions For Using The Attachment
7 (26) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 8 8 (26) Ensure that ventilation is sufficient when operating indoors. Do not operate the loader in closed spaces regardless of the engine or fuel type. Exhaust gases may concentrate to hazardous levels. Never use the attachment to lift or to transport persons or as any kind of work WARNING platform even temporarily.
-
Page 9: Personal Protective Equipment
9 (26) 3.1 Personal protective equipment Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ... -
Page 10: Technical Specifications
Operating temperatures: Standard -5°C...40°C Minimum needed hydraulic oil flow: 10 l/min Nominal input hydraulic oil flow: 14 l/min Maximum hydraulic oil flow: 21 l/min Maximum hydraulic pressure: 21 MPa (210 Bar) Compatible AVANT loader models: See table 1 on page... -
Page 11: Safety Labels And Main Components Of The Attachment
11 (26) 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. Replace any unclear or missing label. New labels are available via your retailer or contact information provided on the cover. - Page 12 12 (26) Table 4 - Compressor - Main components 1 Frame with Avant quick coupling brackets 2 Compressed air connector 3 Reservoir pressure gauge 4 Air reservoir 5 Air filter 6 Oil level sight glass 7 Oil filler 8 Reservoir drain, manual valve...
-
Page 13: Assembling The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. -
Page 14: Connecting And Disconnecting Hydraulic Hoses
5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 15 15 (26) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.
-
Page 16: Operating The Attachment
16 (26) 6. Operating the attachment Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 17: Checks Before Use
17 (26) 6.1 Checks before use Read all instructions before use. Make sure you have both the Avant Operator's manual of the loader and attachment, and the Dynaset Operating instructions of the hydraulic compressor available. Use the Compressor only when the loader is parked and the boom is lowered. -
Page 18: Using The Compressor
18 (26) 6.3 Using the compressor Risk of release of compressed air and equipment damage - Never exceed the maximum allowed input of hydraulic oil flow of the compressor. Too high hydraulic oil flow to the compressor can damage the compressor in a way that compressed air or parts WARNING are ejected from it. -
Page 19: Transport Position
19 (26) Unnecessarily high engine rpm will heat up the hydraulic oil, may overheat the compressor, will cause increased noise, and may cause damage or premature wear. Set the engine rpm and auxiliary hydraulics oil output to correct level for compressor. Start the compressor only when it’s in upright position to ensure proper oil circulation within the compressor. -
Page 20: Storage
20 (26) 6.5 Storage Uncouple and store the attachment on level ground. The best way to store the attachment is a place where it is protected from direct sunlight, rain, and extreme temperatures. Avoid leaving the attachment laying directly on the ground. Place it on blocks of wood or on a pallet, for example. -
Page 21: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 22: Cleaning The Attachment
22 (26) 7.2 Cleaning the attachment Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. A pressure washer and mild detergent can be used for cleaning. Do not use strong solvents, and do not spray directly at the hydraulic components, or at the labels on the attachment. -
Page 23: Warranty Terms
23 (26) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 24 2006/42/EC as amended). The following harmonized standards have been applied: SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen kompressori; Avant-kuormaajan työlaite Hydraulisk kompressor; arbetsredskap för Avant lastare A35409 Hydraulic Compressor; attachment for Avant loaders 1.2.2021 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör /...
