Summary of Contents for Philips Brilliance 272P7

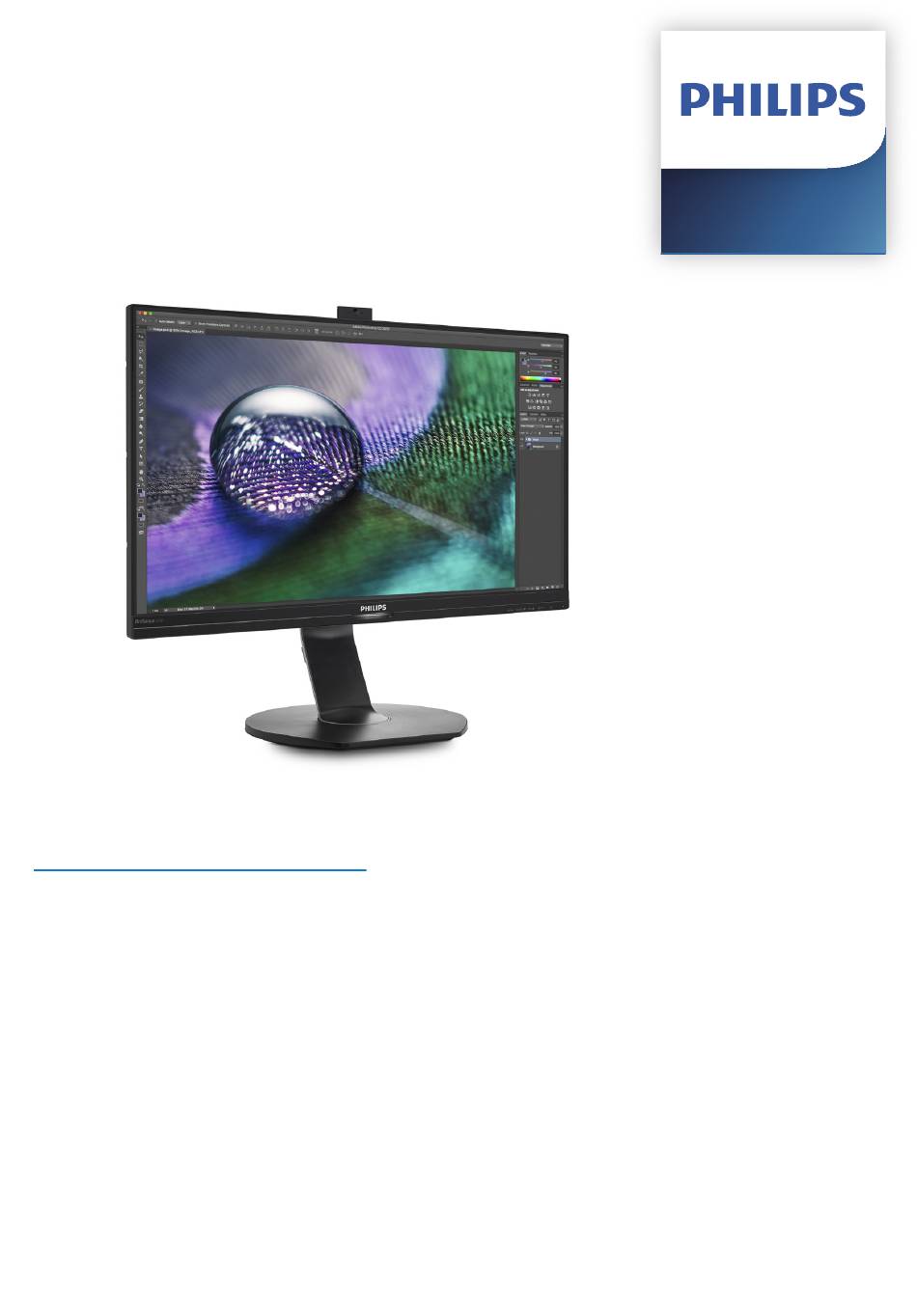

- Page 1 Brilliance 272P7 www.philips.com/welcome EN User manual Customer care and warranty 27 Troubleshooting & FAQs...
-
Page 2: Table Of Contents
7.1 Resolution & Preset Modes ...25 8� Power Management ���������������� 26 9� Customer care and warranty � 27 9.1 Philips’ Flat Panel Monitors Pixel Defect Policy ....27 9.2 Customer Care & Warranty ..30 10� Troubleshooting & FAQs ��������� 31 10.1 Troubleshooting ......31... -
Page 3: Important
• Please use approved power cord provided by Philips all the time. If your power cord is missing, please 1.1 Safety precautions and contact with your local service maintenance center. - Page 4 1. Important • Do not knock or drop the monitor • Unplug the monitor if you need to during operation or transportation. clean it with a slightly damp cloth. The screen may be wiped with a • Excessive usage of monitor can dry cloth when the power is off.
-
Page 5: Notational Descriptions
1. Important • “Burn-in”, “after-imaging”, or 1.2 Notational Descriptions “ghost imaging” is a well-known The following subsections describe phenomenon in LCD panel notational conventions used in this technology. In most cases, the document. “burn-in” or “after-imaging” or “ghost imaging” will disappear Notes, Cautions and Warnings gradually over a period of time after Throughout this guide, blocks of text... -
Page 6: Disposal Of Product And Packing Material
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end- of-life management primarily entails participation in national take-back This marking on the product or on... -
Page 7: 2� Setting Up The Monitor
Top Victory Investments Ltd. or one of its a liates. Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license. - Page 8 The display must be powered ON at all USB downstream times to be able to use this function. USB fast charger/USB downstream Some select Philips displays may not Kensington anti-theft lock Power or Charge your device when it enters to “Sleep/Standby” mode (White power LED blinking).
-
Page 9: Operating The Monitor
2. Setting up the monitor monitor is in sleep/standby mode. 2.2 Operating the monitor Description of the control buttons Note If you turn off your monitor via the power switch at any given time, all the USB ports will power OFF. - Page 10 Description of the On Screen Display What is On-Screen Display (OSD)? On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window.
- Page 11 2. Setting up the monitor Main menu Sub menu PowerSensor 0, 1, 2, 3, 4 LightSensor LowBlue Mode 1, 2, 3 Input MHL-HDMI DisplayPort Mini DP Picture Picture Format Wide Screen, 4:3, 1:1 Brightness 0~100 Contrast 0~100 Sharpness 0~100 SmartResponse O , Fast, Faster, Fastest SmartContrast On, O...
- Page 12 2. Setting up the monitor Resolution notification Height adjustment This monitor is designed for optimal performance at its native resolution, 3840 × 2160 @ 60 Hz. When the monitor is powered on at a different resolution, an alert is displayed on screen: Use 3840 ×...
-
Page 13: Multiview
MultiView function can also be selected Why do I need it? in OSD menu. With the ultra high resolution Philips 1. Press button on the front bezel MultiView display, you can experience to enter OSD Menu Screen. - Page 14 2. Setting up the monitor Please refer below table for compatibility MultiView in OSD menu of main/sub input source. • PIP / PBP Mode: There are two modes for MultiView: [PIP] and SUB SOURCE POSSIBILITY (xl) [PBP]. MHL- Display M i n i Inputs [PIP]: Picture in Picture...
- Page 15 2. Setting up the monitor Swap A and B source in [PBP] mode: ↔ (main) (main) • Off: Stop MultiView function. (main) Note When you do the SWAP function, the video and its audio source will swap at the same time.
-
Page 16: Remove The Base Assembly For Vesa Mounting
2. Setting up the monitor Note 2.4 Remove the Base Assembly This monitor accepts a 100mm x 100mm for VESA Mounting VESA-Compliant mounting interface. Before you start disassembling the VESA Mounting Screw M4. Always monitor base, please follow the contact manufacturer for wall-mount instructions below to avoid any possible installation. -
Page 17: 3� Image Optimization
LowBlue Mode SmartUniformity How does it work? SmartImage is an exclusive, leading ff edge Philips technology that analyzes the content displayed on your screen. • Office: Enhances text and dampens Based on a scenario you select, brightness to increase readability SmartImage dynamically enhances the and reduce eye strain. -
Page 18: Smartcontrast
Developed for wellbeing, By reducing your monitor's power Philips LowBlue Mode setting uses consumption, you save on energy costs a smart software technology to and extend the lifetime of your monitor. -
Page 19: 4� Powersensor
4. PowerSensor™ detection signal for distances up to 4. PowerSensor™ 120 cm or 47 inches. (Setting 4) • Since some dark colored clothing How does it work? tends to absorb infrared signals even when the user is within 100 cm • PowerSensor works on principle or 40 inches of the display, step up of transmission and reception of... - Page 20 4. PowerSensor™ returned to its default Landscape position. Note A manually selected PowerSensor mode will remain operational unless and until it is readjusted or the default mode is recalled. If you find that the PowerSensor is excessively sensitive to nearby motion for some reason, please adjust to a lower signal strength.
-
Page 21: 5� Built-In Webcam With
PC is required for the webcam to 5.2 Using the device operate. The webcam allows you to hold Philips monitor with webcam device interactive video and audio conference transmits video and sound data through calls over the internet. It provides the USB port. - Page 22 5.Built-in Webcam with Microphone and software like Internet messenger or video phone call program. Make sure the person that you are calling has compatible video-calling software. The video and audio performance quality depends on the bandwidth available on both ends. The person you are calling must have similar capability of devices and software.
-
Page 23: 6� Daisy-Chain Function
6.Daisy-chain function 6. Daisy-chain function Daisy-chain enables multiple monitor connections This Philips display is equipped with DisplayPort 1.2 interface which enables daisy-chaining to multiple displays. Now you can daisy chain and use multiple monitors via a single cable from one display to the next. -
Page 24: 7� Technical Specifications
7.Technical Specifications 7. Technical Specifications Picture/Display Monitor Panel Type IPS Technology Backlight Panel Size 27" W (68.5 cm) Aspect Ratio 16:9 Pixel Pitch 0.155(H) mm x 0.155(V) mm SmartContrast 80,000,000:1 VGA:1920x1080/60 Optimum Resolution HDMI1.4(3840x2160 @ 30Hz) HDMI2.0/DP(3840x2160 @ 60Hz) Viewing Angle 178°... - Page 25 7.Technical Specifications Stand Tilt -5 / +30 degree Swivel -175 / +175 degree Height adjustment 150mm Pivot 90 degree Power AC Input AC Input AC Input Consumption Voltage at Voltage at Voltage at 100VAC , 50Hz 115VAC , 50Hz 230VAC, 50Hz Normal Operation 48.4W (typ.) 47.9W (typ.)
- Page 26 Finish Texture Note 1. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet. 2. USB hub is only support mouse or keyboard to wake up the system while on power saving mode.
-
Page 27: Resolution & Preset Modes
7.Technical Specifications 7.1 Resolution & Preset Modes Maximum Resolution 1920 x 1080 @ 60 Hz (analog input) 3840x2160 @ 60Hz (digital input) Recommended Resolution 3840 × 2160 @ 60 Hz (digital input) H. freq Resolution V. freq (Hz) (kHz) 31.47 720 x 400 70.09 31.47... -
Page 28: 8� Power Management
8.Power Management 8. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. -
Page 29: 9� Customer Care And Warranty
Pixel Defect Policy single black pixel. Other combinations of lit and dark sub pixels appear as Philips strives to deliver the highest single pixels of other colors. quality products. We use some of the industry's most advanced... - Page 30 Black Dot Defects the warranty period, a TFT Monitor Black dot defects appear as pixels or panel in a Philips flat panel monitor sub pixels that are always dark or 'off'. must have pixel or sub pixel defects That is, a dark dot is a sub-pixel that...
- Page 31 9.Customer care and warranty BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer...
-
Page 32: Customer Care & Warranty
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below. -
Page 33: 10� Troubleshooting & Faqs
• Contact with Philips customer • First, ensure that the power button service representative immediately. on the front of the monitor is in the... -
Page 34: General Faqs
"burn-in", also Service contact information listed in known as "after-imaging" or "ghost Important information manual and imaging", on your screen. "Burn-in", contact Philips customer service "after-imaging", or "ghost imaging" representative. is a well-known phenomenon in * Functionality different according to LCD panel technology. - Page 35 • Shut down your computer, that the panel surface is not disconnect your old monitor and subjected to excessive shocks reconnect your Philips LCD monitor. and is protected from sharp or • Turn on your monitor and then turn blunt objects. When handling the on your PC.
- Page 36 “ghost image” symptoms any PC, workstation or Mac? that will not disappear and cannot be repaired. The damage mentioned above Ans.: Yes. All Philips LCD monitors are is not covered under your warranty. fully compatible with standard PCs, Macs and workstations.
- Page 37 10.Troubleshooting & FAQs Q14: Where can I find Important Information manual mentioned in EDFU? Ans.: Important Information manual can be download on the Philips website support page.
- Page 38 Top Victory Investments Ltd. or one of its affiliates. Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license.
