Summary of Contents for Sunbeam HTD8216C

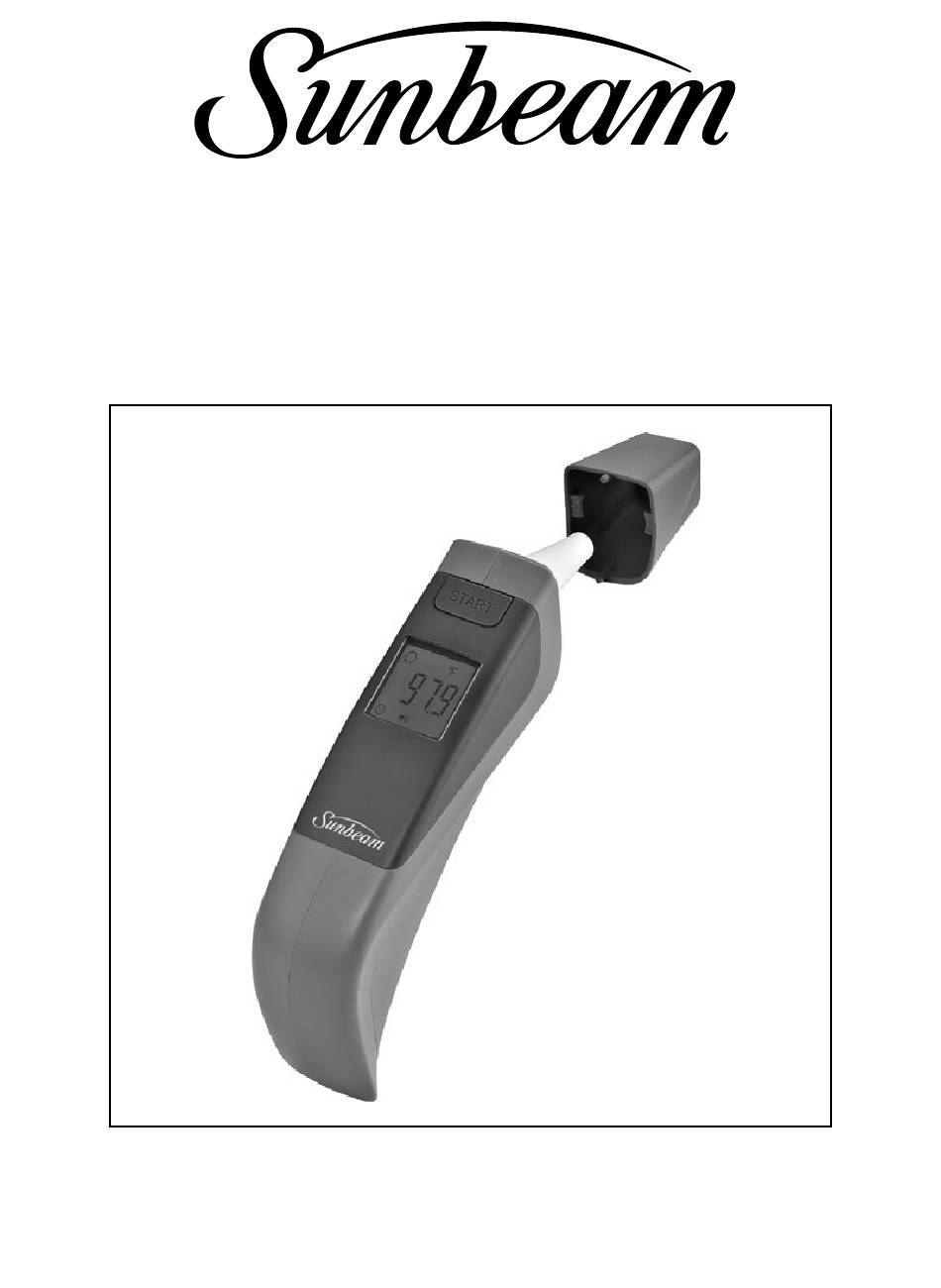

- Page 1 Infrared Body Thermometer Instruction Manual Model : HTD8216C Software version: V10...
-
Page 2: Table Of Contents
Only Body Mode was reviewed and certified. General knowledge of Infrared Thermometer and an understanding of Safety Information the features and functions of the HTD8216C Thermometer model are prerequisites for proper use. Overview The Infrared Body Thermometer is a medical device, and can be used repeatedly. -
Page 3: Safety Information
SAFETY INFORMATION SAFETY INFORMATION THIS DEVICE MAY ONLY BE USED FOR THE • This product is not waterproof, DO NOT immerse PURPOSES DESCRIBED IN THESE INSTRUCTIONS. in water or other liquids; when cleaning and THE MANUFACTURER CANNOT BE HELD LIABLE FOR disinfecting, please refer to and follow the "care and storage"... - Page 4 SAFETY INFORMATION WARNINGS • Brush aside any hair and make sure the forehead The device should be kept out of the reach is clean and free of perspiration, cosmetics, or any of children / pets. When not in use, store coverings (hats, caps, scarves) that may interfere with the device in a dry room and protect against measuring.
- Page 5 INTENDED USE WARNINGS The Infrared Body Thermometer, Model: HTD8216C, is an This device comprises sensitive components electronic clinical thermometer using an infrared sensor to and must be treated with caution. Observe the detect body temperature from the forehead or auditory canal in people of all ages for home setting use.
- Page 6 INFRARED BODY THERMOMETER INFRARED BODY THERMOMETER COMPONENTS COMPONENTS Figure 1 Model : HTD8216C Figure 2 Model : HTD8216C Forehead mode Low battery indicator Indicator of measurement result Ear mode Measuring status indicator Passive infrared probe Volume on/off indicator Liquid crystal display (LCD)
- Page 7 Axillary Infrared Body √ √ √ √ Site HTD8216C Thermometer Body mode: 93.2°F - 109.2°F / 34.0ºC - 42.9ºC Output Range Surface mode: 32°F - 212°F / 0ºC - 1 00.0ºC EQUIPMENT SYMBOLS Forehead mode/Ear mode: Note: not all symbols may appear in this instruction manual Laboratory 93.2°F - 94.8°F: ±0.5°F / 34.0ºC - 34.9ºC: ±0.3ºC;...
- Page 8 DIMENSION AND WEIGHTING FOREHEAD MODE: Weight Indicators Calculated value 2.3oz (65g) (without batteries) Clinical bias, Δ -0.018 Size 6.1" x 1.3" x 2" (154mm x 33mm x 51mm) Item Compliant with Standard deviation, ∑ 0.13 Safety Standards: EN 60601-1: 2006+A1:2013, Equipment classification Limits of agreement, L 0.26...
-
Page 9: Operation
OPERATION OPERATION INSTALLING BATTERIES GETTING STARTED Press the START button 1. Remove the battery access cover. 2. Insert two (2) AAA batteries aligned with the “+” and “-” icons. • The thermometer will perform a self-test with all functions 3. Close the battery access cover. displayed for 2 seconds. - Page 10 OPERATION OPERATION SELECTING FOREHEAD, EAR MEASURING BODY TEMPERATURE IN FOREHEAD MODE Note: Thermometer Cap should be on. To measure human BODY temperature (factory default): • When the cap is off, the thermometer will measure in EAR MODE. 1. Press START to turn on •...
-
Page 11: Troubleshooting
OPERATION TROUBLESHOOTING MEASURING BODY TEMPERATURE IN EAR MODE MESSAGE SITUATION SOURCE OR SOLUTION Note: Remove Thermometer Cap to access ear probe. Temperature taken in is higher than Body mode: detected target temperature If the patient is more than one year old, pull the ear up and Typical human temperature higher than 109.2°F (42.9°C) back gently. -
Page 12: Cleaning, Care And Storage
CLEANING, CARE AND STORAGE REPLACING THE BATTERIES Note: The thermometer lens and infrared probe are delicate. 1. Open and release battery cover following indicator on the Handle with care and keep them protected from dirt and surface of shell. Before changing the batteries be sure the damage. -
Page 13: Emc Declaration
NOTE: The thermometer is initially calibrated at the time of Guidance and manufacture’s declaration - Electromagnetic emission manufacture. If this thermometer is used according to the The Infrared Body Thermometer is intended for use in the electromagnetic environment specified below. The customer of the user of the Infrared Body use instructions, periodic re-adjustment is not required. - Page 14 Guidance and manufacture’s declaration - Electromagnetic immunity Guidance and manufacture’s declaration - Electromagnetic immunity The Infrared Body Thermometer is intended for use in the electromagnetic The Infrared Body Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of Infrared Body environment specified below.
- Page 15 Recommended separation distances between portable and mobile RF Guidance and manufacture’s declaration - Electromagnetic immunity communications equipment and the Infrared Body Thermometer. The Infrared Body Thermometer is intended for use in the electromagnetic The Infrared Body Thermometer is intended for use in an electromagnetic environment specified below.
-
Page 16: Body Temperature
BODY TEMPERATURE BODY TEMPERATURE For consumer use only, not for professional use. ASTM laboratory accuracy requirements in the display range of 96.8°F - 102.2°F (36°C - 39°C) for IR thermometers is • Body temperature varies from person to person and ±0.4°F (±0.2°C), whereas for mercury in-glass and electronic fluctuates during the course of the day. - Page 17 (8:30 am - 5:00 pm EST) Monday - Friday or contact us at info@stareliteinc.com Our customer service will be happy to assist you. © 2021 Sunbeam Products, Inc. All rights reserved. Distributed by Star Elite Inc., Montreal, Canada H3B 3X9. SE003-062821 Infrared Body Thermometer Model HTD8216C...
