Summary of Contents for SPUTNIK MODULAR SELECTOR

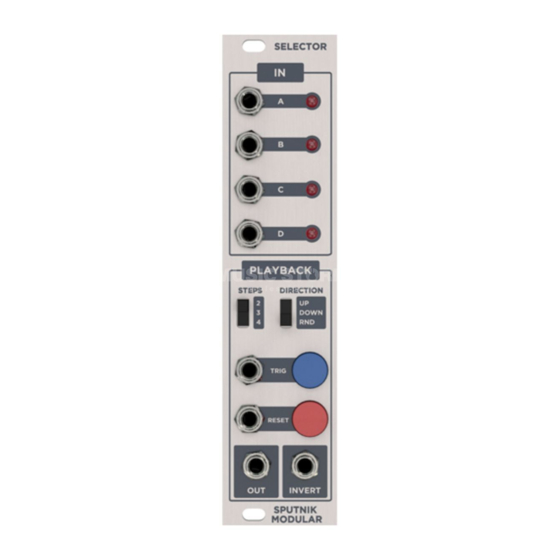

- Page 1 SPUTNIK MODULAR SELECTOR MANUAL V.1 SPUTNIK-MODULAR.COM...
- Page 2 SPUTNIK MODULAR SELECTOR TABLE OF CONTENTS SPECIFICATIONS INSTALLATION DESCRIPTION DIAGRAM WARRANTY SPUTNIK-MODULAR.COM...
- Page 3 SPUTNIK MODULAR SELECTOR SPECIFICATIONS FORMAT: EURORACK DIMENSIONS: 6HP, 28mm deep INTERNAL AND EXTERNAL SIGNALS (3.5mm Jacks): CV: 0-5V, AUDIO: +/-5V MAX CURRENT: +12V: 15mA -12V: 10mA +5V: 10mA SPUTNIK-MODULAR.COM...
- Page 4 SPUTNIK MODULAR SELECTOR INSTALLATION Remove module from packaging. Power down your modular synthesizer and disconnect the power cable from the wall outlet. Attach the included power cable to the module’s power connector and connect the other end to the power distribution bus in your EuroRack synthesizer case.

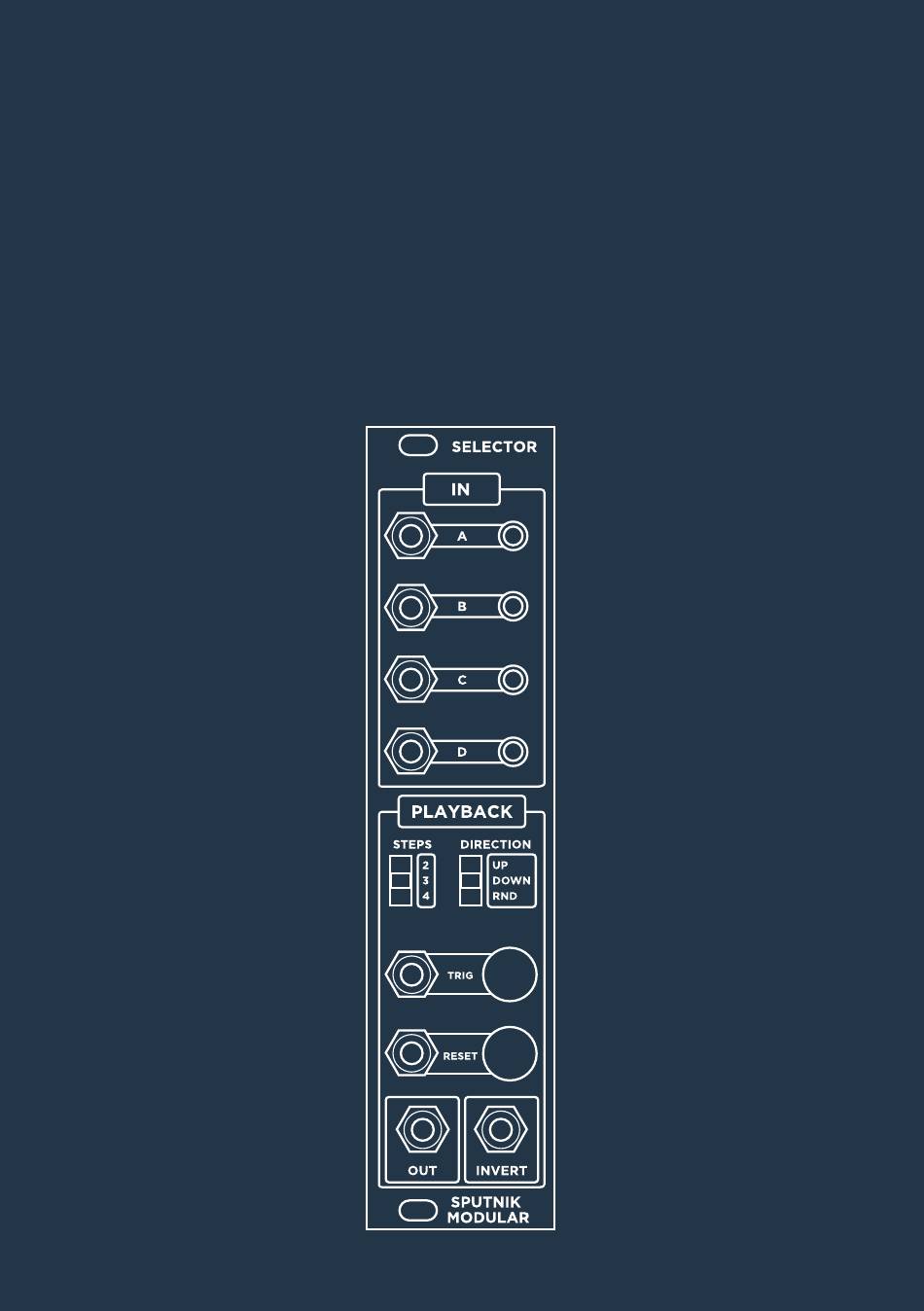

- Page 5 The SPUTNIK SELECTOR is a sequential switch that allows the automated routing of one of four inputs to a single output. The Selector is able to switch between 2, 3, or 4 of the inputs and four direction modes (three on the front panel and one “hidden”...
- Page 6 Signal output and Inverted voltage output. RESET Trigger input, gate input, or manual momentary button control of sequence reset. Reset defaults Selector back to Input A. SPUTNIK-MODULAR.COM...
- Page 7 SPUTNIK MODULAR SELECTOR WARRANTY This product is covered by the Sputnik Modular warranty, for one year following the date of purchase. This warranty covers any defect in the manufacturing of this product. This warranty does not cover any damage or malfunction caused by incorrect use – such as, but not limited to, power cables connected backwards, excessive voltage levels, or exposure to extreme temperature or moisture levels.
