Summary of Contents for Metal Man Deluxe Welding Tool Cabinet

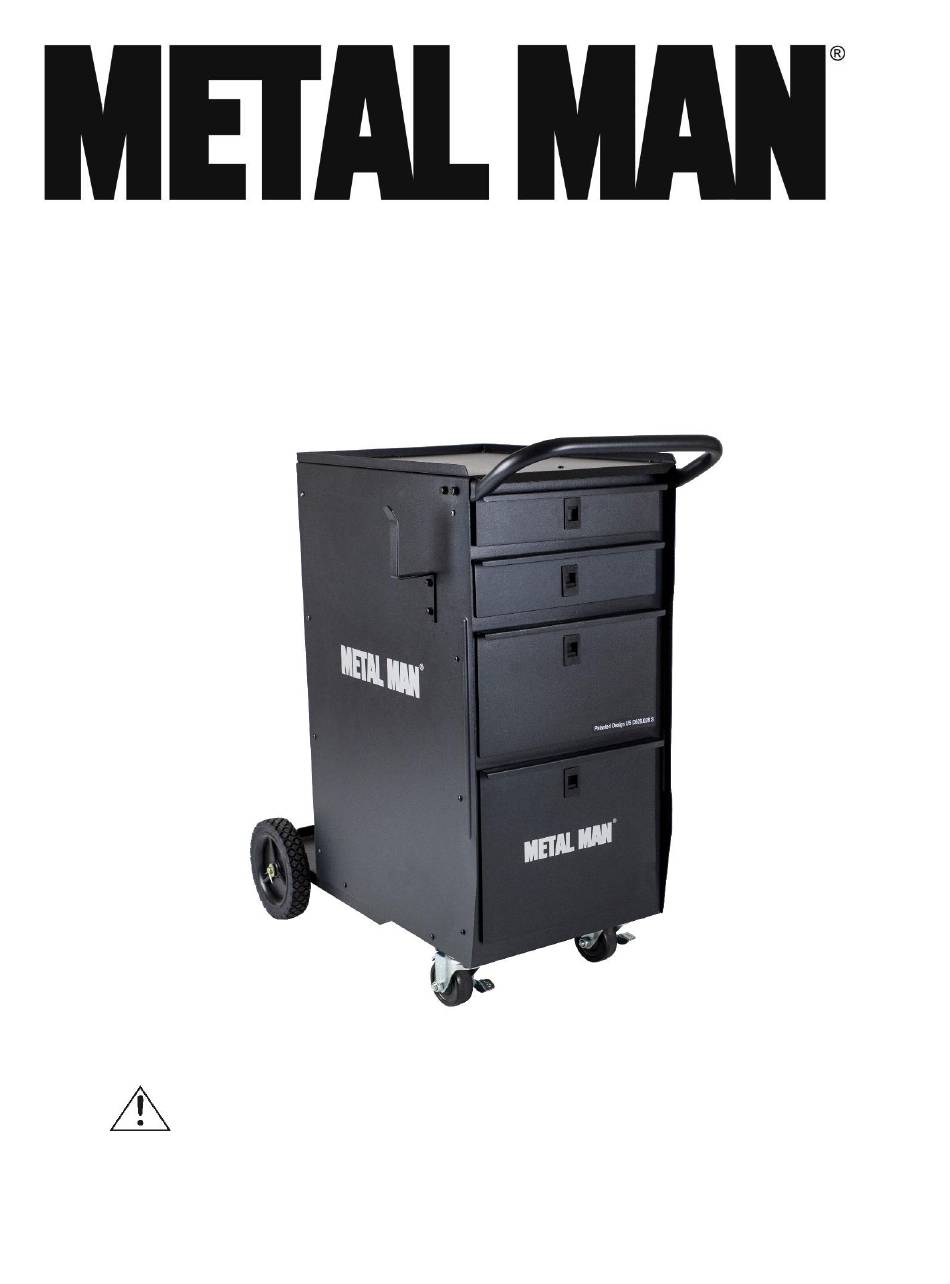

- Page 1 Deluxe Welding Tool Cabinet OWNER’S MANUAL 8/2020 WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
- Page 2 Limited to the warranty periods below, METAL MAN WORK GEAR CO will repair or replace the item under warranty that fails due to defects in material and workmanship. METAL MAN WORK GEAR CO must be notified within 30 days of the failure, so as to provide instructions on how to proceed with the repair of your unit and warranty claim processing.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury or death. CAUTION: Do not allow persons to operate or assemble this unit until they have read this manual and have developed a thorough understanding of how this unit works. WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. -
Page 4: Assembly Operation
DESCRIPTION The Deluxe Welding cabinet provides an integrated all-in-one solution for portable welder or plasma cutting applications. It is designed for the welder or plasma cutter to sit on top of the cabinet. It includes 4 drawers on ball bearing slides. The bottom drawer is 9 inches deep and can fit a typical welding helmet. - Page 5 Please check the contents of your package. These contents are stored inside the cabinet drawers.
- Page 6 ASSEMBLY...
- Page 8 DIAGRAM & PARTS DIAGRAM Reference # Part# Description Qty. 105100001 COTTER PIN 105100002 FLAT WASHER 105100042 RUBBER WHEEL 105100043 AXLE 105100034 HEX BOLT 105100032 SPRING WASHER...
- Page 9 105100033 FLAT WASHER 105100047 BOTTOM CYLINDER TRAY 105100048 HEX BOLT 105100049 LOCK (SPRING) WASHER 105100177 FLAT WASHER 105100051 LOCKING CASTER WHEEL DRAWER SLIDES (TOP MIDDLE, 105100052 3 SETS BOTTOM MIDDLE, BOTTOM DRAWERS) 115100003 DRAWER 4 (BOTTOM) 105100053 105100054 DRAWER 3 (BOTTOM MIDDLE) 105100055 DRAWER 2 (TOP MIDDLE) 105100056...
- Page 10 Metal Man Work Gear Company 1760 Prospect Ct #120 Appleton, WI 54914 w w w . m e t a l m a n g e a r . c o m 8 8 8 - 7 6 2 - 4 0 4 5...
