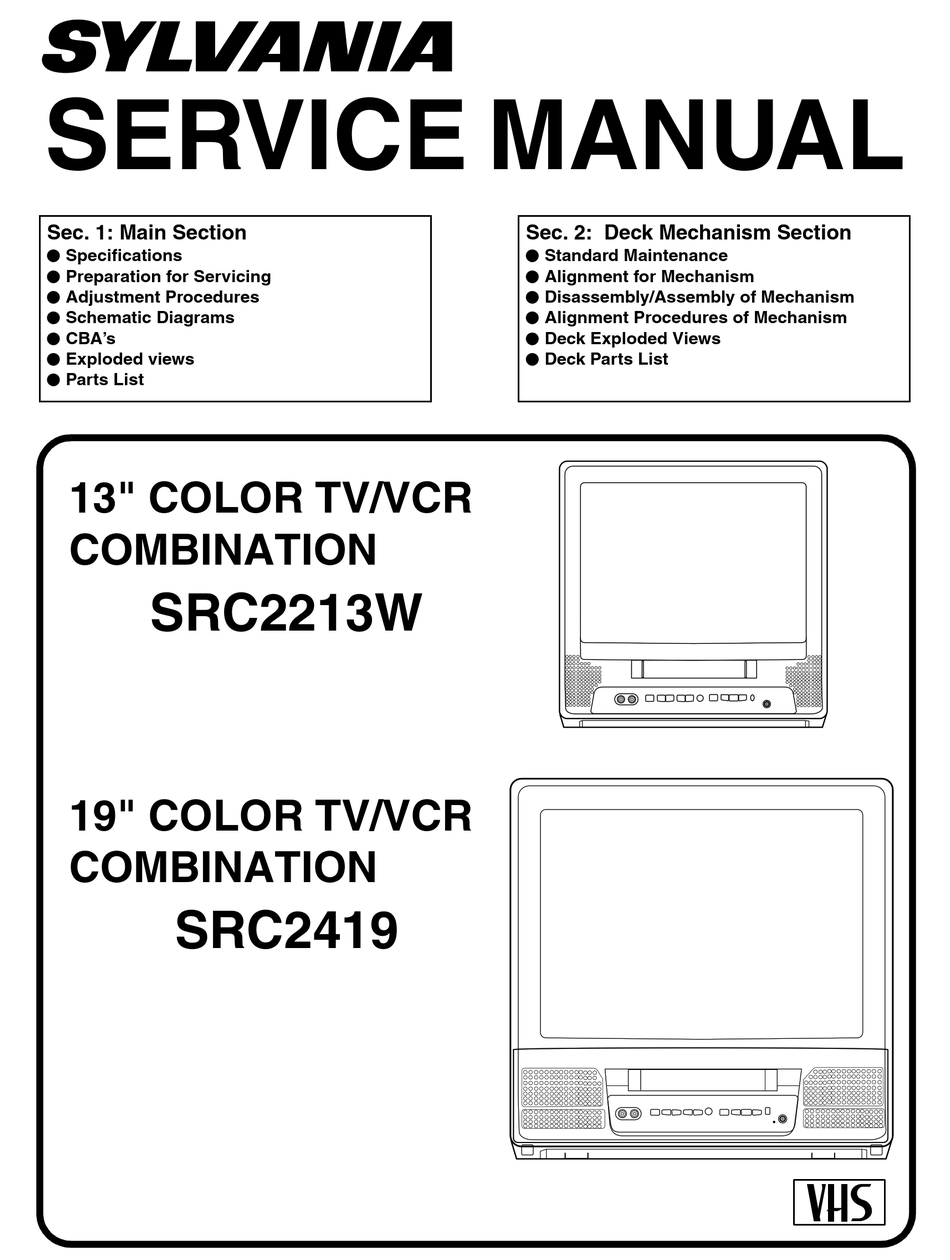

SERVICE MANUAL
Sec. 1: Main Section
I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA's
I Exploded views
I Parts List
13" COLOR TV/VCR
COMBINATION
SRC2213W
19" COLOR TV/VCR
COMBINATION
SRC2419
Sec. 2: Deck Mechanism Section
I Standard Maintenance
I Alignment for Mechanism
I Disassembly/Assembly of Mechanism
I Alignment Procedures of Mechanism
I Deck Exploded Views
I Deck Parts List

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRC2213W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sylvania SRC2213W

Summary of Contents for Sylvania SRC2213W

  • Page 1 I Adjustment Procedures I Disassembly/Assembly of Mechanism I Schematic Diagrams I Alignment Procedures of Mechanism I CBA’s I Deck Exploded Views I Exploded views I Deck Parts List I Parts List 13" COLOR TV/VCR COMBINATION SRC2213W 19" COLOR TV/VCR COMBINATION SRC2419...
  • Page 2 IMPORTANT SAFETY NOTICE Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

  • Page 3: Table Of Contents

    MAIN SECTION 13"/19" COLOR TV/VCR COMBINATION SRC2213W/SRC2419 Sec. 1: Main Section I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s I Exploded Views I Parts List TABLE OF CONTENTS Specifications................1-1-1 Important Safety Precautions.

  • Page 4: Specifications

    *ˆ M ode---------SP mode unless otherwise specified *Test input terminal <Except Tuner>-------------Video input (1Vp-p) Audio input (-10dB) <Tuner>-----------------------Ant. input (80dBµV) Video: 87.5% Audio: 25kHz dev (1kHz Sin) <DEFLECTION> [ SRC2213W ] Description Condition Unit Nominal Limit 1. Over Scan —...
  • Page 5 [ SRC2419 ] Description Condition Unit Nominal Limit 1. Misconvergence Center — Corner — Side — ±30 2. Tint Control Range — — 3. Contrast Control Range — — 4. Brightness APL 100% ft-L 5. Color Temperature — 9200 — <VCR>...

  • Page 6: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.
  • Page 7 ing is performed that involves B+, horizontal de- earth ground. If a voltage reading in excess of 1.0V flection or high voltage. Correct operation of the is obtained, remove and reinsert the AC power X-radiation protection circuits also must be recon- plug in the opposite polarity and again measure firmed each time they are serviced.
  • Page 8 Precautions during Servicing H. When a power cord has been replaced, check that 5~6 kg of force in any direction will not loosen it. A. Parts identified by the ( # ) symbol are critical for I. Also check areas surrounding repaired locations. safety.
  • Page 9 Safety Check after Servicing Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, Chassis or Secondary Conductor parts and wires have been returned to original posi- tions. Afterwards, perform the following tests and con- Primary Circuit Terminals firm the specified values in order to verify compliance with safety standards.

  • Page 10: Standard Notes For Servicing

    STANDARD NOTES FOR SERVICING Circuit Board Indications How to Read the Values of the Rect- angular Type Chip Components 1. The output pin of the 3 pin Regulator ICs is indi- cated as shown: Example: (a) Resistor Top View Bottom View Input = 473 = 47 [kΩ] (Top View)
  • Page 11 d. Preheating Leadless capacitor must be preheated before Tweezers installation. (130°C~150°C, for about two minutes.) 1.2. Standard solder Chip a. Soldering Iron Use a pencil-type soldering iron (less than 30 watts). b. Solder Eutectic solder (Tin 63%, Lead 37%) is recom- mended.
  • Page 12 How to Remove / Install Flat Pack IC 2. Installation a. Using desoldering braid, remove the solder from Caution: the foil of each pin of the Flat Pack - IC on the CBA, 1. The Flat Pack-IC shape may differ by models. Use so you can install a replacement Flat Pack - IC an appropriate hot-air flat pack-IC desoldering more easily.
  • Page 13 Presolder Sharp Fine Tip Soldering Iron Fig. S-1-4 Flat Pack-IC Fig. S-1-7 Hot Air Blower Iron Wire Soldering Iron To Solid Mounting Point Fig. S-1-5 Example : Pin 1 of the Flat Pack-IC is indicated by a " " mark. Fig.
  • Page 14 Instructions for Handling Semiconductors Electrostatic breakdown of the semiconductors may occur due to a potential difference caused by electro- static charge during unpacking or repair work. Ground for Human Body Be sure to wear a grounding band (1MΩ) that is prop- erly grounded to remove any static electricity that may be charged on the body.

  • Page 15: Preparation For Servicing

    PREPARATION FOR SERVICING How to Enter the Service Mode Adjustment Mode Purity check mode: Shows Red, Green, Caution: 1 Blue or White cyclically on the screen 1. Optical sensors system are used for Tape Start and each time the "7" key is pressed. End Sensor on this equipment.

  • Page 16: Cabinet Disassembly Instructions

    CABINET DISASSEMBLY INSTRUCTIONS [ SRC2213W ] (1): Order of steps in Procedure. When reassembling, 1. Disassembly Flowchart follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in Figures. This flowchart indicates the disassembly steps for the cabinet parts and the CBA in order to gain access to (2): Parts to be removed or installed.
  • Page 17 [1] REAR CABINET Fig. 1 [1] REAR CABINET Fig. 2 1-5-2 T5505DC...
  • Page 18 [2] TRAY CHASSIS [3] DECK UNIT [4] MAIN CBA Fig. 3 1-5-3 T5505DC...
  • Page 19 ANODE CAP. CRT CBA [5] CRT Fig. 4 1-5-4 T5505DC...
  • Page 20 ANODE CL502A CN505 CL501A CRT CBA FOCUS SCREEN TO SPEAKER MAIN CBA CL403 TO DEGAUSS COIL CN801 CN601 AC CORD CL502B CL401 CL402 CN571 CL201 CL501B CYLINDER CAPSTAN ASSEMBLY MOTOR ACE HEAD FE HEAD DECK UNIT ASSEMBLY Fig. 5 1-5-5 T5505DC...
  • Page 21 [ SRC2419 ] (1): Order of steps in Procedure. When reassembling, 1. Disassembly Flowchart follow the steps in reverse order.These numbers are also used as the Identification (location) No. of parts in Figures. This flowchart indicates the disassembly steps for the cabinet parts and the CBA in order to gain access to (2): Parts to be removed or installed.
  • Page 22 [1] REAR CABINET ANT. Fig. 1 [1] REAR CABINET Fig. 2 1-5-7 T7505DC...
  • Page 23 [2] TRAY CHASSIS [3] DECK UNIT [4] MAIN CBA Fig. 3 1-5-8 T7505DC...
  • Page 24 ANODE CAP CRT CBA [5] CRT Fig. 4 1-5-9 T7505DC...
  • Page 25 ANODE CL502A CN505 CL501A CRT CBA FOCUS SCREEN TO SPEAKER MAIN CBA CL403 TO DEGAUSS COIL CN801 CN601 AC CORD CL502B CL401 CL402 CN571 CL201 CL501B CYLINDER CAPSTAN ASSEMBLY MOTOR ACE HEAD FE HEAD DECK UNIT ASSEMBLY Fig. 5 1-5-10 T7505DC...

  • Page 26: Electrical Adjustment Instructions

    It is important to perform these adjustments only after all repairs and replacements have been completed. [ SRC2213W ] Also, do not attempt these adjustments unless the proper equipment is available. 1-1. DC 105V (+B) Adjustment Test Equipment Required Purpose: To obtain correct operation.
  • Page 27 3. To set each data value shown below, press "CH o / p" buttons on the service remote control unit. 7F --- Set to "FF." FM --- Set to "ON." [ SRC2213W ] Set to "OFF." [ SRC2419 ] ACCESS CODE --- Set to "ON."...
  • Page 28 3-2. C-Trap Adjustment 3-3. Y DL Time TV/Y DL Time EXT/ Y SW LPF/Black Stretch Off/ Purpose: To get minimum leakage of the color signal carrier. Black Stretch CONT/C. Angle Symptom of Misadjustment: If C-Trap Adjustment is Adjustment incorrect, stripes will appear on the screen. Purpose: To get minimum leakage of the color signal carrier.
  • Page 29 4. V. Size Adjustment Purpose: To obtain correct vertical height of screen C-TRAP Adjustment (Factory mode) image. "0" Symptom of Misadjustment: If V. Size is incorrect, button button C-TRP 0 C-TRP 1 vertical height of image on the screen may not be properly displayed.
  • Page 30 6. H. Shift Adjustment Notes: Screen Control FBT --- MAIN CBA F.B.T= Fly Back Transformer Purpose: To obtain correct horizontal position and Use the Remote Control Unit size of screen image. 1. Degauss the CRT and allow CRT to operate for 20 Symptom of Misadjustment: Horizontal position and minutes before starting the alignment.
  • Page 31 8. Sub-Brightness Adjustment 9. Focus Adjustment Purpose: To get proper brightness. Purpose: Set the optimum Focus. Symptom of Misadjustment: If Sub-Brightness is Symptom of Misadjustment: If Focus Adjustment is incorrect, proper brightness cannot be obtained by incorrect, blurred images are shown on the display. adjusting the Brightness Control.
  • Page 32 13. Convergence Adjustment The following 2 adjustments normally are not attempted in the field. They should be done Purpose: To obtain proper convergence of red, green only when replacing the CRT then adjust as a and blue beams. preparation. Symptom of Misadjustment: If Convergence Adjust- 12.Purity Adjustment ment is incorrect, the edge of white letters may have color edges.
  • Page 33 1. Set the unit to the AUX mode which is located before CH2 then input a Dot or crosshatch pattern. 2. Loosen the Ring Lock and align red with blue dots or Crosshatch at the center of the screen by rotat- ing (RB) C.P.

  • Page 34: Block Diagrams

    BLOCK DIAGRAMS Servo/System Control Block Diagram 1-7-1 T5505BLS...
  • Page 35 Video Block Diagram 1-7-2 T5505BLV...
  • Page 36 Audio Block Diagram 1-7-3 T5505BLA...
  • Page 37 Chroma/Tuner Block Diagram 1-7-4 T5505BLC...
  • Page 38 CRT/H.V. Block Diagram 1-7-5 T5505BLCRT...
  • Page 39 Power Supply Block Diagram 1-7-6 T5505BLP...

  • Page 40: Mechanical Trouble Indicator

    MECHANICAL TROUBLE INDICATOR 1, Each Malfunction Indication POWER SAFETY 1) POWER SAFETY 2 If the MONITOR is turned ON right after the Mechani- If P-SAFETY 2 port becomes continuously 2.5V or cal Malfunction occurs or POWER SAFETY is turned less for 120 msec. (4 times 40 msec. interval) when ON, display the following character to show Malfunc- P-ON-H port is ON, the unit shall be assumed to be tion after the EJECT display.
  • Page 41 Mechanical Malfunction determination 4) Countermeasure for CASSETTE LOADING Mal- function 1) REEL Malfunction detection a) CASSETTE IN operating Malfunction Countermeasure for REEL and CAPSTAN motor If LD-SW does not go to SB position after a lapse rotation malfunction (Except CASSETTE LOAD- of 5 sec.

  • Page 42: Power Supply Trouble Shooting Guide

    Power Supply Trouble Shooting Guide It is highly recommended that a variable isolation Voltage approx. 5Vp-p transformer which can monitor current be used. (Alternatively a variable AC source which monitors current will do). Read directions below before power is added! T=Approx.
  • Page 43 Repair method #2 Check the primary rectifying diodes (D603-D606) as possible problems. Remove the above mentioned parts and check them. Perform check according to the step 1 and 2 of repair method #1 and check for defects following parts, then if necessary replace with factory originals.

  • Page 44: Schematic Diagrams / Cba's And Test Points

    SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS Standard Notes Note: 1. Do not use the part number shown on these draw- Warning ings for ordering. The correct part number is shown in the parts list, and may be slightly different or Many electrical and mechanical parts in this chassis amended since these drawings were prepared.
  • Page 45 LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES: 1. CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE_A,_V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V. 2.
  • Page 46 Main 1/5 Schematic Diagram MAIN 1/5 Ref No. Position IC201 IC202 TRANSISTORS Q205 Q206 CONNECTOR CL201 TEST POINTS TP201 TP202 1-8-3 1-8-4 T5505SCM1...
  • Page 47 Main 2/5 Schematic Diagram REC Video Signal PB Video Signal PB Audio Signal REC Audio Signal MAIN 2/5 Ref No. Position IC401 IC801 TRANSISTORS Q401 Q402 Q871 Q872 Q873 Q874 Q875 CONNECTORS CL401 CL402 CL403 CN801 TEST POINTS TP301 TP401 TP402 T5505SCM2 1-8-5...
  • Page 48 Main 3/5 Schematic Diagram PB Video Signal REC Video Signal PB Audio Signal REC Audio Signal MAIN 3/5 Ref No. Position IC001 IC301 TRANSISTOR Q301 TEST POINT TP302 1-8-7 1-8-8 T5505SCM3...
  • Page 49 VOLTAGE CHART (Power off mode) Main 4/5 Schematic Diagram Ref. No. MAIN 4/5 IC601 11.0 16.0 10.0 CAUTION ! Ref No. Position Ref No. Position Ref. No. CAUTION: FOR CONTINUED PROTECTION AGAINST RISK Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. TRANSISTORS IC602 OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE.
  • Page 50 Main 5/5 & CRT Schematic Diagram MAIN 5/5 Ref No. Position Ref No. Position TRANSISTORS IC551 Q511 CC-2 TRANSISTORS Q521 CC-2 Q571 AA-2 CC-2 Q572 Q531 CONNECTORS Q591 CONNECTORS CL501A BB-3 CL502A BB-2 CL501B BB-3 CN505 DD-2 CL502B BB-2 CN571 PB Video Signal REC Video Signal 1-8-11...
  • Page 51 Main CBA Top View Sensor CBA Top View CAUTION ! CAUTION: FOR CONTINUED PROTECTION AGAINST RISK Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE. If Main Fuse (F601) is blown, check to see that all components in the power supply circuit ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE TO SENSOR CBA...
  • Page 52 Main CBA Bottom View CAUTION ! BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER CAUTION: FOR CONTINUED PROTECTION AGAINST RISK Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE. SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
  • Page 53 CRT CBA Top View CRT CBA Bottom View CRT CBA Ref No. Position TRANSISTORS Q511 Q521 Q531 CONNECTORS CL501A CL502A CN505 WF15 WF14 WF16 Q521 Q511 Q531 Collector Collector Collector 1-8-17 1-8-18 BT5500F01011...

  • Page 54: Waveforms

    WAVEFORMS Z13WF 1-9-1...

  • Page 55: Wiring Diagram

    WIRING DIAGRAM T5505WI 1-10-1...

  • Page 56: System Control Timing Charts

    SYSTEM CONTROL TIMING CHARTS Chart 1 1) SP MODE 18 RF-SW The first rise of RF-SW after a rise in F-AD signal. F-AD ( Internal Signal ) "H" "H" "Z" C-DRIVE Stop Detection Acceleration Detection Slow Tracking Value PB CTL Reversal Limit Value 66 C-F/R ROLL...
  • Page 57 Chart 2 2) LP/EP MODE 18 RF-SW The first rise of RF-SW after a rise in F-AD signal. F-AD ( Internal Signal ) "H" "H" "Z" C-DRIVE Stop Detection Acceleration Detection Slow Tracking Value PB CTL Reversal Limit Value 66 C-F/R ROLL COMPENSATION (DRUM SERVO)
  • Page 58 Chart 3 EJECT ST-S/ END-S "OFF" CASS.LOAD LD-FWD 0.2S LD-REV SFT-SW STOP(B) POWER LD-FWD 0.4S 0.2S LD-REV 0.2S LD-FWD 0.5S LD-REV STOP(A) PLAY LD-FWD PLAY LD-FWD RS1(RS2) LD-REV 0.2S LD-FWD FS1(FS2) PLAY PLAY PAUSE (SLOW) LD-FWD STILL(SLOW) PLAY LD-REV 0.2S LD-FWD PLAY STOP...
  • Page 59 Chart 4 STOP(A) STOP LD-REV 0.2S LD-FWD 0.2S STOP /EJECT 1.0S LD-FWD 0.5S LD-REV STOP(A) LD-REV 0.2S LD-FWD 0.2S STOP /EJECT LD-REV 1.0S LD-FWD 0.5S LD-REV STOP(A) LD-FWD PAUSE LD-FWD 2.5S Short REV LD-REV 0.2S LD-FWD REC PAUSE REC or PAUSE STOP /EJECT...

  • Page 60: Ic Pin Function Descriptions

    IC PIN FUNCTION DESCRIPTIONS Comparison Chart of Models and Marks Signal Mark Function Model Mark Name SRC2213W Not Used SRC2419 Not Used FM/TV-SW FM/TV-SW Signal IC201 (TV/VCR Micro Controller) Not Used “H” ≥ 4.5V, “L” ≤ 1.0V Not Used Not Used...
  • Page 61 Signal Signal Mark Function Mark Function Name Name IN H-SYNC H-SYNC Input GND (AMP) IN V-SYNC V-SYNC Input Not Used Output for Picture Cut Drum Motor Pulse OUT OSD-BLK IN D-PFG Generator Not Used Not Used OUT OSD-B Blue Output AMP VREF Standard Voltage Input OUT OSD-G...

  • Page 62: Lead Identifications

    LEAD IDENTIFICATIONS 2SC5884000RF TT2138LS-YB11 MID-32A22F 2SC5885000RF 2SK3563 PT204-6B-12 TT2140LS-YB11 S: Souce E: Emitter D: Drain C: Collector G: Gate B: Base S D G B C E 2SC1815-GR(TPE2) 2SA1015-GR(TPE2) LA78040A 2SC2120-(O,Y)(TPE2) 2SA1175(F) 2SC3331(T,U) 2SA950(O,Y) KRA103M 2SC1627Y-TPE2 KTC3203(Y) 2SC2482 TPE6 2SC2785(F,H,J) 2SC3468(D,E)-AE BN1F4M-T KTA1267(GR)
  • Page 63 EXPLODED VIEWS Cabinet [ SRC2213W ] SHINWHA TAPE SGT-730 (BLACK) V501-2 SHINWHA TAPE SGT-730 Details for L551 V501-1 (WHITE) and surrounding parts L551 V501-3 TB24 CLN551 CRT CBA L551 TB24 DG601 SCOTCH TAPE #880 W601 V501 TB26 SENSOR CBA TB10...
  • Page 64 [ SRC2419 ] SHINWHA TAPE SGT-730 V501-1 (BLACK) V501-2 SHINWHA Details for L551 TAPE SGT-730 and surrounding parts L551 (WHITE) V501-3 SCOTCH TAPE #880 SCOTCH CRT CBA TAPE #880 TB24 CLN551 L551 DG601 TB24 V501 SCOTCH TAPE #880 SP801 W601 SENSOR CBA TB26 TB22...
  • Page 65 Packing [ SRC2213W ] TAPE 1-14-5 T5505PEX...
  • Page 66 [ SRC2419 ] TAPE TAPE 1-14-6 T7505PEX...

  • Page 67: Mechanical Parts List

    ALSO HAS MATCHING COMBINATION WITH L551. PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION. 2. L551 (DEFLECTION YOKE) HAS MATCHING COMBINATION WITH V501. PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION. [ SRC2213W ] CRT TYPE A Ref. No. Description Part No.
  • Page 68 TCRT190CP043 A1-1 FRONT CABINET T7505UF 0EM101434 CRT TYPE B A1-2 CONTROL PLATE T7505UF 0EM302047 L551# DEFLECTION YOKE KDY3MDD74X LLBY00ZMS024 A1-3 BRAND PLATE T5308UJ:SYLVANIA 0EM407194 V501# CRT A48AKH13X TCRT190CP044 A1-4 CASSETTE DOOR T5308UJ 0EM407195 V501-1 C.P .MAGNET JH225-014 or XM04000BV009 A1-5...
  • Page 69 Warning Label which is located on the CRT. Then See the Table 1 for V501 and L551 combination chart. Please refer this CRT, Deflection Yoke combination chart for parts order. [ SRC2213W ] L551: Deflection V501: CRT Type No. V501: CRT Part No. Yoke Part No.

  • Page 70: Electrical Parts List

    Model Mark C221 CHIP CERAMIC CAP . F Z 0.01µF/50V CHD1JZB0F103 C222 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JKB0B222 SRC2213W C223 CHIP CERAMIC CAP . F Z 1µF/10V CHD1AZB0F105 SRC2419 C224 CHIP CERAMIC CAP . B K 1000pF/50V CHD1JKB0B102 C225 CHIP CERAMIC CAP .
  • Page 71 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. C310 CHIP CERAMIC CAP . F Z 1µF/10V CHD1AZB0F105 MYLAR CAP . 0.22µF/50V J or CMA1JJS00224 C314 CHIP CERAMIC CAP . B K 0.01µF/50V CHD1JKB0B103 TF CAP . 0.22µF/50V J CT1J224MS045 C315 CHIP CERAMIC CAP .
  • Page 72 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. C607# LINE ACROSS CAP . 0.1U/250V CT2E104DC015 C634 ELECTROLYTIC CAP . 100µF/16V M or CE1CMASDL101 C610# ALMINIUM ELECTROLYTIC CAP150µF/ CA2D151NC088 ELECTROLYTIC CAP . 100µF/16V M CE1CMASTL101 200V or C635 ELECTROLYTIC CAP .
  • Page 73 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. ZENER DIODE MTZJT-7715B QDTB00MTZJ15 D610 ZENER DIODE DZ-5.6BSBT265 or NDTB0DZ5R6BS D254 ZENER DIODE DZ-18BSAT265 or NDTA00DZ18BS ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6 ZENER DIODE MTZJT-7718A QDTA00MTZJ18 D611 SWITCHING DIODE 1N4148 or NDTZ001N4148 D302 SWITCHING DIODE 1N4148 or...
  • Page 74 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. ZENER DIODE MTZJT-7736A QDTA00MTZJ36 Q206 PHOTO TRANSISTOR MID-32A22F or NPWZ1D32A22F D643 SWITCHING DIODE 1N4148 or NDTZ001N4148 PHOTO TRANSISTOR PT204-6B-12 NPWZT2046B12 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133 Q301 TRANSISTOR KTC3199(GR) or NQS10KTC3199 D646 SWITCHING DIODE 1N4148 or...
  • Page 75 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. CHIP RES.(1608) 1/10W J 470k Ω TRANSISTOR 2SC3331(T) or QSC3331TNPAA R238 RRXAJB5Z0474 CHIP RES.(1608) 1/10W J 2.7k Ω TRANSISTOR 2SC3331(U) QSC3331UNPAA R239 RRXAJB5Z0272 CHIP RES.(1608) 1/10W 0 Ω Q874 TRANSISTOR 2SC1815-GR(TPE2) or QQS102SC1815...
  • Page 76 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. CHIP RES.(1608) 1/10W J 47k Ω CARBON RES. 1/4W J 100k Ω R414 RRXAJB5Z0473 R588# RCX4JATZ0104 CHIP RES.(1608) 1/10W J 1.5k Ω METAL OXIDE FILM RES. 1W J 3.3k Ω or R415 RRXAJB5Z0152 R590...
  • Page 77 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. CARBON RES. 1/4W J 5.6k Ω CARBON RES. 1/4W J 22k Ω R633# RCX4JATZ0562 R856 RCX4JATZ0223 CHIP RES.(1608) 1/10W J 6.8k Ω CHIP RES.(1608) 1/10W J 3.9k Ω R634 RRXAJB5Z0682 R857...
  • Page 78 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. CL602 LEAD WIRE WX3001A25505 WX3001A25505 X202 X'TAL AT49-10.6 or FXD106LDS002 F601# FUSE 51MS040L or PAFC20CHV402 X'TAL HC-49/U 10.6MHz FXD106LLN001 FUSE STC4A125V U/CT or PAGE20CW3402 X301 X'TAL 3.579545MHz(30PPM) or FXD355LCHE01 FUSE 4.00A/125V or PAGG20CNG402...
  • Page 79 Ref. No. Mark Description Part No. CARBON RES. 1/4W J 1.5k Ω R526 RCX4JATZ0152 CARBON RES. 1/4W J 1.5k Ω R527 RCX4JATZ0152 METAL OXIDE FILM RES. 1W J 15k Ω or R530# RN01153DP003 METAL OXIDE FILM RES. 1W J 15k Ω RN01153ZU001 CHIP RES.(1608) 1/10W J 15 Ω...
  • Page 80 DECK MECHANISM SECTION 13"/19" COLOR TV/VCR COMBINATION SRC2213W/SRC2419 Sec. 2: Deck Mechanism Section I Standard Maintenance I Alignment for Mechanism I Disassembly/Assembly of Mechanism I Alignment Procedures of Mechanism I Deck Exploded Views I Deck Parts List TABLE OF CONTENTS Standard Maintenance.

  • Page 81: Standard Maintenance

    STANDARD MAINTENANCE Service Schedule of Components H: Hours : Check I: Change Deck Periodic Service Schedule Ref.No. Part Name 1,000 H 2,000 H 3,000 H 4,000 H Cylinder Assembly Loading Motor Assembly Pulley Assembly B587 Tension Lever Assembly ACE Head Assembly B573, B574 Reel (SP)(D2), Reel (TU)(D2) Capstan Motor...
  • Page 82 Cleaning Cleaning of ACE Head Clean the head with a cotton swab. Cleaning of Video Head Procedure Clean the head with a head cleaning stick or chamois 1.Remove the top cabinet. cloth. 2.Dip the cotton swab in 90% isopropyl alcohol and Procedure clean the ACE Head.

  • Page 83: Service Fixtures And Tools

    SERVICE FIXTURE AND TOOLS J-1-1, J-1-2 Ref. No. Name Part No. Adjustment J-1-1 Alignment Tape FL8A Head Adjustment of ACE Head J-1-2 Alignment Tape FL8N Azimuth and X Value Adjustment of ACE Head / (2 Head only) Adjustment of Envelope Waveform FL8NW (4 Head only) Guide Roller Adj.

  • Page 84: Mechanical Alignment Procedures

    MECHANICAL ALIGNMENT PROCEDURES Explanation of alignment for the tape to correctly run B. Method to place the Cassette Holder in the tape- starts on the next page. Refer to the information below loaded position without a cassette tape on this page if a tape gets stuck, for example, in the 1.
  • Page 85 1. Tape Interchangeability Alignment Note: To do these alignment procedures, make sure that the Tracking Control Circuit is set to the preset position every time a tape is loaded or unloaded. (Refer to page 2-3-4, procedure 1-C, step 2.) Equipment required: Dual Trace Oscilloscope VHS Alignment Tape (FL8NW) Guide Roller Adj.
  • Page 86 1-A. Preliminary/Final Checking and 3. Check to see that the tape runs without creasing at Alignment of Tape Path Take-up Guide Post [4] or without snaking between Guide Roller [3] and ACE Head. (Fig. M3 and M5) Purpose: 4. If creasing or snaking is apparent, adjust the Tilt To make sure that the tape path is well stabilized.
  • Page 87 5. To shift the CTL waveform, press CH UP or CH 4. If the envelope is as shown in Fig. M8, adjust the DOWN button on the remote control unit. Then height of Guide Roller [3] (Refer to Fig. M3) so that make sure that the maximum output position of PB the waveform looks like the one shown in Fig.
  • Page 88 1-D. Azimuth Alignment of Audio/Con- trol/ Erase Head Purpose: To correct the Azimuth alignment so that the Audio/ Control/Erase Head meets tape tracks properly. Symptom of Misalignment: If the position of the Audio/Control/Erase Head is not properly aligned, the Audio S/N Ratio or Frequency Response will be poor.

  • Page 89: Disassembly/Assembly Procedures Of Deck Mechanism

    DISASSEMBLY/ASSEMBLY PROCEDURES OF DECK MECHANISM Before following the procedures described below, be sure to remove the deck assembly from the cabinet. (Refer to CABINET DISASSEMBLY INSTRUCTIONS on page 1-5-1 of Main Section.) All the following procedures, including those for adjustment and replacement of parts, should be done in Eject mode;...
  • Page 90 REMOVAL INSTALLATION STEP START- REMOVE/*UNHOOK/ /LOC. PART ADJUSTMENT Fig. No. UNLOCK/RELEASE/ CONDITION UNPLUG/DESOLDER [29] [25] Idler Gear DM1, DM14 [30] [29] Idler Arm DM1, DM14 *(L-11) [31] [25] BT Arm DM2, DM14 *(P-6) Loading Arm (SP) (+)Refer to Alignment [32] [25] DM2, DM14 Assembly...
  • Page 91 Top View [41] [42] [43] [46] [14] [13] [11] [15] [36] [10] [12] [35] [34] [40] [29] [30] [16] [39] [38] Fig. DM1 Bottom View [20] [33] [32] [24] [26] [27] [25] [23] [28] [22] [21] [31] Fig. DM2 2-4-3 Z13NDA...
  • Page 92 (S-1) (S-1) (L-1) (L-3) (L-2) (S-1A) (P-1) Installation of [3] and [6] First, insert [6] diagonally in [3] as shown below. Then, install [6] in [3] while pushing (L-1) in a direction of arrow. After installing [6] in [3], confirm that pin A of [3] enters hole A of [6] properly.
  • Page 93 (S-4) [46] [47] (L-14) Desolder from bottom (S-3) Lead with White Stripe View for A Belt Fig. DM7 (S-2) [11] (S-4A) (L-4) (P-3) [13] Removal of [11] [12] 1) Remove screw (S-4A). 2) Unhook spring (P-2). [10] Lead with Desolder Release (L-4) while (P-2) Red Stripe...
  • Page 94 Installation of [13] and [12] (S-5) [14] (S-6) [16] [13] [15] Hook spring (P-3) up to [12] and [13], then install then to (P-3) the specified position so that [12] will be floated slightly while holding [12] and [13]. (Refer to Fig. A.) [12] Fig.
  • Page 95 (S-8) [22] (C-2) (C-1) [23] (L-6) [21] (P-5) [20] Cap Belt (P-5) [28] Installation position of Cap Belt [21] Cap Belt When installing [23], install the spring (P-5) to [28] as shown in the left figure, and then install [23] while Pin on pressing the spring (P-5) to bottom...
  • Page 96 Installation of [25] [25] (C-4) Position of Mode Lever when installed Pin of [35] Pin of [31] Pin of [34] (S-9) (L-10) (L-8) (C-3) [27] [24] [28] Bottom View [26] [25] (L-9) [28] Align [25] and [28] as shown. First groove on [28] First tooth on [44] [28] When reassembling [28],...
  • Page 97 [36] Break belt (P-7) [34] [40] (P-8) turn [37] (L-12) turn [38] (P-9) turn [44] [45] Slide [39] [35] Fig. DM17 Fig. DM15 [42] [41] [43] (L-13) Fig. DM16 2-4-9 Z13NDA...

  • Page 98: Alignment Procedures Of Mechanism

    ALIGNMENT PROCEDURES OF MECHANISM The following procedures describe how to align the Alignment 1 individual gears and levers that make up the tape load- Loading Arm (SP) and (TU) Assembly ing/unloading mechanism. Since information about the state of the mechanism is provided to the System Install Loading Arm (SP) and (TU) Assembly so Control Circuit only through the Mode Switch, it is that their triangle marks point to each other as...

  • Page 99: Deck Exploded Views

    DECK EXPLODED VIEWS Deck Mechanism View 1 Mark Description Floil G-684G or Multemp MH-D (Blue grease) SLIDUS OIL #150 B494 L1467 L1191 B553 B411 B567 L1053 B410 L1051 Chassis Assembly Top View (Lubricating Point) B501 B560 L1450 L1450 B426 L1466 B121 B126 B492...
  • Page 100 Deck Mechanism View 2 Mark Description Floil G-684G or Multemp MH-D (Blue grease) B587 B521 B487 SLIDUS OIL #150 B416 B591 SANKOUL FG84M (Yellow grease) B520 B590 B522 L1406 B148 B499 B508 B573 B592 B574 B558 B564 B557 B414 B565 B525 L1151 B417...
  • Page 101 Deck Mechanism View 3 Mark Description Floil G-684G or Multemp MH-D (Blue grease) L1321 SLIDUS OIL #150 B347 L1321 B355 B354 B483 L1341 B425 B482 B562 B300 B563 B313 L1474 B529 B360 B359 B361 B555 B561 B303 Some Ref. Numbers are not in sequence. B514 2-6-3 Z13N4HDEX...

  • Page 102: Deck Parts List

    DECK PARTS LIST Ref. No. Description Part No. B529 CLEANER ASSEMBLY MK10 0VSA11161 Ref. No. Description Part No. B553 REV SPRING MK11 0VM412555 CYLINDER ASSEMBLY MK12.5 NTSC 4HD N2248CYL B555 RACK ASSEMBLY MK12 0VSA13289 LOADING MOTOR ASSEMBLY MK12.5 0VSA14636 B557 MOTER PULLEY U5 0VM403205 PULLEY ASSEMBLY MK12...
  • Page 103 Printed in Japan 2004-03-20 HO...

This manual is also suitable for:

Src2419
