RANGE HOOD - User instructions
USA
HOTTE DE CUISINE - Notice d'utilisation
F
CAMPANA EXTRACTORA - Manual de utilización
E

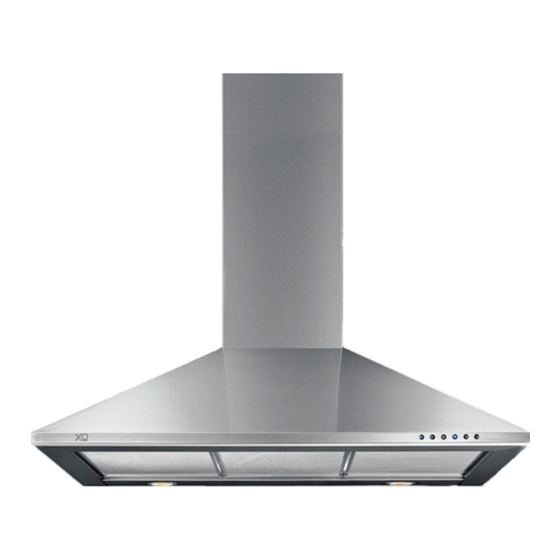

XOB24S
XOB30S
XOB36S
XOB42S
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Xo XOB24S
Summary of Contents for Xo XOB24S

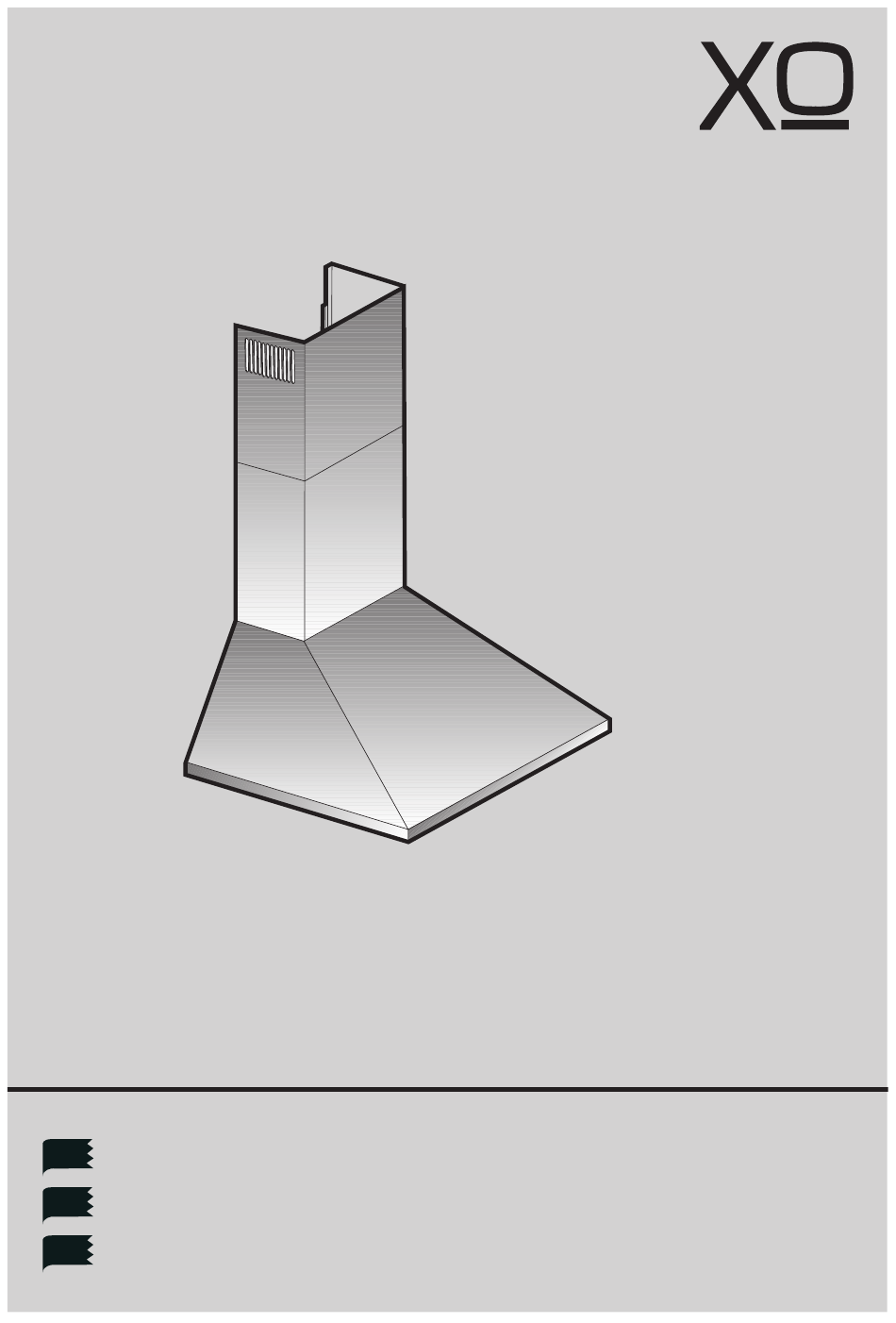

- Page 1 XOB24S XOB30S XOB36S XOB42S NEED HELP? Call our ventilation experts toll free al 800-966-8300 AVEZ-VOUS BESOIN D’AIDE ? Contactez nos experts au numéro gratuit 800-966-8300 ¿NECESITA AYUDA? Póngase en contacto con nuestros expertos a través del número gratis 800-966-8300 RANGE HOOD - User instructions HOTTE DE CUISINE - Notice d’utilisation...
- Page 2 The warranty is extended to the original purchaser for products purchased for ordinary home use in North America. Should you require service for your XO product call a product service specialist at 800.966.8300 What is not covered Improper Installation.
- Page 3 ENGLISH IMPORTANT SAFETY INSTRUCTIONS FOR RESIDENTIAL USE ONLY READ AND SAVE THESE INSTRUCTIONS PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING. IMPORTANT: Save these Instructions for the Local Electrical Inspectors use. INSTALLER: Please leave these Instructions with this unit for the owner. OWNER: Please retain these instructions for future reference.
- Page 4 Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambè). C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. D. Use proper pan size. Always use cookware appropriate for the size of the surface element. E. Keep fan, filters and grease laden surface clean. F.
- Page 5 D. Ducted fans must always be vented to the outdoors. E. This unit must be grounded. WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY BE DAN- GEROUS. A. Do not check filters with hood working. B.
-
Page 6: Duct Fittings
DUCT FITTINGS: Equivalent Total Duct Quantity Dimensions: Number Equivalent Piece: Used: This Hood Must Use an Length*: Length: 6" Round Duct. It Can Transition to 3-1/4" x 1 ft. (per foot Round, straight lenhgth) 10" or 3-1/4" x 12" Duct. 3-1/4"... -
Page 7: Install The Ductwork
WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid Metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape. - Page 8 PRODUCT DIMENSIONS AND CLEARANCE XOB24S - XOB30S - XOB36S - XOB42S: › Front of hood › Side of hood ������ ������� ������� ��������������������� › Top of hood › Mounting height and clearance: ����������������� ��� - 8 -...
- Page 9 INSTALLATION INSTRUCTIONS INSTALLATION - VENTED TO THE OUTSIDE 1. MOUNT TO THE WALL: Drill the holes A respecting the distances indicated (Fig.1). Fix the appliance to the wall and align it in horizontal position to the wall units. When the appliance has been adjusted, definitely fix the hood using the screws A (Fig.2).
-
Page 10: Power Supply
POWER SUPPLY: IMPORTANT – (Please read carefully) WARNING: FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED. Remove house fuse or open circuit breaker before beginning installation. Do not use an extension cord or adapter plug with this appliance. Follow National electrical codes or prevailing local codes and ordinances. - Page 11 2. CONNECT ELECTRICAL: WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PER- SONS, OBSERVE THE FOLLOWING. • Power Supply Connection: For connection to the power supply refer to the following Fig.3: 1. Remove the power supply cover by undoing the (2) screws Fig.3A. 2.
- Page 12 ANSI/NFPA 70-1999. 5. Insert the wires into the box, then close the box cover, securing it using the screws that were previously removed. The appliance must be installed at a minimum height of 27" from an elec- tric cooker stove, or 30" from gas or combined cooker stoves.
- Page 13 4. INSTALL THE DUCT COVER: Arrange the electrical power supply within the dimensions of the decorative flue. If your appliance is to be installed in the ducting version or in the version with external motor, prepare the air exhaust opening. Adjust the width of the support bracket of the upper flue (Fig.6).
- Page 14 DUCTLESS RECIRCULATING OPTION: � � � CARBON FILTER KIT XORFK04: The kit includes an air diverter A, 2 screws and 2 expan- sions plugs B and 2 round filters C. � � � � � � � ���� Fig.1: Remove the 2 screws E and have the top flue F go Fig.2: Make a mark on the wall and then drill a hole into the bottom flue G.
- Page 15 ��� � � ����� � � ��� � � � � Fig.3: Put together the two parts Fig.4: Take the air diverter A and drill two holes as of the air deviator as shown in shown in the figure (hole diameter: 1/4" inches). picture no 3.1.
- Page 16 � � � � � � � Fig.7: Place the bottom flue G on top of Fig.8: Remove the aluminum panels the frame. Then pull out the top flue F by pulling the lever 1 out and pushing downwards 2. to the bracket and fasten it using the 2 screws E.
- Page 17 • If the apparatus is equipped with the following controls luminous: A = LIGHT B = OFF C = SPEED I D = SPEED II E = SPEED III F = AUTOMATIC STOP TIMER - 15 minutes � � � �...
-
Page 18: Maintenance
MAINTENANCE • We recommend that the cooker hood is switched on before any food is cooked. We also recommend that the appliance is left running for 15 minutes after the food is cooked, in order to thoroughly elimi- nate all contaminated air. The effective performance of the cooker hood depends on constant maintenance;... - Page 19 - DO NOT allow deposit to remain for long periods of time. - DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface causing rust. - DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel for extended periods.
- Page 20 FUSE • The halogen lamps circuit is controlled by a fuse 5x20 mm, 125V 5A. In case of necessity it can be replaced only by spe- cialized personnel. • Replacing halogen light bulbs: To replace the halogen lamps B, from the inside of the cooker hood press downwards with two fingers as shown in Fig.8.
- Page 21 XOB24S - XOB30S - XOB36S - XOB42S: ��� �� ��� ��� ��� ��� ��� ��� �� ��� ��� ��� ��� ��� ��� ��� �� ��� �� ��� ��� �� - 21 -...
-
Page 22: Options And Accessories
OPTIONS AND ACCESSORIES: Model XORFK04 Ductless Recirculating Filter Kit. Model XOEDCB - Duct Cover Extension. This accessory is available for installation with ceiling heights above 9ft. to 10ft. - 22 -... -
Page 23: Installation Preparation
INSTALLATION PREPARATION: Check installation hardware: Locate the hardware package packed with the hood and check contents. TYPE DESCRIPTION N° 1/8" x 1/2" Screws for attaching the decorative flue to the mounting bracket. 2-piece decorative duct cover Duct bracket Aluminum filter (dimension shown for reference only) ��������... - Page 24 XOB Spec Sheet Model: XOB24S - XOB30S - XOB36S - XOB42S Sizes: 24"- 30"- 36"- 42" Depth: 19-3/8" Features and Benefits: - 600 CFM high velocity blower optimally removes Smoke, Grease and Odors. - 4 speed electronic illuminated controls. - Two 50 W Halogen lights - provide brilliant illumination over the cooking surface.
