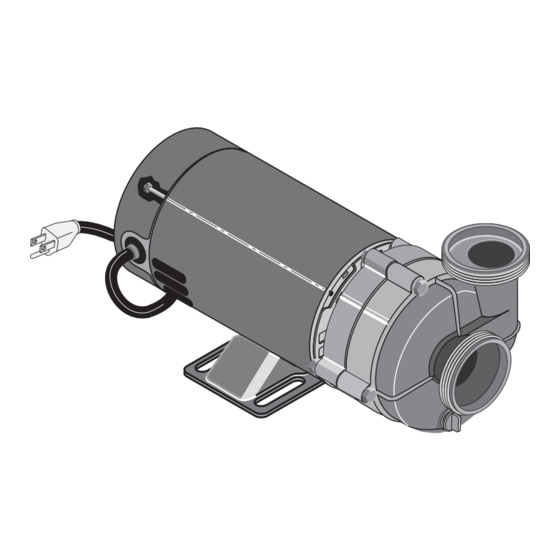

SWIMMING POOL PUMP
O
W
N
E
R '
INSTALLATION, OPERATION & PARTS
S
M
A
N
U
5414 0506
A
L
This manual should be furnished to
the end user of this pump; its use
will reduce service calls and chance
of injury and will lengthen pump life.
LSR486 (8/16/06)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RecWarehouse Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Leisure bay RecWarehouse Series

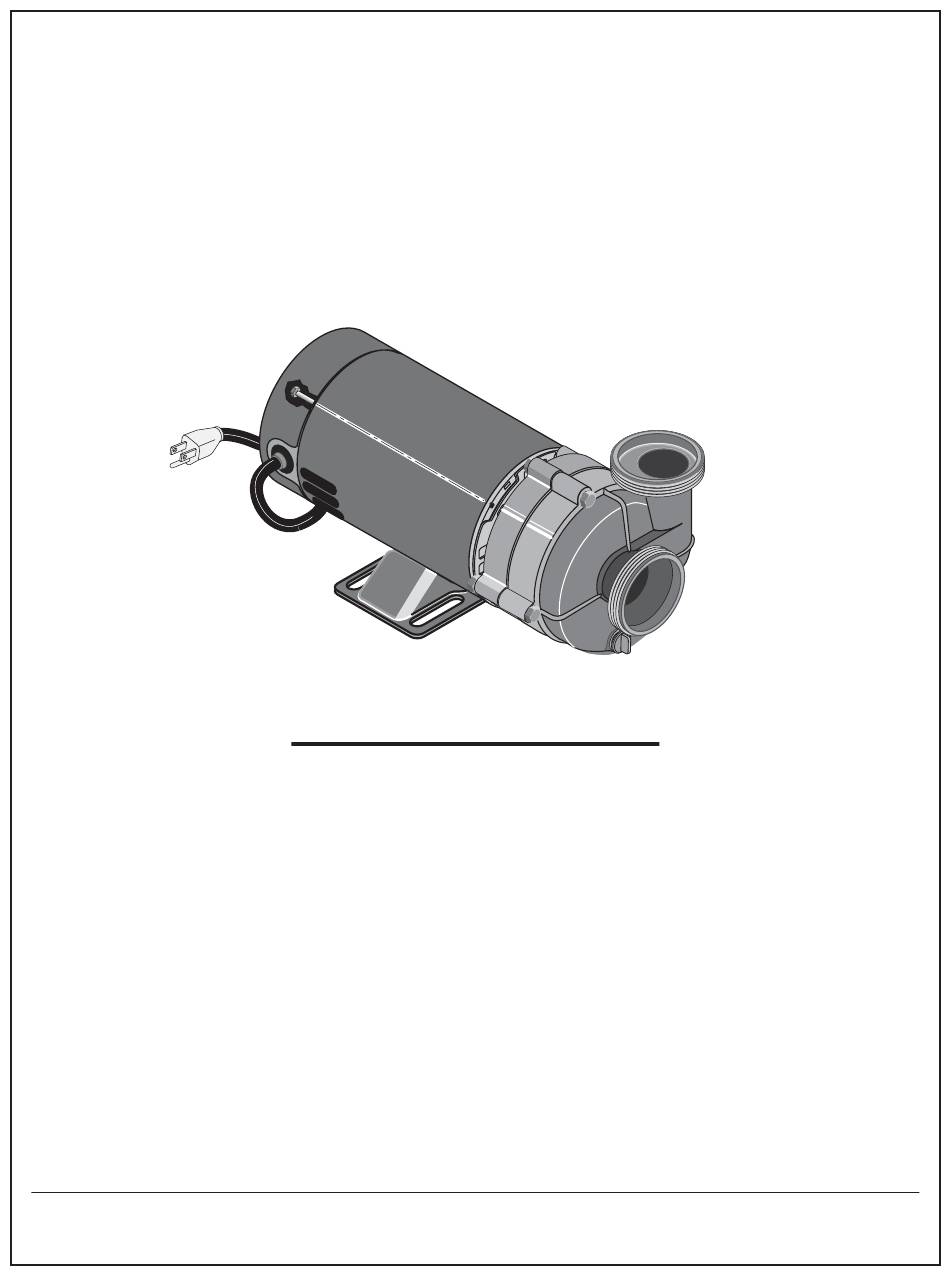

  • Page 1 INSTALLATION, OPERATION & PARTS This manual should be furnished to the end user of this pump; its use will reduce service calls and chance of injury and will lengthen pump life. Leisure Bay Industries, Inc 16468 Valley Blvd, LaPuente, CA 91744 LSR486 (8/16/06)
  • Page 2: Table Of Contents

    CAREFULLY! one of the following signal words and be alert to the potential for personal injury. The RecWarehouse Series Above Ground Pool Pump: • Is designed to circulate water in above ground swim- warns about hazards that will cause death, ming pools (not for use in spas or inground pools).
  • Page 3: Installation

    INSTALLATION Teflon Taping Instructions: Use only new or clean PVC pipe fittings. For ease of pump/motor removal, install pipe unions on the Wrap male pipe threads with one to two layers of Teflon suction and discharge pipes close to pump. tape.
  • Page 4: Electrical

    ELECTRICAL Use the load circuit breaker as the master on-off switch. Install a Ground Fault Circuit Interrupter (GFCI) in circuit; To avoid dangerous or fatal electrical shock, turn it will sense a short-circuit to ground and disconnect OFF power to motor before working on electrical power before it becomes dangerous to pool users.
  • Page 5: Operation

    OPERATION Pool Water: Keep water level at least two inches above bottom of skim- NEVER run pump dry! Running pump dry may dam- mer opening when system is not in use. Failure to do so age seals, causing leakage and flooding! Fill pump can allow air to enter system, causing pump to lose its with water before starting motor.
  • Page 6: Pump Service

    Draining Pump: To avoid dangerous or fatal electrical shock hazard, turn OFF power to motor before working on To avoid dangerous or fatal electrical shock pump or motor. hazard, turn OFF power to motor before draining pump. No lubrication or regular maintenance is needed beyond 1.
  • Page 7 6. Carefully remove four motor throughbolts from seal Installing New Seal: plate (Figure 4); remove seal plate and use a screwdriver 1. Ceramic seat must be clean and free of dirt, grease, dust, to tap ceramic seat out from the rear (Figure 5). Do not etc.
  • Page 8: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Circuit Breaker In Home Panel Trips Repeatedly: Read and understand safety and operating instruc- tions in this manual before doing any work on 1. Breaker must be of adequate capacity. pump! 2. For GFCI breaker, test according to GFCI manufactur- er’s instructions.
  • Page 9: Repair Parts List

    REPAIR PARTS LIST 8, 8A 9, 9A, 9B 5413 0506 Key No. Description LBSXYGGL-4A2 LBASXYGL-4A2 LBASXEL-4A2 LBSXEL-4A2 Motor 356553 356551 356497 356497 Motor Canopy w/2-speed switch 356546 356546 — — Slinger 1218003 1218003 1218003 1218003 Seal Plate 1211008 1211008 1211008 1211008 O-Ring 6020022...
