Everbilt TD48D2DHD6 Use And Care Manual

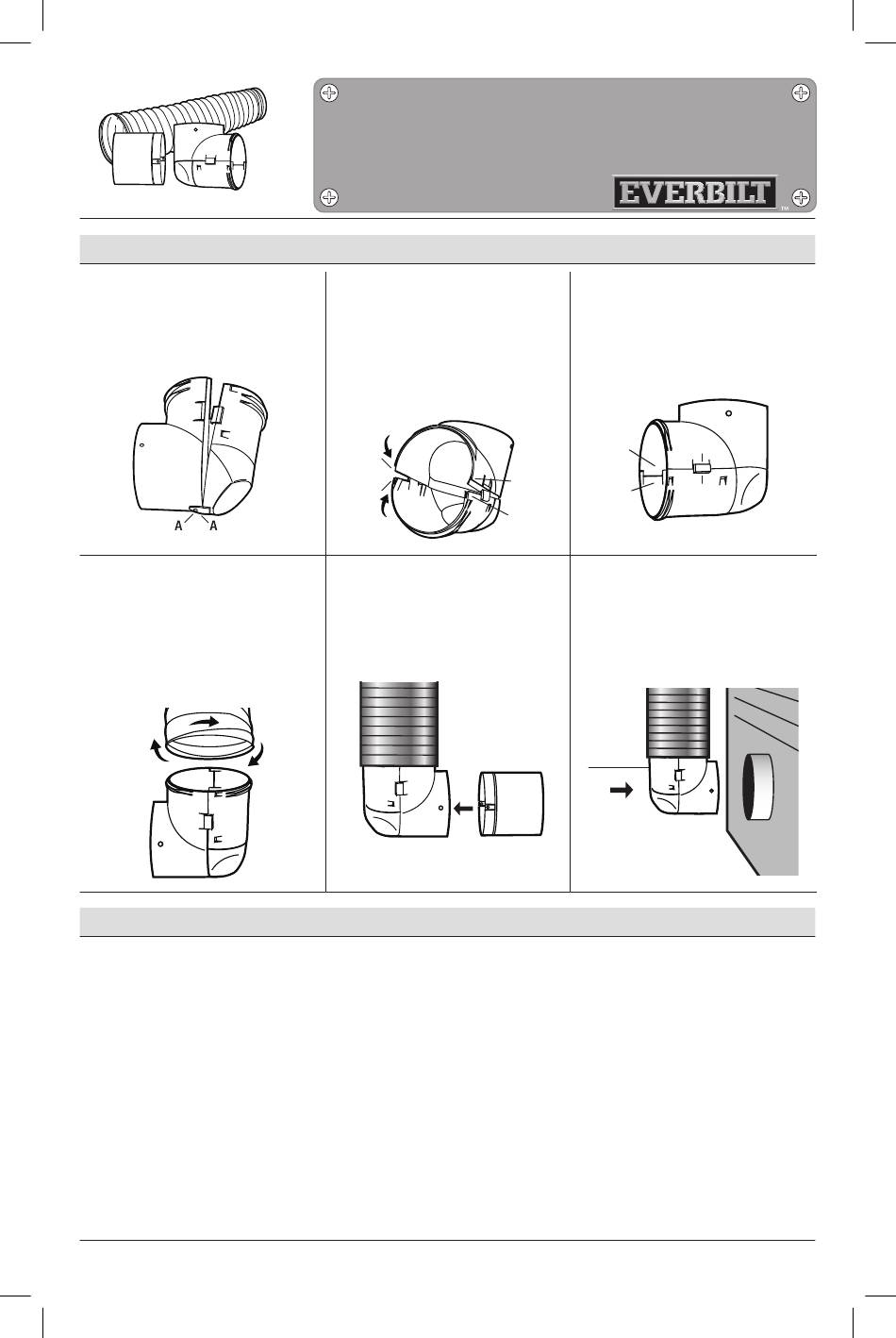

Installation
1
ASSEMBLING THE DRYER TO
DUCT CONNECTOR
□ Insert the bottom notch (A) into the
receptacle (A).
4
ATTACHING THE TRANSITION
DUCT
□ Unravel a 6 in. portion of the duct.
Insert the threaded end of the
dryer to duct connector into the
end of the duct and turn clockwise
until all threads in the connector
grasp firmly inside the duct.
Warranty
WHAT IS COVERED
All merchandise is warranted to be free from defects in workmanship and material for one year from the date of purchase. This includes normal wear and
performance failure on items. The manufacturer will replace or repair at their option.
WHAT IS NOT COVERED
This warranty only covers normal wear and performance failure. It does not cover any malfunction, performance failure, or defect arising from the misuse,
abuse, neglect, or modification of the product. Any damage or malfunction inflicted upon the product by the user or other external sources, or any failure to
comply with the warnings and instructions, is not covered.
For further assistance visit www.HomeDepot.com.
Use and Care Guide

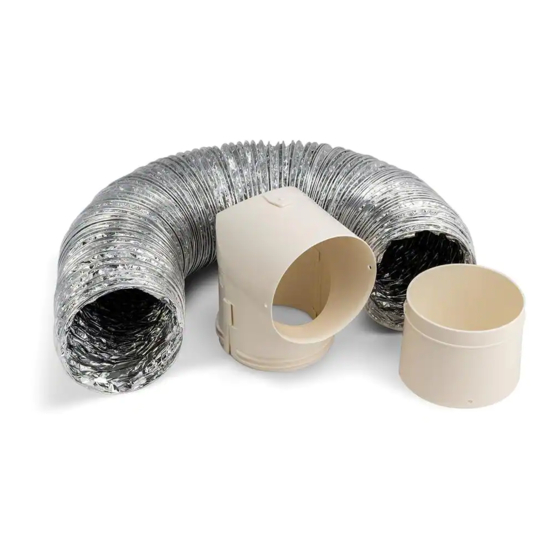

Dryer to Duct Connector Kit
2
ALIGNING THE GROOVES
ON THE DRYER TO DUCT
CONNECTOR
□ Gently squeeze the portion of the
connector with the plastic lips,
inserting D and E lips into the
corresponding D and E grooves.
E
E
5
ATTACHING THE OPTIONAL
EXTENSION PIECE
□ Push the plastic extension piece
into the assembled dryer to duct
connector, ensuring the notches
are firmly in the receptacles.
Item # 609-167
Model # TD48D2DHD6
3
SNAPPING TOGETHER THE
DRYER TO DUCT CONNECTOR
□ Snap the two sections together,
ensuring the B and C locks are
firmly attached onto the B and C
notches.
B
D
B
D
6
ATTACHING THE CONNECTOR
TO THE DRYER
□ Secure the connector by pushing it
over the exhaust port of the dryer
until it is firmly in place. Extend
the duct, and slide the dryer back
against the wall.
C
C
HOMEDEPOT.COM
