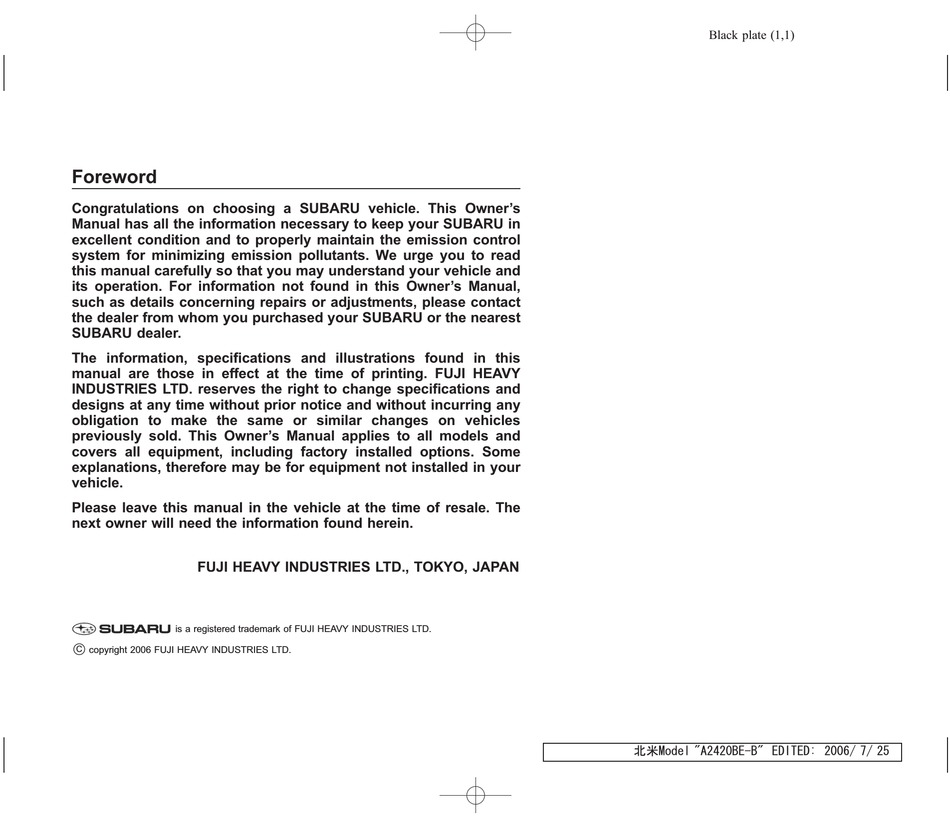

Page 1 Foreword Congratulations on choosing a SUBARU vehicle. This Owner’s Manual has all the information necessary to keep your SUBARU in excellent condition and to properly maintain the emission control system for minimizing emission pollutants. We urge you to read this manual carefully so that you may understand your vehicle and its operation.
Page 2 This manual describes the following types of the Legacy series. 1) Legacy Sedan 2) Legacy Station wagon 3) OUTBACK Sedan 4) OUTBACK Station wagon...
Page 3: Seat, Seatbelt And Srs Airbags
Warranties & Warranties for U.S.A. All SUBARU vehicles distributed by Subaru of America, Inc. and sold at retail by an authorized SUBARU dealer in the United States come with the following warranties: . SUBARU Limited Warranty . Emission Control Systems Warranty .
Page 4: Safety Warnings
This chapter informs you how to keep your SUBARU looking good. Chapter 11: Maintenance and service This chapter informs you when you need to take your SUBARU to the dealer for scheduled maintenance and informs you how to keep your SUBARU running properly.
Page 5: Vehicle Symbols
Vehicle symbols There are some of the symbols you may see on your vehicle. Mark Name WARNING CAUTION Passengers’ windows lock Fuel Front fog lights Parking lights Hazard warning flasher Seat heater Child restraint lower an- chorages Mark Name Child restraint top tether an- chorages Horn Windshield wiper deicer...
Page 6 Mark Name Outside air Engine oil Washer Door lock (Transmitter) Door unlock (Transmitter) Trunk lid (Sedan) or rear gate (Station wagon) (Transmitter) Safety precautions when driving & Seatbelt and SRS airbag WARNING . All persons in the vehicle should fasten their seatbelts BEFORE the vehicle starts to move.
Page 7: Child Safety
& Child safety WARNING . Never hold a child on your lap or in your arms while the vehicle is moving. The passenger cannot protect the child from injury in a collision, because the child will be caught between the passen- ger and objects inside the vehi- cle.
Page 8: Drinking And Driving
& Engine exhaust gas (carbon monoxide) WARNING . Never inhale engine exhaust gas. Engine exhaust gas contains carbon monoxide, a colorless and odorless gas which is dan- gerous, or even lethal, if inhaled. . Always properly maintain the en- gine exhaust system to prevent engine exhaust gas from enter- ing the vehicle.
Page 9: Driving With Pets
& Modification of your vehicle CAUTION Your vehicle should not be modified other than with genuine Subaru parts and accessories. Other types of modifications could affect its performance, safety or durability, and may even violate governmental regulations.
Page 10: California Proposition 65
vehicle control could lead to an accident. Check and, if necessary, adjust the pressure of each tire (including the spare) at least once a month and before any long journey. Check the tire pressure when the tires are cold. Use a pressure gauge to adjust the tire pressures to the values shown on the tire placard.
Page 11: Table Of Contents
Table of contents Seat, seatbelt and SRS airbags Keys and doors Instruments and controls Climate control Audio Interior equipment Starting and operating Driving tips In case of emergency Appearance care Maintenance and service Specifications Consumer information and Reporting safety defects Index...
Page 12 Illustrated index & Exterior Engine hood lock release (page 11-4) Headlight switch (page 3-39) Bulb replacement (page 11-50) Wiper switch (page 3-44) Moonroof (page 2-26) Roof rail (page 8-15) Door locks (page 2-5) Tire pressure (page 11-36) Flat tires (page 9-4) 10) Tire chains (page 8-12) 11) Fog light switch (page 3-42) 12) Tie-down hooks (page 9-13)
Page 13 Rear window defogger button (page 3-46) Fuel filler lid and cap (page 7-5) Child safety locks (page 2-19) Tie-down hooks (page 9-13) Towing hook (page 9-13) Trunk lid (page 2-22) Rear gate (page 2-25) Bulb replacement (page 11-54) Rear wiper blade assembly and rubber replacement (page 3-45) –...
Page 14 & Interior ! Passenger compartment area Lower anchorages for child restraint system (page 1-35) Seatbelt (page 1-11) Center console (page 6-5) Front seat (page 1-2) Rear seat (page 1-9)
Page 15 Top tether anchorages (page 1-37) Dome lights (page 6-2) Sun visors (page 6-3) Cargo area light (page 6-2) Rear center seatbelt (page 1-19) Cargo area cover (page 6-12) – CONTINUED –...
Page 16 Parking brake lever (page 7-44) Gear shift lever (MT) (page 7-15) Select lever (AT) (page 7-24) Information display (page 3-34) Clock (page 3-34) Dashboard storage compartment (page 6-4) Navigation system (if equipped) (See navigation system instruction manual.) Glove box (page 6-5) Hazard warning flasher switch (page 3-5) 10) Audio (page 5-1) 11) Climate control (page 4-1)
Page 17 & Instrument panel Door locks (page 2-5) Illumination brightness control (page 3-41) Remote control mirror (page 3-50) Windshield wiper deicer (page 3-46) Vehicle Dynamics Control OFF switch (page 7-42) Light control lever (page 3-39) Combination meter (page 3-5/page 3-18) Wiper control lever (page 3-43) Cruise control (page 7-46) 10) Horn (page 3-51) 11) SRS airbag (page 1-27)
Page 18 & Light control and wiper control levers/switches Parking light switch (page 3-42) Windshield wiper (page 3-43) Mist (page 3-44) Windshield washer (page 3-45) Rear window wiper and washer switch (page 3-45) Wiper control lever (page 3-44) Light control lever (page 3-39) Fog light switch (page 3-42) Headlight ON/OFF (page 3-39) 10) Headlight flasher High/Low beam...
Page 19 & Combination meter ! U.S.-spec. vehicles (Turbo models) Temperature gauge (page 3-7) Tachometer (page 3-6) Speedometer (page 3-6) Fuel gauge (page 3-6) Multi-information display toggle button (page 3-8) ECO gauge (page 3-8) Selector lever position indicator (AT vehicles) (page 3-33) Multi-information display (page 3-8) –...
Page 20 ! U.S.-spec. vehicles (Non-turbo models) Temperature gauge (page 3-21) Tachometer (page 3-20) Speedometer (page 3-18) Fuel gauge (page 3-20) Trip meter A/B selection and trip meter reset knob (page 3-19) Trip meter and odometer (page 3-19) Selector lever position indicator (page 3-32) Gear position indicator (page 3-32)
Page 21 ! Canada-spec. vehicles (Turbo models) Temperature gauge (page 3-7) Tachometer (page 3-6) Speedometer (page 3-6) Fuel gauge (page 3-6) Multi-information display toggle button (page 3-8) ECO gauge (page 3-8) Selector lever position indicator (AT vehicles) (page 3-33) Multi-information display (page 3-8) –...
Page 22 ! Canada-spec. vehicles (Non-turbo models) Temperature gauge (page 3-21) Tachometer (page 3-20) Speedometer (page 3-18) Fuel gauge (page 3-20) Trip meter A/B selection and trip meter reset knob (page 3-19) Trip meter and odometer (page 3-19) Selector lever position indicator (page 3-32) Gear position indicator (page 3-32)
Page 23 & Warning and indicator light Mark Name Page Seatbelt warning light 3-22 Front passenger’s seat- 3-22 belt warning light SRS airbag system warn- 3-24 ing light CHECK ENGINE warning light/Malfunction indicator 3-25 lamp Charge warning light 3-26 Oil pressure warning light 3-26 AT OIL temperature 3-26...
Page 24 & Trunk/cargo area Jack handle (page 9-18) Jack (page 9-18) Spare tire (page 9-2)
Page 25 A SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. Contact the nearest SUBARU dealer for details. If your vehicle is equipped with navigation system, the settings for some of these functions can be changed using the monitor.
Page 26: Seatbelt Warning Light
System airbag)... Vehicle with SRS airbags and lap/shoulder 1-13 restraints for driver, front passenger, and 1-14 window-side rear passengers... Subaru advanced frontal airbag system... 1-14 SRS side airbag and SRS curtain airbag... 1-14 SRS airbag system monitors... 1-16 SRS airbag system servicing ...
Page 27: Front Seats
Seat, seatbelt and SRS airbags Front seats WARNING . Never adjust the seat while driv- ing to avoid the possibility of loss of vehicle control and of personal injury. . Before adjusting the seat, make sure the hands and feet of rear seat passengers or luggage are clear of the adjusting mechan- ism.
Page 28: Manual Seat
According to accident statistics, children are safer when properly restrained in the rear seating posi- tions than in the front seating posi- t i o n s . F o r i n s t r u c t i o n s a n d precautions concerning child re- straint systems, see the “Child re- straint systems”...
Page 29: Power Seat (If Equipped)
Seat, seatbelt and SRS airbags ! Seat cushion height adjustment (driver’s seat) The height of the seat can be adjusted by moving the seat cushion adjustment lever up and down. When the lever is pushed down, the seat is lowered. When the lever is pulled up, the seat rises.
Page 30: Memory Function (Driver's Seat Only, If Equipped)
To adjust the angle of the seatback, move the control switch. ! Seat cushion angle adjustment (Driver’s seat only) To adjust the seat cushion angle, pull up or push down the front end of the control switch. ! Seat height adjustment (Driver’s seat only) To adjust the seat height, pull up or push down the rear end of the control switch.
Page 31 Seat, seatbelt and SRS airbags 3. While pressing the “SET” button, press the desired button “1” or “2”. 4. The chirp sounds once, and the seat position is registered. ! Retrieval of seat position WARNING . Never retrieve the seat position while driving to avoid the possi- bility of loss of vehicle control and of personal injury.
Page 32: Head Restraint Adjustment
. If your vehicle is involved in a rear-end collision, have an authorized SUBARU dealer in- spect the active head restraints. . The active head restraints may not operate in the event the vehicle experiences only a slight impact in the rear.
Page 33: Lumbar Support (If Equipped)
Seat, seatbelt and SRS airbags & Lumbar support (if equipped) Pull the lever forward or backward. Pulling the lever forward will increase the amount of support for your lower back. Seat heater (if equipped) The seat heater is equipped in the front seats.
Page 34: Rear Seats
Rear seats WARNING Seatbelts provide maximum re- straint when the occupant sits well back and upright in the seat. Do not put cushions or any other materials between occupants and seatbacks or seat cushions. If you do so, the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen will increase, and both can result in serious internal injury or...
Page 35: Head Restraint Adjustment
1-10 Seat, seatbelt and SRS airbags ! Sedan models Lock Unlock Unlock the seatback by turning the key lock, and then fold the seatback down. To return the seatback to its original position, raise the seatback until it locks into place and make sure that it is securely locked.
Page 36: Armrest (If Equipped)
Station wagon To raise the head restraint, pull it up. To lower it, push the head restraint down while pressing the release button on the top of the seatback. The head restraint should be adjusted so that the center of the head restraint is closest to the top of the occupant’s ears.
Page 37: Loading Long Objects (Sedan)
1-12 Seat, seatbelt and SRS airbags To lower the armrest, pull on the top edge of the armrest. WARNING To avoid the possibility of serious injury, passengers must never be allowed to sit on the center armrest while the vehicle is in motion. &...
Page 38: Seatbelts
Seatbelts & Seatbelt safety tips WARNING . All persons in the vehicle should fasten their seatbelts BEFORE the vehicle starts to move. Other- wise, the possibility of serious injury becomes greater in the event of a sudden stop or acci- dent.
Page 39: Emergency Locking Retractor (Elr)
1-14 Seat, seatbelt and SRS airbags If the shoulder portion of the belt crosses the face or neck, adjust the shoulder belt anchor height (window-side seating posi- tions only) and then if necessary move the child closer to the belt buckle to help provide a good shoulder belt fit.
Page 40 Driver’s warning light (Turbo models) Driver’s warning light (Non-turbo models) Front passenger’s warning light ! Operation If the driver and/or front passenger have/ has not yet fastened the seatbelt(s) when the ignition switch is turned to the “ON” position, the seatbelt warning light(s) will flash for 6 seconds, to warn that the seatbelt(s) is/are unfastened.
Page 41: Fastening The Seatbelt
If the seatbelt warning device for front passenger’s seat still does not function correctly after taking relevant corrective actions described above, immediately contact your SUBARU dealer for an inspection. & Fastening the seatbelt WARNING . Never use a belt that is twisted or reversed.
Page 42 If you do so, the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen will increase, and both can result in serious internal injury or death. WARNING Never place the shoulder belt under the arm or behind the back.
Page 43 1-18 Seat, seatbelt and SRS airbags ! Adjusting the front seat shoulder belt anchor height The shoulder belt anchor height should be adjusted to the position best suited for the driver/front passenger. To lower the an- chor height, push the release button and slide the anchor down.
Page 44 4. To make the lap part tight, pull up on the shoulder belt. 5. Place the lap belt as low as possible on your hips, not on your waist. ! Unfastening the seatbelt Push the button on the buckle. Before closing the door, make sure that the belts are retracted properly to avoid catching the belt webbing in the door.
Page 45 1-20 Seat, seatbelt and SRS airbags WARNING Be sure to fasten both tongue plates to the respective buckles. If the seatbelt is used only as a shoulder belt (with the connector’s tongue plate not fastened to the connec- tor’s buckle on the right-hand side), it cannot properly restrain the wear- er in position in an accident, possi- bly resulting in serious injury or...
Page 46 2. Pull out the seatbelt slowly from the retractor. 3. After confirming that the webbing is not twisted, insert the connector (tongue) attached at the webbing end into the buckle on the right-hand side until a click is heard. If the belt stops before reaching the buckle, return the belt slightly and pull it out more slowly.
Page 47 1-22 Seat, seatbelt and SRS airbags ! Unfastening the seatbelt Push the release button of the center seatbelt buckle (on the left-hand side) to unfasten the seatbelt. 1. Insert a key or other hard pointed object into the slot in the connector (buckle) on the right-hand side and push it in, and the connector (tongue) plate will disconnect from the buckle.
Page 48: Seatbelt Maintenance
Sedan models Wagon models CAUTION . Do not allow the retractor to roll up the seatbelt too quickly. Otherwise, the metal tongue plates may hit against the trim, resulting in damaged trim. . Have the seatbelt fully rolled up so that the tongue plates are neatly stored.
Page 49: Front Seatbelt Pretensioners
SUBARU dealer. When replacing seat- belt retractor assemblies, use only genuine SUBARU parts. . If either front seatbelt does not...
Page 50: System Monitors
SUBARU dealer. & System monitors SRS airbag system warning light (Turbo models) SRS airbag system warning light (Non- turbo models) A diagnostic system continually monitors the readiness of the seatbelt pretensioner while the vehicle is being driven.
Page 51: System Servicing
SRS airbag system. Immediately take your vehi- cle to your nearest SUBARU dealer to have the system checked. Unless checked and properly repaired, the seatbelt pretensioners and/or SRS airbags will operate improperly (e.g.
Page 52: Precautions Against Vehicle Modification
& Precautions against vehicle modification Always consult your SUBARU dealer if you want to install any accessory parts to your vehicle. CAUTION Do not perform any of the following modifications. Such modifications can interfere with proper operation of the seatbelt pretensioners.
Page 53: Where To Place A Child Restraint System
& Where to place a child re- straint system The following are SUBARU’s recommen- dations on where to place a child restraint system in your vehicle. A: Front passenger’s seat You should not install a child restraint...
Page 54 installing a child restraint system. Some types of child restraints might not be able to be secured firmly due to projection of the seat cushion. In this seating position, you should use only a child restraint system that has a bottom base that fits snugly against the contours of the seat cushion and can be securely retained using the seatbelt.
Page 55: Choosing A Child Restraint System
1-30 Seat, seatbelt and SRS airbags & Choosing a child restraint system Choose a child restraint system that is appropriate for the child’s age and size (weight and height) in order to provide the child with proper protection. The child restraint system should meet all applic- able requirements of Federal Motor Vehi- cle Safety Standards for United States or...
Page 56 or around the child restraint system following the instructions provided by its manufacturer. 3. Insert the tongue plate into the buckle until you hear a click. 4. Take up the slack in the lap belt. 5. Pull out the seatbelt fully from the retractor to change the retractor over from the Emergency Locking Retractor (ELR) to the Automatic Locking Retractor (ALR)
Page 57 1-32 Seat, seatbelt and SRS airbags NOTE When the child restraint system is no longer in use, remove it and restore the ELR function of the retractor. That function is restored by retracting the seatbelt fully. ! Installing forward facing child re- straint 1.
Page 58: Installing A Booster Seat
Sedan Station wagon 8. If the child restraint system requires a top tether, latch the hook onto the top tether anchor and tighten the top tether. See the “Top tether anchorages” for additional instructions. 9. To remove the child restraint system, press the release button on the seatbelt buckle and allow the belt to retract completely.
Page 59 1-34 Seat, seatbelt and SRS airbags CAUTION When you install a child restraint system, follow the manufacturer’s instructions supplied with it. After installing the child restraint system, check to ensure that it is held securely in position. If it is not held tight and secure, the danger of your child suffering personal injury in the event of an accident may be in-...
Page 60: Installation Of Child Restraint Systems By Use Of Lower And Tether Anchorages (Latch)
& Installation of child restraint systems by use of lower and tether anchorages (LATCH) WARNING . Child restraint systems and seat- belts can become hot in a vehicle that has been closed up in sunny weather; they could burn a small child.
Page 61 1-36 Seat, seatbelt and SRS airbags Sedan Station wagon The tether anchorages (upper an- chorages) are provided for all the seating positions (center and both window-side ones) of the rear seat. You will find marks “ ” at the bottom of the rear seat seatbacks.
Page 62: Top Tether Anchorages
If you have any question concerning this type of child restraint system, ask your SUBARU dealer. & Top tether anchorages Your vehicle is equipped with three top tether anchorages so that a child restraint system having a top tether can be installed in the rear seat.
Page 63 1-38 Seat, seatbelt and SRS airbags ! Station wagon Three tether anchorages, i.e., ones for the right, center and left positions, are already installed on the rear edge of the roof. Open the cover flap to use each ancho- rage. ! To hook the top tether ! Sedan 1.
Page 64 4. Tighten the top tether securely. CAUTION Do not route the top tether over the head restraint. It may happen that the top tether cannot be fastened tightly. When the child restraint system is to be secured using the top tether, pass the top tether under the head restraint between the head restraint stay posts.
Page 65: Srs Airbag (Supplemental Restraint System Airbag)
1-40 Seat, seatbelt and SRS airbags *SRS airbag (Supplemental Restraint System airbag) *SRS: This stands for supplemental re- straint system. This name is used be- cause the airbag system supplements the vehicle’s seatbelts. Your vehicle is equipped with a crash sensing and diagnostic module, which will record the use of the seatbelt(s) by the driver and/or front passenger when any of...
Page 66 injuries. Because the SRS airbag needs enough space for deploy- ment, the driver should always sit upright and well back in the seat as far from the steering wheel as practical while still maintaining full vehicle control and the front passenger should move the seat as far back as possible and sit upright and well back in the seat.
Page 67 1-42 Seat, seatbelt and SRS airbags erable force and can injure or even kill the child. CAUTION . When the SRS airbag deploys, some smoke will be released. This smoke could cause breath- ing problems for people with a history of asthma or other breathing trouble.
Page 68 ! Components Sedan Airbag control module (including impact sensors) Frontal airbag module (driver’s side) Frontal airbag module (front passenger’s side) Front sub sensor (left-hand side) Front sub sensor (right-hand side) Side airbag module (driver’s side) Side airbag module (front passenger’s side) Side airbag sensor (center pillar left-hand side)
Page 69 1-44 Seat, seatbelt and SRS airbags Station wagon Airbag control module (including impact sensors) Frontal airbag module (driver’s side) Frontal airbag module (front passenger’s side) Front sub sensor (left-hand side) Front sub sensor (right-hand side) Side airbag module (driver’s side) Side airbag module (front passenger’s side) Side airbag sensor (center pillar left-hand...
Page 70: Subaru Advanced Frontal Airbag System
& Subaru advanced frontal air- bag system Your vehicle is equipped with a Subaru advanced frontal airbag system that com- plies with the new advanced frontal airbag requirements in the amended Federal Motor Vehicle Safety Standard (FMVSS) No. 208. The Subaru advanced frontal airbag sys- tem automatically determines the deploy- ment force of the driver’s SRS frontal...
Page 71 1-46 Seat, seatbelt and SRS airbags WARNING Never hold a child on your lap or in your arms. The SRS airbag deploys with considerable force and can injure or even kill the child. WARNING The SRS airbag deploys with con- siderable speed and force.
Page 72: Srs Airbag System Warn-
SRS frontal airbag even when the driver’s SRS frontal airbag deploys. This is normal. Observe the following precautions. Failure to do so may prevent the Subaru ad- vanced frontal airbag system from func- tioning correctly or cause the system to fail.
Page 73 . Do not remove or disassemble the front passenger’s seat. . Do not install any accessory (such as an audio amplifier) other than a genuine SUBARU accessory under the front pas- senger’s seat. . Do not place anything (shoes, umbrel- la, etc.) under the front passenger’s seat.
Page 74 Subaru advanced frontal airbag system monitor- ing. If the front passenger’s SRS frontal airbag is activated, the passenger’s frontal airbag ON indicator will illuminate while the OFF indicator will remain extinguished. If the front passenger’s SRS frontal airbag is deactivated, the passenger’s frontal...
Page 75 OFF indicator extinguishes after taking relevant corrective actions described above, relocate the child restraint system to the rear seat and immediately contact your SUBARU dealer for an inspection. NOTE When a child who has outgrown a child restraint system or a small adult is seated in the front passenger’s seat,...
Page 76 P.O. Box 11204, San Juan, Puerto Rico 00910 787-793-2828 There are currently no Subaru distributors in any other U.S. territories. If you are in such an area, please contact the Subaru distributor or dealer from which you bought your vehicle. – CONTINUED –...
Page 77: Seat, Seatbelt And Srs Airbags
Passenger’s side The SRS airbag can function only when the ignition switch is in the “ON” position. The Subaru advanced frontal airbag sys- tem is designed to determine the activa- tion or deactivation condition of the front passenger’s SRS frontal airbag depend- ing on the total load on the front passen- ger ’s seat monitored by the front...
Page 78 CAUTION Do not touch the SRS airbag system components around the steering wheel and dashboard with bare hands right after deployment. Doing so can cause burns because the components can be very hot as a result of deployment. The driver’s SRS frontal airbag and front passenger’s SRS frontal airbag are de- signed to deploy in the event of an accident involving a moderate to severe...
Page 79 1-54 Seat, seatbelt and SRS airbags both driver’s and front passenger’s SRS frontal airbags may be activated when the vehicle sustains a hard impact in the undercarriage area from the road surface (such as when the vehicle plunges into a deep ditch, is severely impacted or knocked hard against an obstacle on the road such as a curb).
Page 80: Srs Side Airbag And Srs Curtain Airbag
! Examples of the types of accidents in which the driver’s/driver’s and front passenger’s SRS frontal airbag(s) will basically not deploy. The driver’s and front passenger’s SRS frontal airbags are designed basically not to deploy if the vehicle is struck from the side or from behind, or if it rolls onto its side or roof, or if it is involved in a low- speed frontal collision.
Page 81 1-56 Seat, seatbelt and SRS airbags WARNING The SRS side airbag and SRS curtain airbag are designed as only a supplement to the primary protec- tion provided by the seatbelt. They do not do away with the need to fasten seatbelts. It is also important to wear your seatbelt to help avoid injuries that can result when an occupant is not seated in a proper...
Page 82 WARNING . Never allow a child to kneel on the front passenger’s seat facing the side window or to wrap his/ her arms around the front seat seatback. In the event of an accident, the force of the SRS side airbag deployment could injure the child seriously be- cause his/her head or arms or other parts of the body are too...
Page 83 1-58 Seat, seatbelt and SRS airbags A hands-free microphone or other accessory in such a loca- tion could be propelled through the cabin with great force by the curtain airbag, or it could prevent correct deployment of the curtain airbag. In either case, the result could be serious injuries.
Page 84 termined level in a side collision, the control module causes both the SRS side airbag and curtain airbag on the impacted side to inflate regardless of whether the rear wheel house impact sensor on the same side senses an impact. If it is a rear wheel house impact sensor alone that senses a sufficiently strong impact force, the control module causes only the SRS...
Page 85 1-60 Seat, seatbelt and SRS airbags ! Examples of the types of accidents in which the SRS side airbag and SRS curtain airbag are unlikely to deploy. The vehicle is involved in an oblique side-on impact. The vehicle is involved in a side-on impact in an area outside the vicinity of the passenger compartment.
Page 86: Srs Airbag System Monitors
! Examples of the types of accidents in which the SRS side airbag and SRS curtain airbag will basically not deploy. The vehicle is involved in frontal collision with another vehicle (moving or station- ary). The vehicle is struck from behind. The SRS side airbag and SRS curtain airbag are basically not designed to deploy if the vehicle is involved in a frontal...
Page 87 SRS airbag system. Immediately take your vehi- cle to your nearest SUBARU dealer to have the system checked. Unless checked and properly repaired, the seatbelt pretensioners and/or SRS airbags will operate improperly (e.g.
Page 88: Srs Airbag System Servicing
In the event that the SRS airbag is deployed, replacement of the system should be performed only by an author- ized SUBARU dealer. When the compo- nents of the SRS airbag system are replaced, use only genuine SUBARU parts.
Page 89: Precautions Against Vehicle Modification
Manual. . Attachment of any equipment (side steps or side sill protectors, etc.) other than genuine SUBARU accessory parts to the side body. Always consult your SUBARU dealer if you want to install any accessory parts on your vehicle.
Page 90: Keys And Doors
Keys ... Key number ... Immobilizer ... Security ID plate... Security indicator light ... Key replacement ... Door locks ... Locking and unlocking from the outside ... Locking and unlocking from the inside ... Battery drainage prevention function ... Power door locking switches ... Key lock-in prevention function ...
Page 91: Keys
Keys and doors Keys Master key Submaster key Valet key Key number plate Security ID plate Three types of keys are provided for your vehicle. Master key, submaster key and valet key. The master key and submaster key fit all locks on your vehicle.
Page 92: Immobilizer
Immobilizer The immobilizer system is designed to prevent an unauthorized person from starting the engine. Only keys registered with your vehicle’s immobilizer system can be used to operate your vehicle. Even if an unregistered key fits into the ignition switch and can be turned to the “START” position, the engine will automatically stop after several seconds.
Page 93: Security Indicator Light
If the security indicator light does not flash, the immobilizer system may be faulty. If this occurs, contact your SUBARU dealer as soon as possible. In case an unauthorized key is used (e.g. an imitation key), the security indicator light comes on.
Page 94: Door Locks
Door locks & Locking and unlocking from the outside To lock the driver’s door from the outside with the key, turn the key toward the rear. To unlock the door, turn the key toward the front. Lift the outside door handle to open an unlocked door.
Page 95: Locking And Unlocking From The Inside
The operational/non-operational setting of this function can be changed by a SUBARU dealer. Contact the nearest SUBARU dealer if you would like to change the setting. NOTE . When leaving the vehicle, please...
Page 96: Power Door Locking Switches
. If the spare key is used to lock the driver’s door from the outside of the vehicle, the door is locked. This function’s operative/non-operative setting can be changed by a SUBARU dealer. Contact a SUBARU dealer for details. NOTE...
Page 97: Remote Keyless Entry System
Keys and doors Remote keyless entry system CAUTION . Do not expose the transmitter to severe shocks, such as those experienced as a result of drop- ping or throwing. . Do not take the transmitter apart except when replacing the bat- tery.
Page 98: Locking The Doors
& Locking the doors Press the “ ” button to lock all doors and rear gate (Station wagon). An electronic chirp will sound once and the turn signal lights will flash once. If any of the doors (or the rear gate/trunk lid) is not fully closed, an electronic chirp will sound five times and the turn signal lights will flash five times to alert you that...
Page 99: Vehicle Finder Function
The interior light must be set to the middle position in order for this function to operate. A SUBARU dealer can change the illumi- nation period setting of the interior light in accordance with your preference. Contact the nearest SUBARU dealer for details.
Page 100: Replacing Lost Transmitters
as possible. To replace the battery: 1. Open the transmitter case using a flat- head screwdriver. 2. Remove the old battery from the holder. Negative (−) side facing up 3. Replace with a new battery (Type CR2025 or equivalent) making sure to install the new battery with the negative (−) side facing up.
Page 101 2-12 Keys and doors Transmitter circuit board To register a new transmitter with the keyless entry system, it is necessary to program the transmitter’s code (identifica- tion number) into the system. A label showing the code is affixed to the bag containing the transmitter, and another is affixed to the circuit board inside the transmitter.
Page 102 5. Before the electronic tone stops sounding, press the power door lock knob to the “LOCK” side the same number of times as the leftmost digit of the transmit- ter code. For example, press the lock knob eight times if the leftmost digit of the code is 8.
Page 103: Alarm System
You can set the system for deactivation yourself or have it done by your SUBARU dealer. & System alarm operation The alarm system will give the following alarms when triggered: .
Page 104: Activating And Deactivating The Alarm System
NOTE You may have the above setting change done by your SUBARU dealer. & If you have accidentally trig- gered the alarm system ! To stop the alarm Do any of the following operations: .
Page 105 2-16 Keys and doors Turbo models Non-turbo models 6. Briefly press the “ ” button (for less than two seconds). All doors (and the rear gate on the Station wagon) will lock, an electronic chirp will sound once, the turn signal lights will flash once, and the indicator lights will start flashing rapidly.
Page 106: Disarming The System
. The 30-second standby time can be eliminated if you prefer. Have it per- formed by your SUBARU dealer. . If your vehicle is a Sedan and you unlock the trunk using the remote transmitter’s “ ” button with the...
Page 107 DOORS MUST BE MANUALLY LOCKED. ! To enter the passive mode If you wish to program the passive arming mode, have it done by your SUBARU dealer. ! Arming the system CAUTION In passive mode, the system will...
Page 108: Tripped Sensor Identification
30 seconds. If you desire, your SUBARU dealer can connect them and set them for activation or deactivation. NOTE . The shock sensors are not always...
Page 109: Windows
2-20 Keys and doors Windows & Power windows WARNING To avoid serious personal injury caused by entrapment, you must do the following. . When operating the power win- dows, be extremely careful to prevent anyone’s fingers, arms, neck or head from being caught in the window.
Page 110 To close: Pull the switch up lightly and hold it. The window will close as long as the switch is held. ! Operating the passengers’ windows To open the passengers’ windows, push the appropriate switch down and hold it until the window reaches the desired position.
Page 111: Trunk Lid (Sedan)
2-22 Keys and doors ! Passengers’ side switches Front passenger’s window switch Open Close To open the window, push the switch down and hold it until the window reaches the desired position. Rear passengers’ window switches Open Close To close the window, pull the switch up and hold it until the window reaches the desired position.
Page 112: To Open The Trunk Lid From Inside
trunk lid down until the latch engages. NOTE Do not leave your valuables in the trunk when you leave your vehicle. & To open the trunk lid from inside Pull the trunk lid release lever upward. & To lock and unlock the trunk lid release lever When you entrust your vehicle key to another person, you can lock the trunk lid...
Page 113 2-24 Keys and doors WARNING Never allow any child to get in the trunk and play with the release handle. If the driver starts the vehi- cle without knowing that a child is inside the trunk and the child opens the lid using the release handle, the child could fall out and be killed or seriously injured.
Page 114: Rear Gate (Station Wagon)
SUBARU dealer. Rear gate (Station wagon) The rear gate can be locked and unlocked using either the keyless entry system or the power door locking switch.
Page 115: Moonroof (If Equipped)
2-26 Keys and doors CAUTION . Do not jam a plastic bag in or place cellophane tape on the rear gate stays or scratch the stays while loading or unloading cargo. That could cause leakage of gas from the stays, which may result in their inability to hold the rear gate open.
Page 116: Tilting/Sliding Moonroof (Sedan)
& Tilting/sliding moonroof (Se- dan) ! Tilt function Tilt up Tilt down The tilting function will only operate when the moonroof is fully closed. Push the rear side of the “Tilt” switch to raise the moonroof. Push the front side of the “Tilt” switch to lower the moonroof.
Page 117: Sun Shade
2-28 Keys and doors NOTE For the sake of safety, it is recom- mended that you avoid driving with the moonroof fully opened. ! Sun shade The sun shade can be slid forward or backward by hand while the moonroof is closed.
Page 118 release it. The rear moonroof will stop at a position approximately 5.9 in (15 cm) before its fully closed position. After confirming safety, pull the switch to the “CLOSE” side again and quickly release it. The rear moonroof will fully close. The front moon- roof can then be fully closed.
Page 119 Ignition switch ... LOCK... ACC... ON... START ... Key reminder chime ... Ignition switch light ... Hazard warning flasher... Meters and gauges (Turbo models) ... Combination meter illumination ... Speedometer... Tachometer ... Fuel gauge... Temperature gauge ... ECO gauge ... Multi-information display (Turbo models)...
Page 120 Instruments and controls Selector lever position indicator (AT vehicles) (if equipped)... Gear position indicator (AT vehicles) (if equipped)... Selector lever and gear position indicator (AT vehicles) (if equipped) ... Turn signal indicator lights ... High beam indicator light ... Cruise control indicator light ... Cruise control set indicator light...
Page 121: Ignition Switch
Ignition switch WARNING . Never turn the ignition switch to “LOCK” while the vehicle is being driven or towed because that will lock the steering wheel, preventing steering control. And when the engine is turned off, it takes a much greater effort than usual to steer.
Page 122: Acc
Instruments and controls ! Manual transmission vehicles The key can be turned from “ACC” to “LOCK” only when the key is pushed in while turning it. & ACC In this position the electrical accessories (radio, accessory power outlet, etc.) can be used.
Page 123: Key Reminder Chime
& Key reminder chime The reminder chime sounds when the driver’s door opens and the key is in the “LOCK” or “ACC” positions. The chime stops when the key is removed from the ignition switch. & Ignition switch light For easy access to the ignition switch in the dark, the ignition switch light comes on when any of the doors are opened.
Page 124: Speedometer
Instruments and controls & Speedometer The speedometer shows the vehicle speed. & Tachometer The tachometer shows the engine speed in thousands of revolutions per minute. CAUTION Do not operate the engine with the pointer of the tachometer in the red zone.
Page 125: Temperature Gauge
NOTE You will see the “ ” sign in the fuel gauge. This indicates that the fuel filler door (lid) is located on the right side of the vehicle. ! Low fuel warning light The low fuel warning light comes on when the tank is nearly empty [Approximately 2.6 US gal (10 liters, 2.2 lmp gal)].
Page 126: Eco Gauge
Instruments and controls & ECO gauge The ECO gauge shows the difference between the average rate of fuel con- sumption and the current rate of fuel consumption. Using the average rate of fuel consumption since the trip meter was last reset, if the current rate of fuel consumption is higher than the average rate of fuel consumption, the indicator needle points to the “+”...
Page 127: Odometer And Trip Meter
*: Only for vehicles equipped with a navigation system & Odometer and trip meter ! Odometer U.S.-spec. vehicles Canada-spec. vehicles Instruments and controls This indication shows the total distance that the vehicle has been driven. If you press the multi-information display toggle button when the ignition switch is in the “LOCK”...
Page 128: Current And Average Fuel Consumption
3-10 Instruments and controls Canada-spec. vehicles This indication shows the distance that the vehicle has been driven since you last set it to zero. To set the trip meter to zero, select the A trip or B trip meter by pushing the multi- information display toggle button and keep the knob pushed for more than 0.8 second.
Page 129 consumption value is also reset. NOTE . The indicated values vary in accor- dance with changes in the vehicle’s running conditions. Also, the indicated values may differ slightly from the actual values and should thus be treated only as a guide. .
Page 130: Outside Temperature And Journey Time
3-12 Instruments and controls Canada-spec. vehicles When the outside temperature is 378F (38C) or lower, the display flashes “OUT TEMP 378F (38C)” for 3 seconds and gives a notice to the driver that the road surface may be frozen. After 3 seconds, it returns to its original indication of the outside temperature and journey time.
Page 131: Driving Range On Remaining Fuel
After 2 hours have passed for the journey time, the display indication flashes “E/T 2:00” at the center of the display for 3 seconds and gives a notice to the driver to take a rest. After 3 seconds, it returns to its original indication of the outside tempera- ture and journey time.
Page 132: Clock (Vehicle With Navigation System)
3-14 Instruments and controls Canada-spec. vehicles If the driving range is shown as “ there is only a tiny amount of fuel left in the tank. You must refuel the vehicle immedi- ately. NOTE The driving range on remaining fuel is only a guide.
Page 133: Warning Messages And Driver's Information
3-15 Instruments and controls & Warning messages and dri- ver’s information When the following safety warning or information occurs, the interruptive mes- sage will be indicated on the display. The display shows the interruptive mes- sage for 3 seconds and then returns to its original display.
Page 134: Instruments And Controls
This warning message indicates a mulfunction of the “SI-DRIVE mode” change. If this warning message is shown on the display, contact your nearest SUBARU dealer and have the SI-DRIVE mode system inspected. The display shows the interruptive warning message for 3 seconds.
Page 135 3-17 Instruments and controls Driver’s information Details Low temperature information This message is displayed when the outside temperature is 378F (38C). When this message appears on the display, be careful because the road surface may be frozen. For details of this indication, refer to the “ Outside temperature and journey time”...
Page 136: Meters And Gauges (Non-Turbo Models)
3-18 Instruments and controls Meters and gauges (Non-tur- bo models) NOTE Liquid-crystal displays are used in some of the meters and gauges in the combination meter. You will find their indications hard to see if you wear polarized glasses. & Combination meter illumina- tion When the ignition switch is turned to the “ON”...
Page 137: Double Trip Meter
& Odometer This meter displays the odometer when the ignition switch is in the “LOCK”, “ACC” or “ON” position. The odometer shows the total distance that the vehicle has been driven. If you press the trip knob when the ignition switch is in the “LOCK”...
Page 138: Tachometer
“ ”. If the trip meter shows “ ”, immediately contact the nearest SUBARU dealer and have the vehicle communication system inspected. NOTE If you press the trip knob while the trip meter is showing “...
Page 139: Temperature Gauge
door, the fuel gauge needle will drop to the “E” position and the dial, needle, and rim will go off. NOTE You will see the “ ” sign in the fuel gauge. This indicates that the fuel filler door (lid) is located on the right side of the vehicle.
Page 140: Warning And Indicator Lights
: S# PREP indicator light (if equipped) If any lights fail to come on, it indicates a burned-out bulb or a malfunction of the corresponding system. Consult your authorized SUBARU dealer for repair. & Seatbelt warning light and chime Your vehicle is equipped with a seatbelt warning device at the driver’s and front...
Page 141 For further details about canceling the warning operation, please contact your SUBARU dealer. If there is no passenger on the front passenger’s seat, the seatbelt warning device for the front passenger’s seat will be deactivated.
Page 142: Srs Airbag System Warning Light
If still the seatbelt warning device for front passenger’s seat does not function cor- rectly after taking relevant corrective ac- tions described above, immediately contact your SUBARU dealer for an inspection. & SRS airbag system warning light When the ignition switch is turned to the “ON”...
Page 143: Front Passenger's Frontal Airbag On And Off Indicators
2 seconds. After that, one of the indicators illuminates depending on the status of the front passenger’s SRS frontal airbag determined by the Subaru advanced frontal airbag system monitor- ing. If the front passenger’s SRS frontal airbag is activated, the passenger’s frontal airbag...
Page 144: Charge Warning Light
The CHECK ENGINE warning light/mal- function indicator lamp may stop blinking and come on steadily after several driving trips. You should have your vehicle checked by an authorized SUBARU deal- er immediately. & Charge warning light If this light comes on when the engine is running, it may indicate that the charging system is not working properly.
Page 145 This indicates the TPMS is unable to monitor all four road wheels. Con- tact your SUBARU dealer as soon as possible for tire and sensor replace- ment and/or system resetting. If the light flashes, promptly contact a SUBARU dealer to have the system inspected.
Page 146: Abs Warning Light
This indicates your brake system may not be working properly. If the light remains on, have the brakes inspected by a SUBARU dealer immediately. . If at all in doubt about whether the brakes are operating prop- erly, do not drive the vehicle.
Page 147: Low Fuel Warning Light
If the fluid level is below the “MIN” mark in the reservoir, do not drive the vehicle. Have the vehicle towed to the nearest SUBARU dealer for repair. ! Electronic Brake Force Distribution (EBD) system warning...
Page 148: All-Wheel Drive Warning Light (At Vehicles)
The Vehicle Dynamics Control system is probably inoperative under any of the following conditions. Have your vehicle checked at a SUBARU dealer immedi- ately. . The warning light does not come on when the ignition switch is turned to the...
Page 149: Security Indicator Light
You will be safe while driving with this condition, but have your vehicle checked at a SUBARU dealer as soon as possible. NOTE If the warning light behavior is as...
Page 150: Sport Mode Indicator Light (If Equipped)
3-32 Instruments and controls & SPORT mode indicator light (if equipped) This light comes on when the ignition switch is turned to the “ON” position and goes out after the engine has started. When the selector lever is moved to the manual gate, the SPORT mode is se- lected and the indicator light comes on.
Page 151: Selector Lever And Gear Position Indicator (At Vehicles) (If Equipped)
& Selector lever and gear posi- tion indicator (AT vehicles) (if equipped) This indicator shows the position of the selector lever. When the manual mode is selected, the gear position indicator (which shows the current gear selection) and the upshift/ downshift indicator light up.
Page 152: Clock (Vehicle Without Navigation System)
3-34 Instruments and controls Clock (Vehicle without Navi- gation System) NOTE . If your vehicle is a non-turbo model equipped with a navigation system, refer to the separate “Operating In- structions for Monitor System”. . If your vehicle is a turbo model equipped with a navigation system, refer to the “Clock (Vehicle with Navi- gation System)”...
Page 153: Outside Temperature Indicator
& Outside temperature indica- U.S.-spec. vehicles Canada-spec. vehicles The outside temperature indicator shows the outside temperature in a range from −22 to 1228F (−30 to 508C). The indicator can give a false reading under any of the following conditions: . When there is too much sun. .
Page 154: Current Fuel Consumption
3-36 Instruments and controls indication flashes to show that the road surface may be frozen. If the outside temperature drops to 378F (38C) or lower while the display is giving an indication other than the outside temperature, the display switches to the outside temperature indication and flashes for five seconds before returning to its original indication.
Page 155: Driving Range On Remaining Fuel
last reset. Pressing the trip knob toggles the indica- tion between the average fuel consump- tion corresponding to the A trip meter indication and the average fuel consump- tion corresponding to the B trip meter indication. When either of the trip meter indications is reset, the corresponding average fuel consumption value is also reset.
Page 156: Journey Time
3-38 Instruments and controls Canada-spec. vehicles If the driving range is shown as “ there is only a tiny amount of fuel left in the tank. You must refuel the vehicle immedi- ately. NOTE The driving range on remaining fuel is only a guide.
Page 157: Light Control Switch
Light control switch WARNING To prevent battery discharge result- ing from accidentally leaving your lights on when your vehicle is parked, the light switch operates only when the ignition switch is in the “ON” position. In any other position, the vehicle’s lights will be out.
Page 158: Headlight Flasher
3-40 Instruments and controls & Headlight flasher CAUTION Do not hold the lever in the flashing position for more than just a few seconds. To flash the headlights, pull the lever toward you and then release it. The high beam will stay on for as long as you hold the lever.
Page 159: Turn Signal Lever
Turn signal lever To activate the right turn signal, push the turn signal lever up. To activate the left turn signal, push the turn signal lever down. When the turn is finished, the lever will return automatically. If the lever does not return after cornering, return the lever to the neutral position by hand.
Page 160: Parking Light Switch
3-42 Instruments and controls Parking light switch The parking light switch operates regard- less of the ignition switch position. By pushing the front end of this switch, following lights will come on. – Parking lights – Front and rear side marker lights –...
Page 161: Wiper And Washer
. Use clean water if windshield washer fluid is unavailable. In areas where water freezes in winter, use SUBARU Windshield Washer Fluid or the equivalent. (See “Windshield washer fluid” 3-43 Instruments and controls section in chapter 11.)
Page 162: Windshield Wiper And Washer Switches
3-44 Instruments and controls . Grease, wax, insects or other mate- rial on the windshield or the wiper blades results in jerky wiper operation and streaking on the glass. If you cannot remove those streaks after operating the washer or if the wiper operation is jerky, clean the outer sur- face of the windshield or rear window and the wiper blades using a sponge or...
Page 163: Rear Window Wiper And Washer Switch (Station Wagon)
! Wiper intermittent time control (if equipped) When the wiper switch is in the “ position, turn the dial to adjust the operat- ing interval of the wiper. The operating interval can be adjusted continuously from the shortest interval to the longest.
Page 164: Windshield Wiper Deicer (If Equipped)
“ACC” or “LOCK” position. If deicing is not complete, you have to push the button to turn the deicer on again. Your SUBARU dealer can set your wind- shield wiper deicer for continuous opera- tion. Contact your SUBARU dealer for details.
Page 165: Rear Window Defogger Button
Instruments and controls ging is desired when you restart your vehicle, you have to push the button to turn it on again. Your SUBARU dealer can set your rear window defogger for continuous opera- tion. Contact your SUBARU dealer for details.
Page 166: Mirrors
3-48 Instruments and controls CAUTION . Do not use sharp instruments or window cleaner containing abra- sives to clean the inner surface of the rear window. They may damage the conductors printed on the window. . To prevent the battery from being discharged, do not operate the defogger continuously for any longer than necessary.
Page 167 button, the compass display is toggled on or off. When the compass is on, an illuminated compass reading will appear in the lower part of the mirror. Even with the mirror in anti-glare mode, the mirror surface turns bright if the transmission is shifted into reverse.
Page 168: Outside Mirrors
3-50 Instruments and controls & Outside mirrors ! Convex mirror (Passenger side) WARNING Objects look smaller in a convex mirror and farther away than when viewed in a flat mirror. Do not use the convex mirror to judge the distance of vehicles behind you when changing lanes.
Page 169: Tilt Steering Wheel
or “LOCK” position. If defrosting or defog- ging is desired when you restart your vehicle, you have to push the button to turn it on again. NOTE . While the outside mirror defogger is operating, the rear window defogger also operates. .
Page 170: Horn
3-52 Instruments and controls Horn To sound the horn, push the horn pad.
Page 171 Ventilator... Air flow selection ... Center and side ventilators ... Manual climate control system (if equipped) ... Control panel ... Heater operation ... Air conditioner operation... Automatic climate control system (if equipped) ... Control panel ... Temperature sensors... Operating tips for heater and air conditioner...
Page 172: Climate Control
Climate control Ventilator & Air flow selection...
Page 173: Center And Side Ventilators
& Center and side ventilators ! Center ventilators Move the tab up and down or right and left to adjust the flow direction. ! Side ventilators Open Close Move the tab up and down or right and left to adjust the flow direction. To open the ventilator, turn the side grille open/close wheel upward to the “...
Page 174 Climate control ! Temperature control dial This dial regulates the temperature of air flow from the air outlets over a range from the blue side (cool) to red side (warm). ! Fan speed control dial The fan operates only when the ignition switch is turned to the “ON”...
Page 175: Heater Operation
! Air conditioner button The air conditioner operates only when the engine is running. Push the air conditioner button while the fan is in operation to turn on the air conditioner. The indicator light will come Push it again to turn off the air conditioner. ! Air inlet selection button ON position (Recirculation): Interior air is recirculated inside the vehicle.
Page 176 Climate control on. At the same time, the air inlet selection is automatically set to “out- side air” mode. In this state, you cannot select “recir- culation” mode by manually pressing the air inlet selection button. Also, you cannot stop the air condi- tioner compressor by pressing the air conditioner button.
Page 177: Air Conditioner Operation
2. Set the air flow control dial to the “ ” position. 3. Set the temperature control dial all the way left. 4. Set the fan speed control dial to the desired speed. When driving on a dusty road, set the air inlet control button to the ON position.
Page 178: Automatic Climate Control System (If Equipped)
Climate control Automatic climate control system (if equipped) NOTE . Operate the automatic climate con- trol system when the engine is running. . The blower fan rotates at a low speed when the engine coolant tem- perature is low. For efficient defogging or dehumidify- ing in cold weather, press the “A/C”...
Page 179 ! OFF button The Automatic Climate Control system turns off (the air conditioner compressor and fan turn off) when the “OFF” button is pressed. When the “OFF” button is pressed, the outside air introduction mode (air inlet selection OFF) is automatically selected. ! Temperature control dial Driver’s side Passenger’s side...
Page 180 4-10 Climate control the air conditioner compressor turns on, air flow is directed towards the windshield and front door windows, and the indicator light on the button comes on. After eliminating the fogging from the windshield, return the climate control system to the AUTO mode by pushing the “AUTO”...
Page 181: Temperature Sensors
! Air inlet selection button Select air flow by pushing the air inlet selection button “ ”. The selected air inlet setting is shown on the control panel. (Recirculation): Interior air recirculates inside the passenger compartment. Use this position when quickly cooling down the passenger compartment or to prevent outside air from entering the passenger compartment.
Page 182: Operating Tips For Heater And Air Conditioner
Check the air conditioner unit for refriger- ant leaks, hose conditions, and proper operation each spring. Have your SUBARU dealer perform this check. & Cooling and dehumidifying in high humidity and low tem- perature weather condition Under certain weather conditions (high relative humidity, low temperatures, etc.) a...
Page 183: Air Conditioner Compressor Shut-Off When Engine Is Heavily Loaded
Under extremely dusty conditions, the filter should be replaced more frequently. Have your filter checked or replaced by your SUBARU dealer. For replacement, we recommend the use of a genuine SUBARU air filter kit. Replacement schedule:...
Page 184: Audio
Antenna system ... Printed antenna... FM reception ... Satellite radio reception (if equipped) ... Installation of accessories... Audio set ... Type A audio set (if equipped) ... Type B audio set (if equipped) ... Power and sound controls ... Power switch and volume control ... Tone and balance control ...
Page 185: Antenna System
Audio Antenna system & Printed antenna CAUTION Do not use sharp instruments or window cleaner containing abra- sives to clean the inner surface of the window on which the antenna is printed. Doing so may damage the antenna printed on the window. Sedan Station wagon The antenna is printed on the inner...
Page 186 satellite radio signals in the follow- ing situations. . If you are driving northward in a coastal area You will notice that the XM satellite radio antenna is fixed to the upper right hand corner of your windscreen. The signal comes from the south and may not be able to reach the antenna in some circumstances when you are driving north.
Page 187: Installation Of Accessories
Audio Installation of accessories Always consult your SUBARU dealer before installing a citizen band radio or other transmitting device in your vehicle. Such devices may cause the electronic control system to malfunction if they are incorrectly installed or if they are not...
Page 188: Audio Set
Audio set Your SUBARU may be equipped with one of the following audio sets. See the pages indicated in this section for operating details. & Type A audio set (if equipped) Audio The audio set will operate only when the ignition switch is in the “ACC”...
Page 189: Type B Audio Set (If Equipped)
Audio & Type B audio set (if equipped) The audio set will operate only when the ignition switch is in the “ACC” or “ON” position. . Power and sound controls: refer to page 5-7 . Radio operation: refer to page 5-10 .
Page 190: Power And Sound Controls
Power and sound controls & Power switch and volume control The dial is used for both power (ON/OFF) and volume control. The radio is turned ON and OFF by pushing the dial and the volume is controlled by turning the dial. The dial can also be used for tone and balance adjustment.
Page 191 Audio Control mode (Range of levels) Turn counterclockwise Bass control (−6 to +6) For less bass sound Midrange control (−6 to +6) For less midrange sound Treble control (−6 to +6) For less treble sound Volume control (0 to 40) For less volume AUX volume control* (0 to 40) For less volume...
Page 192: Audio Effector Switching (Type B)
Control mode (Range of levels) Turn counterclockwise Fader control (R9 to F9) To decrease front speaker vo- Balance control (L9 to R9) To increase left speaker vo- lume and decrease right speaker volume Volume control (0 to 40) For less volume AUX volume control* (0 to 40) For less volume * Only when an AUX audio product is connected.
Page 193: Fm/Am Radio Operation
5-10 Audio The SRS WOW mode has the following qualities. . Natural feeling of stereophonic ef- fect . Rich and varied bass sound . Crystal-clear sound FM/AM radio operation & FM/AM selection Push the “FM AM” button when the radio is off to turn on the radio.
Page 194: Station Preset
NOTE While you are holding down either side of the TUNE/TRACK button, the tuning frequency will not stop changing even if the frequency of a receivable station is reached. ! Stereo indicator The stereo indicator “ST” will come on when an FM stereo broadcast is received. ! Seek tuning (SEEK) If you press the “...
Page 195: Satellite Radio Operation (If Equipped)
Satellite radio operation (if equipped) To receive satellite radio, it is necessary to install the Subaru genuine satellite recei- ver (dealer option) and to enter into a contract. For details, please contact your SUBARU dealer.
Page 196: Channel And Category Selection
& Channel and category selec- tion ! Channel selection Press “ ” of the TUNE TRACK button to select the next channel and press “ ” of the button to select the previous channel. Keep pressing “ ” of the button to change to the next channel continuously and keep pressing “...
Page 197: Channel Preset
5-14 Audio & Channel preset ! How to preset channels 1. Press the “SAT” button to select XM1, XM2 and XM3 reception. 2. Press the SEEK/SCAN button or the TUNE TRACK button to select the chan- nel. 3. Press one of the preset buttons for more than 1.5 seconds to store the channel.
Page 198: Cd Player Operation
CD player operation NOTE . Make sure to always insert a disc with the label side up. If a disc is inserted with the label side down, the player displays “CHECK DISC”. Refer to “When the following messages are displayed” in this section. .
Page 199 5-16 Audio ! Inserting a disc in a desired posi- tion 1. Briefly press the “LOAD” button. If the magazine in the player has an idle position where you can insert a disc, the disc number indicator associated with the idle position will blink.
Page 200: How To Play Back A Cd
start playback of the discs, beginning with the one inserted first. If you fail to insert any disc during each 15 seconds interval, the full disc loading mode will be canceled, and the player will start playback of the disc inserted first. &...
Page 201: Fast-Forwarding And Fast-Reversing
5-18 Audio ! Backward direction Briefly press the “ ” side of the TUNE/ TRACK button to skip to the beginning of the current track/file (track). Each time the button is pressed, the indicated track/file (track) number will decrease. NOTE In an MP3 or WMA folder, skipping past the first track/file (track) will take you to the last track/file (track) in the folder.
Page 202: Repeating
& Repeating ! To repeat the currently playing track/file (track) To repeat a track/file (track), briefly press the “RPT” button while the track/file (track) is playing. The display will show “RPT”, and the track/file (track) will be repeated. To cancel the track/file (track) repeat-play mode, briefly press the “RPT”...
Page 203: Random Playback
5-20 Audio If you accidentally press the button and cancel the disc/folder repeat-play mode, press it again to reselect the disc/folder repeat-play mode. . For MP3 and WMA discs, they can play back repeatedly only for the currently playing file folder. They can- not play back the whole disc.
Page 204: Scan
If you accidentally press the button and cancel the random mode, press it again to reselect the random mode. . Random playback will be cancelled if you perform any of the following steps: . Press the “RPT” button . Press the “ ”...
Page 205: Display Selection
5-22 Audio & Display selection If you press the “TEXT” button for 0.5 second or longer during playback of an MP3/WMA file, the indication will change to the next one in the following sequence. ! Page (track/folder title) scroll If, having pressed the “TEXT” button to select FOLDER NAME or FILE NAME display, you press the “TEXT”...
Page 206 & How to eject a CD from the player (type A) When a disc is being played back or when a disc is in the player, press the eject button “ ”. The disc will be ejected. NOTE . Avoid driving the vehicle with a CD sticking out, because vibration might make it fall out.
Page 207: When The Following Messages Are Displayed
CD player, determine the cause based on the follow- ing information. If you cannot clear those ” messages, please contact your SUBARU dealer. ! When “PUSH EJECT” is displayed This message means that there is a mechanical error.
Page 208: Aux Unit Operation
AUX unit operation & AUX jack By connecting a commercial audio pro- duct to the vehicle, such as portable audio player, you can hear its sound via the vehicle’s speaker. Connect the portable audio player and push the “AUX” button. For the audio input jack, a stereo mini pin plug (3.5ø) can be connected.
Page 209: Audio Control Buttons (If Equipped)
5-26 Audio Audio control buttons (if equipped) These buttons are located on the spokes of the steering wheel. They allow the driver to control audio functions without taking his/her hands off the steering wheel. & MODE button This button is used to select the desired audio mode.
Page 210: Precautions To Observe When Handling A Compact Disc
! MUTE button Press this button if you wish to immedi- ately cut the volume to zero. The audio display will show “MUTE”. If you press the button again, the original sound volume will return and “MUTE” goes off. Precautions to observe when handling a compact disc Use only compact discs (CDs, CD-Rs and CD-RWs) that have the mark shown in the...
Page 211 5-28 Audio . You cannot use a DualDisc in the CD player. If you insert a DualDisc into the player, the disc may not come out again, possibly causing the player to malfunction. . In cold and/or rainy weather, dew can form inside the CD player, preventing normal operation.
Page 212: Interior Equipment
Interior light ... Dome light ... Cargo area light (Station wagon)... Map light ... Sun visors ... Sun visor extension plate ... Vanity mirror with light ... Storage compartment ... Glove box ... Center console box ... Center panel compartment (if equipped)... Overhead console (if equipped) ...
Page 213: Interior Light
See the “Remote keyless entry system” sec- tion in chapter 2 for detailed information. The setting of the period for which the light stays on can be changed by a SUBARU dealer. Contact the nearest SUBARU dealer for details.
Page 214: Sun Visors
Vehicle without moonroof To turn on the map light, push the switch. To turn it off, push the switch again. When leaving the vehicle, make sure the light is turned off to avoid battery dis- charge. Sun visors To block out glare, swing down the visors. To use the sun visor at a side window, swing it down and move it sideways.
Page 215: Vanity Mirror With Light
Interior equipment CAUTION Do not pull out the extension plate with the sun visor positioned over the windshield. The extension plate would obstruct your view of the rearview mirror. & Vanity mirror with light CAUTION Keep the vanity mirror cover closed while the car is being driven to avoid dazzle.
Page 216: Glove Box
& Glove box Lock Unlock To open the glove box, pull the handle. To close it, push the lid firmly upward. To lock the glove box, insert the key and turn it clockwise. & Center console box Center console box (front) If you remove the divider plate from the dual cupholders, you can use the center console box as a storage space.
Page 217: Center Panel Compartment (If Equipped)
Interior equipment CAUTION If you hold the divider plate at the top while turning it counterclock- wise, it may break. To use again as cupholders: Insert the protrusion on the back of the divider plate into the hole in the center of the console box.
Page 218: Overhead Console (If Equipped)
& Overhead console (if equipped) To open the console, push on the lid lightly and it will automatically open. CAUTION When your vehicle is parked in the sun or on a warm day, the inside of the overhead console heats up. Avoid storing plastic or other heat- vulnerable or flammable articles such as a lighter in the overhead...
Page 219: Front Passenger's Cup Holder
Interior equipment & Front passenger’s cup holder The dual cup holder is built into the center console near the parking brake lever. To access the cup holder, pull the lid toward the rear. & Rear passenger’s cup holder The rear passenger’s cup holder is located on the lower side of the back of the center console.
Page 220 Outlet in cargo area Accessory power outlets are provided beside the front ashtray, in the center console and in the cargo area. Electrical power (12V DC) from the battery is available at any of the outlets when the ignition switch is in either the “ACC” or “ON”...
Page 221: Coat Hook
6-10 Interior equipment NOTE When the lid of the center console is closed, a gap remains between the center console and the lid to allow the power outlet in the center console to be used. Pass the electrical appliance’s cord through this gap. Coat hook &...
Page 222: Shopping Bag Hook
The coat hook is attached to each rear passenger’s hand grip. Shopping bag hook CAUTION Do not hang items on the shopping bag hook that weigh 11 lbs (5 kg) or more. & For Sedan models A shopping bag hook is attached to each inner side wall of the trunk near the trunk lid opening.
Page 223: Floor Mat
6-12 Interior equipment Floor mat A retaining pin is located on the driver’s side of the vehicle next to the fuel filler door release. Fit the grommet in the carpet onto the pin to prevent the carpet from moving. CAUTION Make sure the driver’s floor mat is placed back in its proper location and correctly secured on its retain-...
Page 224: To Remove The Cover Housing
WARNING Do not place anything on the ex- tended cover. Putting excessive weight on the extended cover can break it and an object on the cover could tumble forward in the event of a sudden stop or collision. This could cause serious injury. &...
Page 225: To Install The Cover Housing
6-14 Interior equipment 2. To keep the lid open, hang the hook (provided on the back of the lid) on the rear edge of the roof. 3. Remove the left and right parts of the cargo floor lid. 4. Stow the cover housing and rear gate board in the cargo area end.
Page 226: To Install The Rear Gate Board
& To install the rear gate board Insert (tipped at an angle) the hooks on the rear gate board into the holes in the rear gate panel. Rotate the rear gate board toward you until its top touches the rear gate panel. Fit the top of the rear gate board into the groove in the rear gate panel.
Page 227: Convenient Tie-Down Hooks (If Equipped)
6-16 Interior equipment Convenient tie-down hooks (if equipped) CAUTION The convenient tie-down hooks are designed only for securing light cargo. Never try to secure cargo that exceeds the capacity of the hooks. The maximum load capacity is 44 lbs (20 kg) per hook. The cargo area is equipped with four tie- down hooks so that cargo can be secured with a luggage net or ropes.
Page 228: Sedan
& Sedan & Station wagon Hang the hook provided on the underside of the lid on the rear edge of the roof to keep the lid open. 6-17 Interior equipment HomeLink® Wireless Control System (if equipped) HomeLink® buttons Indicator light Hand-held transmitter* * Not part of your vehicle’s keyless entry system but of a HomeLink®-compatible...
Page 229: Garage Door Opener Programming In The U.s.a
6-18 Interior equipment desired device. For details on the device types which can be operated by this system, consult the HomeLink website at www.homelink.com or call 1-800-355- 3515. Note the following about this system: If your vehicle is equipped with the HomeLink®...
Page 230: Programming Rolling-Code-Protected Garage Door Openers In The U.s.a
2. Press and hold the two outside HomeLink® buttons until the indicator light begins to flash (after 20 seconds). Re- lease both buttons. NOTE If any of the HomeLink® buttons are already programmed for other devices, skip step 2 because it clears the memory of all the three buttons.
Page 231: Programming For Entrance Gates And Garage Door Openers In Canada
6-20 Interior equipment may make the programming quicker and easier. 1. Locate the training button on the garage door opener motor head unit. The exact location and color of the button may vary by brand of garage door opener. If it is difficult to locate the training button, refer to your garage door opener’s instruc- tion manual.
Page 232: Programming Other Devices
memory of all three buttons. 3. Hold the end of the entrance gate’s/ garage door opener’s hand-held transmit- ter between 1 and 3 inches (25 and 76 mm) away from the HomeLink® buttons on the driver’s sun visor, keeping the indicator light in view.
Page 233 6-22 Interior equipment www.homelink.com or call 1-800-355- 3515 for assistance.
Page 234: Starting And Operating
Fuel ... Fuel requirements ... Fuel filler lid and cap... State emission testing (U.S. only)... Preparing to drive ... Starting the engine... Manual transmission vehicle... Automatic transmission vehicle ... Stopping the engine... Remote engine start system (dealer option) ... Starting your vehicle ... Remote start safety features ...
Page 235 Starting and operating ABS warning light ... Electronic Brake Force Distribution (EBD) system ... 7-36 Steps to take if EBD system fails ... Vehicle Dynamics Control system (if equipped) ... 7-38 Vehicle Dynamics Control system monitor ... Vehicle Dynamics Control OFF switch... Tire pressure monitoring system (TPMS) (if equipped) ...
Page 236: Fuel
Fuel CAUTION Use of a fuel which is low in quality or use of an inappropriate fuel additive may cause engine damage. & Fuel requirements ! 2.5-liter non-turbo models The 2.5-liter non-turbo engine is designed to operate using unleaded gasoline with an octane rating of 87 AKI or higher.
Page 237 CHECK ENGINE warning light/mal- function indicator lamp may turn on. If this happens, return to your authorized SUBARU Dealer for service. If it is determined that the condition is caused by the type of fuel used, repairs may not be covered by your warranty.
Page 238: Fuel Filler Lid And Cap
SUBARU Limited Warranty. & Fuel filler lid and cap ! Refueling Starting and operating 1. To open the fuel filler lid, pull the lid release lever. The lever is on the floor at the left of the driver’s seat.
Page 239 Starting and operating 2. Open the fuel filler lid. Open Close 3. Remove the fuel filler cap by turning it slowly counterclockwise. WARNING . Gasoline vapor is highly flam- mable. Before refueling, always first stop the engine and make sure that there are no lighted cigarettes, open flames or elec- trical sparks in the adjacent area.
Page 240: State Emission Testing (U.s. Only)
SUBARU Limited Warranty. . Always use a genuine SUBARU fuel filler cap. If you use the wrong cap, it may not fit or have...
Page 241 There are some states that use four-wheel dynamometers in their testing programs. When properly used, that equipment will not damage an AWD SUBARU vehicle. Under no circumstances should the rear wheels be jacked off the ground, nor should the driveshaft be disconnected for state emission testing.
Page 242: Preparing To Drive
Preparing to drive You should perform the following checks and adjustments every day before you start driving. 1. Check that all windows, mirrors, and lights are clean and unobstructed. 2. Check the appearance and condition of the tires. Also check tires for proper inflation.
Page 243: Automatic Transmission Vehicle
“START” position without depressing the accelerator pedal. (4) If the engine still refuses to start, contact your nearest SUBARU dealer for assistance. 6. Confirm that all warning and indicator lights have gone off after the engine has started.
Page 244: Stopping The Engine
started. The fuel injection system auto- matically lowers the idle speed as the engine warms up. While the engine is warming up, make sure that the selector lever is at the “P” or “N” position and that the parking brake is applied.
Page 245: Starting Your Vehicle
7-12 Starting and operating & Starting your vehicle The remote control start system is acti- vated by pressing the “ ” button twice within 3 seconds on your remote control transmitter. The system will check certain pre-conditions before starting, and if all safety parameters are correct, the engine will start within 5 seconds.
Page 246: Pre-Heating Or Pre-Cooling The Interior Of The Vehicle
transmitter within a few seconds immedi- ately following remote engine start shut- down. & Pre-heating or pre-cooling the interior of the vehicle Before exiting the vehicle, set the tem- perature controls to the desired setting and operation. After the system starts the vehicle, the heater or air-conditioning will activate and heat or cool the interior to your setting.
Page 247: System Maintenance
7-14 Starting and operating the brake pedal repeatedly will toggle the feature ON or OFF each time. 7. To exit the remote transmitter and feature programming mode, turn the igni- tion switch to the “OFF” position, remove the key from the ignition switch and test operation of the remote transmitter(s) and horn confirmation feature.
Page 248: Shifting Speeds
on the old batteries before removing them to ensure that the new batteries are inserted properly (battery “+” should be pointed away from the transmitter circuit board on both batteries). 3. Carefully snap the case halves back together, then test the remote control. NOTE This device complies with Part 15 of the FCC Rules and with RSS-210 of...
Page 249: Driving Tips
7-16 Starting and operating at the speeds listed in the following table. Shift up mph (km/h) 1st to 2nd 15 (24) 2nd to 3rd 25 (40) 3rd to 4th 40 (65) 4th to 5th 45 (73) ! Maximum allowable speeds WARNING When shifting down a gear, ensure that the vehicle is not travelling at a...
Page 250: Selecting Reverse Gear
Manual transmission – 6 speeds (2.5GT spec.B) WARNING Do not drive the vehicle with the clutch disengaged (i.e., when the clutch pedal is depressed) or with the shift lever in the neutral position. Engine braking has no effect in either of these conditions and the risk of an accident is consequently increased.
Page 251: Driving Tips
7-18 Starting and operating engine over-revving and this in turn can result in engine damage. In addition, sudden application of engine brakes when the vehicle is travelling on a slippery surface can lead to wheel locking; as a conse- quence, control of the vehicle may be lost and the risk of an accident increased.
Page 252: Selector Lever
forward driving positions into the “R” position or vice versa until the vehicle has completely stopped. Such shifting may cause damage to the transmis- sion. . When parking the vehicle, first securely apply the parking brake and then place the selector lever in the “P”...
Page 253: Selector Lever Reverse Inhibiting Function
7-20 Starting and operating Avoid coasting with the transmission neutral. During coasting, there is no engine brak- ing effect. NOTE If the selector lever is in the “N” position when you stop the engine for parking, you may not subsequently be able to move it to the “R”...
Page 254: Selection Of Manual Mode
“P” position. If the selector lever reverse inhibiting function fails, have the vehicle inspected by the nearest SUBARU dealer. & Selection of manual mode With the vehicle either moving or station- ary, move the selector lever from the “D”...
Page 255: Maximum Speeds
7-22 Starting and operating selector lever. Using the selector lever Shift to the next-higher gear by briefly pushing the selector lever toward the “+” end of the manual gate. Shift to the next-lower gear by briefly pulling the selector lever toward the “−” end of the manual gate.
Page 256: Driving Tips
mph (km/h) Position 2.5-liter non-turbo models 34 (55) 64 (103) 99 (160) Never exceed posted speed limits. & Driving tips . On a road surface where there is a risk of wheelspin (for example, a snow- or gravel-covered road), you can pull away from a standstill (safely and easily) by first selecting the 2nd gear of the manual mode.
Page 257: Automatic Transmission - 5-Speed
“P” to the “N” position. 6. Remove the screwdriver from the hole. Depress the brake pedal and start the engine. Take your vehicle to the nearest SUBARU dealer immediately to have the system repaired. Automatic transmission – 5- speed...
Page 258: Selector Lever
transmission fluid) is replaced, you may feel that the automatic transmis- sion operation is somewhat unusual. This results from invalidation of data which the on-board computer has collected and stored in memory to allow the transmission to shift at the most appropriate times for the current condition of your vehicle.
Page 259: Selector Lever Reverse Inhibiting Function
7-26 Starting and operating WARNING Do not drive the vehicle with the selector lever in the “N” (neutral) position. Engine braking has no effect in this condition and the risk of an accident is consequently in- creased. ! D (Drive) This position is for normal driving.
Page 260: Selection Of Manual Mode
“P” position. If the selector lever reverse inhibiting function fails, have the vehicle inspected by the nearest SUBARU dealer. & Selection of manual mode Turbo models Non-turbo models 7-27...
Page 261 7-28 Starting and operating upshift and downshift indicators show when a gearshift is possible. When the upshift indicator “ ” is on, upshifting is possible. When the downshift indicator “ ” is on, downshifting is possible. When both indicators are on, upshifting and downshifting are both possible.
Page 262: Maximum Speeds
the selector lever or a steering-wheel switch twice in rapid succession. . The transmission automatically se- lects 1st gear when the vehicle stops moving. . If the temperature of the automatic transmission fluid becomes too high, the “AT OIL TEMP” warning light will come on and upshifts to 5th gear will not be possible.
Page 263: Sport Mode (Non-Turbo Models)
“P” to the “N” position. 6. Remove the screwdriver from the hole. Depress the brake pedal and start the engine. Take your vehicle to the nearest SUBARU dealer immediately to have the system repaired.
Page 264: Si-Drive (Turbo Models)
SI-DRIVE (Turbo models) SI-DRIVE (Subaru Intelligent Drive) works to maximize engine performance, control and efficiency. This system consists of three modes: Intelligent (I), Sport (S), and Sport Sharp (S#). By adjusting the SI-DRIVE selector, the character of the power unit changes.
Page 265: Sport (S) Mode
7-32 Starting and operating & Sport (S) mode For all-around performance driving The Sport (S) mode provides the engine power desired by those who want to make the driving experience their own personal adventure. The linear acceleration characteristic of this versatile mode is ideal for driving on freeways and suburban streets or for climbing mountain roads.
Page 266: Rear Viscous Limited Slip Differential (Lsd) (If Equipped)
. While the engine is running, if the CHECK ENGINE warning light/malfunc- tion indicator lamp comes on, the SI- drive mode changes to the Sport (S) mode. In this case, it is not possible to change to the Sport Sharp (S#) mode or Intelligent (I) mode.
Page 267: Braking
If a squeaking or scraping noise is heard from the disc brakes while braking, im- mediately have your vehicle inspected by the nearest SUBARU dealer.
Page 268: Abs (Anti-Lock Brake System)
ABS (Anti-lock Brake Sys- tem) WARNING Always use the utmost care in driving – overconfidence because you are driving with an ABS equipped vehicle could easily lead to a serious accident. CAUTION . The ABS system does not always decrease stopping distance. You should always maintain a safe following distance from other vehicles.
Page 269: Electronic Brake Force Distribution (Ebd) System
. The warning light comes on dur- ing driving. If these occur, have the ABS system repaired at the first available oppor- tunity by your SUBARU dealer. NOTE If the warning light behavior is as described in the following, the ABS system may be considered normal.
Page 270: Steps To Take If Ebd System Fails
3. Release the parking brake. If both warning lights go out, the EBD system may be faulty. Drive carefully to the nearest SUBARU dealer and have the system inspected. 4. If both warning lights come on again and stay illuminated after the engine has...
Page 271: Vehicle Dynamics Control System (If Equipped)
Vehicle Dynamics Control, have an authorized SUBARU dealer per- form an inspection of that sys- tem. . The following precautions should be observed in order to ensure...
Page 272: Vehicle Dynamics Control System Monitor
. When driving off immediately after starting the engine, a short-lived opera- tion noise may be noticed coming from the engine compartment. This noise is generated as a result of a check being performed on the Vehicle Dynamics Control system and is normal. .
Page 273 The following two situations could indicate a malfunction of the Vehicle Dynamics Control system; if either should occur, have an authorized SUBARU dealer carry out an inspection of that system at the first available opportunity. . The indicator light does not turn on when the ignition switch is turned to the ON position.
Page 274 SUBARU dealer carry out an inspection of those systems at the first available oppor- tunity. NOTE...
Page 275: Vehicle Dynamics Control Off Switch
7-42 Starting and operating & Vehicle Dynamics Control OFF switch Pressing the switch to deactivate the Vehicle Dynamics Control system can facilitate the following operations: . a standing start on a steeply sloping road with a snowy, gravel-covered, or otherwise slippery surface .
Page 276: Tire Pressure Monitoring System (Tpms) (If Equipped)
This indicates the TPMS is unable to monitor all four road wheels. Contact your SUBARU dealer as soon as possible for tire – CONTINUED –...
Page 277: Parking Your Vehicle
If the light f l a s h e s , p r o m p t l y c o n t a c t a SUBARU dealer to have the system inspected. CAUTION Do not place metal film or any metal parts under the driver’s seat.
Page 278 CAUTION Never drive while the parking brake is set because this will cause un- necessary wear on the brake lin- ings. Before starting to drive, always make sure that the parking brake has been fully released. To set the parking brake, press the brake pedal firmly and hold it down while fully pulling up the parking brake lever.
Page 279: To Set Cruise Control
7-46 Starting and operating Cruise control Cruise control enables you to maintain a constant vehicle speed without holding your foot on the accelerator pedal and it is operative when the vehicle speed is 25 mph (40 km/h) or more. Make sure the main switch is turned “OFF”...
Page 280: To Temporarily Cancel The Cruise Control
“SET/COAST” direction and release it. Then release the accelerator pedal. Turbo models Non-turbo models At this time, the “ ” indicator light is illuminated in the combination meter. The vehicle will maintain the desired speed. Vehicle speed can be temporarily in- creased while driving with the cruise control activated.
Page 281: To Change The Cruising Speed
7-48 Starting and operating & To change the cruising speed ! To increase the speed (by control lever) Push the control lever upward in the “RES/ ACC” direction and hold it until the vehicle reaches the desired speed. Then, release the control lever.
Page 282: Cruise Control Indicator Light
! To decrease the speed (by brake pedal) 1. Depress the brake pedal to release cruise control temporarily. 2. When the speed decreases to the desired speed, press the control lever downward in the “SET/COAST” direction once. Now the desired speed is set and the vehicle will keep running at that speed without depressing the accelerator pedal.
Page 283 7-50 Starting and operating comes on when the ignition switch is turned to the “ON” position and goes out after approximately three seconds. The light comes on when vehicle speed has been set.
Page 284: Driving Tips
New vehicle break-in driving – the first 1,000 miles (1,600 km) ... Fuel economy hints ... Engine exhaust gas (Carbon monoxide) ... Catalytic converter ... Periodic inspections ... Driving in foreign countries ... Driving tips for AWD vehicles ... Off road driving ... All AWD models except OUTBACK ...
Page 285: New Vehicle Break-In Driving - The First 1,000 Miles (1,600 Km)
Driving tips New vehicle break-in driving – the first 1,000 miles (1,600 The performance and long life of your vehicle are dependent on how you handle and care for your vehicle while it is new. Follow these instructions during the first 1,000 miles (1,600 km): .
Page 286: Catalytic Converter
exhaust fumes are entering the vehicle, have t he probl em checked and corrected as soon as possible. If you must drive under these conditions, drive only with all windows fully open. . Keep the trunk lid (Sedan) or rear gate (Station wagon) closed while driving to prevent exhaust gas from entering the vehicle.
Page 287: Periodic Inspections
(misfiring, back- firing or incomplete combustion), have your vehicle checked and repaired by an authorized SUBARU dealer. . Do not apply undercoating or rust prevention treatment to the heat shield of catalytic converter and the exhaust sys- tem.
Page 288: Driving Tips For Awd Vehicles
By shifting power between the front and rear wheels, SUBARU AWD can also provide added traction during accelera- tion, and added engine braking force during deceleration.
Page 289: Off Road Driving
If you do take your SUBARU off road, you should review the common sense precautions in the next section (applicable to the OUTBACK) for general guidance.
Page 290 “Warranty and Mainte- nance Booklet”. Remember that damage done to your SUBARU while operating it off-road and Driving tips not using common sense precautions such as those listed above is not eligible...
Page 291: Winter Driving
Do not use engine antifreeze or other substitutes because they may damage the paint of the vehicle. SUBARU Windshield Washer Fluid con- tains 58.5% methyl alcohol and 41.5% surfactant, by volume. Its freezing tem- perature varies according to how much it is diluted, as indicated in the following table.
Page 292: Driving On Snowy And Icy Roads
If your SUBARU is not going to be used for an extended period, it is best to have the fuel tank filled to capacity.
Page 293: Corrosion Protection
8-10 Driving tips ! Wiper operation when snowing Before driving in cold weather, make sure the wiper blades are not frozen to the windshield or rear window. If the wiper blades are frozen to the windshield or rear window, use the defroster with the airflow control button/dial in the “...
Page 294 adequate measure of traction, handling and braking performance in year-round driving. In winter, it may be possible to enhance performance through use of tires designed specifically for winter driving conditions. If you choose to install winter tires on your vehicle, be sure to use the correct tire size and type.
Page 295: Tire Chains
8-12 Driving tips ! 2.5GT spec.B WARNING . When replacing original tires with winter (snow) tires, make sure you use only the same size, construction and load range as the original tires listed on the tire placard. Using other sizes and construction may affect speed- ometer/odometer calibration and clearance between the body and...
Page 296: Rocking The Vehicle
Driving on snowy grades or icy roads may require the use of tire chains, in which case put the chains on the front wheels only. Use only SAE class S type chains that are of the correct size for your tires so as not to damage the vehicle body or suspension.
Page 297: Vehicle Capacity Weight
8-14 Driving tips possible. . When you carry something inside the vehicle, secure it whenever you can to prevent it from being thrown around inside the vehicle during sudden stops, sharp turns or in an accident. . Do not pile heavy loads on the roof.
Page 298: Gvwr And Gawr (Gross Vehicle Weight Rating And Gross Axle Weight Rating)
side door pillar. It includes the total weight of the driver and all passengers and their belongings, any optional equipment such as a trailer hitch, roof rack or bike carrier, etc., and the tongue load of a trailer. & GVWR and GAWR (Gross Vehicle Weight Rating and Gross Axle Weight Rating) Certification label...
Page 299 8-16 Driving tips ment and cargo does not exceed the maximum load limit. Over- loading may cause damage to the vehicle and create a safety hazard. The roof rail is not designed to carry cargo by itself. Cargo can be carried after securing the roof crossbar kit to the roof rail and installing the appropriate carrying attachment.
Page 300 2. Carefully raise the crossbar from roof rails. ! To install the front crossbar Front crossbar: Front crossbar has 100 LBS Load Label on left-hand side. T-25 torx® head screw 1. Make sure that the T-25 torx® head screw on the back of each crossbar end support is tightened correctly.
Page 301 8-18 Driving tips Lower clamp T-30 torx® head screw 5. Tighten the lower clamps onto the crossbar. Using a torque wrench, loosely tighten the T-30 torx® head screws. NOTE It may be necessary to squeeze the lower clamp and the end support together to compress the pads and gain a better alignment of the pieces while trying to start the screw.
Page 302: Trailer Hitch (If Equipped)
NOTE Before each use of the roof crossbar, make sure the four T-30 crossbar clamp screws have been checked, and retightened if necessary to 35 lbf·in (4.0 N·m, 0.41 kgf·m), as outlined in Step #5 above. Trailer hitch (if equipped) WARNING .
Page 303: Connecting A Trailer
8-20 Driving tips & Connecting a trailer 1. Remove the receiver cover from the hitch receiver tube. Then insert the ball mount into the hitch receiver tube. 2. Insert the hitch pin into the hole on the hitch receiver tube so that the pin passes through the ball mount.
Page 304: When You Do Not Tow A Trailer
Seek the advice of your SUBARU dealer to assist you in purchasing a hitch and other necessary towing equipment appropriate for your vehicle. In addition, be sure to follow the...
Page 305: Maximum Load Limits
8-22 Driving tips (Refer to “Maintenance schedule under severe driving conditions” in the “Warranty and Maintenance Booklet”.) Under no circumstances should a trailer be towed with a new vehicle or a vehicle with any new powertrain component (en- gine, transmission, differential, wheel bearings, etc.) for the first 1,000 miles (1,600 km) of driving.
Page 306 3.0-liter models Conditions When towing a trailer without brakes. When towing a trailer with brakes. When towing a trailer on a long uphill grade continuously for over 5 miles (8 km) with an outside temperature of 1048F (408C) or above. All models other than 3.0-liter models Model Conditions...
Page 307 8-24 Driving tips Certification label ! Gross Axle Weight (GAW) and Gross Axle Weight Rating (GAWR) Gross Axle Weight The total weight applied to each axle (GAW) must never exceed the Gross Axle Weight Rating (GAWR). The front and rear GAWs can be adjusted by relocating passengers and luggage inside the vehi- cle.
Page 308: Trailer Hitches
Jack Bathroom scale The tongue load can be weighed with a bathroom scale as shown in the following illustration. When weighing the tongue load, be sure to position the towing coupler at the height at which it would be during actual towing, using a jack as shown.
Page 309: Connecting A Trailer
8-26 Driving tips trailer. ! OUTBACK wagon The use of a genuine SUBARU trailer hitch is recommended. A genuine SUBARU hitch is available from your SUBARU dealer. If use of a non-genuine hitch is unavoid- able, be sure the hitch is suited to your vehicle and trailer.
Page 310: Trailer Towing Tips
To ensure the trailer lights are connected properly, please consult your SUBARU dealer. Check for proper operation of the turn signals, the brake lights and parking lights each time you hitch up.
Page 311 8-28 Driving tips speed. You should also keep the following tips in mind: ! Before starting out on a trip . Check that the vehicle and vehicle-to- hitch mounting are in good condition. If any problems are apparent, do not tow the trailer.
Page 312 SUBARU dealer. ! Driving on grades . Before going down a steep hill, slow down and shift into lower gear (if neces- sary, use 1st gear) in order to utilize the engine braking effect and prevent over- heating of your vehicle’s brakes.
Page 313: In Case Of Emergency
If you park your vehicle in an emergency... Temporary spare tire... Flat tires... Changing a flat tire... Tire pressure monitoring system (TPMS) (if equipped)... Jump starting ... 9-10 How to jump start... Engine overheating ... 9-12 If steam is coming from the engine compartment...
Page 314: Temporary Spare Tire
This indicates the tire pressure monitoring system (TPMS) is unable to monitor all four road wheels. Contact your SUBARU dealer as soon as pos- sible for tire and sensor replace- ment and/or system resetting.
Page 315 CAUTION Never use any temporary spare tire other than the original. Using other sizes may result in severe mechan- ical damage to the drive train of your vehicle. The temporary spare tire is smaller and lighter than a conventional tire and is designed for emergency use only.
Page 316: Flat Tires
In case of emergency Flat tires If you have a flat tire while driving, never brake suddenly; keep driving straight ahead while gradually reducing speed. Then slowly pull off the road to a safe place. & Changing a flat tire WARNING .
Page 317 Station wagon Jack handle Jack and tool bucket Spare tire 5. Take out the spare tire, jack, and jack handle. The spare tire and jack are stored under the floor of the trunk or cargo area. To remove the spare tire and jack, proceed as follows: Sedan: 1.
Page 318 In case of emergency 6. Turn the attaching bolt counterclock- wise, then take the spare tire out. Station wagon: 1. Open the lid and hang the hook provided on the under side of the lid on the rear edge of the roof to keep the lid open.
Page 319 6. Turn the attaching bolt counterclock- wise, then take spare tire out. If the spare tire provided in your vehicle is a temporary spare tire, carefully read the section “Temporary spare tire” in this chapter and strictly follow the instructions. NOTE Make sure the jack is well lubricated before using it.
Page 320 In case of emergency 10. Remove the wheel nuts and the flat tire. 11. Before putting the spare tire on, clean the mounting surface of the wheel and hub with a cloth. 12. Put on the spare tire. Replace the wheel nuts.
Page 321: Tire Pressure Monitoring System (Tpms) (If Equipped)
This indicates the TPMS is unable to monitor all four road wheels. Con- tact your SUBARU dealer as soon as possible for tire and sensor replace- ment and/or system resetting. In case of emergency...
Page 322: Jump Starting
9-10 In case of emergency Jump starting WARNING . Battery fluid is SULFURIC ACID. Do not let it come in contact with the eyes, skin, clothing or the vehicle. If battery fluid gets on you, thoroughly flush the exposed area with water immediately. Get medical help if the fluid has entered your eyes.
Page 323 9-11 In case of emergency Connect one jumper cable to the positive (+) terminal on the discharged battery. Connect the other end of the jumper cable to the positive (+) terminal of the booster battery. Connect one end of the other cable to the negative (−) terminal of the booster battery.
Page 324: Engine Overheating
9-12 In case of emergency 5. Start the engine of the vehicle with the booster battery and run it at moderate speed. Then start the engine of the vehicle that has the discharged battery. 6. When finished, carefully disconnect the cables in exactly the reverse order. Engine overheating WARNING Never attempt to remove the radia-...
Page 325: Towing
If towing is necessary, it is best done by your SUBARU dealer or a commercial towing service. Observe the following procedures for safety. & Towing and tie-down hooks The towing hooks should be used only in an emergency (e.g., to free a stuck vehicle...
Page 326 9-14 In case of emergency 4. Screw the towing hook into the thread hole until the threads can no longer be seen. 5. Tighten the towing hook securely using a wheel nut wrench. After towing, remove the towing hook from the vehicle and stow it in the tool bag.
Page 327 6. Tighten the towing hook securely using a wheel nut wrench. After towing, remove the towing hook from the vehicle and stow it in the tool bag. Fit the fog light cover and towing hook cover on the bumper. WARNING .
Page 328: Using A Flat-Bed Truck
9-16 In case of emergency WARNING Use the rear tie-down hooks only for downward anchoring. If they are used to anchor the vehicle in any other direction, cables may slip off the hooks, possibly causing a dan- gerous situation. & Using a flat-bed truck This is the best way to transport your vehicle.
Page 329: Rear Gate (Station Wagon) - If The Rear Gate Cannot Be Unlocked
towed. 4. Take up slack in the towline slowly to prevent damage to the vehicle. Rear gate (Station wagon) – if the rear gate cannot be un- locked In the event that you cannot unlock the rear gate by operating the power door locking switches or the remote keyless entry system, you can unlock it from inside the cargo area.
Page 330: Maintenance Tools
9-18 In case of emergency Maintenance tools & Jack A jack and other maintenance tools are stored in the tool bucket in the center of the spare tire located in the trunk or in the cargo area. Sedan: To take out the jack and main- tenance tools, open the floor cover and remove the bucket from the center of the spare tire.
Page 331: Other Maintenance Tools
For how to use the jack, refer to “Flat tires”. & Other maintenance tools In addition to a jack and a jack handle, the tool bucket on your vehicle contains the following maintenance tools. Screwdriver Towing hook Wheel nut wrench 9-19 In case of emergency...
Page 332: Appearance Care
Exterior care ... 10-2 Washing... Waxing and polishing ... Cleaning aluminum wheels ... Corrosion protection... 10-4 Most common causes of corrosion ... To help prevent corrosion... Appearance care Cleaning the interior... 10-2 Seat fabric ... 10-3 Leather seat materials... 10-3 Synthetic leather upholstery...
Page 333: Exterior Care
10-2 Appearance care Exterior care & Washing CAUTION . When washing the vehicle, the brakes may get wet. As a result, the brake stopping distance will be longer. To dry the brakes, drive the vehicle at a safe speed while lightly pressing the brake pedal to heat up the brakes.
Page 334: Waxing And Polishing
When in doubt, it is always best to contact your SUBARU dealer or an auto paint specia- list. NOTE Be careful not to block the windshield washer nozzles with wax when waxing the vehicle.
Page 335: Corrosion Protection
Contact your SUBARU dealer to perform this kind of maintenance and treatment if you need assistance. Repair chips and scratches in the paint as soon as you find them.
Page 336: Cleaning The Interior
If your SUBARU is to be parked for a long time in bright sunlight, it is recommended that the seats and headrests be covered, or the windows shaded, to prevent fading or shrinkage.
Page 337: Maintenance And Service
Maintenance schedule ... Maintenance precautions... Before checking or servicing in the engine compartment... When you do checking or servicing in the engine compartment while the engine is running... Engine hood ... Engine compartment overview... 2.5-liter non-turbo models... 2.5-liter turbo models ... 3.0-liter models ...
Page 338 Maintenance and service Parking brake stroke... Tires and wheels ... Types of tires ... Tire pressure monitoring system (TPMS) (if equipped)... Tire inspection ... Tire pressures and wear ... Wheel balance... Wear indicators ... Tire rotation direction mark ... Tire rotation ... Tire replacement ...
Page 339: Maintenance Schedule
Maintenance precautions When maintenance and service are re- quired, it is recommended that all work be done by an authorized SUBARU dealer. If you perform maintenance and service by yourself, you should familiarize yourself with the information provided in this section on general maintenance and service for your SUBARU.
Page 340: Before Checking Or Servicing In The Engine Compartment
NEVER use a circuit tester for these wiring. If your SRS airbag or seatbelt pretensioner needs service, con- sult your nearest SUBARU deal- & Before checking or servicing in the engine compartment WARNING . Always stop the engine and set the parking brake firmly to pre- vent the vehicle from moving.
Page 341 3. Release the secondary hood release located under the front grille by moving the lever toward the left. 4. Lift up the hood, release the hood prop from its retainer and put the end of the hood prop into the slot in the hood. To close the hood: 1.
Page 342: Fuse Box (Page
11-6 Maintenance and service Engine compartment overview & 2.5-liter non-turbo models Power steering fluid reservoir (page 11- Manual transmission oil level gauge (MT) (page 11-21) or Differential gear oil level gauge (AT) (page 11-24) Clutch fluid reservoir (page 11-30) Automatic transmission fluid level gauge (page 11-22) Brake fluid reservoir (page 11-29) Fuse box (page 11-47)
Page 343: Liter Turbo Models
& 2.5-liter turbo models 11-7 Maintenance and service Power steering fluid reservoir (page 11- Manual transmission oil level gauge (MT) (page 11-21) or Differential gear oil level gauge (AT) (page 11-24) Clutch fluid reservoir (page 11-30) Brake fluid reservoir (page 11-29) Automatic transmission fluid level gauge (page 11-22) Fuse box (page 11-47)
Page 344: Liter Models
11-8 Maintenance and service & 3.0-liter models Power steering fluid reservoir (page 11- Differential gear oil level gauge (AT) (page 11-24) Automatic transmission fluid level gauge (page 11-22) Brake fluid reservoir (page 11-29) Fuse box (page 11-47) Battery (page 11-46) Windshield washer tank (page 11-41) Engine oil filler cap (page 11-9) Engine coolant reservoir (page 11-14)
Page 345: Engine Oil
Engine oil & Checking the oil level Check the engine oil level at each fuel stop. 1. Park the vehicle on a level surface and stop the engine. 2. Pull out the dipstick, wipe it clean, and insert it again. 3.
Page 346: Changing The Oil And Oil Filter
11-10 Maintenance and service . Be careful not to spill engine oil when adding it. If oil touches the exhaust pipe, it may cause a bad smell, smoke, and/or a fire. If engine oil gets on the exhaust pipe, be sure to wipe it off. If you check the oil level just after stopping the engine, wait a few minutes for the oil to drain back into the oil pan before checking...
Page 347 2.5-liter models 3.0-liter models 6. Open the access cover by removing the clips and turning the access cover counterclockwise. The oil filter will be exposed. 2.5-liter models 3.0-liter models 7. Remove the oil filter with an oil filter wrench. 8. Before installing a new oil filter, apply a thin coat of engine oil to the seal.
Page 348: Recommended Grade And Viscosity
11-12 Maintenance and service Oil capacity (Guideline): 2.5-liter models: 4.2 US qt (4.0 liters, 3.5 Imp qt) 3.0-liter models: 5.8 US qt (5.5 liters, 4.8 Imp qt) The oil quantity indicated above is only a guideline. The necessary quantity of oil depends on the quantity of oil that has been drained.
Page 349: Recommended Grade And Viscosity Under Severe Driving Conditions
When adding oil, different brands may be used together as long as they are the same API classification and SAE viscosity as those recommended by SUBARU. SAE viscosity number and applicable temperature 5W-30 is preferred. Engine oil viscosity (thickness) affects fuel economy.
Page 350: Hose And Connections
Check the fuse and replace it if necessary. If the fuse is not blown, have the cooling system checked by your SUBARU dealer. If frequent addition of coolant is neces- sary, there may be a leak in the engine cooling system.
Page 351 The alcohol contained in the engine coolant may damage the paint surface. ! Changing the coolant Always add genuine Subaru cooling sys- tem conditioner whenever the coolant is replaced. Change the engine coolant and add genuine Subaru cooling system condi-...
Page 352 Fill up to here 5. Slowly pour the coolant and fill up to just below the filler neck, allowing enough room to add genuine Subaru cooling system conditioner in the radiator. Add genuine Subaru cooling system condi- tioner until the coolant level reaches the filler neck.
Page 353: Air Cleaner Element
CAUTION When replacing the air cleaner ele- ment, use a genuine SUBARU air cleaner element. If it is not used, there is the possibility of causing a negative effect to the engine.
Page 354 11-18 Maintenance and service 3. Undo the screw and pull the air duct out of the air cleaner case. 4. Unsnap the two clamps holding the air cleaner case cover. 5. Open the air cleaner case cover and remove the air cleaner element. 6.
Page 355 3. Use a screwdriver to remove the duct that is connected to the air cleaner case cover. 4. Unsnap the two clamps holding the air cleaner case cover. At the same time, pull the hose from the clamp that runs next to the case cover. 5.
Page 356: Spark Plugs
It may be difficult to replace the spark plugs. It is recommended that you have the spark plugs replaced by your SUBARU dealer. The spark plugs should be replaced according to the maintenance schedule in the “Warranty and Maintenance Book- let”.
Page 357: Liter Models
However, replacement of the belt should be done according to the main- tenance schedule in the "Warranty and Maintenance Booklet". Consult your SUBARU dealer for replacement. If a belt is loose, cracked, or worn, contact your SUBARU dealer. Manual transmission oil &...
Page 358: Recommended Grade And Viscosity
11-22 Maintenance and service Upper level Lower level 3. Pull out the dipstick again and check the oil level on it. If it is below the lower level, add oil through the dipstick hole to bring the level up to the upper level. CAUTION Be careful not to spill manual trans- mission oil when adding it.
Page 359: Recommended Fluid
& Recommended fluid Use one of the following types of auto- matic transmission fluid. Genuine Subaru Automatic Transmis- sion Fluid Type-HP IDEMITSU ATF HP Castrol Transmax J Pennzoil ATF-J*...
Page 360: Front Differential Gear Oil (At Vehicles)
For 4-speed automatic transmission: For optimum transmission perfor- mance, only use the automatic trans- mission fluid that is recommended and provided by Subaru. If the recommended automatic trans- mission fluid is unavailable, Dexron III may be temporarily used. If the Dexron...
Page 361: Recommended Grade And Viscosity
& Recommended grade and viscosity Each oil manufacturer has its own base oils and additives. Never use different brands together. Oil grade: API classification GL-5 SAE viscosity No. and applicable tempera- ture Rear differential gear oil & Checking the gear oil level Your vehicle may be equipped with a rear differential protector.
Page 362 11-26 Maintenance and service 2.5-liter turbo and 3.0-liter models (AT) Filler plug Drain plug 2.5-liter turbo and 3.0-liter models (AT) Filler hole Drain hole Oil level Others Filler plug Drain plug...
Page 363: Recommended Grade And Viscosity
. If the vehicle requires frequent refilling, there may be an oil leak. If you suspect a problem, have the vehicle checked at your SUBARU dealer. & Recommended grade and viscosity Each oil manufacturer has its own base oils and additives. Never use different brands together.
Page 364: Power Steering Fluid
“MIN” and “MAX” line. If the fluid level is extreme low, it may indicate possible leakage. Consult your SUBARU dealer for inspection. & Recommended fluid Use one of the following types of auto- matic transmission fluid.
Page 365: Brake Fluid
. If the vehicle requires frequent refilling, there may be a leak. If you suspect a problem, have the vehicle checked at your SUBARU dealer. CAUTION . Never use different brands of brake fluid together. Also, avoid...
Page 366: Clutch Fluid (Mt Vehicles)
. If the vehicle requires frequent refilling, there may be a leak. If you suspect a problem, have the vehicle checked at your SUBARU dealer. . Never use different brands of clutch fluid together. . When clutch fluid is added, be careful not to allow any dirt into the tank.
Page 367: Brake Booster
2 lbs (10 N, 1 kg). If the free play is not within proper specification, contact your SUBARU deal- 11-31 Maintenance and service & Checking the brake pedal reserve distance More than 2.56 in (65 mm)
Page 368: Clutch Pedal (Manual Transmission Vehicles)
Lightly press the clutch pedal down with your finger until you feel resistance, and check the free play. If the free play is not within proper specification, contact your SUBARU deal- Replacement of brake pad and lining CAUTION If you continue to drive despite the...
Page 369: Breaking-In Of New Brake Pads And Linings
SUBARU dealer as soon as possible. & Breaking-in of new brake pads and linings When replacing the brake pad or lining, use only genuine SUBARU parts. After replacement, the new parts must be...
Page 370: Tires And Wheels
11-34 Maintenance and service Tires and wheels & Types of tires You should be familiar with type of tires present on your vehicle. ! All season tires The factory-installed tires on your new vehicle are all season tires. All season tires are designed to provide an adequate measure of traction, handling and braking performance in year-round driving including snowy and icy road...
Page 371 In this event, go to a SUBARU dealer to have the system inspected as soon as possible. While the vehicle is driven, friction be- tween tires and the road surface causes the tires to warm up.
Page 372: Tire Inspection
This indicates the TPMS is unable to monitor all four road wheels. Con- tact your SUBARU dealer as soon as possible for tire and sensor replace- ment and/or system resetting. If the light flashes, promptly contact a SUBARU dealer to have the system inspected.
Page 373 NOTE . The air pressure in a tire increases by approximately 4.3 psi (30 kPa, 0.3 kgf/cm ) when the tire becomes warm. . The tires are considered cold when the vehicle has been parked for at least three hours or has been driven less than one mile (1.6 km).
Page 374: Wheel Balance
If you suspect that the wheels are not correctly balanced, have them checked and adjusted by your SUBARU dealer. Also have them adjusted after tire repairs and after tire rotation. NOTE...
Page 375: Tire Rotation Direction Mark
cause the vehicle to hydroplane. The resulting loss of vehicle control can lead to an accident. NOTE For safety, inspect the tire tread reg- ularly and replace the tires before their tread wear indicators become visible. & Tire rotation direction mark Example of tire rotation direction mark Front If the tire has a rotation direction specifica-...
Page 376: Tire Replacement
You are advised to replace the tires with new ones that are identical to those fitted as standard equip- ment. For safe vehicle operation, SUBARU recommends replacing all four tires at the same time. WARNING . All four tires must be the same in...
Page 377: Aluminum Wheels
. When wheel nuts, balance weights, or the center cap is replaced, be sure to replace them with genuine SUBARU parts designed for aluminum wheels. Windshield washer fluid CAUTION...
Page 378: Replacement Of Wiper Blades
In areas where water freezes in winter, use an anti-freeze type windshield washer fluid. SUBARU Windshield Washer Fluid contains 58.5% methyl alcohol and 41.5% surfactant, by volume. Its freezing tem- perature varies according to how much it is diluted, as indicated in the following table.
Page 379: Windshield Wiper Blade Assembly
. Return the passenger-side wiper arm to its original position before returning the driver-side wiper arm to its original position. Otherwise, the passenger-side wiper assembly and driver-side wiper assembly will touch each other, possibly resulting in scratches. If you cannot eliminate the streaking even after following this method, replace the wiper blades using the following proce- dures:...
Page 380: Rear Window Wiper Blade
11-44 Maintenance and service Metal spines 2. If the new blade rubber is not provided with two metal spines, remove the metal spines from the old blade rubber and install them in the new blade rubber. 3. Align the claws of the metal support with the grooves in the rubber and slide the blade rubber assembly into the metal support until it locks.
Page 381: Rear Window Wiper Blade Rubber
3. Pull the wiper blade assembly toward you to remove it from the wiper arm. & Rear window wiper blade rubber 1. Pull out the end of the blade rubber assembly to unlock it from the plastic support. 11-45 Maintenance and service 2.
Page 382: Battery
11-46 Maintenance and service 4. Align the claws of the plastic support with the grooves in the blade rubber assembly, then slide the blade rubber assembly into place. Securely retain both ends of the rubber with the stoppers on the plastic support ends.
Page 383: Fuses
remove rings, metal watchbands, and other metal jewelry. Never allow metal tools to contact the positive battery terminal and any- thing connected to it WHILE you are at the same time in contact with any other metallic portion of the vehicle because a short cir- cuit will result.
Page 384 11-48 Maintenance and service Open the lid that is located above the hood release knob and pull it toward you to remove it. The other one is housed in the engine compartment. The spare fuses are stored in the main fuse box cover in the engine compart- ment.
Page 385: Main Fuse
6. If the same fuse blows again, this indicates that its system has a problem. Contact your SUBARU dealer for repairs. Main fuse Main fuse box The main fuses are designed to melt...
Page 386: Replacing Bulbs
11-50 Maintenance and service Replacing bulbs...
Page 387 (W21/5W) NOTE 12V-5W . If headlight aiming is required, con- 12V-21W (W21W) sult your SUBARU dealer for proper 12V-16W adjustment of the headlight aim. . It may be difficult to replace the 12V-5W bulbs. Have your SUBARU dealer re- place the bulbs if necessary.
Page 388 11-52 Maintenance and service ! Low beam light bulbs Right-hand side 1. Use a screwdriver to undo the clips on the air intake duct, then remove the air intake duct. (right-hand side) Left-hand side 2. Use a screwdriver to remove the secured clip of the washer tank.
Page 389: Parking Light
(left-hand side) & Parking light It may be difficult to replace the bulbs. Have your SUBARU dealer replace the bulbs if necessary. & Front turn signal light It may be difficult to replace the bulbs.
Page 390: Rear Combination Lights
11-54 Maintenance and service & Rear combination lights ! Sedan 1. Push the knobs of the cover to open the cover. Rear turn signal light Backup light Brake/tail and rear side marker light 2. Remove the bulb holder from the rear combination light assembly by turning it counterclockwise.
Page 391: Backup Light (Station Wagon)
combination lamp and use it as a lever to undo the clip. Undo clips C and D in the same way, then remove the side cover. 3. Remove the upper and lower screws. Then, slide the rear combination lamp assembly to the rear and remove it from the vehicle.
Page 392: License Plate Light
Install the light cover on the rear gate. & License plate light ! Sedan It may be difficult to replace the bulbs. Have your SUBARU dealer replace the bulbs if necessary. ! Station wagon 1. Remove the mounting screws using a Phillips screwdriver.
Page 393: Map Light
2. Turn the bulb until the flat surfaces at its ends are aligned vertically. Pull the bulb straight downward to remove it. Install a new bulb. 3. Reinstall the lens. & Map light 1. Remove the lens by prying the edge of the lens with a flat-head screwdriver.
Page 394: Cargo Area Light (Station Wagon)
11-58 Maintenance and service 2. Pull the bulb out of the socket. Install a new bulb. 3. Reinstall the lens. & Cargo area light (Station wa- gon) 1. Remove the cargo area light assembly by prying the edge of the light with a flat- head screwdriver.
Page 395: High Mount Stop Light (Sedan)
2. Pull the bulb out of the socket. Install a new bulb. 3. Reinstall the cover. & High mount stop light (Se- dan) It may be difficult to replace the bulbs. Have your SUBARU dealer replace the bulbs if necessary.
Page 396: Specifications
Specifications ... 12-2 Dimensions... Engine ... Electrical system... Capacities ... Tires ... Wheel alignment ... Fuses and circuits ... 12-2 Fuse panel located in the passenger compartment ... 12-3 Fuse panel located in the engine 12-3 compartment ... 12-4 Bulb chart... 12-5 Vehicle identification ...
Page 397: Specifications
12-2 Specifications Specifications These specifications are subject to change without notice. & Dimensions Item Sedan 2.5-liter Except 2.5GT 2.5GT spec.B spec.B Overall length 186.2 (4,730) Overall width 68.1 (1,730) Overall height 56.1 (1,425) (1,435) Wheel base 105.1 (2,670) Tread Front 58.9 (1,495) Rear 58.5 (1,485)
Page 398: Engine
& Engine Engine model EJ253 (2.5-liter, SOHC, non-turbo) Engine type Horizontally opposed, liquid cooled 4 cylinder, Displacement cu-in (cc) Bore 6 Stroke in (mm) Compression ratio 10.0 : 1 Firing order & Electrical system Battery type and capacity 2.5-liter models (5HR) 3.0-liter models Alternator...
Page 399: Capacities
12-4 Specifications & Capacities Fuel tank Engine oil 2.5-liter models 3.0-liter models Transmission oil (MT) 5-speeds 6-speeds Transmission fluid (AT) 2.5-liter non-turbo models 2.5-liter turbo and 3.0-liter models AT differential gear oil 2.5-liter non-turbo models 2.5-liter turbo and 3.0-liter models Rear differential gear oil Turbo 6-speeds MT models Other models...
Page 400: Tires
& Tires Tire size P205/55R16 89H 16 6 6.5JJ Wheel size Pressure Front 32 psi (220 kPa, 2.2 kgf/cm Rear 30 psi (210 kPa, 2.1 kgf/cm – Rear at trailer towing Temporary Size T135/80R16 spare tire Pressure & Wheel alignment Item Front Rear...
Page 401: Fuses And Circuits
12-6 Specifications Fuses and circuits & Fuse panel located in the passenger compartment Fuse Fuse Circuit panel rating Cargo fan Trailer hitch connector Empty Door locking Front wiper deicer relay Moonroof Combination meter 7.5A Remote control rear view mirrors Seat heater relay Vanity mirror light Combination meter Integrated unit...
Page 402 Fuse Fuse Circuit panel rating Cargo socket Position light Tail light Rear combination light Empty Illumination Seat heaters Backup light 7.5A Headlight right side re- Cigarette lighter socket 7.5A Starter relay Air conditioner Rear window defogger relay coil Rear wiper Rear window washer Audio unit Clock...
Page 403: Fuse Panel Located In The Engine Compartment
12-8 Specifications & Fuse panel located in the engine compartment FWD socket (AT vehicles – except Turbo models and 3.0-liter models) Main fuse Fuse Fuse Circuit panel rating ABS unit Vehicle dynamics control unit Main fan (3.0-liter mod- els) Sub fan (Except 3.0-liter models) Main fan Audio...
Page 404: Bulb Chart
Bulb chart Description Wattage Headlight Low beam 12V-55W High beam 12V-60W Front fog light Except OUTBACK 12V-55W OUTBACK 12V-51W 12V-27/8W Front turn signal/parking and front side marker Rear combination light Rear turn signal light (Se- 12V-21W dan) Brake/tail and rear side 12V-21/5W marker (Sedan) Brake/tail (Station wagon)
Page 405: Specifications
12-10 Specifications Description Wattage 12V-5W Trunk room light 12V-13W Cargo area light 12V-8W Dome light 12V-8W Map light 12V-3.5W Door step light Bulb No. – – – –...
Page 406: Vehicle Identification
Vehicle identification 12-11 Specifications Emission control label Vehicle identification number Certification and bar code label Tire inflation pressure label Vehicle identification number plate Model number label Fuel label...
Page 407 Consumer information and Reporting safety defects For U.S.A..13-2 Tire information ... 13-2 Tire labeling ... Recommended tire inflation pressure... Glossary of tire terminology ... Tire care – maintenance and safety practices... Vehicle load limit – how to determine... Determining compatibility of tire and vehicle load capacities ...
Page 408: For U.s.a
13-2 Consumer information and Reporting safety defects For U.S.A. The following information has been compiled according to Code of Fed- eral Regulations “Title 49, Part 575”. Tire information & Tire labeling Many markings (e.g. Tire size, Tire Identification Number or TIN) are placed on the sidewall of a tire by tire manufacturers.
Page 409 Example: (6) Load Index: A numerical code which specifies the maximum load a tire can carry at the speed indicated by its speed symbol, at maximum inflation pressure. For example, “88” means 1,234 lbs (560 kg), “87” means 1,201 lbs (545 kg), “86”...
Page 410: Uniform Tire Quality Grading
13-4 Consumer information and Reporting safety defects WARNING Maximum load rating applies only to the tire, not to the vehicle. Putting a load rated tire on any vehicle does not mean the vehicle can be loaded up to the tire’s rated load. ! Construction type Applicable construction of this tire.
Page 411: Recommended Tire Inflation Pressure
& Recommended tire inflation pressure ! Recommended cold tire inflation pressure Recommended cold tire inflation pressure for your vehicle’s tires is as follows, Tire size P205/55R16 16 6 6.5JJ Wheel size Pressure Front 32 psi (220 kPa, 2.2 kgf/cm Rear 30 psi (210 kPa, 2.1 kgf/cm...
Page 412: Glossary Of Tire Terminology
13-6 Consumer information and Reporting safety defects ! Vehicle placard The vehicle placard is affixed to the driver’s side B-pillar. Example: The vehicle placard shows original tire size, recommended cold tire infla- tion pressure on each tire at max- imum loaded vehicle weight, seating capacity and loading information.
Page 413: Tire Care - Maintenance And Safety Practices
an asymmetrical tire that has a particular side that must always face outward when mounting on a vehicle. Accessory weight The combined weight (in excess of those standard items which may be replaced) of floor mats, leather seats and cross bars to the extent that these items are available as factory-in- stalled equipment (whether installed or not).
Page 414: Vehicle Load Limit - How To Determine
13-8 Consumer information and Reporting safety defects specification for the wheel nuts can be found “Flat tires” section in chapter 9. & Vehicle load limit – how to determine The load capacity of your vehicle is determined by weight, not by avail- able cargo space.
Page 415 Example 1B For example, if a person weighing 176 lbs (80 kg) now enters the same vehicle (bringing the number of occu- pants to two), the calculations are as follows: 1. Calculate the total weight. Consumer information and Reporting safety defects 2.
Page 416: Consumer Information And Reporting Safety Defects
13-10 Consumer information and Reporting safety defects 2. Calculate the available load capa- city. 3. The result of step 2 shows that a further 172 lbs (78 kg) of cargo can be carried. Example 2B For example, if a person weighing 143 lbs (65 kg) and a child weighing 40 lbs (18 kg) now enter the same vehicle (bringing the number of occupants to...
Page 417: Adverse Safety Consequences Of Overloading On Handling And Stopping And On Tires
suspension, axles and other parts of the body. Therefore, this means that the vehicle cannot necessarily be loaded up to the tire’s maximum load rating on the tire sidewall. & Adverse safety conse- quences of overloading on handling and stopping and on tires Overloading could affect vehicle handling, stopping distance, vehicle...
Page 418: Uniform Tire Quality Grading Standards
13-12 Consumer information and Reporting safety defects Uniform tire quality grading standards This information indicates the relative performance of passenger car tires in the area of treadwear, traction, and temperature resistance. This is to aid the consumer in making an informed choice in the purchase of tires.
Page 419: Reporting Safety Defects (Usa)
However, NHTSA cannot become involved in individual problems between you, your dealer, or Subaru of America, Inc. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov;...
Page 420 — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —...
Page 421: Index
Index...
Page 422 14-2 Index ABS (Anti-lock Brake System) ... 7-35 Warning light ... 3-28, 7-35 Accessories... 5-4, 11-49 Accessory power outlet... 6-8 Active head restraint... 1-7 Air cleaner element ... 11-17 Air conditioner ... 4-7 Air filtration system... 4-13 Air flow selection... 4-2 Alarm system ...
Page 423 Tie-down hooks ... 6-16 Catalytic converter ... 8-3 Center Console ... 6-5 Ventilators ... 4-3 Center and side ventilators... 4-3 Changing Flat tire ... 9-4 Oil and oil filter ... 11-10 Charge warning light ... 3-26 CHECK ENGINE warning light/Malfunction indicator lamp...
Page 424 14-4 Index Driving All-Wheel Drive vehicle ... 3-30 Car phone/cell phone ... 7 Drinking ... 6 Drugs ... 6 Foreign countries ... 8-4 Pets ... 7 Snowy and icy roads ... 8-9 Tips... 7-16, 7-18, 7-23, 7-29, 8-5 Tired or sleepy... 7 ECO gauge ...
Page 425 Headlight Flasher ... 3-40 Indicator light... 3-33 Headlights... 3-39, 11-51 Heater operation ... 4-5 High beam indicator light ... 3-33 High mount stop light... 11-59 High/low beam change (dimmer)... 3-39 Horn... 3-52 Hose and connections ... 11-14 Ignition switch... 3-3 Light...
Page 426 14-6 Index Low fuel warning light ... 3-7, 3-21, 3-29 LSD (Limited slip differential) ... 7-33 Lumbar support ... 1-8 Main fuse... 11-49 Maintenance Precautions ... 11-3 Schedule ... 11-3 Seatbelt ... 1-23 Tools ... 9-18 Manual Climate control system ... 4-3 Mode...
Page 427 Rear Combination lights... 11-54 Differential gear oil ... 11-25 Gate... 2-25, 9-17 Seats ... 1-9 Viscous limited slip differential ... 7-33 Rear seat Folding down... 1-9 Rear window Defogger button ... 3-47 Wiper and washer switch ... 3-45 Wiper blades ... 11-44 Recommended Automatic transmission fluid ...
Page 428 14-8 Index Seatbelts ... 1-13 Security ID plate ... 2-3 Selector lever ... 7-19, 7-25 Position indicator ... 3-32, 3-33 Shift lock release ... 7-23, 7-30 Shift-up indicator light ... 3-32 Shock sensors... 2-19 Shopping bag hook ... 6-11 SI-DRIVE mode ... 7-31 Snow tires...
Page 429 Hitches ... 8-25 Towing... 8-21 Towing tips... 8-27 Trip meter ... 3-19 Trunk lid ... 2-22 Release handle ... 2-23 Trunk light... 11-58 Turn signal Indicator lights ... 3-33 Lever... 3-41 Under-floor storage compartment ... 6-16 Valet mode... 2-17 Vanity mirror ... 6-4 Vehicle Capacity weight ...
Page 430 — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —...
Page 431 134...
Page 432 & Fuel: ! 2.5-liter non-turbo models Use only unleaded gasoline with an octane rating of 87 AKI or higher. ! 2.5-liter turbo models Use premium unleaded gasoline with an octane rating of 91 AKI or higher. For temporary purposes if premium unleaded gasoline is not available, you may use regular unleaded gasoline with an octane rating of 87 AKI or higher.
Page 433 & Cold tire pressure: Tire size P205/55R16 89H Wheel size Pressure Front 32 psi (220 kPa, 2.2 kgf/cm Rear 30 psi (210 kPa, 2.1 kgf/cm – Rear at trailer towing Temporary Size T135/80R16 spare tire Pressure P225/60R16 97H P205/50R17 88V 16 6 6.5JJ 32 psi (220 kPa, 33 psi (230 kPa,...

This manual is also suitable for:

2007 outback 2007 legacy sedan 2007 legacy station wagon 2007 outback sedan 2007 outback station wagon

Subaru 2007 Legacy Owner's Manual

Table of Contents

Seatbelt Warning Light

Front Seats

Seat Heater (if Equipped)

Rear Seats

Armrest (if Equipped)

Seatbelts

Front Seatbelt Pretensioners

Child Restraint Systems

SRS Airbag (Supplemental Restraint System Airbag)

Keys and Doors

Keys

Immobilizer

Door Locks

Power Door Locking Switches

Remote Keyless Entry System

Alarm System

Child Safety Locks

Windows

Trunk Lid (Sedan)

Rear Gate (Station Wagon)

Moonroof (if Equipped)

Table of Contents

Climate Control

Ventilator

Manual Climate Control System (if Equipped)

Automatic Climate Control System (if Equipped)

Operating Tips for Heater and Air Conditioner

Air Filtration System (if Equipped)

Audio

XM TM Satellite Radio Reception (if Equipped)

Antenna System

Installation of Accessories

Power and Sound Controls

FM/AM Radio Operation

Satellite Radio Operation (if Equipped)

CD Player Operation

AUX Unit Operation

Audio Control Buttons (if Equipped)

Precautions to Observe When Handling a Compact Disc

Interior Equipment

Interior Light

Map Light

Sun Visors

Storage Compartment

Cup Holder

Accessory Power Outlets

Coat Hook

Shopping Bag Hook

Floor Mat

Cargo Area Cover (Station Wagon)

Stowage Boxes (Station Wagon)

Convenient Tie-Down Hooks (if Equipped)

Homelink® Wireless Control System (if Equipped)

Starting and Operating

Fuel

State Emission Testing (U.S. Only)

Preparing to Drive

Starting the Engine

Remote Engine Start System (Dealer Option)

Stopping the Engine

Manual Transmission – 5 Speeds

Automatic Transmission - 4-Speed

Automatic Transmission - 5-Speed

SI-DRIVE (Turbo Models)

Rear Viscous Limited Slip Differential (LSD) (if Equipped)

Power Steering

Braking

ABS (Anti-Lock Brake System)

Electronic Brake Force Distribution (EBD) System

Vehicle Dynamics Control System (if Equipped)

Tire Pressure Monitoring System (TPMS) (if Equipped)

Parking Your Vehicle

Cruise Control

Quick Links

Chapters

Related Manuals for Subaru 2007 Legacy

Summary of Contents for Subaru 2007 Legacy
