Before starting to use this product, please read carefully the safety precautions and user ’s notices to prevent personal injury or property damage to oneself and others. This product is equipped with SRT flexible end fixture, and it should not be used for other purposes.
The SCB-PT series controller has eight stalls, which can store up to eight groups of grasping and opening pressure values, and switch through I /...
Page 5
4、Fault alarm function The SCB-PT controller will detect the output pressure in real time. When there is air leakage in the end fixture, the indicator light will become red,...
Page 8

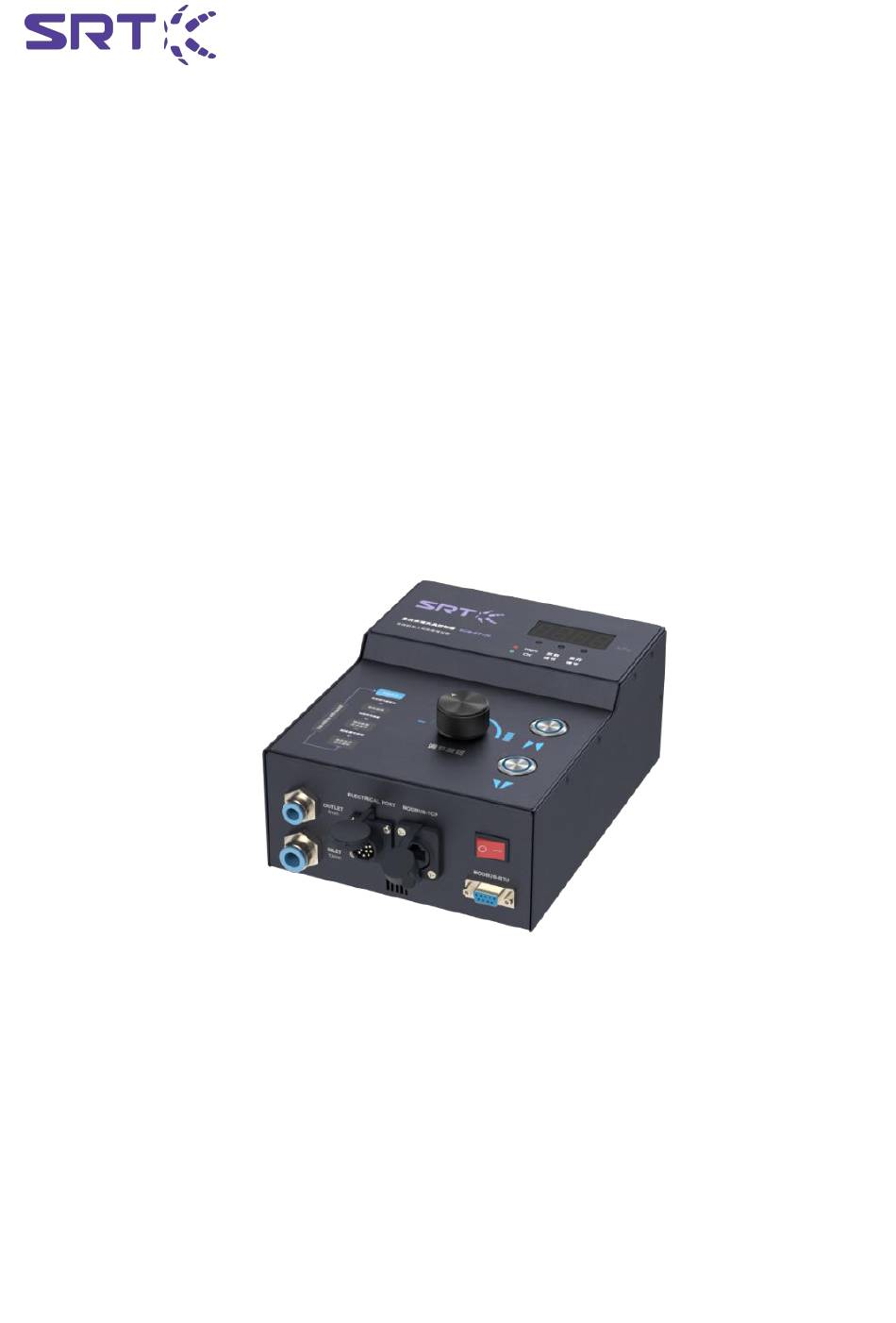

SCB-PT Name Function introduction Power Controller power supply switch Pressure display Display content Pilot lamp Status Display RJ45 port MODBUS-TCP protocol DB9 port MODBUS-RTU protocol Manual switch Manually switch the grabbing/opening state Aviation plug in port 14 core aviation plug, controller power supply and I / O Outlet port Connect the end fixture via φ6 pipe...
SCB-PT 1.3 Technical Parameters Name Specification Dimensions 222*172*96mm Net weight Protection level IP42 Rated voltage DC24V±10% Rated current Input air pressure range 0.5~0.7MPa clean air source,flow>400L/min Output pressure range -80~100kPa Output positive pressure flow 285L/min Output negative pressure flow 85L/min...
SCB-PT 2. Function Description 2.1 Display function Display features include pressure display and indicator light 1、Pressure display: Display the real time output pressure value of the current air outlet; display the set pressure during grabbing and opening debugging; alarm information.
SCB-PT 2.2 Manual control Manual control includes manual switch and adjusting knob, as shown below : Manual switch : It includes grab switch and open switch, which are used to switch the pressure state and reset controller of the outlet interface.
SCB-PT the current gear, rotate the adjustment knob to find the gear that needs to be set, and press the adjustment knob to enter the grasping pressure setting under the gear. When entering the grasping pressure setting, the ' grasping adjustment indicator ' is turned on, the adjustment knob is rotated, and the grasping pressure setting value is modified.
Page 13
SCB-PT interface and output interface. The aviation plug is 14-core cable with the label distribution as follows: The corresponding relationship between cable and function is as follows : Aviation Cable color Name Name Specifications plug cable 24V+ DC power DC 24V electric...
Page 14
SCB-PT Function Description: DC power supply port : voltage range DC24 ± 10 %, power rating greater than 50W. Gear selection port There are eight editable stalls in the PT series controller, and eight sets of different positive and negative pressure settings can be edited by manual adjustment or PC software.
Page 16
OUT-COM will be turned on. Robot or PLC can judge whether the end fixture completes the grasping or opening action by whether it is turned on or not. Alarm output : When the SCB-PT series controller detects the leakage of...
Page 17
SCB-PT the end fixture, the OUT-ERR port and OUT-COM port will be turned on. Robot or PLC can judge whether the end fixture has leakage by whether is turned on or not. Ports and functions correspond as follows : Black and...
DB9 interface supports MODBUS-RTU protocol. Users can adjust voltage and set editable files by connecting SRT voltage regulating software through debugging lines, and can communicate through other control devices. The communication protocol is referred to the 《SCB-PT series controller communication protocol description》 document.
4 、 Installation of controller grounding in special environment, such as strong magnetic interference environment。 3.2 Pneumatic connection Before pneumatic connection, SCB-PT series controller should be in a safe position, fixed well, to prevent falling, not placed in the sealed box.
Page 20
5、 Series filter can ensure the service life of the end fixture and pneumatic controller, and the filter should be between the controller and the end fixture. The following diagram is the schematic diagram of gas path connection for SCB-PT series controllers: Φ6 pipe Φ6 pipe φ10 pipe...
Once a functional error occurs, the line is immediately turned off to check whether the connection is normal and can continue to use after troubleshooting. The following figure is the schematic diagram of circuit connection: Robot Computer Communication Cable Aviation plug cable SCB-PT controller...
4. Installation and use of debugging software The controller can be set by connecting the controller to PC by RS232 debugging line. The controller can adjust the output pressure and set parameters by SRT pressure regulating software. 4.1 Software interface...
SCB-PT 4.2 Software use Preparation : Before opening the software, the USB debugging line is connected to the computer, and the other end is connected to the controller. After opening the software, select the corresponding serial port number of the controller connection through the COM number selection box.
Page 24
SCB-PT corresponding gear 12. Negative pressure setting value : negative pressure setting value of corresponding retaining position 13. Clearing alarm state : Clearing current low-level alarm of controller 14. Clearing historical data : the number of clearing work 15. IAP : Controller internal program upgrade ( customer caution ) 16.
Page 25
SCB-PT Software trigger Click the trigger button to trigger the controller, the trigger button is now divided into : Trigger controller for positive pressure loading state Trigger controller for negative pressure open state Trigger controller for pressure release state The trigger controller works in a loop state When the cycle works, the positive and negative pressure trigger intervals are the values set by the cycle.
Page 26
SCB-PT gear in the controller. When the gear is selected, when the communication triggers the controller state, the setting value of the selected gear in the internal setting value of the controller is executed. Clear alarm status When the controller air path alarm, click the alarm state button to clear the low level alarm.
SCB-PT 5. User information When the product fails, please contact our sales staff, if necessary, please mail the product to our after-sales service department for maintenance. Unauthorized disassembly of this product may cause problems such as accidental damage. Without permission, the warranty is...
