Center and side ventilators

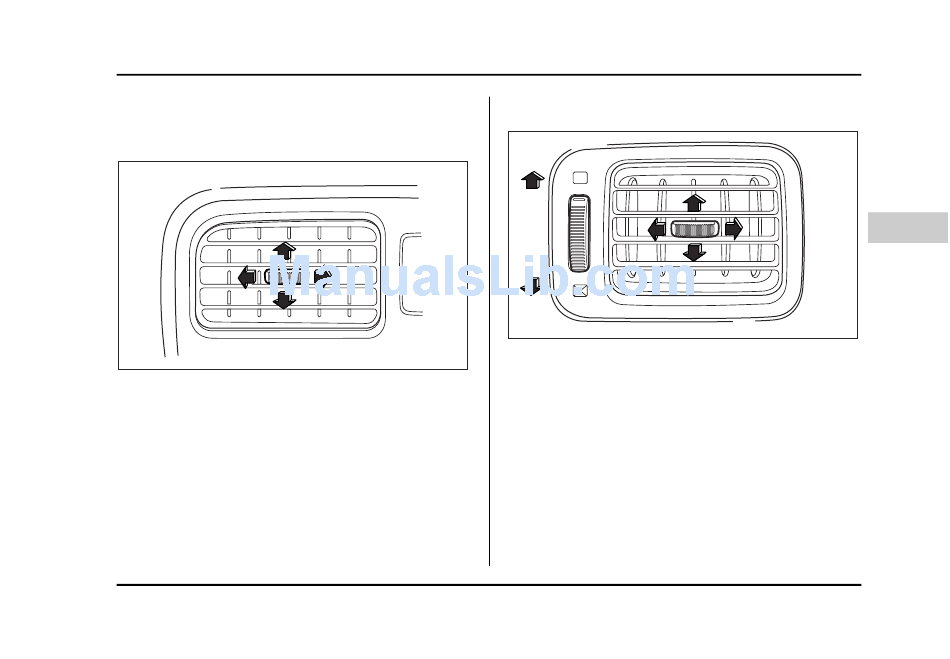

Center ventilators
Move the tab up and down or right and left to adjust the
flow direction.
Side ventilators
1
2
1) Open
HS4009BA
2) Close
Move the tab up and down or right and left to adjust the
flow direction.
To open or close the ventilator, turn the thumb-wheel
up or down.
Climate control
HS4010BB
– CONTINUED –
4-3
