Owner's Instruction and Operation Manual
Model Number:
* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.
Save These Instructions In A Safe Place For Future Reference.
If you smell gas:
Shut off gas to the appliance.
1.
2. Extinguish any open flame.
3. If oder continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance. An LP-cylinder not connected
for use shall not be stored in the vicinity of this
or any other appliance.
Please read this manual BEFORE
installing and operating this unit.
FOR OUTDOOR USE ONLY
THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.
© 2021 United States Stove Company, 227 Industrial Park Rd., South Pittsburg, TN 37380

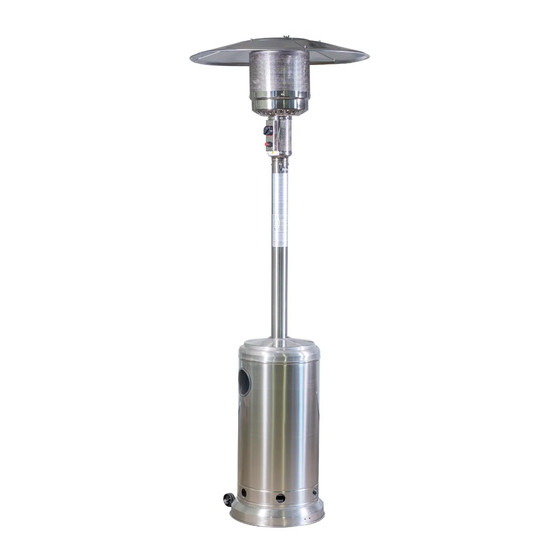

AGPH-40SS
Control # 5016039
DANGER:
WARNING:
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death. Read the installation,
operation
and
thoroughly before installing or servicing this
equipment.
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon
monoxide, which is known to the State of California to cause
cancer, birth defects, and/or other reproductive harm. For
more information, go to
853872-0205K
WARNING:
maintenance
instructions
www.P65warnings.ca.gov
Ph. 800-750-2723
