About Us
We appreciate your business!
Congratulations on your new SAWYER product. We are proud to
have you as our customer and will strive to provide you with the best
service and reliability in the industry. This product is backed by our
extensive warranty and world-wide service network. To locate your
nearest distributor or service agency, please contact us at the phone
number and address listed on the bottom of each page.
You are in good company!
Sawyer Manufacturing Company is the world leader in the design
and manufacture of pipeline and welding equipment and has been
since 1948. Sawyer equipment has become a standard in the industry
and continues to set the benchmark for quality and durability.
This user operation manual has been made to instruct you for the best
use and operation of your Sawyer product. Your satisfaction with our
products is our main goal. Please read this entire manual carefully,
noting all tips, notes and warnings. Safety always comes first.

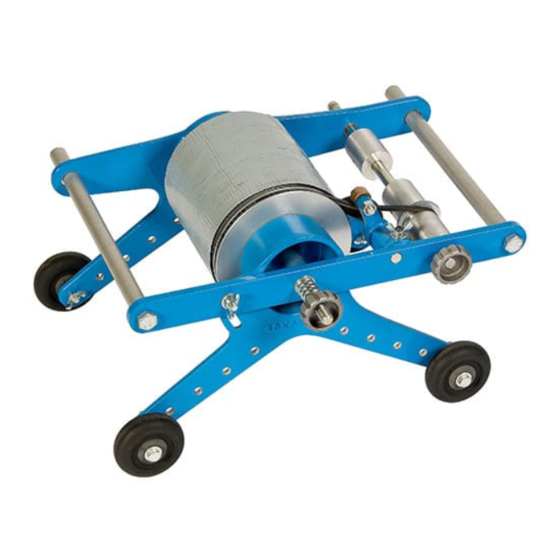

Parts Diagram
L
J
K
I
A. Right Wing
B. Take-Up Wheels
C. Drive Belt
D. Take-Up Knob
E. Belt Tension Wing-Nut
F. Pipe Roller Wheels
G. Tape Tension Knob
H. Pipe Size Wheel Adjustment Holes
Record the following information for warranty purposes:
Where purchased:________________________________________________
Purchase date:___________________________________________________
Equipment Serial #:_______________________________________________
N
M
E
G
H
I. Left Wing
J. Tape Lap Angle Wing-Nut
K. Wheel Wing-Nut
L. Handles
M. Drive Belt Tensioner
N. Tape *not included*
Sawyer Manufacturing Company
7799 S. Regency Dr., Tulsa, OK 74131 USA
P 918.834.2550
sawyermfg.com
A
B
C
D
Note: Sawyer Accuwrap machines are
sized by the width of the wrapping tape.
They use; 2"-6" (50.8-152.4mm)
F
Any Accuwrap machine will fit any size
pipe.
!
CAUTION:
Sawyer Manufacturing offers a line of Accuwrap
machines for the purpose of protecting pipe surfaces. Ensure
that the machine is in operating order before wrapping pipe. Use
caution when operating the Accuwrap . Do not wrap hot pipe
and keep clear from flame. After each use clean and store in a
warm, dry area.
All products manufactured by or for Sawyer Manufacturing Company are
guaranteed against defects due to faulty workmanship or materials for twelve
months from the date of purchase.
This guarantee is limited to the repair or replacement of any parts found to be
defective, and no other liability–expressed, implied, or contingent–is assumed.
F 918.834.0318
info@sawyermfg.com
V1.2
Accuwrap II
Manual
Model 229B
6"-12" (152.4-304.8mm)
12"-18" (304.8-457.2mm)
CAUTION
Warranty
!
