Summary of Contents for REDSTONE CFI-470-01

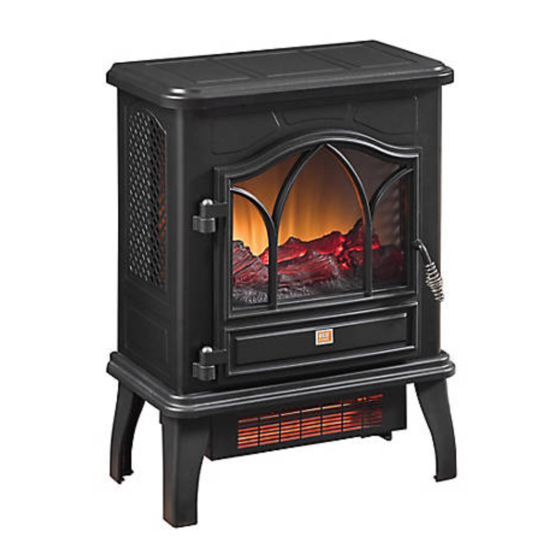

- Page 1 MODEL: CFI-470-01 www.tsicustomerservice.com 1-866-661-1218 Distributed by:TRACTOR SUPPLY COMPANY 5401 VIRGINIA WAY BRENTWOOD, TN 37027 A476 www.tsicustomerservice.com...
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons including the following: 1. Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. -
Page 3: Getting Started
NO HAY PARTES DE SERVICIO PARA EL USUARIO EN EL INTERIOR. 2. Go to www.tsicustomerservice.com for product warranty registration. For registration use the MODEL NUMBER: CFI-470-01. If you are unable to complete registration save your proof of purchase for warranty purposes. -
Page 4: Installation Instructions

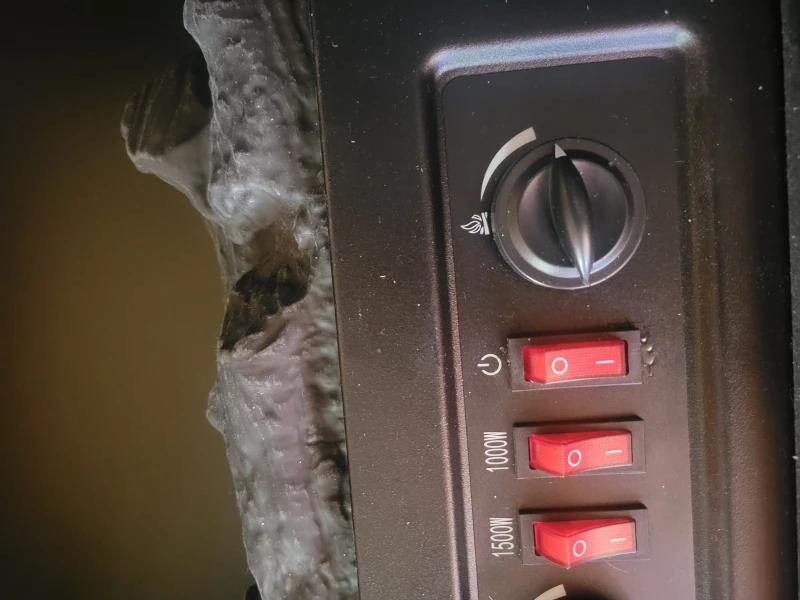

INSTALLATION INSTRUCTIONS Tools Required for Assembly Phillips Head Screwdriver Leg Assembly Align the mounting tab into Slide the leg downward to lock Fasten the leg to the base using the the base. in place. When locked in position included screws, 3 per leg. the screw holes from step 3 will be aligned. - Page 5 OPERATION INSTRUCTIONS Control Panel Location Control Panel Heater Switch Thermostat Dial Power Switch Flame Brightness 1. Set the thermostat knob 1. The 1000W switch will turn on the 1. This switch turns Dimmer to turning clockwise to heater to the low heat setting and on and off the 1.
-
Page 6: Bulb Replacement
BULB REPLACEMENT Tools Required for Assembly Phillips Head Screwdriver Clear, 40-watt, E12 socket base light bulb (candelabra base, B bulb). Unplug the stove. Remove the screws holding the stove back panel in place. Remove the back panel to access the light bulb. REMOVE Pinch the spring clip to loosen the spindle, and gently turn and pull the rubber gromet out of the... -
Page 7: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Root Cause Corrective Action 1. No power, switches Power cord was not plugged into Check that unit is plugged directly into a standard do not light up. the outlet. 120 volt outlet. 2. Stove does not 2a. No incoming power from the 2a. -
Page 8: Replacement Parts
REPLACEMENT PARTS Part Part Name Part Number Power Switch P06-S Thermostat P03-S Thermostat knob P05-S Heater Switch P06-S Dimmer Knob P04-S Dimmer Switch P07-S Legs Y16-S181-LG Emberbed Y16-S181-P02 Heater/Blower Assembly Y16-S181-P01 Flame Generator Drive Motor P10-Q-S A476 www.tsicustomerservice.com... -
Page 9: Year Limited Warranty
1-YEAR LIMITED WARRANTY The manufacturer warrants that your new Electric Stove is free from manufacturing and material defects for a period of one year from date of puchase, subject to the following conditions and limitations. 1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the product at all times. - Page 10 www.tsicustomerservice.com A476 www.tsicustomerservice.com...
Need help?
Do you have a question about the CFI-470-01 and is the answer not in the manual?
Questions and answers

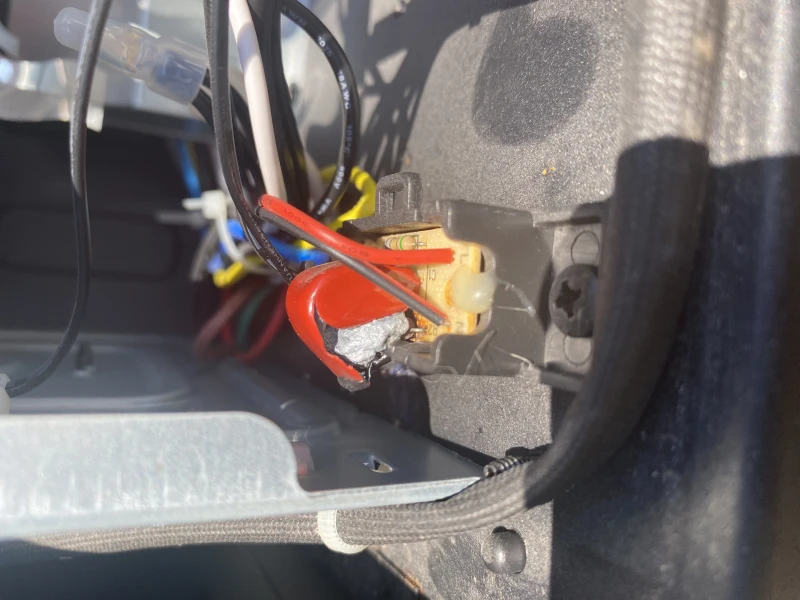

Need whole replacement turns off when thermostat come in won’t come back on until unplugged wait then plug then come back on
A possible cause of the REDSTONE CFI-470-01 turning off when the thermostat activates and only restarting after being unplugged and plugged back in could be a defective thermostat. According to the manual, if the heater is not turning off properly, replacing the thermostat is recommended.
This answer is automatically generated
I need a on & off switch fo heater
The on & off switch for the REDSTONE CFI-470-01 heater is the power switch (Part Number P06-S). It needs to be in the "ON" position for the heater to function.
This answer is automatically generated
