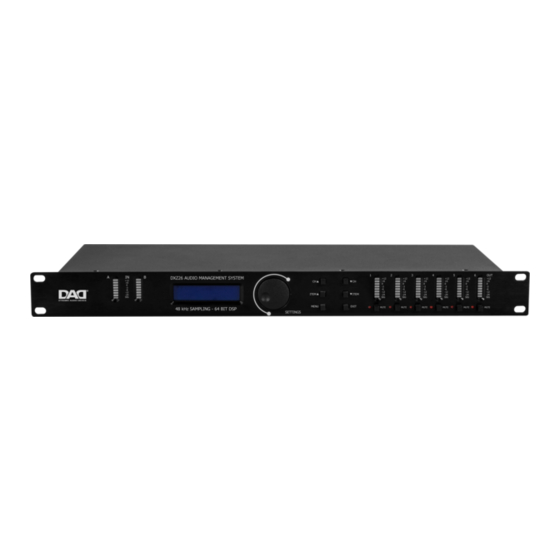

- Page 1 DYNAMIC AUDIO DEVICE DXZ26 Audio Management System DXZ26 AUDIO MANAGEMENT SYSTEM ITEM ITEM ENTER MENU EXIT SELECT 48 kHz SAMPLING - 64 BIT DSP MUTE MUTE MUTE MUTE MUTE MUTE USER MANUAL...
- Page 2 Music & Lights S.r.l. si riserva ogni diritto di elaborazione in qualsiasi forma delle presenti istruzioni per l’uso. La riproduzione - anche parziale - per propri scopi commerciali è vietata. Al fine di migliorare la qualità dei prodotti, la Music&Lights S.r.l. si riserva la facoltà di modificare, in qualunque momento e senza preavviso, le specifiche menzionate nel presente manuale di istruzioni.
-
Page 3: Table Of Contents
DXZ26 CONTENTS Safety General instructions Warnings and installation precautions General information Description and technical specifications Introduction Operating elements and connections Functions and settings System setup and gain structure Setup and operation Maintenance Ordinary maintenance Maintenance and troubleshooting Technical specification Warranty Packing content: • DXZ26 • User manual... -
Page 4: Safety
DXZ26 WARNING! Before carrying out any operations with the unit, carefully read this instruction manual, and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. SAFETY General instruction • The products referred to in this manual conform to the European Community Directives and are there- fore marked with . -
Page 5: General Information
DXZ26 GENERAL INFORMATION Shipments and claims The goods are sold “ex works” and always travel at the risk and danger of the distributor. Eventual dam- age will have to be claimed to the freight forwarder. Any claim for broken packs will have to be forwarded within 8 days from the reception of the goods. -
Page 6: Introduction
DXZ26 INTRODUCTION Congratulations on the purchase of your DXZ26. DXZ series strives to be the best in high end digital audio processing. After you have become familiar with the processor, we encourage you to experiment and find the most effective and efficient way to run your system by utilizing the powerful processing of the DXZ26. The DXZ26 is a powerful processor with two analog inputs, six outputs, ten PEQ bands per output and a frequency range up to 20kHz. -
Page 7: Operating Elements And Connections
DXZ26 OPERATING ELEMENTS AND CONNECTIONS DXZ26 AUDIO MANAGEMENT SYSTEM ITEM ITEM ENTER MENU EXIT SELECT MUTE MUTE MUTE MUTE MUTE MUTE 48 kHz SAMPLING - 64 BIT DSP OUTPUTS INPUTS 80-240 VAC 2.1AT Fig.1 In addition to the available features described in this manual, you also have the option of controlling the processor remotely over your network. -
Page 8: Functions And Settings
DXZ26 FUNCTIONS AND SETTINGS SYSTEM SETUP AND GAIN STRUCTURE This product offers a wide range of tools for sound system design and setup. These tools can make your system more efficient and better sounding, but to get the best possible sound it is important to use these tools properly. - Page 9 DXZ26 2.1 . Gain Adjust the gain by dialing the rotary encoder. The gain is adjusted in steps of 0.25dB. Smaller steps (0.01dB) can be set via the PC or MAC interface. 2.2 . Input Selection Select the source (Analog) by rotating the encoder. 2.3 .
- Page 10 DXZ26 3.4 . Low Pass Filter Adjust the Low Pass Filter frequency by turning the rotary encoder. You can switch the low pass filter off by turning the rotary encoder up (clockwise) until the frequency passes 20kHz. Press the rotary encoder to change the filter type. Select the type by turning the rotary encoder. You can choose from: Butterworth 6dB, Bessel 6dB, Butterworth 12dB, Bessel 12dB, Linkwitz Riley12dB, Butter- worth 18 dB, Bessel 18dB, Butterworth 24dB and Bessel 24dB.
- Page 11 DXZ26 3.8 . Phase Inversion Turn the rotary encoder to switch phase inversion on or off. 3.9 . Channel Link By linking 2 channels, the settings are guaranteed to be identical for both channels, except for mixer and mute. Turn the encoder to set the Channel Link on or off. System Menu Push the Menu button to enter the system menu.
- Page 12 DXZ26 encoder; pushing the rotary encoder confirms the character selected and moves the cursor to the next character to edit. Pushing the exit/ESC button erases the last confirmed character. Once the password is set up, push the menu button again and the unit will be locked. ATTENTION: Make sure to remember the password! When the unit is locked and you forgot the password, it is not possible to unlock it without contacting your local service representative.
-
Page 13: Maintenance And Troubleshooting
DXZ26... -
Page 14: Technical Specification
DXZ26 TECHNICAL SPECIFICATION Technical specification DXZ26 Product Type Audio Management System Input 2 way mono 3 way stereo, 6 way mono Output Dynamic range 110dB input Connection USB port Max Input Level +23dBu Frequency Responce 20Hz to 20kHz Distortion <0.01%, (+10dBu, 20Hz to 20kHz) 64 bit Sampling rate 48 kHz... - Page 16 MUSIC & LIGHTS S.r.l. Via Appia, km 136,200 - 04020 Itri (LT) - ITALY Phone +39 0771 72190 - Fax +39 0771 721955 www.musiclights.it - email: info@musiclights.it ISO 9001:2008 Certified Company...
