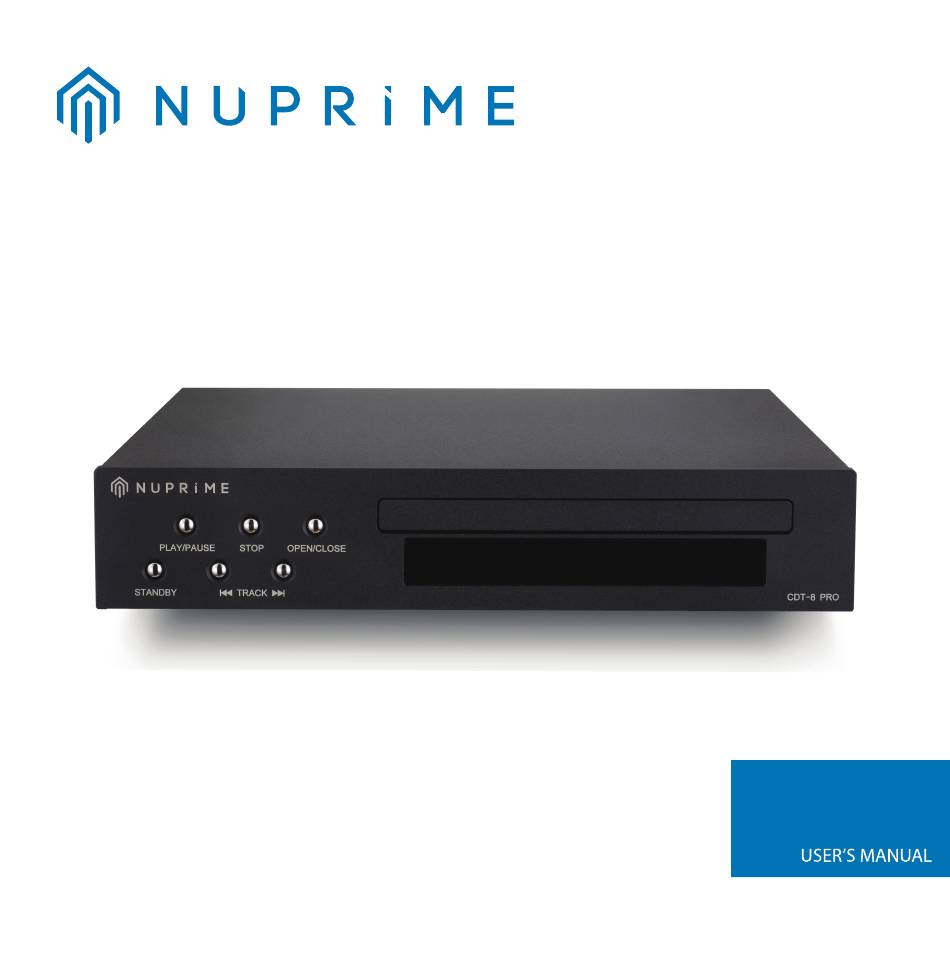

- Page 1 CDT-8 Single-speed Red Book error-correcting CD Player, & Ultra-High sampling rate converter...
- Page 2 FCC Notice - Declaration of Conformity Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 3: Eu Declaration Of Conformity
EU Declaration of Conformity Hereby, NuPrime Audio, Inc. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC. The manufacturer of this product is NuPrime Audio, Inc., 1712 Pioneer Ave. Ste 1817, Cheyenne, Wyoming 82001, USA. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS There are two categories of Safety Instructions included in this manual: • Product Warnings, (i.e., what must never be done to assure avoiding those hazards that could cause bodily injury or property damage); and • User Directions (i.e., what must always be done to assure the safe use of your device). The Safety Instructions contained in this manual have been categorized in accordance with the seriousness of the potential hazards through the use of Signal Words. - Page 5 WARNING: Never attempt to disassemble, repair or make any modification to your device. Disassembly, modification or any attempt at repair could cause bodily injury or property damage, as well as damage to the device itself. WARNING: Your device is not a toy. Never allow children to play with your device. Misuse, rough or improper handling of your device by children could result in serious bodily injury for any of the enumerated safety warnings in this manual.
- Page 6 The unit must be connected to a power supply only of the type and voltage specified on the rear panel. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable. Do not route the power cord where it will be crushed, pinched, bent, exposed to heat, or damaged in any way.
- Page 7 Introduction NuPrime CDT-8 Pro is a highly accurate professional CD player with powerful DSP-based decoder that provides all Red Book error-correction capabilities with master-clock control of the entire decoding system, thus lowering jitter significantly. The transport’s single speed minimizes vibration and unbalanced discs.
-
Page 8: Specifications
Specifications • Optical Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, DoP64 • Coaxial Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256 • HDMI I2S Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256 •... -
Page 9: Standby Button

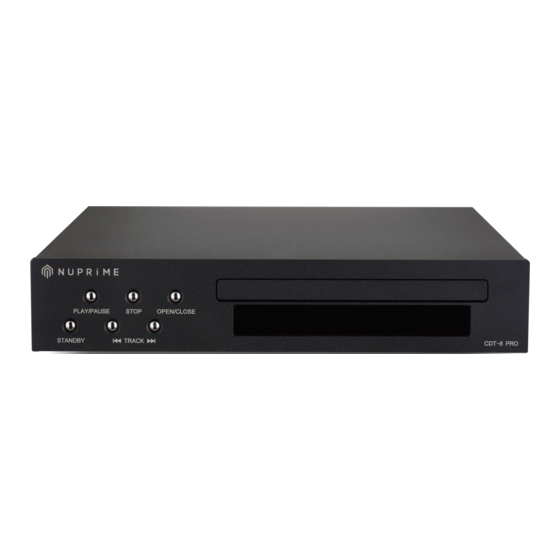

Quick Start Guide Front Panel View: CD TRAY DISPLAY OPEN / CLOSE button STOP button PLAY / PAUSE button STANDBY button TRACK Selection buttons... -
Page 10: Rear Panel View
Make sure that the AC Voltage selector switch at the bottom of the unit is switched to the appropriate voltage for your country. All CDT-8 are shipped with the switch set to 230V AC in order to prevent accidental damage. -
Page 11: Remote Control
Remote Control: : Power ON / OFF : Display information : Repeat & shuffle CD playlist : Opening / Closing CD tray : Stop CD playback : Play / Pause CD playback : Previous track / Search backward : Next track / Search forward : SRC Menu / Setting : SRC selection Previous : SRC selection Next... - Page 12 Start Up Press power button on the front panel or power button on remote control to turn on CDT-8 Pro. Note: During DISC loading, all function is disabled until DISC status is ready. CD PLAYER: The full album information is displayed once the DISC is successfully loaded.
- Page 13 If no DISC is placed or incorrect format is being loaded, No DISC is displayed. CD Function: Eject To load DISC, please press OPEN/CLOSE button on the front panel or on remote control to Eject the CD tray. Once the tray is out, place CD DISC onto the tray and press again for closing. After closing, DISC is loaded and status is displayed.
- Page 14 During playback, press PLAY/PAUSE button again to pause playback. In pause mode, a flashing PAUSE is displayed. To resume, press PLAY/PAUSE button again. CD Function: Previous/Search Backward & Next track/Search Forward Briefly press Previous & Next buttons & to skip to previous track or next track during playback. If playback is still in the first 3 sec, pressing Previous button will skip to previous track.
- Page 15 CD Function: Playback Mode You can press RPT button on the remote control to toggle between the playback modes, REPEAT ONE, REPEAT ALL, SHUFFLE ALL, SHUFFLE REP , and REF SHU OFF. When REPEAT ONE is selected, only the current track will be played repeatedly. During REPEAT ONE mode, both Previous / Next will repeat the current playing track from beginning.
-
Page 16: Function Display
Playback mode display changes to SA (Shuffle All). When SHUFFLE REPEAT is selected, all tracks in the album will be repeated in random order. Playback mode display changes to SR (Shuffle Repeat). Function: Display You can at any time press DIS on the remote control to display information regarding the current status. DIS function will display the following information. - Page 17 Function: SRC SRC allows you to up-sampling or down-sampling your sampling rate to your desire value. To set SRC, press SRC on the remote control to bring up the SRC menu, and using & on the remote control to toggle through all the values. Once a desired value is selected, press SRC button again to set. Please note that once SRC menu is active, all other function is disable until SRC is set.
-
Page 19: Limited Warranty
If a hardware defect exists and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, NuPrime will (1) repair the hardware defect at no charge, using new or refurbished replacement parts, (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product, or (3) refund the purchase price of the product. -
Page 20: Obtaining Warranty Service
OBTAINING WARRANTY SERVICE If you purchased the product in the U.S., deliver the product, at your expense, to any NuPrime Service Center located in the U.S. If you purchased the product outside of the U.S., deliver the product to any NuPrime Authorized Importer in the country where you purchased the product. -
Page 21: Exclusions And Limitations
EXCLUSIONS AND LIMITATIONS This Limited Warranty applies only to hardware products manufactured by or for NuPrime that can be identified by the "NuPrime" trademark, trade name, or logo affixed to them. The Limited Warranty does not apply to any non-NuPrime hardware products or any accessories, even if packaged or sold with NuPrime hardware. - Page 22 NUPRIME PRODUCTS, AND ANY FAILURE TO MAINTAIN THE CONFIDENTIALITY OF DATA STORED ON THE PRODUCT. NUPRIME SPECIFICALLY DOES NOT REPRESENT THAT IT WILL BE ABLE TO REPAIR ANY PRODUCT UNDER THIS WARRANTY OR MAKE A PRODUCT EXCHANGE WITHOUT RISK TO OR LOSS OF PROGRAMS OR DATA.
