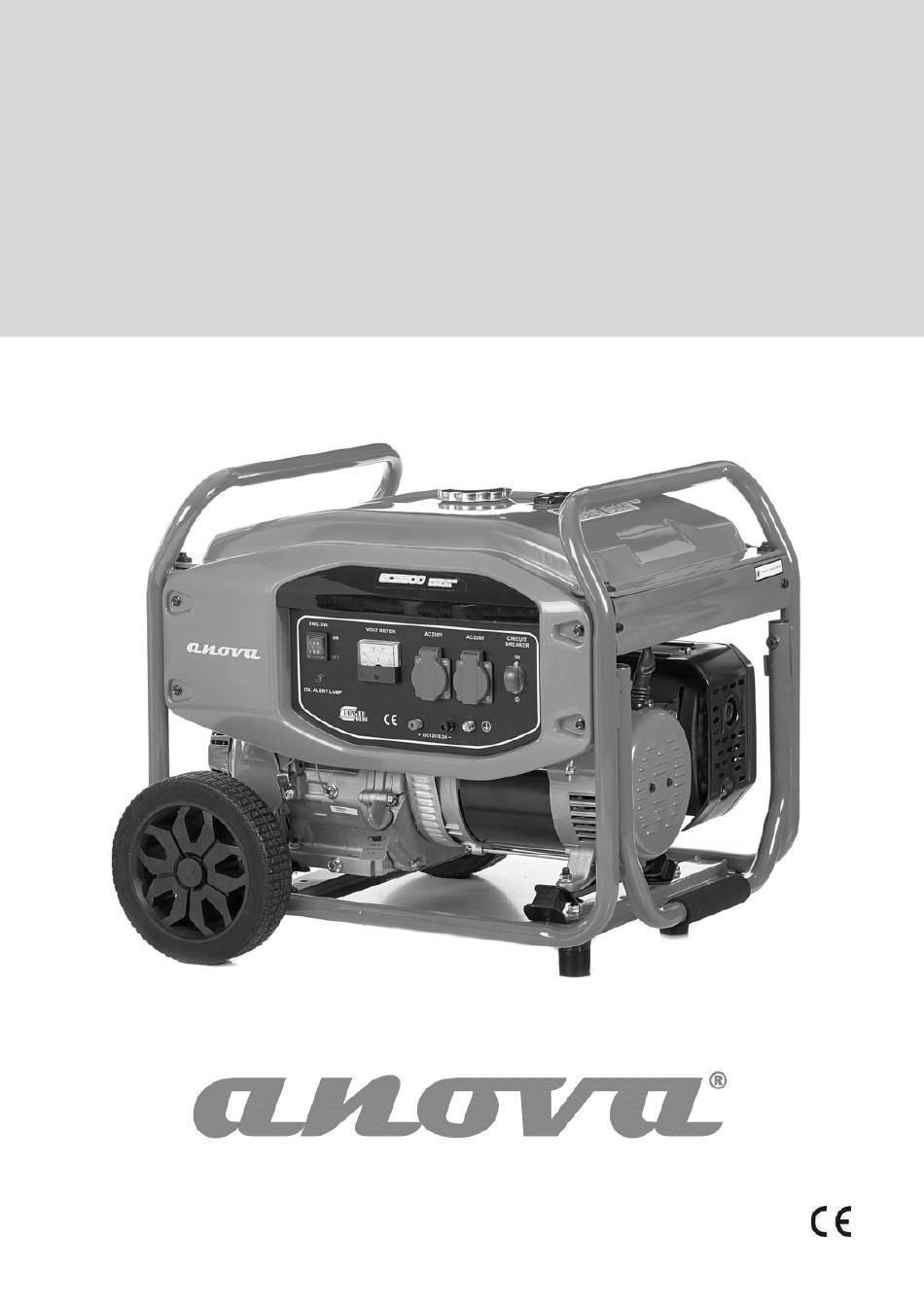

- Page 1 Instructions and user manual GC5500 Millasur, SL. Rua Eduardo Pondal, No. 23 - Pol. Ind. Sigüeiro 15688 - Oroso - A Coruna 981 696 465 www.millasur.com...
- Page 2 ANOVA want to congratulate you for choosing one of our products and guarantees the assistance and cooperation that has always distinguished our brand over time. This machine is designed to last many years and to be very useful if used according to the instructions in the manual.
-
Page 3: Table Of Contents
CONTENT 1. INDICATIONS AND GENERAL SAFETY REGULATIONS 2. GENERAL INFORMATION 3. INSTRUCTIONS 4. MAINTENANCE 5. STORAGE 6. TROUBLE 7. SPECIFICATIONS 8. Warranted 9. ENVIRONMENT 10. DESPIECE 11. STATEMENT EC... -
Page 4: Indications And General Safety Regulations
1. INDICATIONS AND GENERAL SAFETY REGULATIONS To ensure the best working conditions and safety, please read the following paragraphs: One of the basic factors of security is respect for the maintenance intervals (see maintenance chart). Also, never attempt repairs or maintenance if you have no experience and / or tools required. - Page 5 BURNS - Never touch the engine or muffler during operation of the generator set or for a few minutes after his arrest and off. - Some conservation oils are flammable. In addition, some are dangerous if inhaled. Make sure you have good ventilation. Use a protective mask during handling. - The hot oil may cause burns.
-
Page 6: General Information
Throughout this manual other safety standards are described. Read them carefully. These generators are not designed to run continuously: IT IS RECOMMENDED THAT USE to be given to either domestic engines and special character (aluminum engines and side valves) and / or professional use (OHV and diesel engines). - Page 7 3. INSTRUCTIONS FOR USE 3.1. PREPARATION START (STARTING PRE) CHECKING THE OIL LEVEL AND FILLING - Verification and the oil fill is performed with the group set on a horizontal surface. - Remove the oil filler cap and clean the rod oil level. - lnsert rod oil level in the oil filler neck unthreaded.
- Page 8 - Check the charge status regularly, at the least 1 every 6 months. In sealed-type batteries make a charger recharges a battery or replace appropriate if the load is not adequate. - In acid battery type, remove blocking devices if necessary, and plugs. - Fill vessels electrolyte (top level: 10 to 15 mm below the plates).
- Page 9 watios Examples Article type average Switched on Watios Article Switched on average use 100W lamp incandescent lamps 100W (W) 100 VA (W) Heat resistance 40W lamp fluorescent lamp X 1.5 80VA (W) 60 VA (W) refrigerator 150W 450-750VA Powered devices X 3-5 300 VA (W) 3.2.
- Page 10 - Option: Check the switch located between the two female sockets or the side of a of them is on. From that moment you can now use your electrical appliances. During operation of the engine, check: 1- if vibrations occur or abnormal noises; 2- backfiring or engine if running with difficulty;...
- Page 11 CAUTION The current output of the generator should not be used as a power source for charging the battery. STOPPING THE ENGINE IN AN EMERGENCY: 1- To stop the engine in an emergency, turn the switch to OFF / OFF IN NORMAL USE: 1- Turn the power off to the position OFF / OFF.
- Page 12 - Hot engine, remove the cap of the oil filler opening and unscrew drain plug. - Drain the oil and dispose of in an authorized recycling. NEVER discard the engine oil directly into the environment. - Screw and over-tighten the drain plug and fill the sump with oil through the filling hole of the tank until the oil level reaches the upper level gauge.
-
Page 13: Maintenance
- Reassemble the cartridge in the holder and reassemble the lid on the body. 4.5. CLEANING THE FUEL FILTER - Turn the fuel valve to the closed position. - Remove cap sediment, o-ring and filter. - Clean the parts with non-flammable liquid. - Re-install the components. - Page 14 5. STORAGE INSTRUCTIONS Generating sets that must be stored for more than 30 days must undergo a series of operations to achieve good conservation. 1. Pour the additive in the fuel tank or a storage tank. Start the engine for a few moments to circulate the additive through the carburetor.
- Page 15 6. TROUBLESHOOTING SYMPTOM The engine will not start using the manual start PROBABLE CAUSES 1- Is the engine switch in the ON position? 2- The flashing warning light of oil when the starter is operated? 3- Is the tap open fuel (ON)? 4- Is there enough fuel? 5- fuel reaches the carburetor? To check, loosen the drain with tap on the ON (open) position (Figure M)
-
Page 16: Specifications
ELECTRIC CABLE SECTION 7. TECHNICAL SPECIFICATIONS GC5500E Model Power 13HP 389 cc displacement Type 4-stroke OHV - Petrol rpm media 3000-3600 voltage adjustment automatic AVR Switched on type on Manual / Electric fuel capacity 25 L Consumption 313 g / Kwh oil capacity 1.1 L Oil sensor... -
Page 17: Environment
13.1. WARRANTY PERIOD - The warranty period (1999-1944 CE Act) under the terms described below is 2 years from the date of purchase on parts and labor against defects in workmanship and material. 13.2. EXCLUSIONS Not Covered: - Natural wear and tear. - misuse, neglect, careless operation or lack of maintenance. - Page 18 10. EXPLODED VIEW...
- Page 19 10. EXPLODED VIEW...
- Page 21 11. CE CERTIFICATION DISTRIBUTION COMPANY Millasur, SL RUA EDUARDO PONDAL, No. 23 PISIGÜEIRO 15688 OROSO - A CORUNA SPAIN DECLARATION OF CONFORMITY CE In compliance with the different EC directives, hereby confirms, because of its design and construction, and according to CE mark printed by the manufacturer on it, the identified machine that complies document with the relevant requirements and basic safety and health of the directives EC.
