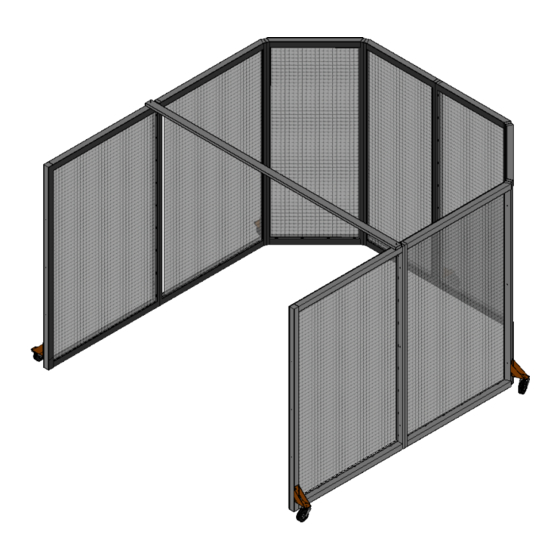

- Page 1 AAE Model No. PIC-35 Indoor Weight Cage ® Aluminum Athletic Equipment 1000 Enterprise Drive, Royersford, PA 19468 Toll Free: (800) 523-5471 Fax: (610) 825-2378 www.AAEsports.com...
- Page 2 3/8" thick 7'-7" Aluminum Athletic Equipment 1000 Enterprise Drive, Royersford, PA 19468 Resilient Toll Free: (800) 523-5471 Fax: (610) 825-2378 www.AAEsports.com Rubber DESCRIPTION Facing 16'-6" PIC-35 Indoor Weight Cage - Specifications Inside NOTE: MODEL: CATEGORY: DATE: 17'-2" CUSTOMER PIC-35 11/25/03 Outside DWN.
- Page 3 Indoor Weight Cage Assembly NOTE: Frame, Top Brace Support & Wheel Assembly MODEL: DATE: CATEGORY: CUSTOMER PIC-35 12/10/01 DETAIL A DRAWN BY: DWG. NO. CAD FILE: SCALE 1 : 20 Updated:12/18/2017 PIC-35 Indoor Cage Assembly PIC-35-C-002 Copyright 2001 Aluminum Athletic Equipment Co.
- Page 4 3/8”-16 x 5” bolt, s.s. 10 Bolt 11 Bolt 3/8”-16 x 1-1/4” bolt, s.s. FOR TECHNICAL ASSISTANCE, CALL 1-800-523-5471 K:\AAE Data\Product Instructions & Parts Lists\Track & Field\PIC-35\PIC-35 Parts List.doc Copyright © 2001 Aluminum Athletic Equipment Co. Page 1 of 1...
- Page 5 ASSEMBLY INSTRUCTIONS FRAME ASSEMBLY: Each PIC-35 frame (Part No. 1) is labeled on the outside bottom with a letter that corresponds to Drawing No. PIC-35-C-100. Using (3) 1/2"-13 x 5” bolts, (6) 1/2" washers, and (3) 1/2" nuts (Part Nos.
