Control box Fstronic DES-FI

Designed for drives of rolling and sectional fire shutters

and sectional fire gates with system of battery backup

Content:

Power supply .......................................................... 2

Configuration .......................................................... 2

Installation and setting ............................................. 4

Connection of other external devices ....................... 11

Description of control and terminal blocks ................ 13

Counter of cycles on control panel .......................... 24

Value report on the functional display ...................... 25

Errors on frequency invertor ................................... 27

Connectors............................................................ 28

10.

Control panel ........................................................ 30

11.

Regular service ...................................................... 32

12.

Circuit diagrams .................................................... 34

manual for version: 3_2

VERSION standard

VERSION compact

Table of Contents

Need help?

Do you have a question about the FSTronic DES-FI 4A COMPACT and is the answer not in the manual?

Questions and answers

Summary of Contents for Somati system FSTronic DES-FI 4A COMPACT

Page 1: Table Of Contents

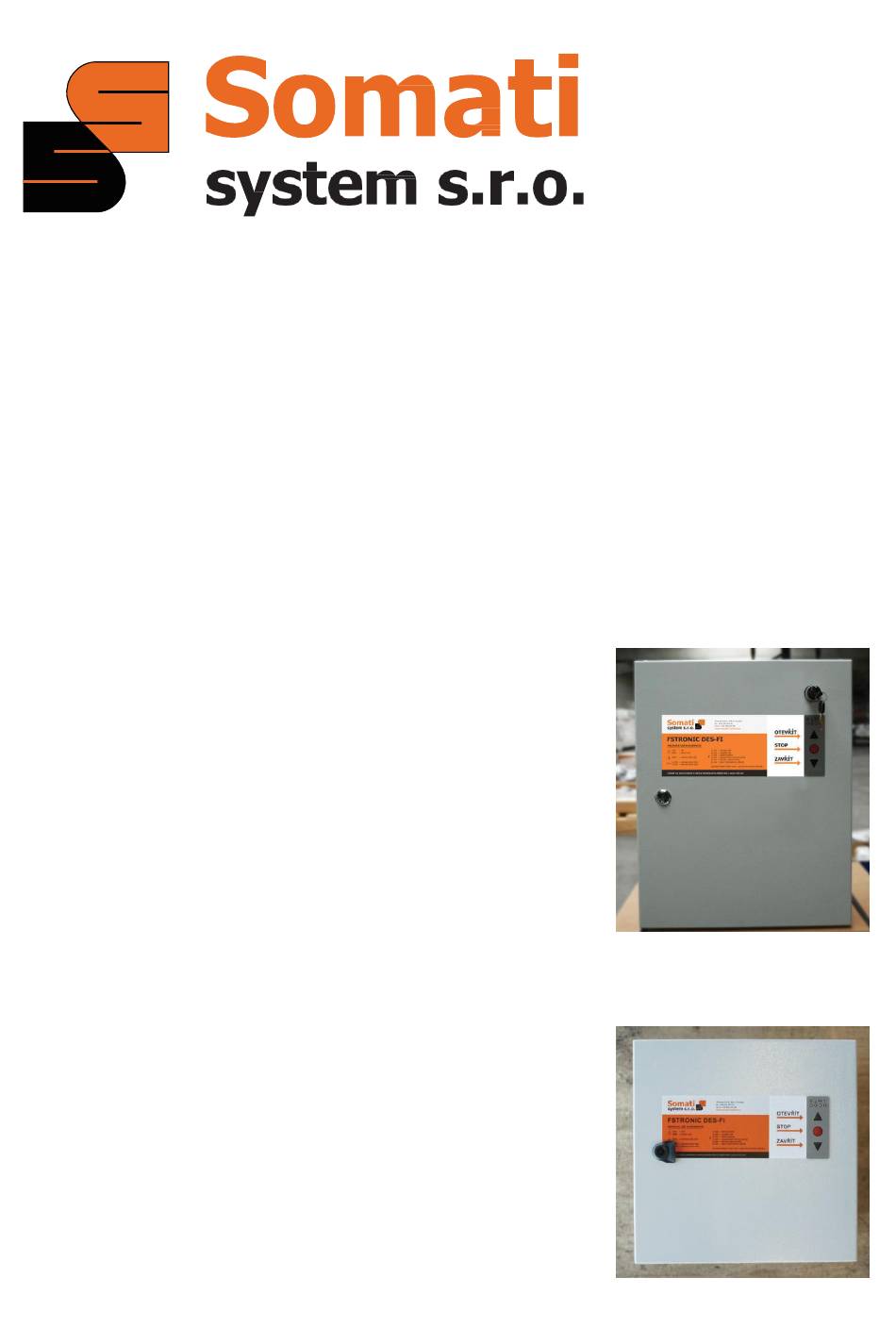

Control box Fstronic DES-FI Designed for drives of rolling and sectional fire shutters and sectional fire gates with system of battery backup Content: VERSION standard Power supply ............2 Configuration ............2 Installation and setting ..........4 Connection of other external devices ....... 11 Description of control and terminal blocks ....
Page 2: Power Supply
1. Basic data and power supply Casing size: 400 x 400 x 210 mm (W x H x D) 500 x 500 x 210 mm (W x H x D) – type 12A, 18A Weight: 23 kg (without batteries 18kg) Installation: vertically on the wall Connection:...
Page 3 Control box FSTronic DES-FI is supplied in three basic types according to motor performance and size of frequency inverter: FSTronic DES-FI COMPACT: Description of versions FSTronic DES-FI with batteries in control unit series FSTronic DES-FI 4A COMPACT FSTronic DES-FI 6A COMPACT FSTronic DES-FI 10A COMPACT Type of FSTronic LTNB16 –...
Page 4: Installation And Setting
3. Installation and setting Drive control unit is pre-set by parameter “r” for motor with which is deliveried or for the weakest motor (SI 17.15), control unit permanently verifies correct setting of frequency inverter parameters. It is necessary to set parameter for motor selection Parameter “r”. To ensure proper operation we have to install appropriate type of control box designed for particular motor group or control box designed for a higher group of motors.
Page 5 Power cable – terminal block X4 terminals L,N,PE Necessary to connect all wires including grounding. Without grounding (PE) can be unit damaged. After connection unit to the power net can be connected batteries by the connector faston on batterie. (During transport protected by the plastic cover). Connect terminals EPS - fire contact (X2:+ and X:10) NC contact (in case the contact is disconnected, gate is constantly closing in alarm).
Page 6 External battery (voluntarily accessory), recommended only original battery - 24V (2x12V) Inﬆallation of the battery fuse. Fuse is delivered together with control unit, but is not inserted in connector. Is fixed on the door of control unit. Fuse type tubular fuse 10x38 gG32a. Do not connect any external controls or any other devices before setting the end switches –...
Page 7 3.1. Setting of end switches DES (digital) First check the value of parameter “r”, if is equal to used motor and setting of DIP7 if is equal to used encoder in motor. 3.1.1. Setting of movement direction: press 9s press 3s press 5s direction saved Setting is possible only from STOP state, “stop”...
Page 8 3.1.2. Setting of upper end position „opened“: press press 5s upper position saved This setting is available automatically after saving the setting of direction or by pressing knob button, the display shows: a) „End ̄ “ – if the upper line lights, the position has been already set b) „End ̄...
Page 9 Afterwards press keyboard buttons OPEN or CLOSE (keyboard has to be unlocked by key switch) and move gate into position, in which we want to set the middle position. • If the actual position of gate corresponds with the required position it is possible to save the setting –...
Page 10 3.1.5. Calibration of time: It is essential to do the calibration of time exactly according to the description to avoid error, displayed “EtEr” error of movement time. This is a safety function, which controls time of movement during gate operation. press press Setting of calibration:...
Page 11: Connection Of Other External Devices
4. Connection of other external devices After testing the setting of end positions (DES or NES) it is possible to continue with connection of other external devices. Control box FSTronic DES-FI is standardly equipped with keyboard buttons „Open“ and „Close“, which can be used to open the gate in “Dead man”...
Page 12 case of present power supply 1x230V or if the backup power is correctly dimensioned. In parameter „O“ – it is possible to select maximum of 10 attempts to open, however it is dependent on status of battery charge and its size. Function of audio and visual signalization (Pre-ﬂash) causes that during the set time in parameter „2“, before the standard operation of gate, signalization starts functioning (ﬂash and sound = warning light).
Page 13: Description Of Control And Terminal Blocks
5. Description of control and terminal blocks 5.1. FUNC Terminal block of function FUNC is used to internal functional connection of the control box, nothing has to be connected on this terminal block. Modification with monitoring of brake power (since version 2_7) is on the connector A,B connected control module for brake circuit.
Page 14 5.2.2. Description of setting functions on DIP SWITCH POSITION lower safety sensor upper safety sensor “open”button Placed on control panel shortening of closing when passing safe. sensor locking of external inputs impulse+pull detection of obstacle during automatic closing fully opened partly closed communication option GfA/DES4...
Page 15 5.3. Description of functions on display device 5.3.1. Control of menu on display press 1x 1x press showes actual version of program. press 4s press 1x Description of setting of optional parameters on display device. To enter the setup we have to hold knob button and after 4 seconds display shows „Par“.
Page 16 5.3.2. Parameters and their values Parameter - Audio & visual signalization - warning light (output X2:26, X2:27) during movement during alarm • 0 = active with delay active with delay, during alarm duration • 1 = not active active with delay, during alarm duration •...
Page 17 Parameter – time of battery discharging Time after which the gate, held on batteries, closes during power failure. Range of values: • 0-30 minutes • „-„ = depends on battery condition and load Default = 10 Parameter – Emergency Open hight Setting of height for automatic open in alarm and activation of button Emergency Open (input X2:+, X2:9) Range of values: •...
Page 18 Parameter – time of Smoke alarm Time in which the gate remains in alarm „Smoke“ i.e. in position partly opened before closing again: • 5–999 seconds • „-„ = time unlimited Default = 10 Parameter – length of opening time in case of Smoke alarm activation •...
Page 19 SI 55.15 10 A SI 75.15 12 A SI 140.7 12 A KE 60.24 12 A KE 80.24 18 A SI 100.10 18 A KE 9.24 (no brake) SI 50.24 10 A SE 9.24 (no brake) SE 14.21 (SE 9.20) (no brake) SI 30.46.40 10 A...
Page 20 Parameter – attempt to open gate using backup power -0–10 attempts Default = 0 This parameter is valid only for version of control box FSTronic DES-FI and is significantly dependent on sizing of backup power hardware according to the motor size and gate dimensions.
Page 21 Parameter – field of deceleration closed possition Range of values: 1–10 % Value of the length distance before reaching bottom end possition. Value is shown in percent of traveling distance. Note: In case of roller gate inﬂuenced by non linearity of roll up diameter. Default = 3 % Parameter –...
Page 22 Parameter - another alarm braking time Allows you to select the length of the stop time in case of the SECOND and EVERY OTHER activation of the safety device during closing in alarm. Range of values: 1–999 second/s Default = 10 Parameter - type of input EPS - fire contact (X2:10, X2:+) 0 = NC input normally closed 1 = NO input normally opened...
Page 23 Type of rellay output open possition (X2:31, X2:37) 0 = at possition - closed, under possition - opened 1 = at possition - opened, under possition - closed Default = 0 Type of rellay output closed possition (X2:31, X2:38) 0 = at possition - closed, above possition - opened, 1 = at possition - opened, above possition - closed,...
Page 24: Counter Of Cycles On Control Panel
6. Counter of cycles on control panel Control box FSTronic has built-in internal memory, from which it is possible to display the state of performed cycles of gate. Counter supplied after installation is reset. After change of some components (e.g. motor) or after the complete overhaul of mechanical device of gate, it is possible to reset the counter values–...
Page 25: Value Report On The Functional Display
6.2. Indication of the end of service intervals Control box FSTronic is equipped with internal memory, which displays end of pre-set service interval by simultaneous and synchronized ﬂashing of all diodes. Standard interval is pre-set on 3000 cycles (see setting of parameter ) or 1 year (see setting of parameter ) from the last service (or putting into operation).
Page 26 Opening “deadman”. Closing “deadman”. Waiting for automatic closing 88 = seconds. In position 1 ﬂashing „A/L“ i.e. alarm. In position 2 it displays: • „F“ - alarm from EPS input X2:+, X2:10 • „b“ if the time ended (discharged) or the battery voltage dropped and power supply is not present •...
Page 27: Errors On Frequency Invertor
7.2. Errors report on functional display Error DES failure of communication. It did not reach the position in time, went to “stop”, can be reset by new impulse to movement. If this alarm is repeted it is nececary to recalibrate time see 3.1.5.
Page 28: Connectors
9. Connectors 9.1. Connectors on DPS - (terminal block X1) 4-10 free, non function 13, 14 safety break, originally with wire jumper PE, N, LP, L1, L2, L3 internal connection in unit 9.2. External - terminals on DPS in the contr. box (terminal block X2) a) Input side (upper part of the terminal block X2) Terminals marked „+“...
Page 29 FAS (EPS) „fire contact“ – type of input according to setting Parameter type of input EPS +24 V RESET - NO contact – resets the control box +24 V LOCK - NO contact on the panel – in case of detector alarm, it resets +24 V The remaining inputs are connected to the power terminal block X1.
Page 30: Control Panel
9.3. Power terminal block (terminal block X4) L, N, PE power supply 1 x 230 V TN-S 1, 2, 3 drive motor phases shealding of motor cable - connected with ground ground of motor cable 4, 11 power supply for motor brake 103 V DC (polarity is irrelevant) 10.
Page 31 10.2.1. Description of individual LED diodes: If the diode is permanently ON, control is activated. If the diode ﬂashes (0,5s – 0,5s), gate is in motion. If the diode ﬂashes quickly (0,1s – 0,1s), runnin countdown for delay of movement. If the diode is oﬀ, key switch is oﬀ...
Page 32: Regular Service
• If the diode does 5 short ﬂashes, safety brake is activated. Service intervention is necessary. In this case the button CLOSE is blocked and gate can be operated only in direction OPEN and in “Dead Man” mode. To unblock the safety brake, it is necessary to carefully open the gate about approx.
Page 33 Control box FSTronic DES-FI can be equipped with hermetic PB batteries. To secure their safe operation the following conditions apply: Precondition for reaching full life of the hermetic PB batteries is their proper charging (life of common types of batteries is approx. 5 years during optimal operating temperature 15-20°C).
Page 34: Circuit Diagrams
12. Circuit diagrams 12.1. FSTronic DES-FI – basic connection terminal block X4 12.2. FSTronic DES-FI – control board DPS 12.3. FSTronic DES-FI – motor DES 12.4. FSTronic DES-FI – connection of fire detectors, battery module 12.5. FSTronic DES-FI – connection + door safety contact 12.6.
Page 35 12.1. FSTronic DES-FI BASIC CONNECTION TERMINAL BLOCK X4 www.somati-system.cz...
Page 36 12.2. FSTronic DES-FI CONTROL BOARD DPS www.somati-system.cz...
Page 37 12.3. FSTronic DES-FI MOTOR DES www.somati-system.cz...
Page 38 12.4. FSTronic DES-FI CONNECTION OF FIRE DETECTORS www.somati-system.cz...
Page 39 12.4. FSTronic DES-FI BATTERY MODULE www.somati-system.cz...
Page 40 12.5. FSTronic DES-FI CONNECTION OSE + DOOR SAFETY CONTACT www.somati-system.cz...
Page 41 12.6. FSTronic DES-FI MOTOR CABLE www.somati-system.cz...
Page 42 12.7. FSTronic DES-FI Connection of different types of light curtains Cegard Mini SY2000: LIGI-07 OSE: www.somati-system.cz...
Page 43 GridScan PRO SY 2000 FSS: GridScan PRO SY 2000 LO: www.somati-system.cz...
Page 44 GridScan MINI FSS: GridScan MINI PNP/NPN: www.somati-system.cz...

This manual is also suitable for:

Fstronic des-fi 6a compact Fstronic des-fi 10a compact Fstronic des-fi 12a standard Fstronic des-fi 18a standard Fstronic des-fi 18a-2b standard
