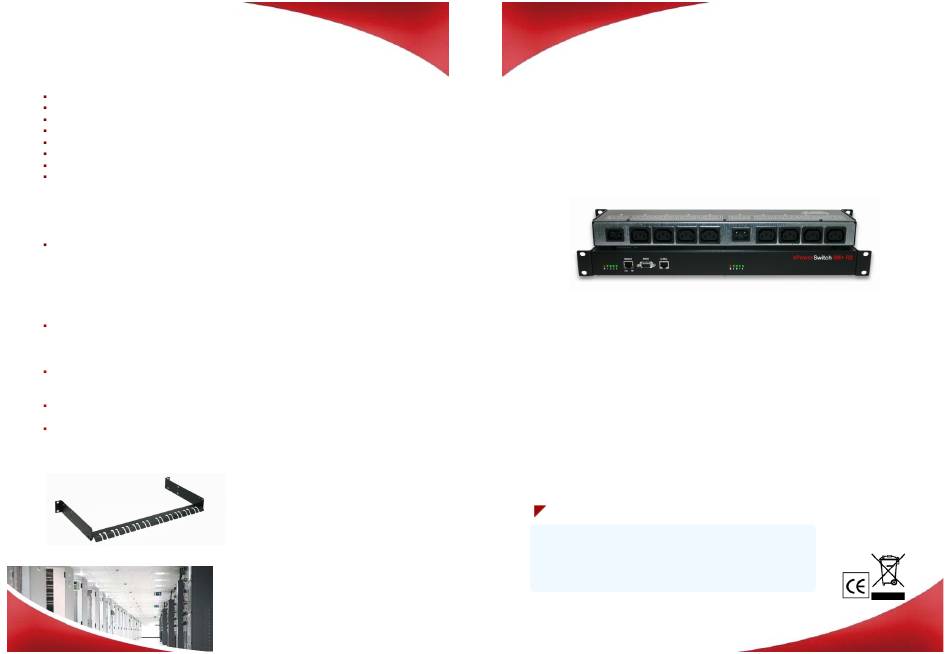

Leunig ePowerSwitch 8M+R2 Quick Start Manual

Advantages

Individual control of power outlets over IP or an RS232 Terminal connection
Modular and flexible Environmental Monitoring System
Environmental monitoring (temperature, humidity and ambient light sensors)
Dry contact monitoring (door contacts, smoke and water detectors...)
Rules for triggering up to 32 user defined actions
Scheduler/timer
Server soft shutdown over RS232 connection
Built-in Online help

Supported peripherals :

Up to 4 of following peripherals can be connected to the ePowerSwitch 8M+
Sensors:
- temperature sensor (T-Sensor)
- temperature and humidity sensor (TRH-Sensor)
- temperature and ambient light sensor (TL-Sensor)
- temperature and proximity sensor (TP-Sensor)
- temperature sensor (Tiny T-Sensor)
- liquid detector (KIT LIQ DET)
Power outlet management: Power outlet management:
- power control unit, 1 outlet (ePowerSwitch 1XS)
- power control unit, 8 outlets (ePowerSwitch 8XS)
- power control unit, 8 outlets and 2 16A inputs with current probe (ePowerSwitch 8XS 32)
I/O modules:
- extension module, 16 inputs for dry contacts (XBUS DIM)
- extension module, 8 relay output (XBUS DOM)
Manually action triggering:
- Push Button
Power consumption management:
- current probe, 1 power outlet (CP IEC)
- consumption measuring: kWh, A, Volts (EnergyMeter)
19" rack cable manager option (EPS-CABMAN)
R2 :
© Copyright
LEUNIG GmbH
All rights reserved
LEUNIG GmbH
Wilhelm-Ostwald-Straße 17
53721 Siegburg • Germany
Tel. +49(0)2241-17660
Fax +49(0)2241-176699
www.leunig.de • support@leunig.de
ePower ePowerSwitch Switch
Quick Start Guide
R2

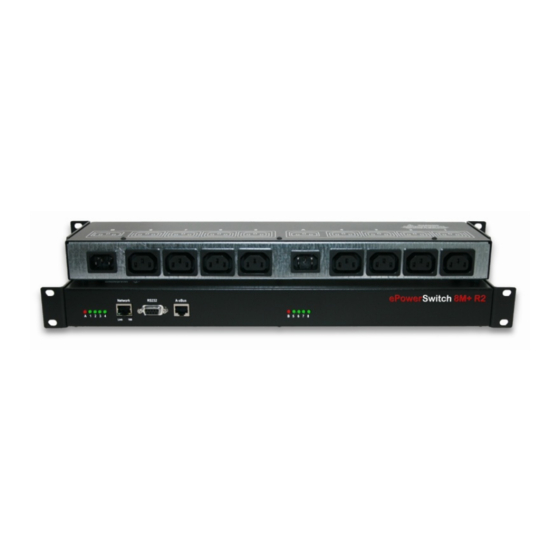

ePowerSwitch 8M+ is a power distribution and control unit that enables remote
power control over Intranet, Internet or locally through an RS232 connection. t l I t t I t t l
Its serial interface can be used to control the power outlets over a Terminal connection
(KVM Switch, console server...) or to trigger a soft shutdown of a server with shutdown
capabilities. An internal Real Time Clock enables to trigger scheduled actions and
timestamp all events (logs, SNMP traps and Syslog events).
R2
ePowerSwitch 8M+ is more than a simple power switch, it's also a modular Remote
Monitoring System which enables to increase the security of your facilities and reduces
unforeseen downtimes of your equipment. It offers environmental control functions and
IP device monitoring with automatic reboot function in case of lock-up.
It supports up to 4 peripherals (temperature, humidity, ambient light, Input/Output
modules, power Switches...).
Supported protocols: HTTP, DHCP, Syslog, SNMP and SNTP.

1. Installation

1. Connect the ePowerSwitch 8M+ R2
Network.
2. Power-up the ePowerSwitch 8M+ R2 using the provided power
cable, through a properly grounded outlet
8M+ 8M+
R2 R2
ll th h RS232 ti
to your Local Area
January 2011
