Aeroball Senior 4 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Aeroball

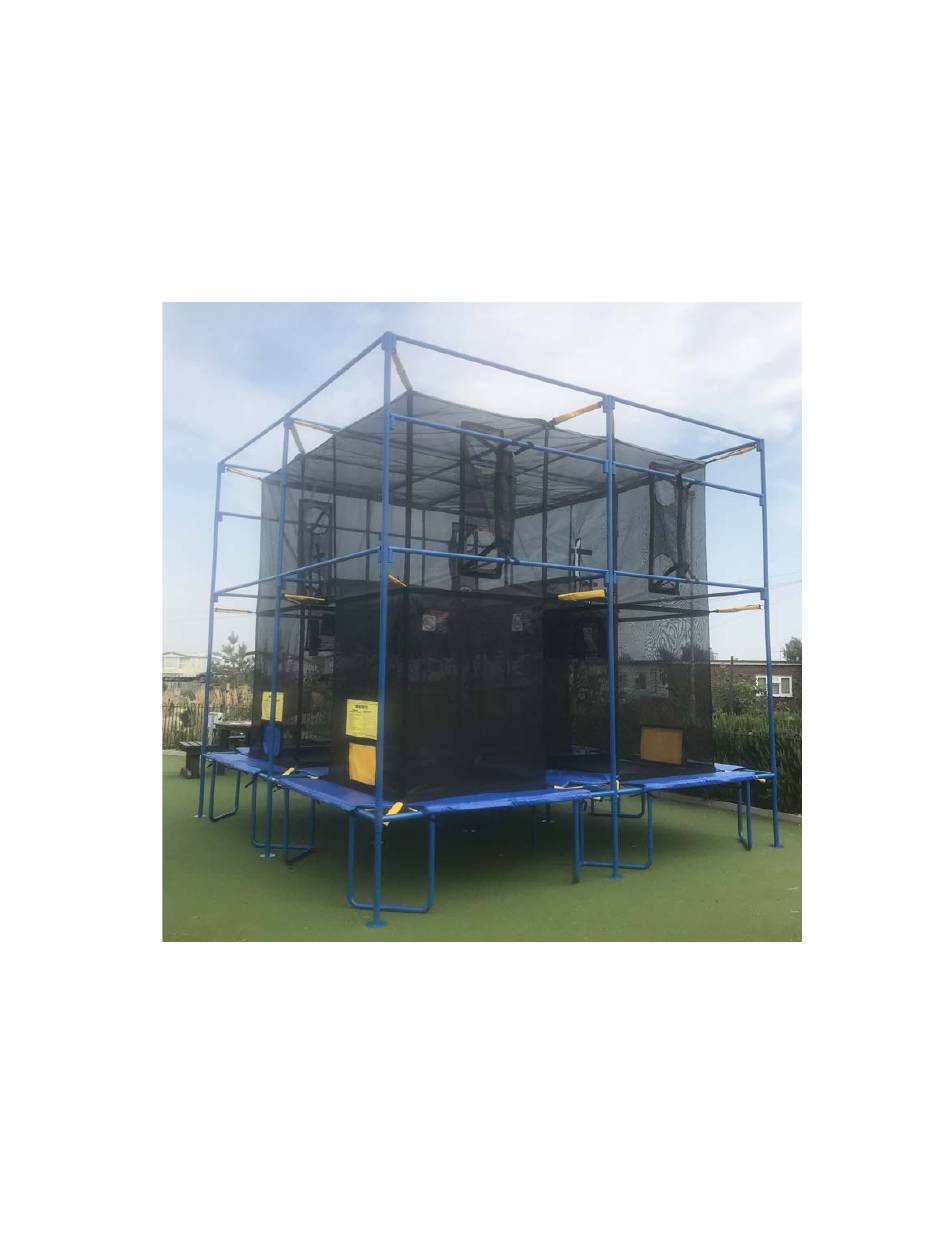

AEROBALL
Senior 4 (
)
Sr4
TM
Assembly - Safety -
Maintenance
PLAY SAFE!
WARNING!
Please read this manual fully before you start assembly or use of the Aeroball.
21 Oak Street, Fakenham, Norfolk - NR21 9DX, www.activeengineeringsystems.com
info@activeengineeringsystems.com t: +44 01328560250

Advertisement

loading
Need help?

Need help?

Do you have a question about the Senior 4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aeroball Senior 4

  • Page 1 Aeroball AEROBALL Senior 4 ( Assembly - Safety - Maintenance PLAY SAFE! WARNING! Please read this manual fully before you start assembly or use of the Aeroball. 21 Oak Street, Fakenham, Norfolk - NR21 9DX, www.activeengineeringsystems.com info@activeengineeringsystems.com t: +44 01328560250...
  • Page 2 Follow all instructions for assembly, use and maintenance of the Aeroball. 21 Oak Street, Fakenham, Norfolk - NR21 9DX, www.activeengineeringsystems.com info@activeengineeringsystems.com t: +44 01328560250...

  • Page 3: Safe Assembly

    • Fully read and understand the entire instruction manual prior to assembling the Aeroball. There are multiple steps that must be followed in order to have a safe and successful assembly. • Have the correct tools on hand, as prescribed by the manual.

  • Page 4: Outdoor Use

    Aeroball. 4. Do not allow smoking in or around the unit. 5. Operators & supervisors should have the authority to restrict use of Aeroball to those with the physical ability to play safely. 6. Never allow more than one person on a jump surface at one time. Each trampoline is for one person at a time only.
  • Page 5 4. Rain will not affect the Aeroball housing (mesh & fabric parts) or jump surfaces as these are porous and dry quickly. However, the housings are easy to remove and reinstall and this is recommended during winter, off-season or protracted periods of bad weather.

  • Page 6: Maintenance Instructions

    5. Tears in housing seams are rare but should be fixed immediately. Aeroball can provide repair services for you. 6. Damage to Aeroball frames is very rare. Any structural issues must be dealt with immediately to avoid further damage or injury to users. Suspend use! Call Aeroball if in doubt.

  • Page 7: Parts List

    Aeroball Senior 4 Manual ASSEMBLY INSTRUCTIONS REQUIRED EQUIPMENT (NOT INCLUDED IN AEROBALL KIT) • Ladder (15 feet minimum) • Rubber mallet o IMPORTANT! Do not use a metal hammer to strike the metal frame. This can dent the frame and damage the structure.
  • Page 8 Aeroball Senior 4 Manual Center base support legs center housing support Top vertical rise – center ends (with side sockets) Top vertical riser – left corner Top vertical riser – right corner 21 Oak Street, Fakenham, Norfolk - NR21 9DX, www.activeengineeringsystems.com...
  • Page 9 Aeroball Senior 4 Manual HORIZONTAL STRUCTURE Lower horizontal bed support- center Lower horizontal bed support- sides Junction support – center edges Junction support – corners Junction support – middle Horizontal supports Upper horizontal support – inside center Upper middle horizontal T-connector 21 Oak Street, Fakenham, Norfolk - NR21 9DX, www.activeengineeringsystems.com...
  • Page 10 Aeroball Senior 4 Manual TRAMPOLINE Trampoline springs- small Blue padded spring cover – center Blue padded spring cover – sides Trampoline mat 21 Oak Street, Fakenham, Norfolk - NR21 9DX, www.activeengineeringsystems.com info@activeengineeringsystems.com t: +44 01328560250...
  • Page 11 Aeroball Senior 4 Manual COURT & HOUSING Housing springs- large Padded court separator- center Yellow housing spring wraps Housing Yellow door flap Housing blue door flap Court roof 21 Oak Street, Fakenham, Norfolk - NR21 9DX, www.activeengineeringsystems.com info@activeengineeringsystems.com t: +44 01328560250...
  • Page 12 Aeroball Senior 4 Manual OTHER Spring tool Game ball 21 Oak Street, Fakenham, Norfolk - NR21 9DX, www.activeengineeringsystems.com info@activeengineeringsystems.com t: +44 01328560250...
  • Page 13 * Part numbers ending in "0" are generic. No specific orientation (00,10,40,50,60) * Part numbers ending in "5" or “6” are strictly for very center of the Aeroball. * "L" or "R" indicate a specific orientation: left or right (22,63) * Vertical structure: (from top to bottom): 20s –...
  • Page 14 Aeroball Senior 4 Manual Step 2: Insert one base leg (part #04) into the sleeves found at each of the four corners. Insert the remaining two base legs at center as shown below: Step 3: Insert 3 center legs (part #13) into the three holes in each of the center leg supports (part #03).
  • Page 15 Aeroball Senior 4 Manual Step 4: Insert four center vertical supports (part #01) into four base plates (#00). Insert those assemblies into the sleeves to support the center horizontal bars, as shown below: STEPS 5 TO 8: JUMP SURFACES Step 5: Clip the first spring (part #50) on each side of the trampoline mat (part #53) to the structure, as shown below.
  • Page 16 4 trampoline beds should be attached to the structure. Step 8: Attach each of the 8 blue padded spring covers (part #52) to the sides of the Aeroball. Then attach the 4 center covers (part #51) in the middle.
  • Page 17 Aeroball Senior 4 Manual STEPS 9 TO 12: VERTICAL STRUCTURE Step 9: Insert all eight lower vertical risers (part #10) through each of the holes at the junctions, and into a base plate (#00). Then insert the center housing support (part #15) through the center junction and into a base plate.
  • Page 18 Aeroball Senior 4 Manual Step 10: Note the two 22R pieces must be installed in opposite corners; the same is true for the two 22L pieces. The sockets on 22R must face the sockets on 22L. 21 Oak Street, Fakenham, Norfolk - NR21 9DX, www.activeengineeringsystems.com...
  • Page 19 Aeroball Senior 4 Manual Step 11: Insert risers (parts #21) as shown below: By the end of Step 11, the entire vertical structure should be set up. 21 Oak Street, Fakenham, Norfolk - NR21 9DX, www.activeengineeringsystems.com info@activeengineeringsystems.com t: +44 01328560250...
  • Page 20 Aeroball Senior 4 Manual STEPS 12 TO 15: UPPER HORIZONTAL STRUCTURE Step 12: Pass 1 of the horizontal supports (part #40) through the padded court separator (part #61). Repeat three more times. Step 13: Fit the four horizontal supports with the padded court separators to the risers (#21) as shown below: 21 Oak Street, Fakenham, Norfolk - NR21 9DX, www.activeengineeringsystems.com...
  • Page 21 Aeroball Senior 4 Manual Step 14: Fit twenty horizontal supports (#40 Orange) to the upper section, as shown below: 21 Oak Street, Fakenham, Norfolk - NR21 9DX, www.activeengineeringsystems.com info@activeengineeringsystems.com t: +44 01328560250...
  • Page 22 Step 15: Fit the four upper horizontal pieces (part #41) at the very top of the structure. Install the T-connector (part #46) in the very center. By the end of Step 15, the entire structure of the Aeroball should be set up. 21 Oak Street, Fakenham, Norfolk - NR21 9DX, www.activeengineeringsystems.com...
  • Page 23 Velcro around the bottom vertical connector (part #40). Step 22: Wrap the yellow housing spring wraps (part #62) tightly to cover every large spring on the Aeroball. There is one yellow wrap for each large spring (48 in total).
  • Page 24 Aeroball Senior 4 Manual INSTRUCTIONS FOR DISASSEMBLY • Detach the Velcro that bound the housings to the roof. Remove and put away the roof (reverse step 23). • Detach each housing from the court separators. Detach the housings from each other by undoing the straps at the top (reverse steps 22 through 17).
  • Page 25 Aeroball Senior 4 Manual Have fun! Play safe! 21 Oak Street, Fakenham, Norfolk - NR21 9DX, www.activeengineeringsystems.com info@activeengineeringsystems.com t: +44 01328560250...
  • Page 26 Aeroball - recommended inspection log Inspect mesh housings for rip, Lift spring pads and ensure all Inspect steel structure & weld joints Painted surfaces - inspect for any connection to springs, placement of springs are in place, & still holding for cracks.
