Summary of Contents for Hydrostress VCE2000U Series

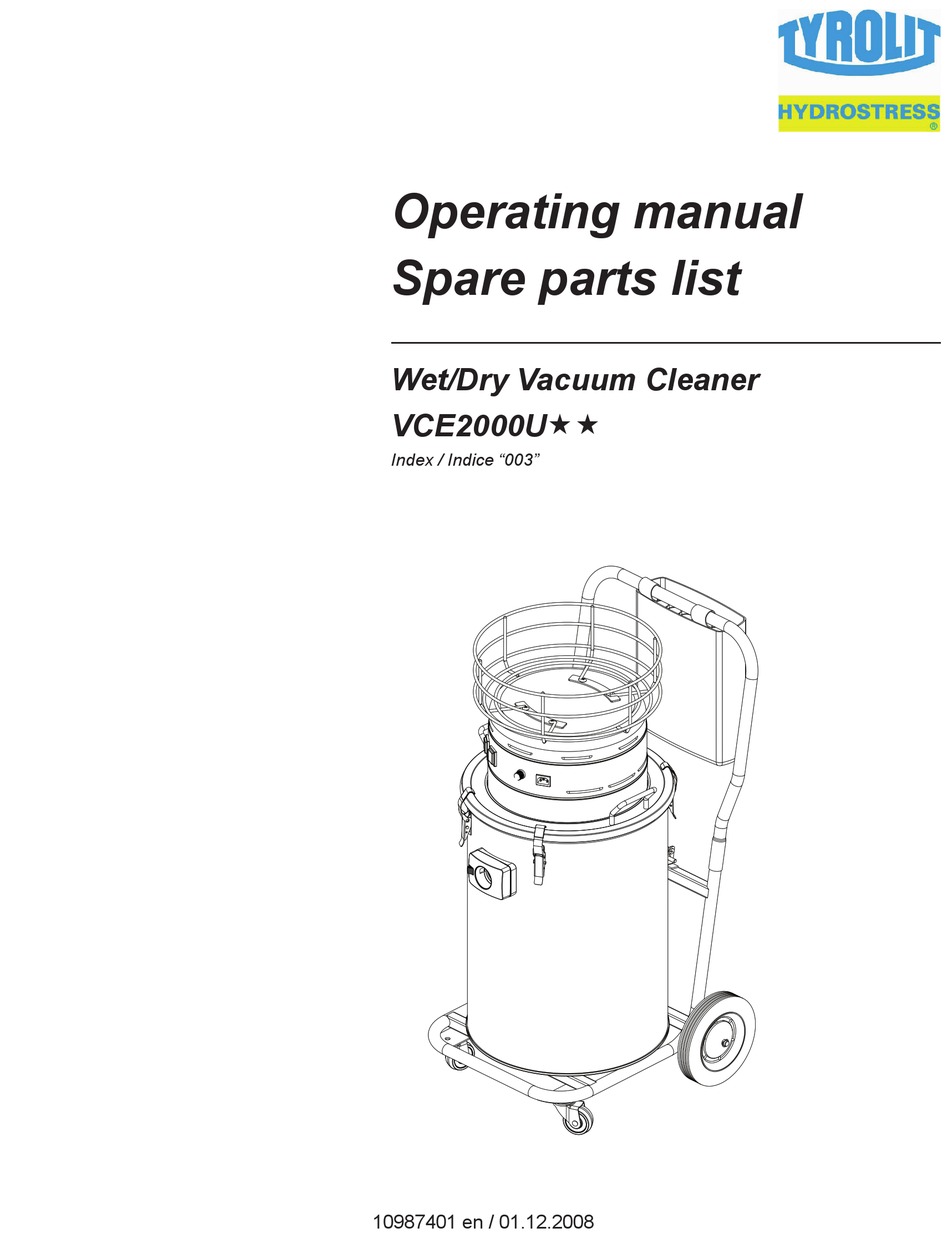

- Page 1 Operating manual Spare parts list Wet/Dry Vacuum Cleaner VCE2000U Index / Indice “003” 10987401 en / 01.12.2008...
- Page 3 Fax +41 44 952 18 00 e-mail: info@tyrolit.com www.hydrostress.com TYROLIT Hydrostress AG reserves the right to make technical changes without prior notice. Copyright © 2006 TYROLIT Hydrostress AG, CH-8330 Pfäffikon ZH, Switzerland All rights reserved, in particular copyrighting and translating rights.
-
Page 4: Safety Rules
Safety Rules For your safety and to ensure accident-free operation please carefully read and understand these “Safety Rules”. After reading these instructions, please keep the manual in a obvious place for reference. Caution May cause death or serious injury. Notice May cause injury if operated improperly. - Page 5 NOTICE When picking up dust, be sure to install Do not use the machine in a high tem- the polyester filter. Otherwise, the dust perature enviroment. entering the motor will damage the motor. Stop operation when the inlet and ex- haust holes are blocked.
- Page 6 Additional Safety Rules To safely use the wet/dry vacuum cleaner, please pay attention to the following guide- lines in addition to the safety rules discussed earlier. Please beware that picking up iron powder or dust with the machine may generate static electricity. If this occurs, stop the machine immediately and keep it away from precision instruments or machines to avoid damaging them.
- Page 7 Dry mode Never operate the machine without the polyester filter in place. The filter prevents dust from entering the motor and damaging it. When the machine is running please do not block the exhaust outlet. Wet mode Never operate the machine without the polyester filter in place.
- Page 8 Parts Motor head unit Tank Gasket Polyester filter Filter retaining clip Cloth filter Cloth filter frame Hose adapter Squeegee Narrow nozzle Hose Accessories bag Wide nozzle Round brush L-pipe Tank Extension wand Cart Replacing Brush...
- Page 9 Removing Sewage and Debris Notice Remove the head unit Before removing and store it properly to the cloth filter from Please turn off and prevent any damage the tank, shake unplug the machine and contamination. the filter to loosen before releasing the any debris clinging side clips.
-
Page 10: How To Use
How To Use Insert the black hose Insert the filter into the tank and ensure that into the receptacle it is seated properly. in front of the tank. Insert the filter frame, but make sure that it Make sure that it is does not obstruct the vacuum inlet. -
Page 11: Specification
Specification Technical data Article No. 10983924 10983921 Voltage 110 V 230 V Mains Frequency 60 Hz 50 Hz Power Consumption 1000 W - one motor 1000 W - one motor 2000 W - two motors 2000 W - two motors Max Air Flow Volume 2300 l/min - one motor 2300 l/min - one motor... -
Page 12: Wiring Diagram
Wiring Diagram... -
Page 13: Parts List
Parts List Part No Description 10985340 EOSM-481001 1/4”-20x3/8” Phil. Screw 10985342 EOSM-481002 Black Accessories Basket 10985343 EOSM-481003 Upper Cover 10985344 EOSM-481004 10985345 EOSM-481005 Spacer RS-5 10985346 EOSM-481006 Hex Screw M8 X 1.25 X 5L 10985347 EOSM-481007 M6 (6x16x1.0) Washer 10985348 EOSM-481008 1/4”- 20 Nut 10985352... - Page 14 Part No Description 10985376 EOSM-481034 Valve Tap 10985377 EOSM-481035 Valve Mounting Base 10985347 EOSM-481007 M6 (6x16x1.0) Washer 10985348 EOSM-481008 1/4”- 20 Nut 10985378 EOSM-481036 M5x0.8x8L-90L Hex Screw 10985379 EOSM-481037 Lifting Handle 10985361 EOSM-481020 M5 (5x10x1.0) Washer 10985380 EOSM-481038 M5 X 0.8 X 12L Screw 10985361 EOSM-481020 M5 (5x10x1.0) Washer...
- Page 15 Part No Description 10985361 EOSM-481020 M5 (5x10x1.0) Washer 10985397 EOSM-481057 Air Intake Guide Tube 10985398 EOSM-481058 Air Intake Guide Tube 10985399 EOSM-481059 Gasket 10985400 EOSM-481060 Compression Spring 10985401 EOSM-481061 Latch 10985402 EOSM-481062 Air Intake Cover 10985403 EOSM-481063 Spring Release Latch 10985405 EOSM-481064 TP 3/16 X 1”L SUS Screw...
-
Page 16: Exploded View
Exploded View... -
Page 17: Ec Declaration Of Conformity
European Low Votage Directive 73/23/CEE EN 2002/96/EG Waste electrical and electronic equipment Standards applied EN 294 Safety of machinery – Safety distances to prevent upper limbs reaching danger areas Roland Kägi Equipment Manager TYROLIT Hydrostress AG Witzbergstrasse 18 CH-8330 Pfäffikon Switzerland...
