Summary of Contents for Universal Tool UT8922

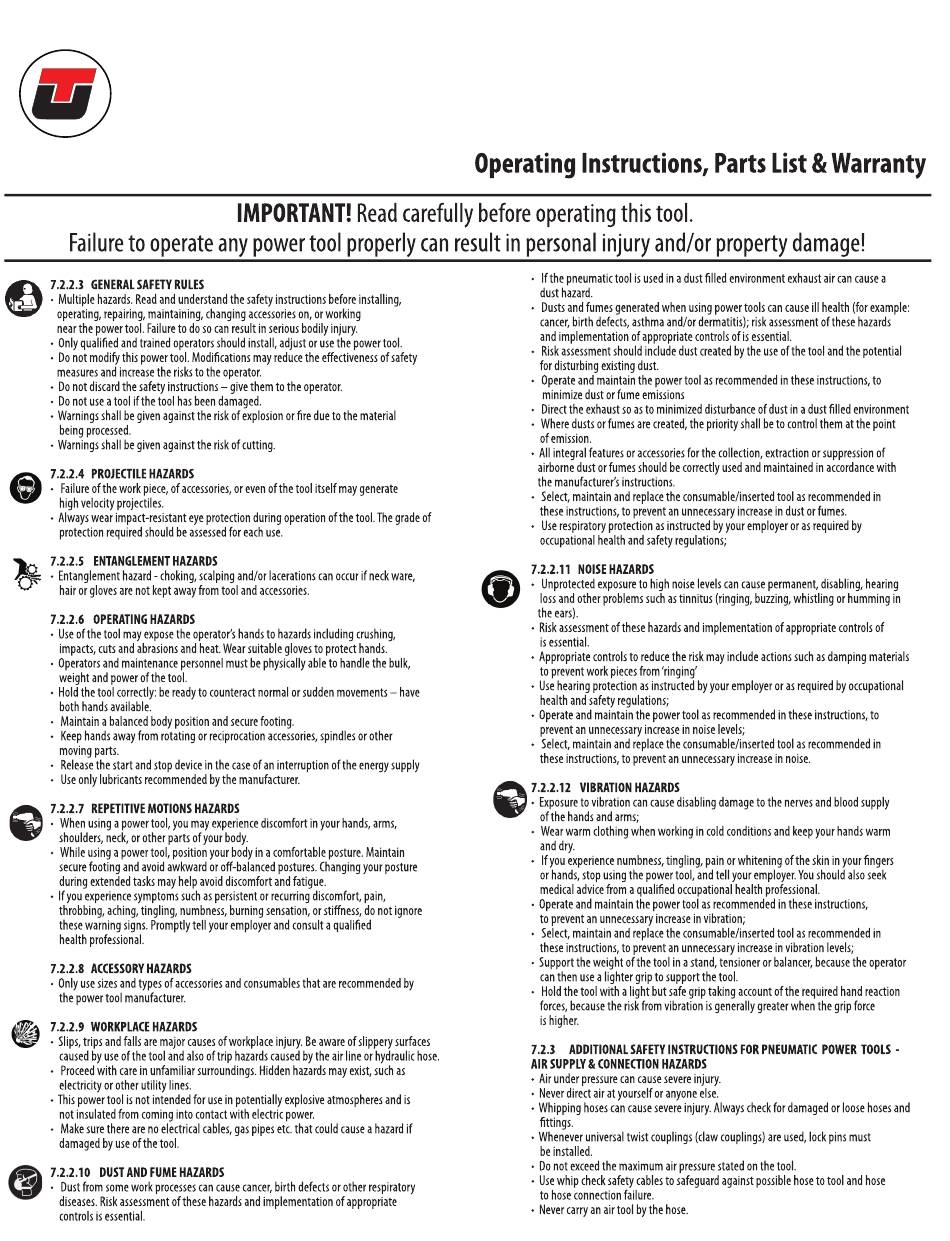

- Page 1 MODEL: UT8922 Universal Tool 1/4" Air-Hydraulic Riveter ™...
- Page 2 MAINTENANCE CHANGING NOSEPIECES 1. Connect air tool to air line. Pull and hold trigger arm. Unscrew nosepiece and replace with new nosepiece. 2. Nosepiece can also be changed by disconnec�ng air supply and unscrewing the head first, then change nosepiece. 3.
- Page 3 MAINTENANCE (CONT.) Refilling the Hydraulic Section Using oil syringe (part #1179055), unscrew oil plug (ref. #17 / part #9630M5) to refill. Screw syringe into oil port. Begin filling. Unscrew syringe nozzle from Riveter and insert OIL PLUG (#17) back into Riveter; �ghten Oil Plug firmly. Reconnect Riveter to air supply and depress trigger 2-3 �mes.
- Page 4 (lbs) (kg) (in.) (mm) (NPT) (id.in.) (cfm) (cfm) Model UT8922 3/32", 1/8", 3/16", 1/4" 3500 Up to 1/4" Stainless 13.25 1/4" 3/8" Recommended Air Pressure of 90 psi - 6.2 bar AIR TOOL SETUP Tools of this class operate on a wide range of air pressure. It is recommended that air pressure of these tools measures 90 PSI at the tool while running free.
- Page 5 MODEL: UT8922 Universal Tool 1/4" Air-Hydraulic Riveter Exploded View & Parts List ™ STANDARD ACCESSORIES : Index P/N Description 9480018 1/8" Nosepiece 9480532 5/32"Nosepiece 9480316 3/16" Nosepiece 910508 Jaw (3) 21 955007T Pusher Tube (for 3/16") 22 955080 Pusher Tube (for 1/8",5/32")
- Page 6 Warranty Limited Warranty: Universal Tool warrants its tools to be free from defects in material and workmanship for one year from the date of Tool or its authorized service centers. If a UT tool proves defective in material or workmanship within one year after purchase, return it to any authorized service center or Universal Tool freight prepaid.
