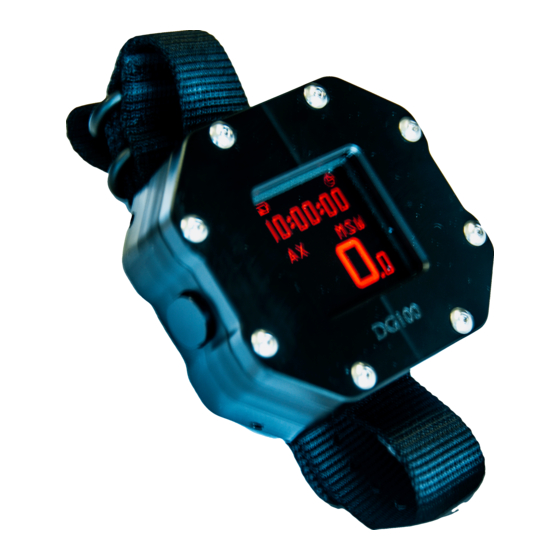

DG100 Digital Depth
Gauge and Timer
Training Module, Rev B

Advertisement

loading
Need help?

Need help?

Do you have a question about the DG100 and is the answer not in the manual?

Questions and answers

Summary of Contents for RJE Technologies DG100

  • Page 1 DG100 Digital Depth Gauge and Timer Training Module, Rev B...
  • Page 2 DG100  Digital Depth Gauge  Dive and Surface Timer  Stopwatch Mode  Designed for  Military Divers  Combat Swimmers...
  • Page 3 DG100  Used as a Replacement for Analog Depth Gauges  Instrumentation for Combat Swim Boards  TAC-300  TAC-100 and TAC-200...
  • Page 4 DG100 Features  Easy to Read Display  Large Function Buttons  Rugged Design  Max Depth Memory Recall  Adjustable Max Depth Alarm  Low Battery Indicator...
  • Page 5 DG100  Depth Gauge  Charging Cable  A/C Charger  Instruction Sheet and  Manual are Online: www.rjeint.com...
  • Page 6 DG100 Options  Charging Module  AC Adapter...
  • Page 7 DG100 Key Specifications  Depth Range: 0-330ft (0-100m)  Accuracy: Typical 1% of given range  Depth Resolution: 0.1ft (0.1m)  Battery: Rechargeable, 300 Cycles  Operational Life on Full Charge:  16 hours on low brightness  12 hours on high brightness ...
  • Page 8 DG100 Display and Controls...
  • Page 9 Functions of DG100  Controlling the DG100  All functions accessed by using “A” or “B” Buttons  “Short Press” is 2 seconds or less  “Long Press” is 3 seconds or longer  “Operation Menu”  Can only be accessed in “Surface Mode”...
  • Page 10 Functions of DG100  “Dive Mode”  Once unit senses 3ft (1m) of water depth  Timer starts and dive time is displayed  Current Depth is displayed  Deepest Depth is recorded  Deepest Depth can be displayed ...
  • Page 11 Functions of DG100  “Surface Mode”  Short Press any Button on Surface  Once unit is in 3ft (1m) of water or less for 60 seconds after a dive  Surface timer is activated and displays for up to 24 hours ...
  • Page 12 Max Depth Indicator  Can be set in 3ft (1m) increments  Default setting is 30ft (9m)  The “MAX” status will illuminate when DG100 exceeds set depth  Can only be reset by starting a new dive or in maintenance mode...
  • Page 13  Timer displays in hours:minutes:seconds  Switches to Surface Timer once DG100 is in 3ft (1m) of water or less for 60 seconds or more  Surface Timer tracks for up to 24hours and is reset on the next dive ...
  • Page 14 Keep Pin Contacts clean  Battery Information  DG100 is powered by Lithium Ion Battery (just like a cell phone)  Can be charged over 300 times for over 4,800 hours of dive time  Up to 16 hours of use between charges...
  • Page 15 DG100 Maintenance  Battery Charging  Battery is charged through “Pins” in the back of the unit  Connect Battery Charging cable to the back of the unit using insert as a guide.  Plug USB connector into the AC Charger ...
  • Page 16 DG100 Maintenance  Battery Charging  Can use computer to charge gauge  Battery health indicator will flash while in charging mode  90% charge in 2-3 hours. Full charge in 6 hours  Press “A” Button to update Battery Health Indicator...
  • Page 17 DG100 Maintenance  Using the Operations Menu  Long Press “A” Button to access menu  Short Press “A” Button to scroll menu  Short Press “B” Button to change the setting  Brightness  Set Surface Brightness of OLE Display ...
