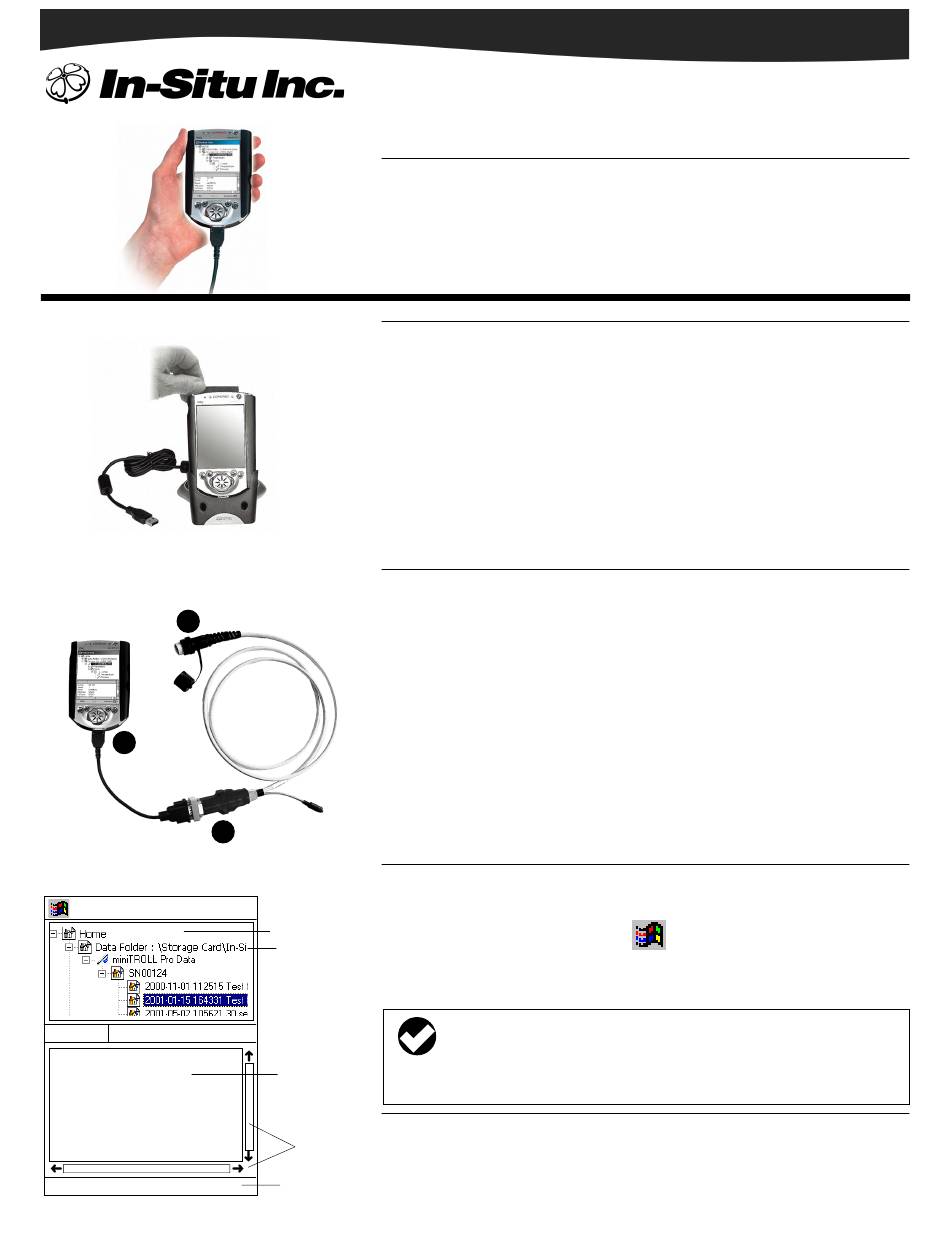

In-situ POCKET-SITU Instruction Sheet

1
Communication/
power cable
3
Serial
adapter cable
2
Pocket-Situ 1.00 8:00a
In-Situ Inc. MiniTROLL Pro
Report Generated: 05/14/01 15:09:33
Report from File: ...\SN00124 2001-
Pocket-Situ Version 1.00
Serial number: 0000124
Firmware Version 2.3
Graph View...
POCKET-SITU
GETTING STARTED
SET UP THE COMPAQ POCKET PC
You will need—
• Compaq Aero or iPAQ with power accessories and Microsoft® ActiveSync™ CD
• CompactFlash card (CF card) programmed with Pocket-Situ
• For iPAQ: CompactFlash Expansion Pack
1. Charge the Pocket PC battery.
2. Remove the CompactFlash slot cover and insert the CF card into the slot, pinhole
edge first, printed label toward the screen. Press firmly to dock.
3. To transfer extracted data files from the Pocket PC to a desktop PC you will need
to install ActiveSync on the desktop computer.
CONNECT TO THE IN-SITU INSTRUMENT
You will need—
• In-Situ instrument with submersible cable attached, or HERMIT 3000
• In-Situ communication/power cable (miniTROLL cable shown) or HERMIT
3000 comm cable
• Compaq Pocket PC with Pocket-Situ CompactFlash card installed
• Compaq serial adapter cable
1. Submersible instruments: Mate the round connector on the communication/power
cable to the similarly-shaped connector on the instrument's submersible cable.
HERMIT 3000: Connect the comm cable to the HERMIT's RS232 port.
2. Plug the communication/power cable into the Compaq serial adapter cable.
3. Plug the serial adapter cable into the communication port on the Pocket PC.
START POCKET-SITU
1. Turn on the Pocket PC.
Navigation tree
2. Using the stylus, tap the Windows logo
Data folder
3. Tap Pocket-Situ. The Connection Wizard starts. For complete information, see the Win-
Situ 2000 Operator's Manual.
TIP: A CF card programmed for the processor in an Aero will not run Pocket-Situ in an
iPAQ, and vice-versa. Indications: Pocket-Situ does not appear on the Start Menu, or you
get the message "Pocket-Situ is not a valid Windows CE application." In this case, go to
Information
our web site at www.in-situ.com, click on the Downloads page, select Pocket-Situ, and
Pane
follow the instructions to install the version required by your Pocket PC processor.
VIEWING DATA
Scroll
After extracting one or more tests from your In-Situ instrument to the Pocket PC, a
bars
Data Folder will be accessible in Pocket-Situ. The Data Folder has a node for each
Actions
device type (e.g., miniTROLL Pro Data). Device nodes are further subdivided by
device serial number. The serial number node contains the extracted test data.
Instruction Sheet
TM
to display the Start Menu.
Software
