Summary of Contents for Kathrein FKP 100

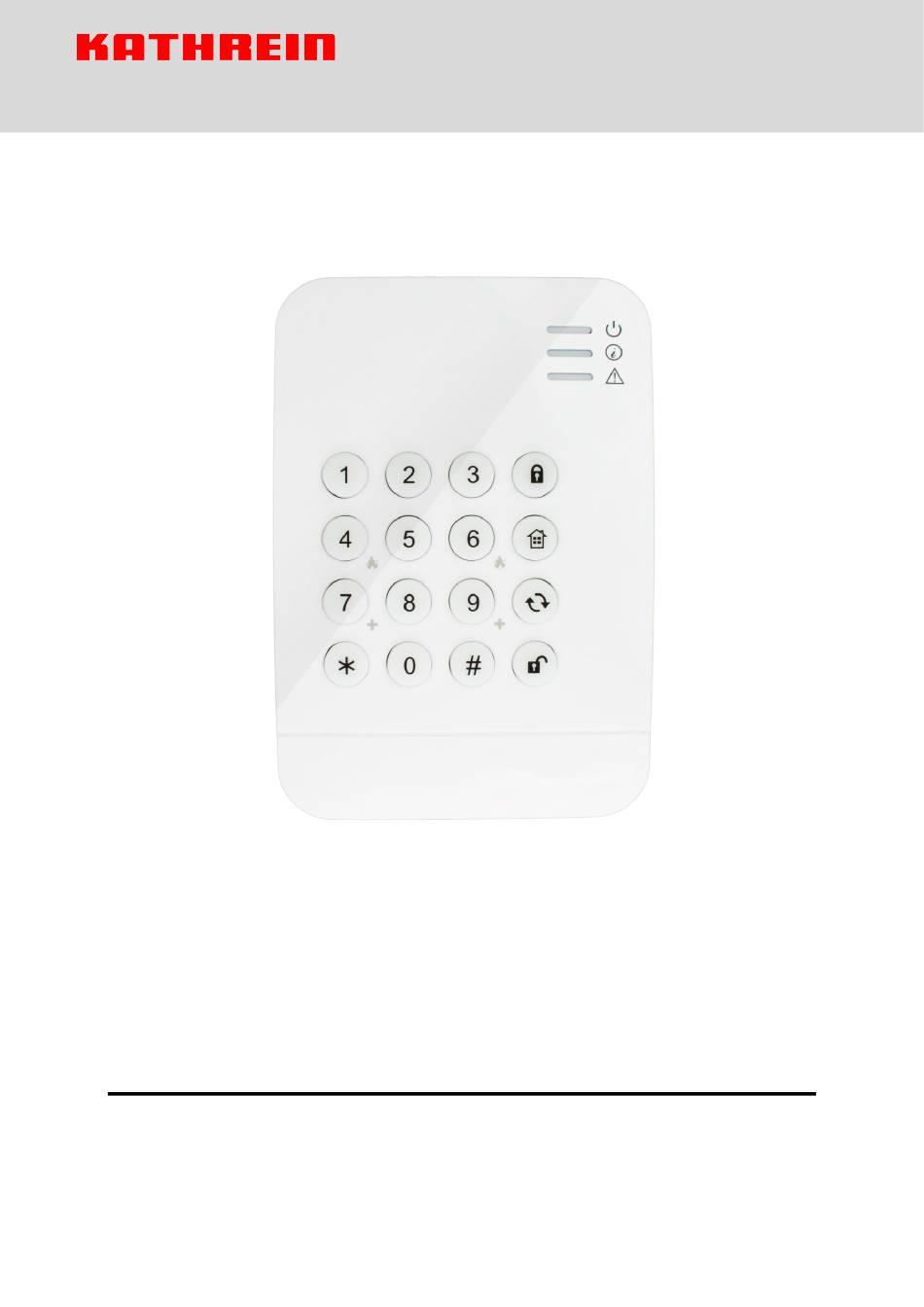

- Page 1 FKP 100 2220000007 Keypad User Manual...
- Page 2 In addition, KATHREIN Digital Systems GmbH reserves the right to change the product and the manual without prior notice. We do not assume any guarantee with regard to the content of this document.
- Page 3 TO MINIMISE THE RISK OF ELECTRIC SHOCK, YOU MUST NOT EXPOSE THIS PRODUCT TO WET AND MOIST CONDITIONS AT ANY TIME. All KATHREIN Digital Systems GmbH products are lead-free and meet the requirements stated under the European Directive on the Restriction of Hazardous Substances (RoHS).
- Page 4 The warranty claim will expire in such cases! The keypad FKP 100 is equipped with a high-quality housing. However, please observe the following safety instructions: • Operate the keypad only with the provided batteries.
- Page 5 Malfunctions and Defects If you notice any kind of defect, remove the batteries from the keypad FKP 100 and contact your retailer or KATHREIN Digital Systems GmbH directly. Any further usage of the system may lead to fire or electric shock!
- Page 6 Keypad FKP 100 Product description: 1. Power LED 2. Status LED 3. Error LED 4. Arm 5. Home 6. System status 7. Disarm 8. Pound key # 9. Star key * Installation mode = Installation PIN + * 10. Emergency alarm: 7 + 9 (simultaneously) 11.
- Page 7 • Status LED (allows you to check the status of the alarm panel): If you press the status button of the keypad, the status LED will display the current status of the alarm panel: LED lights up red: alarm panel is in arm mode LED flashes red: alarm panel is in home mode LED lights up blue:...
- Page 8 Connecting the keypad to the alarm panel: 1. Enter the installation mode of the keypad by entering the installation PIN (default: 0000) and pressing the * button. The power LED will light up orange. 2. Open the web interface of the alarm panel, go to the menu “Sensors” “Add” and press “Start”.
- Page 9 Dual key functions: The keypad features pre-defined dual key commands that allow you to trigger a fire, panic, or medical alarm without entering a PIN code. To activate the dual key functions, please proceed as follows: Enter the installation mode of the keypad (default 0000 + *). The power LED lights up orange.
- Page 10 • Depending on the used PIN code, the keypad can control both areas. • In the menu “Settings” “Panel” “General settings” a “PIN code protection” can be activated. After five incorrect PIN code inputs, the keypad is locked for 15 minutes. Change the standard PIN code (1234) as well as the installation PIN code (0000) of the keypad to ensure that no one else can control your alarm panel!
-
