Summary of Contents for Unimac DMJ-700C-3

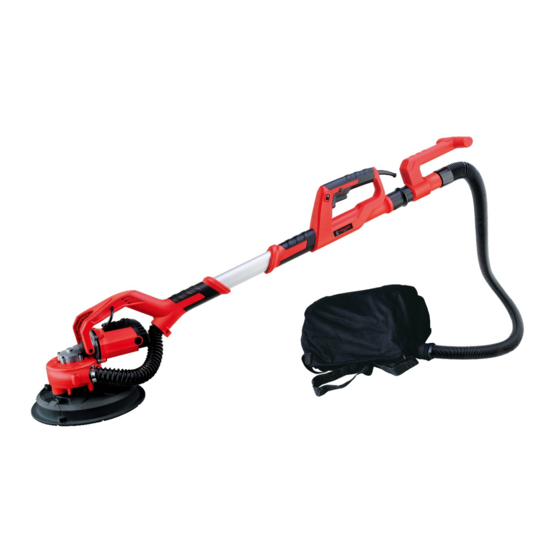

- Page 1 DRYWALL SANDER DRYHHSUMCA1M8 Instruction manual...
-
Page 2: Safety Regulations
Safety regulations Warning! Read all warnings and all Instructions! Don't observe the following warnings and instructions and the use or operation would result in electric shock, fire and / or serious injury. The term "in all of the following are warning of electric tools"... - Page 3 Damaged or twisted cords will increase the risk of electric shock. e) When using the power tools in the outdoors, used for outdoor use external flexible cords. Suitable for outdoor use will reduce the risk of electric shock. f) If it is inevitable operation electric tool in a moist environment, should use the residual current operated protective devices (RCD).
- Page 4 gloves and the hair away from moving parts. Loose clothes, accessories or long hair may be involved in the movement of parts. g) If the device is provided with the dust collecting equipment connected with the chip set, to ensure they're connected and properly used. The use of these devices can reduce the risk of dust caused by.
- Page 5 g) According to the manufacturer's instructions, consider the work conditions and work to use power tools, accessories and tools of the knife head. The electric tool for those with different purposes may lead to dangerous. 5) Repair a) The electric tool you sent to the professional repair personnel, the use of the same parts repair.
-
Page 6: Installation
Use the machine in accordance with the provisions of DMJ-700C-3 drywall sanders, series motor driven by the characteristics of light weight, high power, high efficiency, easy operation, safety etc， suitable for building plaster wall, ceiling of lime walls and painted on the wall dry grinding, and the polished wooden floor and a large area of steel rust. -
Page 7: Assemble Instruction
sure to pull out the plug from the socket. Assemble instruction a. Unpacking status shown on below picture b.Support arm Installation shown on below picture (Insert support arm to the plastic clamp, insert and tighten screws into both left and right support arm with hex spanner). - Page 8 Choose sanding paper According to the material and the grinding effect, select the appropriate sandpaper Material using Grit –Pigment Removal of the pigment – Paint –Filling agent Grinding bottom pigment (such as finishing bottom) –Interstitial material Brush paint, grinding residues 100 Pigment layer drips and convex Flat bottom material for painting The replacement of sanding paper...
- Page 9 The replacement of grinding disk stuck The output shaft is inserted into the adhesive disc center with six angle wrench clockwise rotation angle in the six hex hole, and at the same time, the hands hold the adhesive disc grinding, grinding disc can be remove adhesive To connected with the dust collecting bag In order to protect the operator to reduce dust suction and site cleaning process at work, in the work process please connect the machine with dust...
- Page 10 Sanding wheel speed regulation The sanding of the grinding disk rotation speed can be adjusted according to different conditions and grinding quality requirements. The telescopic pipe According to the needs of different grinding position, can be the length of the machine to adjust between 1100-1800mm.
-
Page 11: Maintenance
Angle Grinding In order to do side grinding work, take off the front part of plastic disc with screw driver. If necessary to raise height of sanding disc, you can put an extra ring on output shaft. Maintenance Keep tools clean, clean up debris and dust. Often add in lubricating oil and grease (reducer, bearing) to keep the tool... - Page 12 flexible operation. Always check the power cable, plug, switch, so that the tools in good condition. Power tools produced by the company are quality inspection Strict, if the machine still occurs failure, please repair the machine to the authorization of the customer service department Carbon Brush replacement The accessories includes an original set of carbon brush, when the carbon...
- Page 13 DMJ-700C-3 Exploded View...
- Page 15 ©2018 Unimac. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
