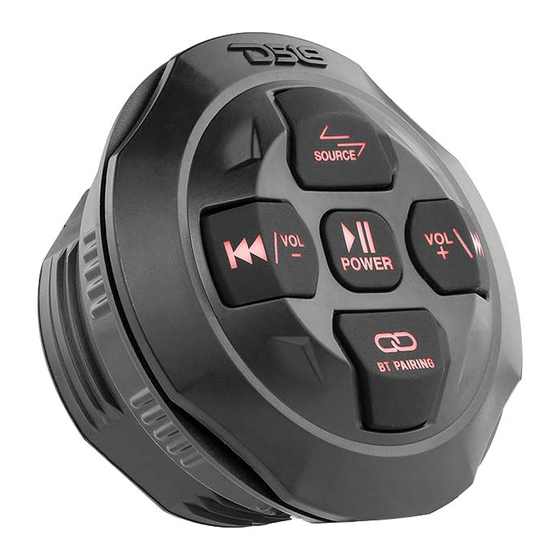

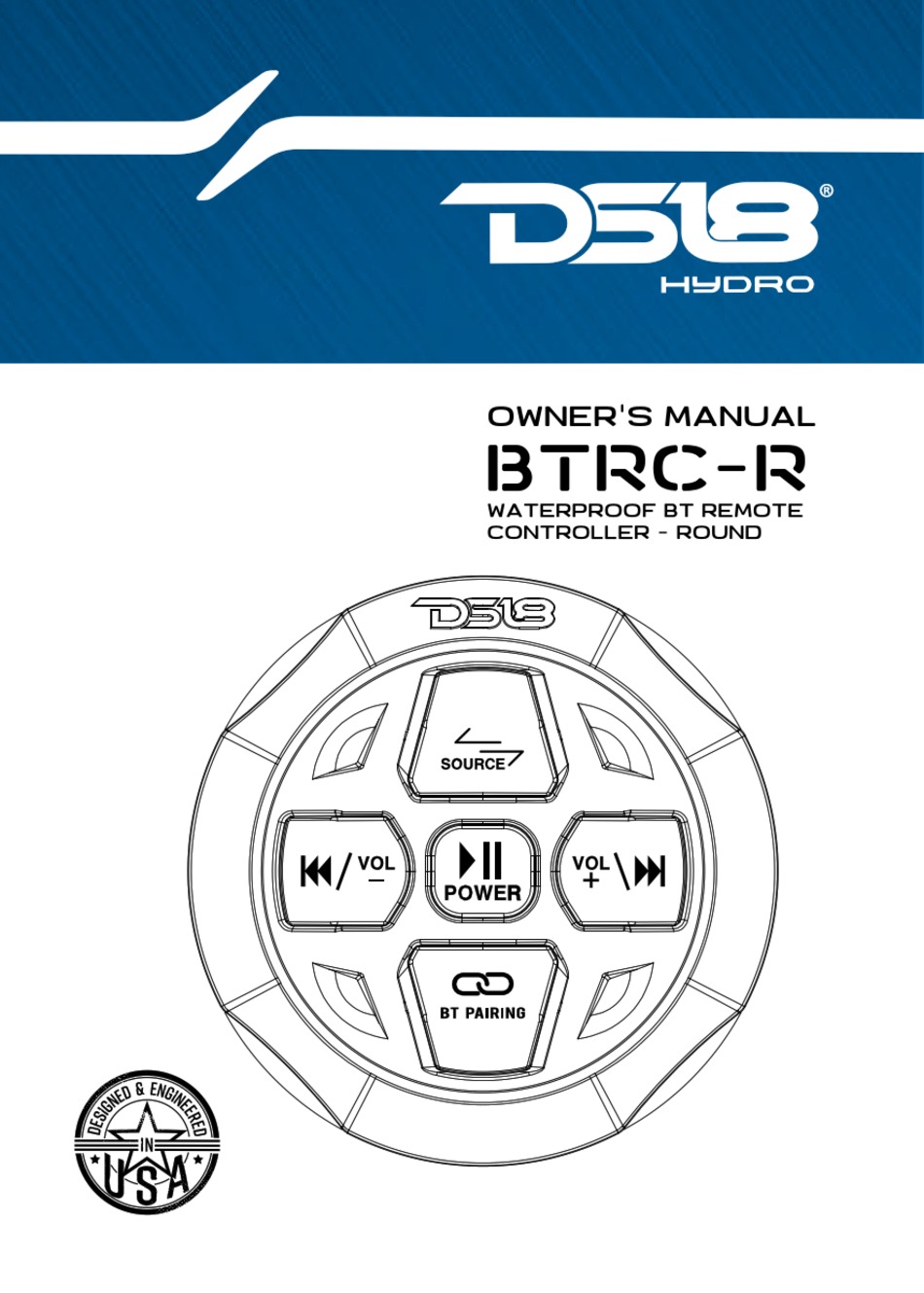

- Page 1 OWNER'S MANUAL BTRC-R WATERPROOF BT REMOTE CONTROLLER - ROUND...
-
Page 2: What's Included
BTRC-R Congratula�ons on the purchase of the BTRC-R. It has been designed, engineered and manufactured for the highest level of performance and quality. FEATURES Waterproof universal BT remote controller. General: IPX6 Inputs & Outputs: USB Port Illuminated Controls USB Charging (1A) - Page 3 Line out-L Line out-R AUX Input Blue / Remote Red / Acc BLACK Fuse:5A YELLOW Universal BT DC12V(+) Remote Controller Recommended wiring with fuse (parts are not included) DC12V(-) Grounded to metal chassis, or directly to negative polarity of battery. OPERATIONS CONTROLS RCA Pre-Output: Audio Signal to the external amplifier...
- Page 4 BTRC-R CONTROLS FUNCTION BT/AUX/USB Switch Short Press Short Press Previous Song Next Song Press And Hold Press And Hold Volume Down Volume Up Play / Pause Press Hold = On/Off Disconnect Bluetooth NO CONTROL FUNCTION Short press for Play / Pause Long press 3 seconds for On / Off...
-
Page 5: Function Definition
When BT is connected, the blue light will always be on, Connec�on and the volume synchronized with the phone. BT device name: “DS18-BTRC” BT will be disconnected if exceed the receiving range. The background light flashes quickly when BT is in Auto searching situa�on, and wai�ng for connec�on. -
Page 6: Installation
BTRC-R INSTALLATION SEAMLESS FLUSH MOUNT MEASUREMENTS: Overall Diameter: ....3.7” / 96mm Overall Depth: ...... 2.43” / 61.9mm Mounting Hole Diameter: ... 2.87” / 73mm Mounting Depth: ....1.85" / 74mm SPECIFICATIONS: Frequency response: ...... 20Hz-20Khz Signal to noise ratio: ....... - Page 7 FOR MORE INFORMATION PLEASE VISIT DS18.COM We LIKE IT LOUD...
