SA-90/91
Piezo Siren & Strobe
Installation Manual

1. Introduction

The SA-90 and SA-91 are members of Rosslare's family of wireless and
hardwired sirens that work with all intrusion and fire control panels.
Table 1 describes the different available models.
Table 1: Model Description
Model
SA-91 Hardwired Piezo Siren & Strobe
SA-90G 433.92 MHz Wireless Piezo Siren & Strobe
SA-90H 868.35 MHz Wireless Piezo Siren & Strobe
These are large, inexpensive sirens, with three piezoelectric sounders and
an ultra bright strobe LED array ideal for residential, commercial, and
institutional applications. The featured and stylish design is intended for
indoor and outdoor installation, and is perfect for locations where both
aesthetics and performance are required, such as private homes, store
fronts, medical facilities, and financial or manufacturing institutions.
The SA-90 and SA-91 sirens require no separate power supply; they are
powered and activated from the hosting control panel.
The SA-90 is activated when an alarm occurs by a wireless alarm system
or wireless expansion module, after being enrolled to the system.

2. Technical Specifications

2.1 Electrical Specifications
Model SA-91
Type Hardwired
Siren Type
SPL
Strobe Type
Tamper
Operating 10 VDC ~ 18 VDC
Voltage (13.8 VDC from panel)
Standby 25 mA
Current
Max Battery 150 mA (BT05 12 VDC and 800 mA)
Charge Current
Max. Alarm 180 mA (without sounder)
Current
360 mA (with sounder)
Functions
SA-90
SA90G: 433.92 MHz Wireless
SA90H: 868.35 MHz Wireless
Piezoelectric
105 dB/100 cm
Ultra bright LED Array
Cover and Wall
15 VDC from adaptor
50 mA
210 mA (without sounder)
390 mA (with sounder)
The SA-91 needs to be connected to the system's siren output to be
activated when an alarm occurs.
The SA-90 and SA-91 sirens come in blue (L) and amber (A) as shown in
Figure 1.

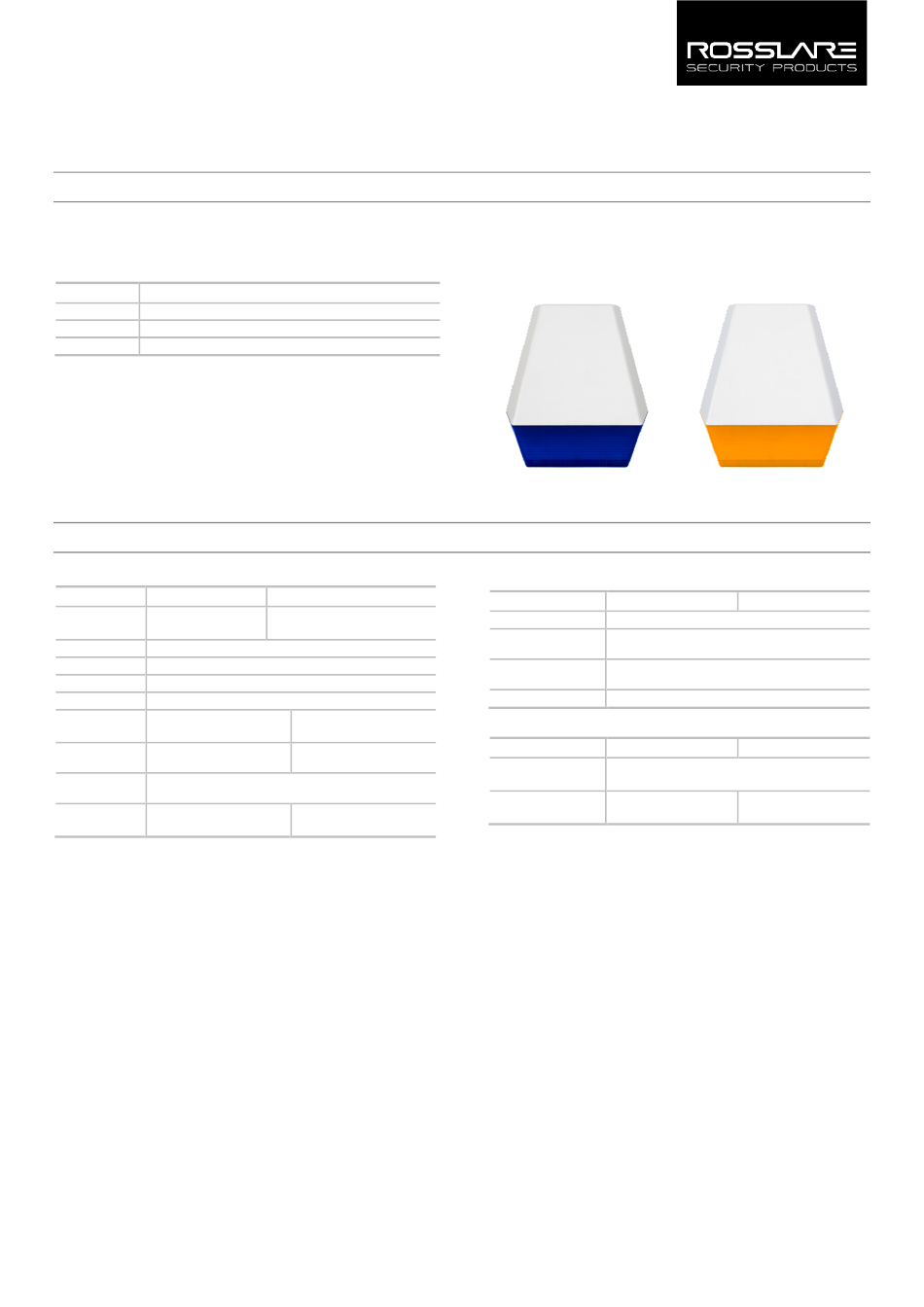

Figure 1: SA-90 and SA-91
SA-90L/91L
2.2 Electrical Specifications
Weatherproof
Operating
Temperature
Storage
Temperature
Operating Humidity
2.3 Physical Specifications
Dimensions
Weight (without
battery)
1
January 2013
SA-90A/91A
SA-91 SA-90
IP65
-20˚C to 50˚C (-4˚F to 122˚F)
-40˚C to 70˚C (-40˚F to 158˚F)
0% to 95% (non-condensing)
SA-91 SA-90
280.4 x 244.8 x 59.0 mm
(10.9 x 9.6 x 2.4 in.)
650 g 670 g
(23 oz.) (24 oz.)
