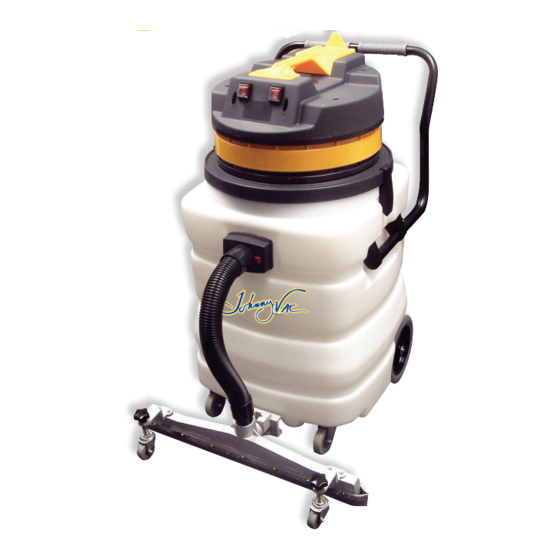

Johnny Vac JV420HD2 User Manual

Johnny Vac JV420HD2 User Manual

Wet & dry commercial vacuum cleaner

Advertisement

Quick Links

U S E R G U I D E
JV420HD2
Wet & Dry Commercial Vacuum Cleaner

Advertisement

loading
Need help?

Need help?

Do you have a question about the JV420HD2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Johnny Vac JV420HD2

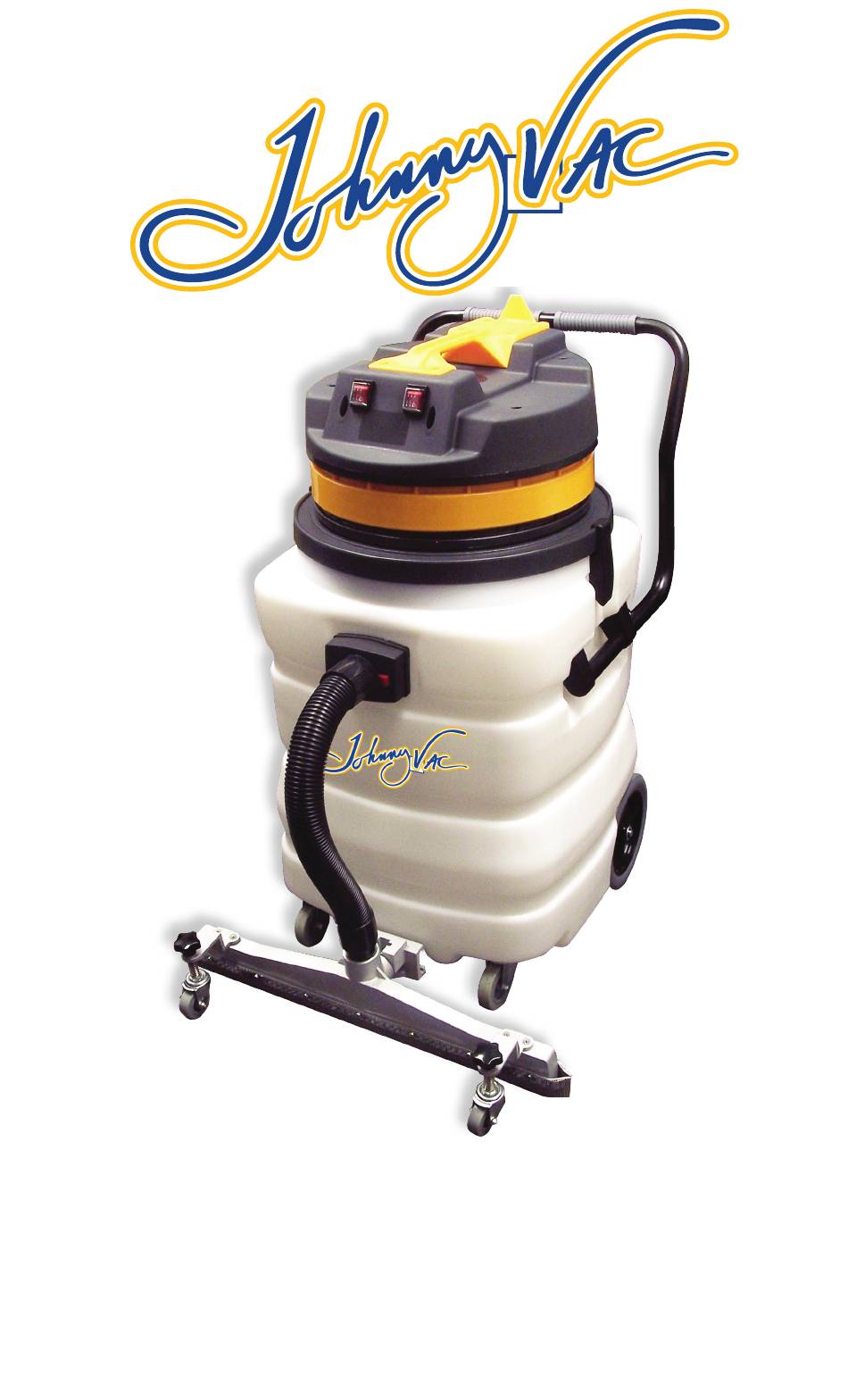

  • Page 1 U S E R G U I D E JV420HD2 Wet & Dry Commercial Vacuum Cleaner...
  • Page 2: Table Of Contents

    JV420HD2 User Manual Table of contents: 1- Product description ........... 3 2- Safety rules and cautions .......... 4 3- Operation instructions ..........5 4- Product overview ............6 5- Exploding view ............7 6- Technical specifications ..........8 7- Common troubleshooting solutions ......9 8- Packaging Content List ..........
  • Page 3: 1- Product Description

    • Self-stop device to avoid motor burning after taking too much water • Broad operation scale due to 7.2 M power cord. • Wet and dry suction functions, suitable for cleaning places such as hotels, workshops, restaurants, etc. JV420HD2 User Guide...
  • Page 4: 2- Safety Rules And Cautions

    • While cleaning machine, a wet cloth is needed and top part with motor mustn’t be immersed in water • Caustic cleansers, like gasoline or isoamyl acetate, are not allowed in case of any surface crack. UNINTERRUPTED WORKING TIME SHOULDN’T BE BEYOND 2 HOURS, TO AVOID A SHORTENED SERVICE LIFE. JV420HD2 User Guide...
  • Page 5: 3- Operation Instructions

    1. Make sure hose, metal wand and squeegee brush (or mobile squeegee brush) are well installed. 2. Take out filter bag and check if direction of the power switch is in the same direction as the inlet block. 3. Switch on the machine and start cleaning wet locations. JV420HD2 User Guide...
  • Page 6: 4- Product Overview

    4. Product Overview JV420HD2 1. Mobile squeegee brush 4. Machine end cuff 7. Metal wand 2. Suction hose 5. Squeegee brush 8. Crevice tool 3. Handle end cuff 6. Floor brush 9. Dusting brush JV420HD2 User Guide...
  • Page 7: 5- Exploding View

    5. Exploding View 15- Retaining base washer JV420HD2 16- Lock ring 17- Float cage holder 18- Float cap 19- Float 20- Float cage 21- Filter bag rack 22- Filter bag 23- Tank clip 24- Plastic tank 25- Square hose holder...
  • Page 8: 6- Technical Specifications

    6. Technical Specifications • ITEM CODE JV420HD2 • POWER OF SUCCION 1600W • WATERLIFT 86” • CAPACITY 22 gal. • HEIGHT 95 cm • TANK DIAMETER 44 cm • CFM • FUNCTION Wet / Dry Vacuum • VOLTAGE 110 V - 60 Hz •...
  • Page 9: 7- Common Troubleshooting Solutions

    8. Packaging Content List • Cleaning vacuum • Suction Hose • Dry Intake Nozzle • Metal Wands (2) • Round Brush • Crevice Tool • Floor Brush • Squeegee • User Guide JV420HD2 User Guide...
  • Page 12 Residential and commercial vacuum cleaner specialist PARTS, ACCESSORIES & VACUUM BAGS VISIT OUR WEBSITE AT WWW.JOHNNYVAC.COM...
