HOLOSUN TUBE HS406A1 User Manual

TUBE
HS406A1
Red Dot Sight
User's Manual
www.holosun.com
Important notices
1. Ensure that the firearm is completely unloaded and safe
before device installation, sighting in, installing a new
battery, or any other adjustment.
2. Always ensure that the muzzle of the firearm is pointed in a
safe direction when replacing the battery.
3. Please keep the packaging should you need to make a
warranty claim.
Battery
1. The operating voltage for this device is DC3V using one
high quality CR2032 Lithium battery included with
purchase.
2. The high quality battery can power the device for up to
30,000 hours. Caution: The battery is not rechargeable.
3. Battery replacement:
1) Removing the battery (Fig 2-1):
3

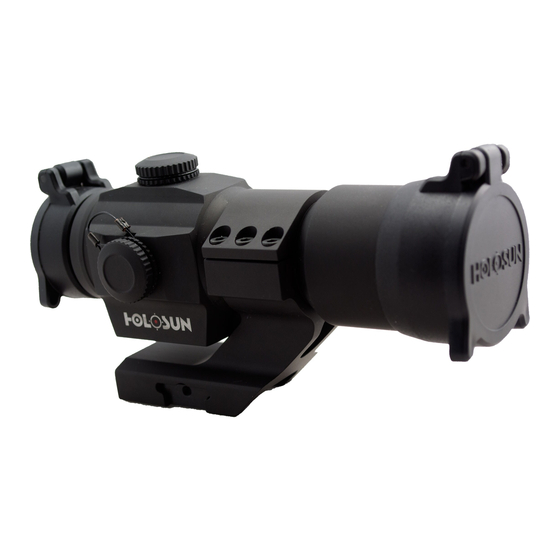

Thank you for purchasing this product from HOLOSUN , the
TUBE HS406A1 is a monocular red dot sight. Please read the
User's Manual carefully before operation.
Features
1. Covert aiming: When aiming, the red dot is projected within the
sight so no light can be detected by the target. Unlike a laser sight
that appears as a dot that can be seen on and by the target.
2. Full field of view for target acquisition: The user can gain rapid
target acquisition and situational awareness while aiming with
both eyes open.
3. Low power consumption: Only a few micro-amperes of current
are required for sight operation. Sight runs on one battery for up
to 30,000 hours. When battery replacement is required, the
battery compartment access through the battery tray.
4. Motion power on: The sensitive motion sensor will turn the power
on with any motion detection.
5. Parallax free optical system: Parallax is ≤± 1MOA.
1
Screw 1
a) Loosen screws 1, 2.
b) Insert coin or similar
Battery
compart-
object in the battery
ment
Screw 2
tray slot, pry out the
Screw 1
battery tray, and
remove the discharged
battery by lifting it up.
Screw 2 Battery compartment
A tool is provided.
2) Battery installation (Fig2-2):
a) Insert the battery into
Battery
Screw 1
O-ring
Battery compartment
Screw 2
Fig2-2
4
6. Sleep time delay: The sight will be automatically entered into
sleep mode after not being used for 8 hours.
7. Brightness adjustment: There are 12 settings(10 Daylight+2NV)
for the reticle as to match the ambient lighting conditions
8. Memory function: The sight will remember the last saved
brightness setting when powered on and off.
9. Two top mounted buttons: The top mounted buttons allow
for easy operation without obstructing the user's vision.
10. Mounting bracket: Compatible with Picatinny rail.
11. Waterproof: IP67
LAYOUT
Caution:
Slot
The loss or damage of O-ring will
cause water leaking into the battery
compartment and may damage
electronic circuits and the device.
Battery
Installation
O-ring
1. The mounting bracket (Fig 3) is for attaching the sight to the
Fig2-1
weapon. The sight comes with mounting bracket attached.
2. Attaching bracket to the sight:
1) Remove the 6 screws with the hex wrench and remove
the battery tray by
the upper cover.
pushing it down with
2) Mount the sight on the bracket and follow the orientation
the correctly marked
and position which are shown in Fig 4.
polarities, "+" and "-".
3) Attach the upper cover and evenly tighten the 6 screws.
b) Insert and press the
Use thread locker if available.
tray into the battery
3. Mounting the bracket to the weapon:
compartment.
1) The mounting bracket is adaptable to any firearm with a
c) Tighten screws 1, 2.
Picatinny Rail. If the firearm has no Picatinny rail , or
Protective cap
Brightness
increase button
Brightness
reduce button
Battery compartment
Fig1 TUBE HS406A1
2
Screw Upper cover
Clamp
Cross bolt
socket
Fig 3 Mount bracket
5
